TELTONIKA TSW304 COMPACT INDUSTRIAL GIGABIT SWITCH WITH 4 PORTS (TSW304000000)
| Model: | TSW304000000 |
| Detail: | Compact, 4 Ports |
| List Price: | |
| Price: | $71.00 |
| You Save: | $5.00 (7% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

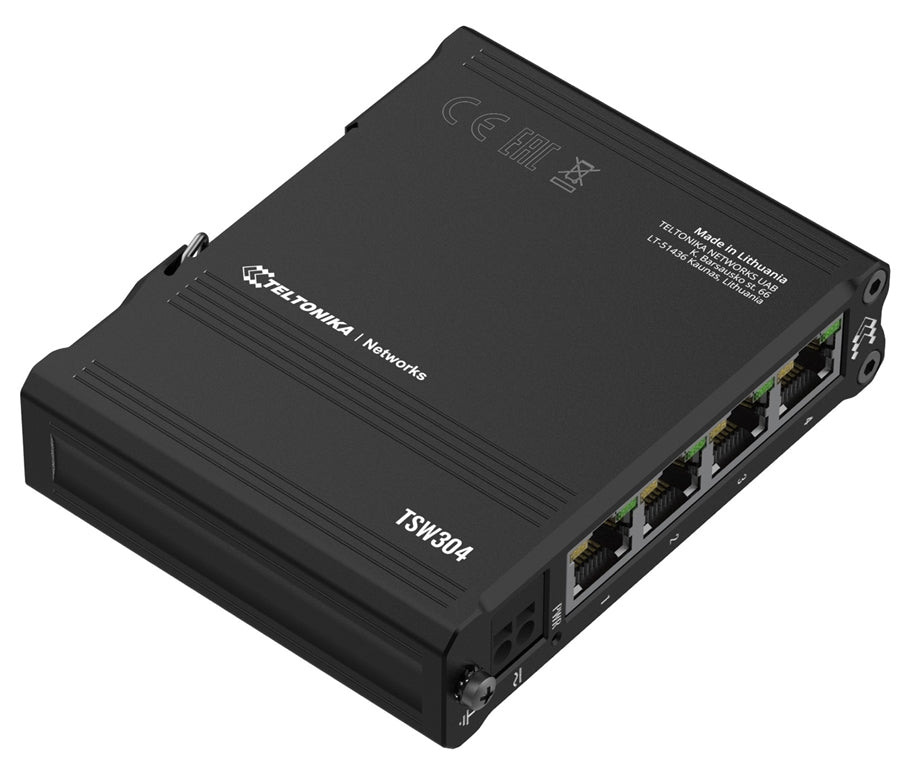

TELTONIKA TSW304 Compact Industrial Gigabit Switch with 4 Ports (TSW304000000)
The Teltonika TSW304 is a compact, unmanaged industrial Ethernet switch featuring four Gigabit Ethernet ports with auto MDI/MDIX crossover, providing seamless connectivity at speeds up to 1000 Mbps. Designed for industrial applications, it supports a wide input voltage range of 7-57 VDC or 9-40 VAC, and offers passive PoE through the first Ethernet port for flexible power options. Its durable aluminum housing and integrated DIN rail mounting bracket ensure reliable performance in challenging environments with operating temperatures ranging from -40°C to 75°C.
Key Features:
- 4 x Gigabit Ethernet ports (10/100/1000 Mbps)
- Wide input voltage range: 7-57 VDC or 9-40 VAC
- Passive PoE support on ETH1 port
- Compact design with integrated DIN rail mounting
Specifications
| MAC Address Table Size | 2K entries |
| Bandwidth (Non-blocking) | 8 Gbps |
| Jumbo Frame Support | 9216 bytes |
| Packet Buffer | 128 KB |
| Power Supply | 2-pin industrial DC power socket |
| Input Voltage Range | 9 – 30 VDC |
| Power Consumption | Idle: 1.5 W / Max: 3.2 W |
| Mounting Options | DIN rail or surface mounting |
| LED Indicators | 1 x Power LED, 4 x Ethernet link/activity LEDs |
| Ingress Protection Rating | IP30 |
| Operating Temperature | -40°C to 75°C |
| Operating Humidity | 10% to 90% non-condensing |
Properties
| Product Name | Teltonika TSW010 (SKU: TSW010) |
| Description | TSW010 is an unmanaged industrial Ethernet switch with five 10/100 Mbps Ethernet ports, designed for reliable network connectivity in industrial environments. |
| Brand | Teltonika Networks |
| Type | Unmanaged Ethernet Switch |
| Product Category | Networking Modules |
| Ethernet Ports | 5 x RJ45 ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, IEEE 802.3az standards, supports auto MDI/MDIX crossover |
| Dimensions (W x H x D) | 113.1 x 27.4 x 80.5 mm |
| Weight | 146.5 g |
| Casing Material | Anodized aluminum housing and panels |
| Certifications | CE, REACH, RoHS, WEEE, UKCA, FCC |
| Safety Standards | EN IEC 62368-1:2020+A11:2020 |
