STAR MICRONICS USB THERMAL RECEIPT PRINTER (TSP143IIU)
| Model: | TSP143IIU |
| Detail: |
Print Speed: 200 mm/sec ,Resolution: 203 dpi, Interface: USB 2.0 Full Speed,
< |
| Price: | $222.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

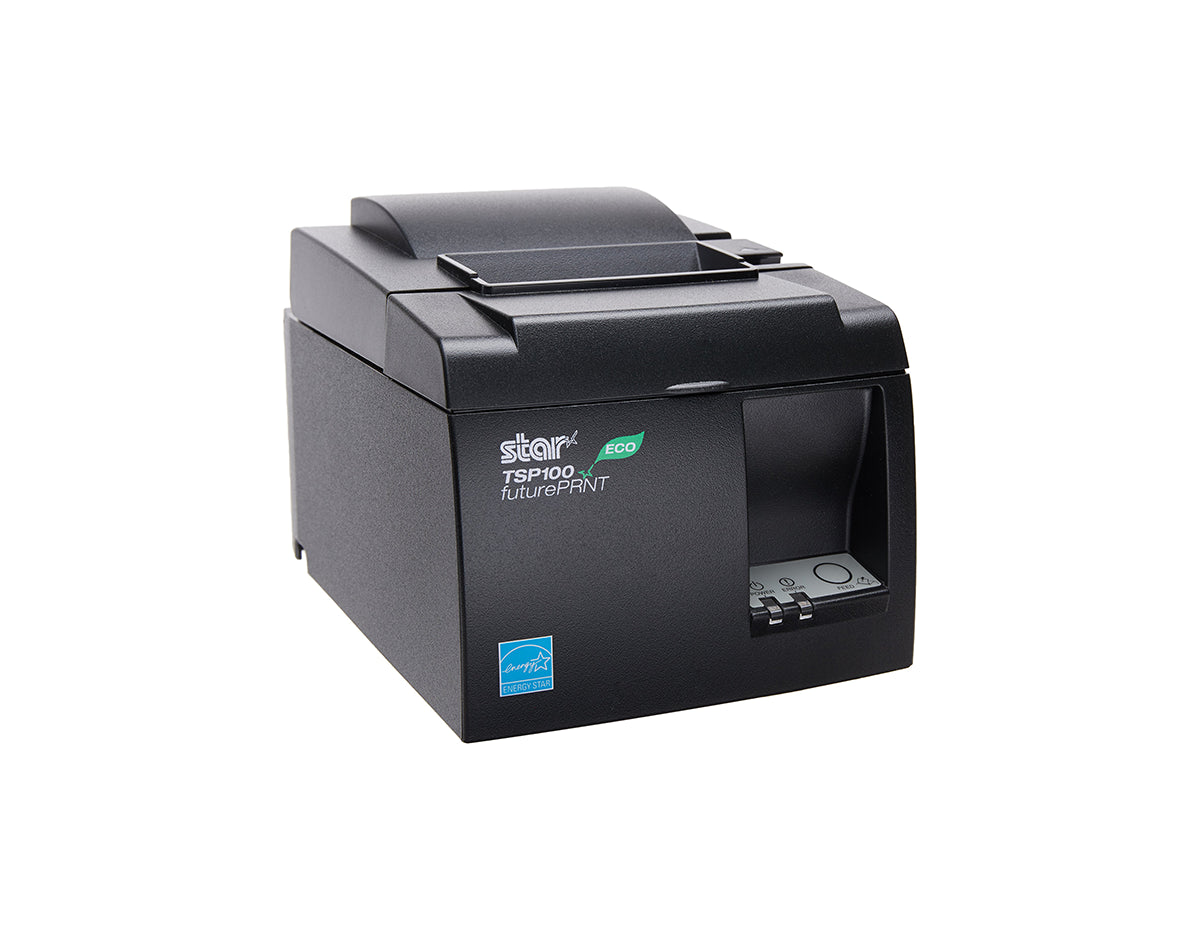

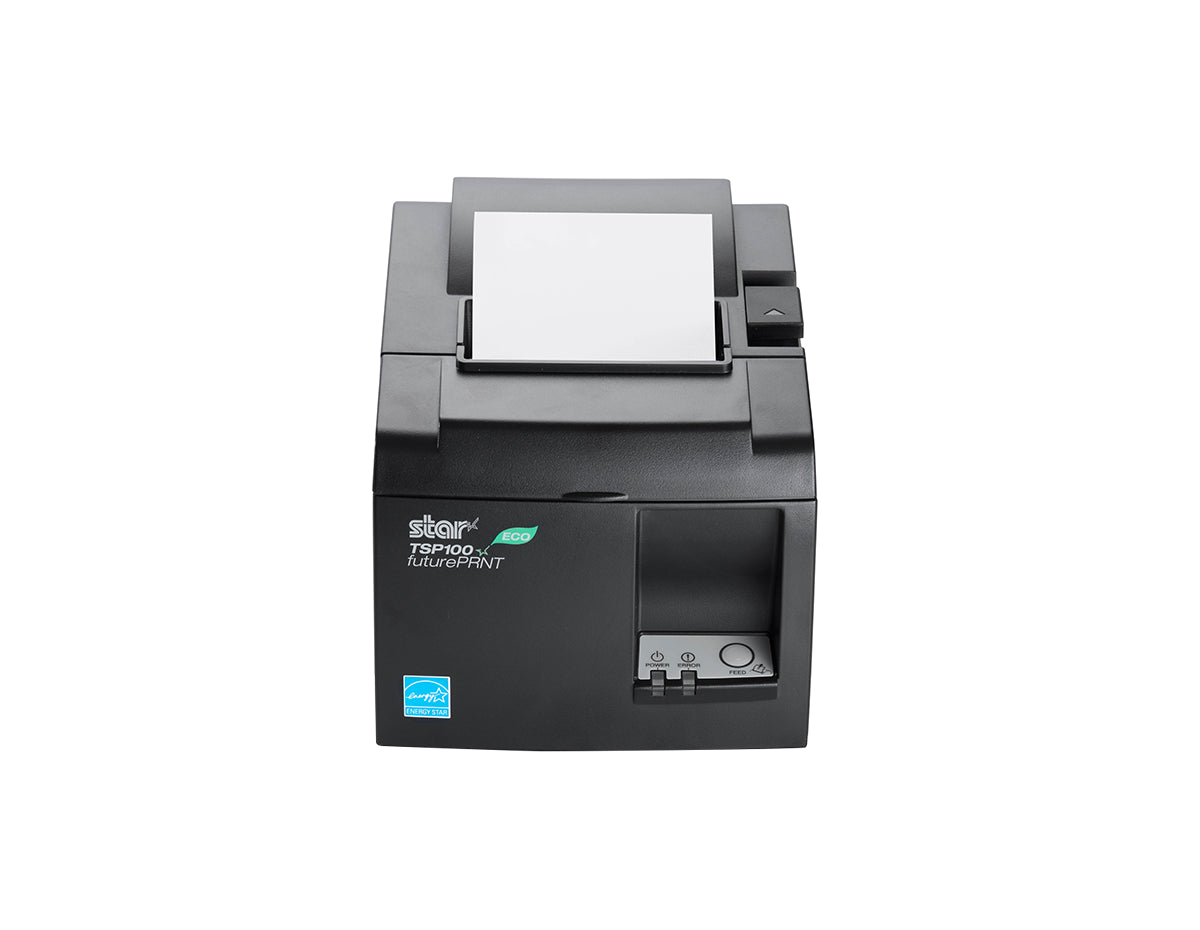

TSP143IIU USB Receipt Printer
The TSP143IIU is a reliable and economical USB receipt printer. Known for its high-quality thermal printing, it offers an easy setup process and includes all necessary accessories. The printer supports a maximum print speed of 200 mm/s and features an autocutter for efficient receipt management. It's compatible with futurePRNT software and is Energy Star certified, making it an environmentally friendly choice.
Specifications
- Max. Print Speed: 200 mm/sec.
- Resolution: 203 dpi
- No. of Columns: 48 / 64 col. Depending on Paper Width
- Autocutter: Partial (Guillotine) Autocutter
- Paper Width: 80 mm (58 mm Using Paper Guide)
- Paper Thickness: 0.053 - 0.085 (TSP100III Series) with flat Paper
- Paper Roll Standard Option: 83 mm
- Print Width: 50.8 mm (58 mm Paper) 72 mm (80 mm Paper)
- Sensors: Paper End, Cover Open
- Interface: USB 2.0 Full Speed with Cable Supplied and “Virtual” Serial Port Emulator.
- Additional Software: futurePRNT driver and Star Cloud Services including digital receipting
- Power Supply: Internal with Power Cable included
- Power Consumption: 1.6 Amps Printing 0.1 Amps Standby
- Reliability: 60 Million Lines 2 Million Cuts
- Dimensions (W x D x H): 142 x 204 x 132 mm
- Weight: 1.56kg - 1.76kg
Technical Details
| Category | Specifications |
|---|---|
| Type | Voucher printer |
| Technology | Thermal direct |
| Print Resolution | 203 dpi |
| Printing Speed (max.) | 200 mm/s |
| Colour | Dark grey |
| Paper | Bon, Breite: 58 mm, 80 mm |
| Interfaces | USB 1x |
| Dimensions (W x D x H) | 142 mm x 204 mm x 132 mm |
| Weight | 1.56 kg |
| Power Supply | Power unit, inclusive |
| Manufacturer | STAR MICRONICS |
| Factory Number | 39472730 |
| Package Weight | 5.8 lb |
| EAN / GTIN | 4951319240808 |
Specifications
| Connectivity | USB 2.0 Type B connector for direct connection to POS systems |
| Certifications | CE, FCC, UL, RoHS compliant |
| Environmental Safety | Complies with RoHS 3 (Directive 2015/863/EU) for hazardous substances |
| EMC Compliance | Meets EN 55032, EN 55024, and FCC Part 15 standards |
| MTBF | >360,000 hours |
| Cutter Life | Auto-cutter rated for up to 1.5 million cuts |
| Print Head Life | Print head rated for up to 100 km of printed receipts |
| Power Supply | Input: AC 100-240V, Output: DC 24V |
| Power Consumption | Operating: 48W, Standby: 2W |
| Operating Noise | <55 dB during printing |
| Firmware Updates | Supports firmware updates via USB connection |
| Paper Loading | Drop-in and print paper loading for easy replacement |
| Deployment | Optimized for countertop installation in POS setups |
| Reliability | Manufactured for high-volume printing environments, with rigorous testing for performance |
| Monitoring | Status indicators for power, error, and paper status |
Properties
| Product Name | TSP143IIU |
| Description | Star Micronics TSP143IIU, a thermal receipt printer with USB connectivity, designed for point-of-sale (POS) systems and retail environments. |
| Printing Method | Thermal line printing |
| Print Speed | Up to 250 mm/sec |
| Resolution | 203 dpi (8 dots/mm) |
| Print Width | 80 mm (3.15 in) |
| Interface | USB 2.0 |
| Cutter | Auto-cutter (guillotine type) with 1.5 million cuts rated life |
| Paper Roll Diameter | Up to 83 mm (3.27 in) |
| Paper Thickness | 0.053 to 0.085 mm |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 10% to 90% RH (non-condensing) |
| Dimensions | 14.2 cm x 20.4 cm x 13.2 cm (5.6 in x 8.0 in x 5.2 in) |
| Weight | 1.72 kg (3.79 lb) |
| Compatibility | Compatible with Windows, iOS, and Android POS systems |
| Usage | Suitable for retail, hospitality, and service industry applications |
| Durability | Print head rated for 100 km of printing |
