Description

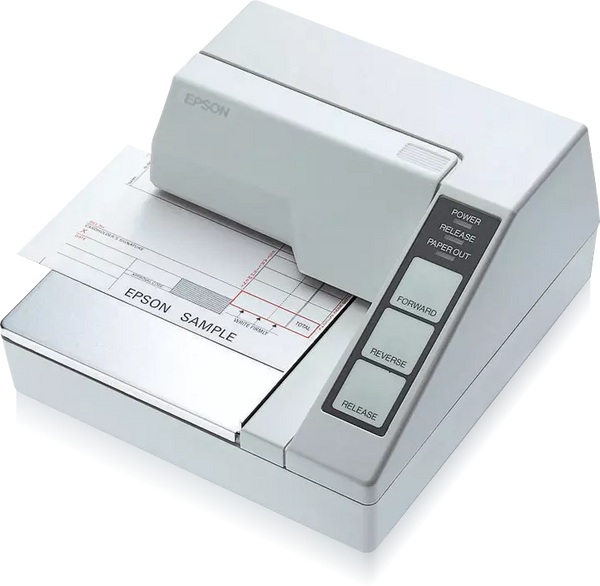

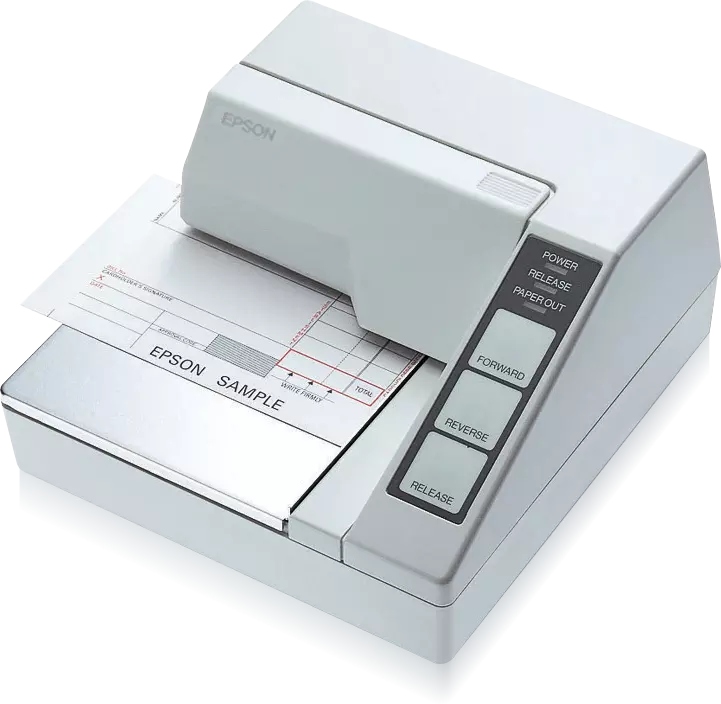

Epson TM-U295 Dot Matrix (Impact) Slip Printer

The Epson TM-U295 is a compact and efficient 7-pin shuttle impact dot matrix slip printer built for businesses that require high reliability and compact footprint. Designed for horizontal installation, it features RS-232 and drawer kick-out interfaces for seamless integration with POS systems. Supporting slip paper with the ability to print one original and two copies, the TM-U295 delivers speeds up to 2.3 lines per second. With a robust print head life of 150 million characters and durable ribbon life, this printer is ideal for transaction-intensive environments such as banking, hospitality, and retail counters.

Key Features:

• Reliable Impact Printing: 7-pin shuttle dot matrix technology for high-performance receipt or slip output
• Fast Throughput: Prints at 1.9 to 2.3 lines per second for efficient service
• Slip Support: Prints on paper sizes from 80 to 182 mm wide and 69 to 257 mm high
• Multiple Copies: Handles two copies plus one original for recordkeeping
• Compact Form Factor: Horizontal design measuring just 180 x 191 x 102 mm
• Durable & Long-Lasting: 7 million lines MCBF and 3 million line printer life
• Easy Integration: RS-232 and drawer kick-out (D.K.D.) interface support
• Form Sensors: Top and bottom of form detection for precise slip handling

Technical Specifications:

• Print Method: 7-pin shuttle impact dot matrix
• Technology: Serial Impact Dot Matrix
• Print Speed: 1.90 ~ 2.30 lines per second
• Column Capacity: 35 cps / 42 cps
• Character Size: 1.6 x 2.9 mm / 1.3 x 2.9 mm
• Character Set: 95 Alphanumeric, 32 International, 128 x 4 Graphic
• Characters Per Inch: 13.5 / 16.2 cpi
• Color Printing: Single Color
• Copy Capability: Two copies plus one original
• Paper Size: 80–182 mm (W) x 69–257 mm (H)
• Interfaces: RS-232, Drawer kick-out
• Data Buffer: 512 Bytes or 35 Bytes
• Power Supply: PS-180 (optional)
• Dimensions: 180 x 191 x 102 mm
• Weight: 1.6 kg
• Installation: Horizontal
• Noise Level: 65 dB(A)
• Humidity: 30% – 85% (operation), 30% – 90% (storage)
• Temperature: 5°C to 40°C (operation), -10°C to 50°C (storage)
• Reliability: 7,000,000 lines MCBF, 180,000 hours MTBF
• Printer Life: 3,000,000 lines
• Ribbon Life: 1,000,000 characters
• Print Head Life: 150 million characters
• Certifications: CE (EMC), TÜV (Safety)
• Sensors: Top of Form, Bottom of Form
• Color: Epson Dark Grey
• What's in the Box: Main unit, Ribbon, User manual
• Warranty: 12 months carry-in
