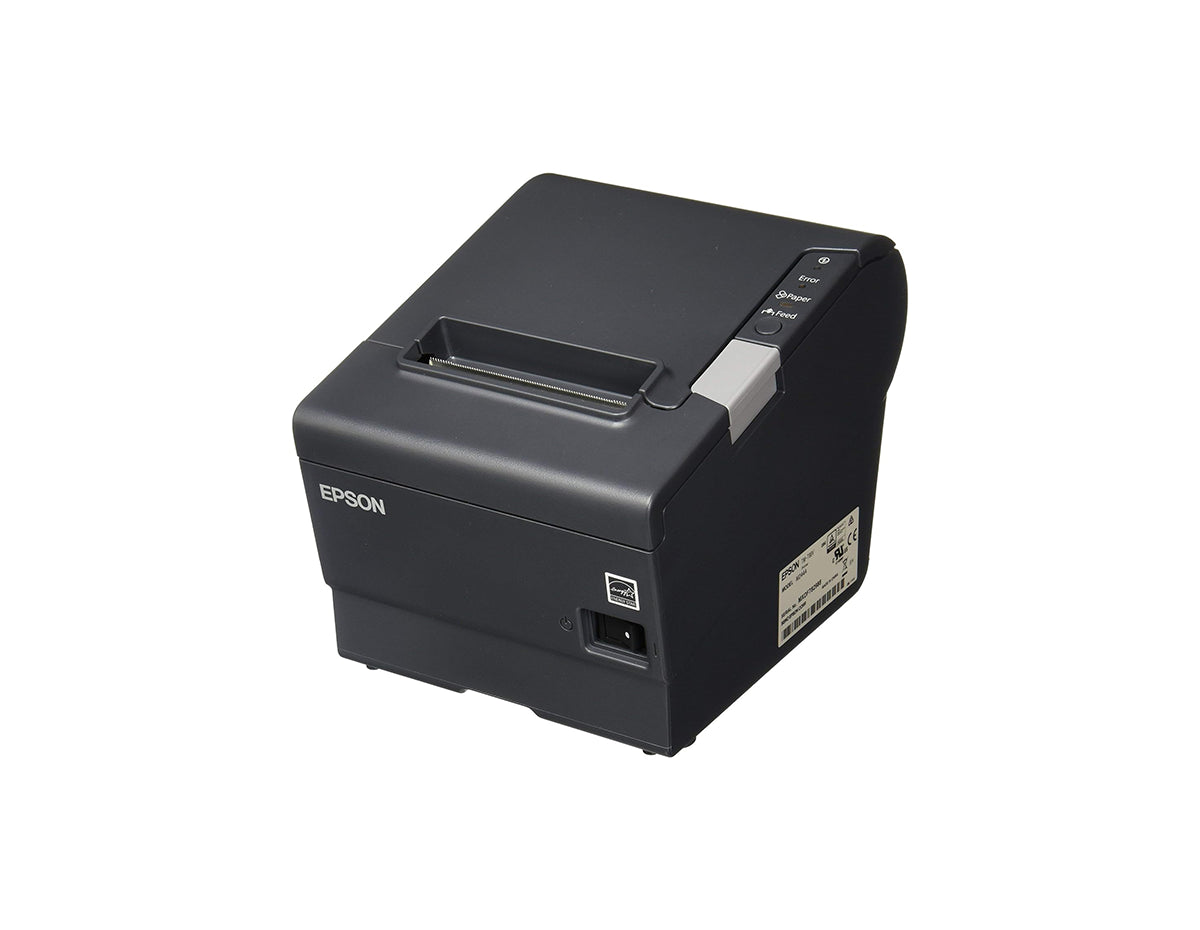

EPSON Monochrome Thermal Receipt Printer (TM-T88V)

The Epson TM-T88V is a best-in-class direct thermal receipt printer designed for high-speed and high-volume environments such as retail and hospitality. With a print speed of up to 300mm per second, this printer delivers quick and efficient receipt printing with crisp text and graphics. It features built-in USB connectivity for seamless integration and supports 16 levels of grayscale for superior print clarity. The TM-T88V also offers an advanced autocutter rated for 2 million cuts, ensuring durability in demanding environments. Designed with ENERGY STAR compliance, it helps reduce power consumption while maintaining top performance.

Key Features:

• High-Speed Printing: Prints receipts at up to 300mm per second for improved efficiency.
• USB Connectivity: Ensures easy integration with various POS systems.
• Industry-Leading Reliability: MCBF of 70 million lines and an autocutter rated for 2 million cuts.
• Grayscale Printing: Supports 16 levels of grayscale for enhanced receipt graphics.
• Flexible Paper Handling: Supports 80mm and 58mm paper roll sizes.
• Easy-to-Use Design: Drop-in paper loading, status LEDs, and an improved cover design for protection.
• ENERGY STAR Qualified: Reduces power consumption for cost-effective operation.

Technical Specifications:

• Print Technology: Direct Thermal
• Print Speed: Up to 300mm/sec
• Print Resolution: 203 dpi
• Paper Width: 80mm (default) / 58mm
• Print Fonts: Font A: 12 x 24; Font B: 9 x 17
• Barcode Symbologies: UPC-A/E, Code 39/93/128, EAN-8/13, ITF, CODABAR, PDF417, QR Code, MaxiCode, GS1 DataBar
• Connectivity: USB
• Paper Thickness: 55 – 80 µm
• Power Supply: 24V DC
• Power Consumption: Approx. 1.8A (mean)
• MTBF: 360,000 hours
• Dimensions (W x D x H): 5.71 x 7.68 x 5.83 inches (145 x 195 x 148mm)
• Weight: 1.6 kg (3.5 lb)

Specifications	TM-T88V
Description	The TM-T88V is an environmentally responsible POS receipt printer, boasting paper reduction features, Energy Star qualification, and a swift 300mm per second print speed.
Product Family	Epson TM-T88 POS Printer Series
Product Type	POS printer
Print method	Thermal line printing
Font	9 × 17 / 12 × 24
Column capacity (columns)	56 / 42
Character size (mm)	0.99 (W) × 2.4 (H) / 1.41 (W) × 3.39 (H)
Character set	95 Alphanumeric, 16 set International, 128 × 43 Graphic. Bar code: UPC-A, UPC-E, JAN8(EAN), JAN13(EAN), CODE39, CODE93, CODE128, ITF, CODABAR, GS1-128, GS1 DataBar. Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology
Characters per inch	20.0 cpi / 15.0 cpi
Interfaces	USB
Data buffer	4 KB or 45 bytes
Print speed	Max. 300 mm/sec.
Paper Dimensions (mm)	Roll paper: 79.5 ± 0.5 (W) × dia. 83.0 / 57.5 ± 0.5 (W) × dia. 83.0
Thickness (mm)	0.06 to 0.07
Power	24 VDC ± 7 %
Power consumption	Approx. 1.8 A (mean)
D.K.D.function	2 drives
Printer Mechanism Life	20 million lines
Auto cutter life	2 million cuts (when using OJI Paper PD150R PD160R)
MTBF	360,000 hours
MCBF	70,000,000 lines
Overall dimensions (mm)	5.71 x 7.68 x 5.83
EMC standards	FCC, VCCI, CE marking, AS / NZS CISPR22 class A. GOST-R
Power supply (option)	PS-180
Option	Wall-hanging bracket WH-10, Power supply box OT-BX88V
Operating Temperature	5 to 45°C {41 to 113°F}
Box Content	TM-T88V, spacer for 58mm paper, PS-180, power cable, power switch cover, user manual, paper sample, interface cover
EMI standards	FCC/ICES-003 Class A
Safety standards	UL / CSA / EN / TÜV / GOST-R
