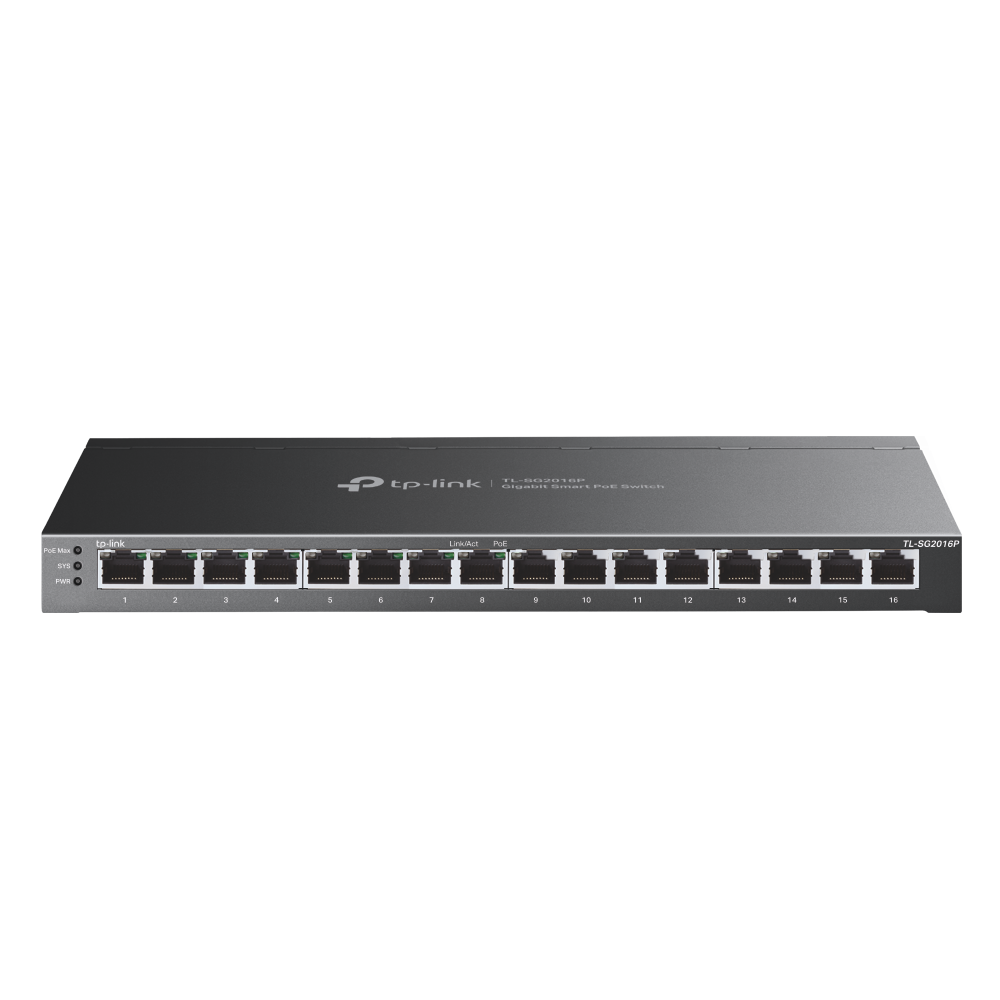

TP-Link TL-SG2016P JetStream Smart Switch 16xGE PoE+

The TP-Link TL-SG2016P is a 16-port smart switch designed for cost-effective and scalable business networking. It includes 8 PoE+ ports compliant with 802.3af/at, providing a total PoE power budget of 120W—perfect for powering IP cameras, VoIP phones, and wireless access points. Integrated with TP-Link’s Omada SDN platform, this switch supports centralized cloud management, Zero-Touch Provisioning, and intelligent monitoring through the Omada Controller or mobile app. With enterprise-grade features such as VLAN, ACL, QoS, DHCP snooping, and Static Routing, the TL-SG2016P ensures secure, reliable, and optimized performance for growing networks—all within a silent, fanless desktop or wall-mountable chassis.

Key Features:

• 16 Gigabit Ports: Includes 8 PoE+ ports (802.3af/at) and 8 standard Gigabit ports for full-speed connectivity.
• 120W PoE Budget: Power multiple high-wattage PoE devices simultaneously with a dedicated 120W budget.
• Integrated with Omada SDN: Supports centralized cloud-based management, remote monitoring, and batch configuration.
• Advanced Layer 2+/L3 Lite Features: Includes Static Routing, IGMP Snooping, LACP, STP/RSTP/MSTP, Voice VLAN, and more.
• Security Suite: Offers IP-MAC-Port Binding, 802.1X, Radius Authentication, ACLs, DoS Defense, and DHCP Snooping.
• Optimized Traffic Management: L2/L3/L4 QoS with 8 priority queues and port-based traffic control.
• Fanless Design: Silent operation ideal for office or retail deployments.
• Flexible Mounting: Compact form factor for desktop or wall installation.

Technical Specifications:

• Ports: 16× 10/100/1000 Mbps RJ45 (Ports 1–8 support PoE+)
• PoE Standard: IEEE 802.3af/at
• Total PoE Budget: 120W
• Switching Capacity: 16 Gbps
• Forwarding Rate: 11.9 Mpps
• MAC Address Table: 8K entries
• Jumbo Frame: 9 KB
• Power Supply: External 53.5VDC/2.43A adapter
• Max Power Consumption: 146.5W (with 120W PD connected)
• Dimensions: 286 × 111.7 × 25.4 mm (11.3 × 4.4 × 1.0 in)
• Mounting: Desktop or wall-mountable
• Cooling: Fanless
• Operating Temperature: 0–40°C (32–104°F)
• Certifications: CE, FCC, RoHS
