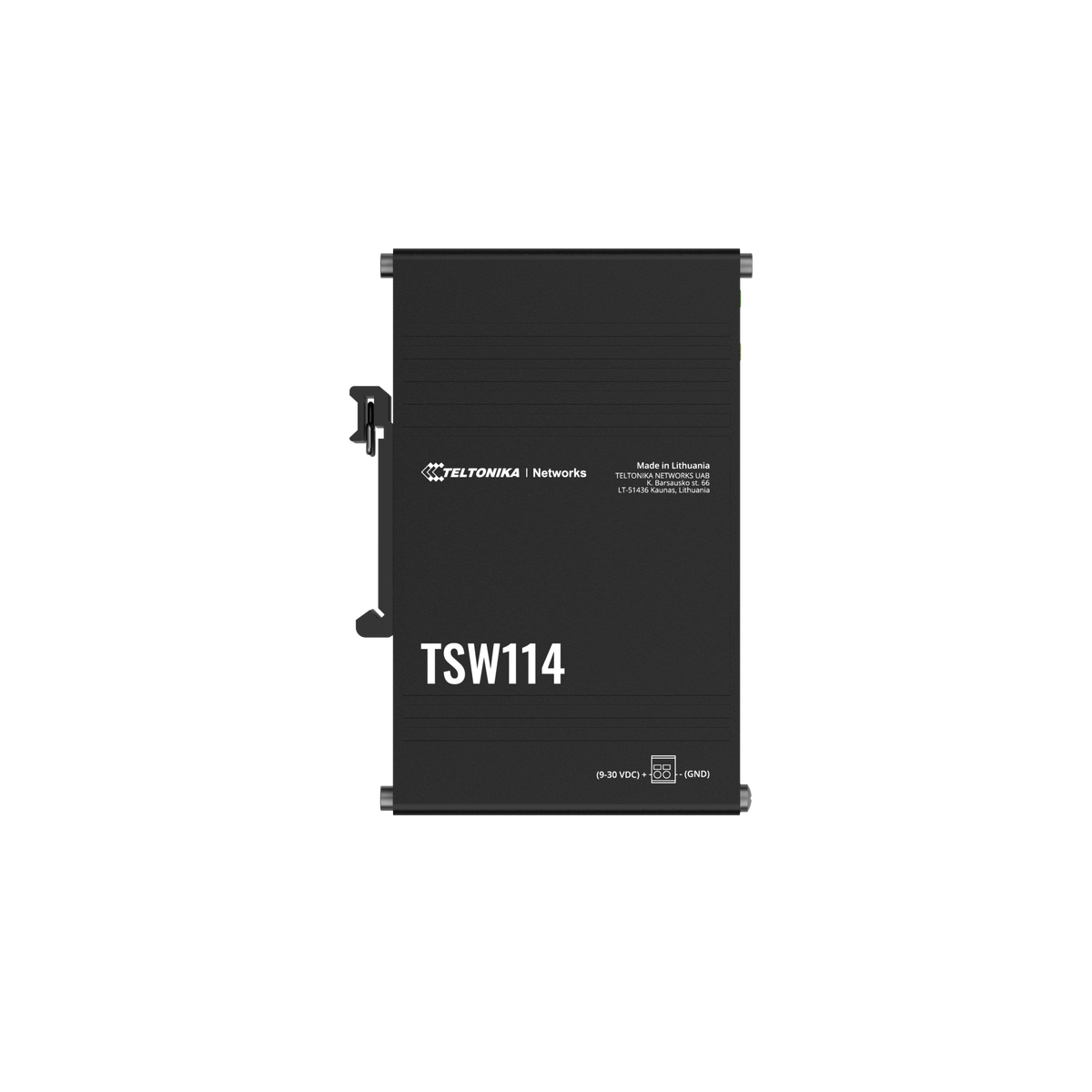

Teltonika TSW114 Switch (TSW114000000)

The Teltonika TSW114 Ethernet Switch offers robust performance and reliable networking. Ideal for demanding environments, it ensures high-speed data transfer and efficient connectivity. Trust the TSW114 for high-quality, reliable networking.

Properties	TSW114 SWITCH (TSW114000000)
Description	Streamline connectivity with TSW114's 5 Gigabit Ethernet ports. Effortless installation in industrial environments, perfect for control cabinets.
Product Family	Teltonika TWS Switches
Product Type	Switch
PoE standard	802.3af/at (max 30 W per port, total power budget 60W)
Ethernet	5 x RJ45 ports, 10/100/1000 Mbps
Housing	Anodized aluminum housing and panels
Dimensions	113.1 x 27.4 x 80.5 mm
Weight	174 g
Mounting	Integrated DIN rail bracket, wall mounting (additional kit needed), flat surface placement
Input voltage range	9 - 30 VDC
Power consumption (idle/max no PoE/max)	Idle: 0.3 W / Max: 2.3 W



Bandwidth	10 Gbps
Packet buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes
Status LEDs	1 x Power LED, 10 x LAN status LED’s
Ingress protection rating	IP30
Operating temperature	-40 °C to 75 °C
Operating humidity	10 % to 90 % non-condensing
Regulatory	CE, REACH, RoHS, WEEE UKCA, FCC, IC, CB, RCM
Safety Standards	EN IEC 62368-1:2020+A11:2020
