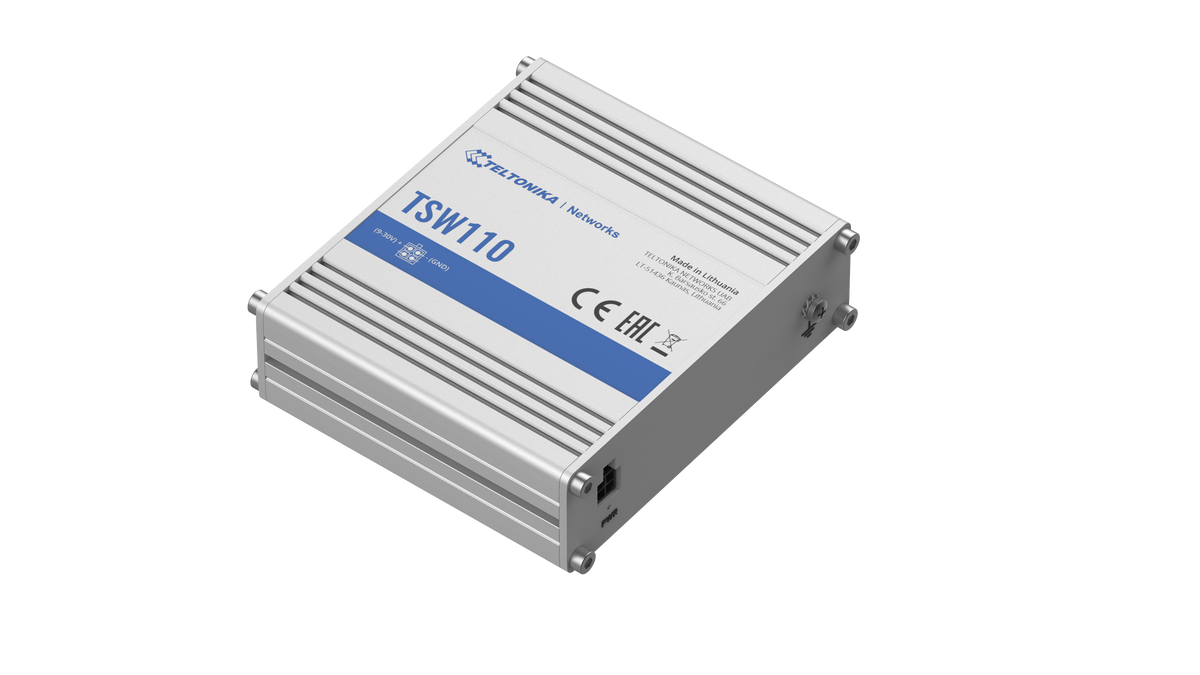

Teltonika TSW110 Switch (TSW110000010)
- Teltonika TSW110
- Ethernet Switch
- Reliable Networking
- High-Speed Data Transmission
- Industrial Grade
$60.00
Experience reliable networking with the Teltonika TSW110 Ethernet Switch. Offering high-speed data transmission, this industrial-grade switch ensures efficient, secure connectivity. Choose the TSW110 for your networking requirements.
| Properties | TSW110 (TSW110000010) |
| Description | Compact and rugged, this unmanaged layer 2 switch offers reliable high-bandwidth connections. With five Gigabit Ethernet ports, TSW110 (TSW110000010) suits industrial use and operates on 9-30 V power supply. |
| Product Family | Teltonika TWS Switches |
| Product Type | Switch |
| Powering option | 4pin power socket, 9-30 VDC |
| Ethernet | 5 x 10/100/1000 Ethernet ports |
| Housing | Aluminum housing with wall or DIN rail mounting option and grounding capability |
| Dimensions | 100 x 30 x 85 mm |
| Weight | 227 g |
| Mounting | DIN rail and surface mounting options |
| Input voltage range | 9 - 30 VDC |
| Power consumption (idle/max) | < 0.4 W/ <1.8 W |
| Bandwidth | 10 Gbps |
| Packet buffer | 128 KB |
| MAC address table size | 2K entries |
| Auto MDI/ MDI-X Cable Detection | Yes |
| Status LEDs | 10 x Ethernet, 1 x Power |
| Ingress protection rating | IP30 |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
| Power adapter | Input: 0.4 A @100-240 VAC, Output: 9 VDC, 1 A, 4 pin plug |
