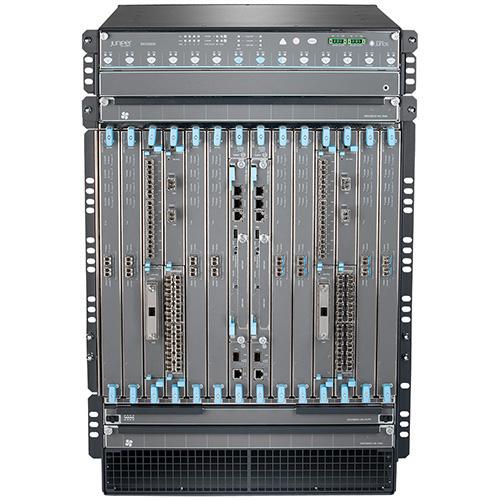

Juniper SRX5800X-BASE2 Firewall

The SRX5800 Services Gateway is an award-winning, next-generation security platform based on an innovative architecture that provides outstanding performance, scalability, and service integration. The Service Process Card 3 (SPC3) with advanced security acceleration enhances the SRX5800 to deliver the power you need for the most demanding use cases, including high-end data centers, IoT, and 5G.



Product Name	Juniper SRX5800X-BASE2 Firewall
Product Description	SRX5800 configuration includes: chassis, enhanced midplane, SRX5K-RE3-128G, 2xSRX5K-SCB4, 2xHC PEM, 2xHC fan tray; supported by JUNOS release 19.3R1 onwards
Type	Firewall
Manufacturer	Juniper Networks
Product Line	Juniper Networks
Model	SRX 5800
Bundled with	Juniper Networks SRX5KRE3-128G, 2x SRX5K-SCB4, 2x HC PEM
Packaged Quantity	1
Built-in Devices	Enhanced midplane, 128 GB SSD
Processor Type	Xeon
Processor Manufacturer	Intel
Processor Clock Speed	1.8 GHz
RAM Installed Size	16 GB
Power Consumption	Supports multiple power supply configurations
Form Factor	Rack-mountable
Connectivity Technology	Wired
Routing Protocol	BFD, OSPFv3, Policy-based routing (PBR), IPv4-to-IPv6 Multicast, Static IP routing, BGP, OSPF, RIPng, RIP-2, ECMP, RIP-1
Remote Management Protocol	SNMP 2, Telnet, HTTPS, HTTP, CLI, SSH, SNMP 3
Features	NAT support, In-Service Software Upgrade (ISSU), Link Aggregation Control Protocol (LACP), Anti-malware protection, VPN support, Firmware upgradable, WRED, IPSec VPN, DoS attack prevention, IPv6 support, DDos attack prevention, QoS, WWR queuing, Syslog support, Traffic shaping, IPS, Anti-spyware protection, Firewall protection, PAT support, High Availability
Expansion Slots	11 (total) / 11 (free) x expansion slot, 8 (total) / 8 (free) x SPC, 2 (total) / 1 (free) x RE, 2 (total) / 0 (free) x SCB
System Requirements	OS: JUNOS
Compliant Standards	NEBS level 3, EMC
Color Category	Gray
Encryption Algorithm	Triple DES, PKI, DH, IKE, MD5, AES, SHA-1, DES
Authentication Method	RADIUS, X.509 certificates
Dimensions (WxDxH)	17.5 x 23.5 x 27.8 inches
Operating Temperature	41°F to 104°F
Humidity Range	5 – 85% (non-condensing)

Description	High-performance security platform for large enterprise, service provider, and public sector networks
Firewall Throughput	Up to 3.36 Tbps
IPS Throughput	Up to 638 Gbps
NGFW Throughput	Up to 500 Gbps
Threat Protection Throughput	Up to 400 Gbps
Concurrent Sessions	Up to 100 million
New Sessions per Second	Up to 420,000
Virtual Interfaces (VLANs)	4096
Security Zones	2000
Maximum Number of Users	Unlimited
OSPF Routes	1,000,000
RIP Instances	50
Maximum Logical Network Members	32
VPN Tunnels (Site-to-Site)	15
BGP Routes	1,000,000
BGP Instances	1000
VPN Tunnel Interfaces	15
Virtual Routers	2000
BGP Peers	2000
OSPF Instances	400
