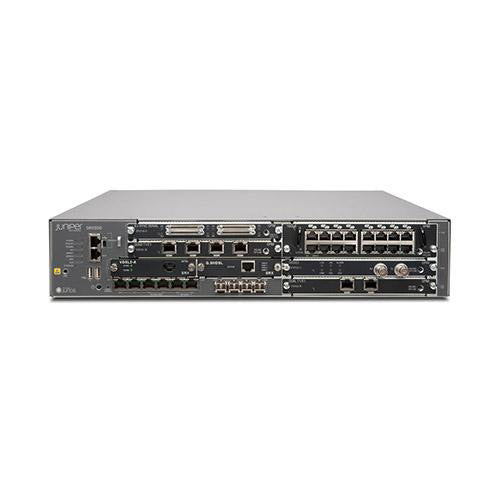

JUNIPER SRX550-M-SYS-JE-DC FIREWALL

Specifications

Specifications	SRX550-M-SYS-JE-DC
System memory (DRAM)	4 GB
Memory slots	2 DIMM
Flash Memory	8 GB, CF internal
USB port for external storage	Yes
Firewall performance (max)	5.5 Gbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance	1.0 Gbps
New sessions/second (sustained, TCP, 3-way)	27,000
Firewall performance (large packets)	7 Gbps
Firewall performance (IMIX)	2 Gbps
Firewall + routing pps (64 Byte)	700 Kpps
Firewall performance (HTTP)	2 Gbps
IPsec VPN throughput (large packets)	1 Gbps
IPsec VPN tunnels	2000
Application firewall	2.0 Gbps
Intrusion prevention system (IPS)	800 Mbps
Antivirus	300 Mbps (Sophos antivirus)
Connections per second	27,000
Maximum concurrent sessions	375,000
Maximum security policies	8000
Maximum users supported	Unrestricted
Route table size (RIB/FIB) (IPv4 or IPv6)	1.5 million/750,000
NAT rules	6144
MAC table size	15,000
Number of remote access/SSL VPN (concurrent) users	500
GRE tunnels	1500
Maximum number of security zones	96
Maximum number of virtual routers	128
Maximum number of VLANs	3967
AppID sessions	65,000
IPS sessions	64,000
URL filtering (URLF) sessions	64,000
Software Specifications
Routing Protocols	IPv4, IPv6, ISO, Connectionless Network Service (CLNS) Static routes RIP v1/v2 OSPF/OSPF v3 BGP with route reflector IS-IS Multicast: Internet Group Management Protocol (IGMP) v1/v2, Protocol Independent Multicast (PIM) sparse mode (SM)/dense mode (DM)/source-specific multicast (SSM), Session Description Protocol (SDP), Distance Vector Multicast Routing Protocol (DVMRP), Multicast Source Discovery Protocol (MSDP), Reverse Path Forwarding (RPF) Encapsulation: VLAN, Point-to-Point Protocol (PPP), Frame Relay, High-Level Data Link Control (HDLC), serial, Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), and Point-to-Point Protocol over Ethernet (PPPoE) Virtual routers Policy-based routing, source-based routing Equal-cost multipath (ECMP)
QoS Features	Support for 802.1p, DiffServ code point (DSCP), EXP Classification based on VLAN, data-link connection identifier (DLCI), interface, bundles, or multifield filters Marking, policing, and shaping Classification and scheduling Weighted random early detection (WRED) Guaranteed and maximum bandwidth Ingress traffic policing Virtual channels Hierarchical shaping and policing
Switching Features	ASIC-based Layer 2 forwarding MAC address learning VLAN addressing and integrated routing and bridging (IRB) support Link aggregation and LACP Link Layer Discovery Protocol (LLDP) and Link Layer Discovery Protocol–Media Endpoint Discovery (LLDP-MED) Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP) Multiple VLAN Registration Protocol (MVRP) 802.1X authentication
Firewall Services	Stateful and stateless firewall Zone-based firewall Screens and distributed denial of service (DDoS) protection Protection from protocol and traffic anomaly Integration with Pulse Unified Access Control (UAC) Integration with Aruba Clear Pass Policy Manager User role-based firewall SSL Inspection (forward-proxy)
Network Address Translation (NAT)	Source NAT with Port Address Translation (PAT) Bidirectional 1:1 static NAT Destination NAT with PAT Persistent NAT IPv6 address translation
VPN Features	Tunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, AutoVPN, ADVPN, Group VPN (IPv4/IPv6/Dual Stack) Juniper Secure Connect: Remote access/SSL VPN Configuration payload: Yes IKE Encryption algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB IKE authentication algorithms: MD5, SHA-1, SHA-128, SHA-256, SHA-384 Authentication: Pre-shared key and public key infrastructure (PKI) (X.509) IPsec (Internet Protocol Security): Authentication Header (AH)/Encapsulating Security Payload (ESP) protocol IPsec Authentication Algorithms: hmac-md5, hmac-sha-196, hmac-sha-256 IPsec Encryption Algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB Perfect forward secrecy, anti-reply Internet Key Exchange: IKEv1, IKEv2 Monitoring: Standard-based dead peer detection (DPD) support, VPN monitoring VPNs GRE, IP-in-IP, and MPLS
Network Services	Dynamic Host Configuration Protocol (DHCP) client/server/relay Domain Name System (DNS) proxy, dynamic DNS (DDNS) Juniper real-time performance monitoring (RPM) and IP-monitoring Juniper flow monitoring (J-Flow) Bidirectional Forwarding Detection (BFD) Two-Way Active Measurement Protocol (TWAMP) IEEE 802.3ah Link Fault Management (LFM) IEEE 802.1ag Connectivity Fault Management (CFM)
High Availability Features	Virtual Router Redundancy Protocol (VRRP) Stateful high availability Dual box clustering Active/passive Active/active Configuration synchronization Firewall session synchronization Device/link detection In-Band Cluster Upgrade (ICU) Dial on-demand backup interfaces IP monitoring with route and interface failover
Management, Automation, Logging, and Reporting	SSH, Telnet, SNMP Smart image download Juniper CLI and Web UI Mist AI Simplified management WAN Assurance Junos Space and Security Director Python, PyEz, and Ansible modules Junos OS event, commit, and OP script Application and bandwidth usage reporting Auto installation Debug and troubleshooting tools ZTP with Contrail Service Orchestration
Advanced Routing Services	Packet mode MPLS (RSVP, LDP) Circuit cross-connect (CCC), translational cross-connect (TCC) L2/L3 MPLS VPN, pseudowires Virtual private LAN service (VPLS), next-generation multicast VPN (NG-MVPN) MPLS traffic engineering and MPLS fast reroute
Application Security Services	Application visibility and control Application-based firewall Application QoS
Enhanced SD-WAN Services

Properties

Properties	Juniper SRX550-M-SYS-JE-DC
Description	SRX550M Serv Gateway includes hardware (10GE, 2x MPIM slots, 6x GPIM slots, 4G RAM, 8G Flash, AC PSU, cable and RMK) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security).
Product Family	SRX550 Series
Product Type	Security Firewall
Connectivity Specification
Fixed I/O	6 x 10/100/1000 BASE-T + 4 small form-factor pluggable transceivers (SFP transceivers)
I/O slots	2 x SRX Series Mini-PIM, 6 x Gigabit-Backplane Physical Interface Module (GPIM) or multiple GPIM and XPIM combinations
Services and Routing Engine slots	No
Maximum number of PoE ports	Up to 40 ports of 802.3af/at with maximum 247 W
USB	2
Includes	Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security)
Rack-mountable	Yes, 2 U
Dimensions (WxHxD)	17.5 x 3.5 x 18.2 in (44.4 x 8.8 x 46.2 cm)
Weight (device and PSU)	21.96 lb (9.96 kg) (no interface modules, 1 power supply)
Power
Power supply (AC)	100-240 VDC, single 645 W or dual 645 W
Redundant power supply (hot swappable)	Yes (up to maximum capacity of single PSU)
Average heat dissipation	238 BTU/hr
Maximum heat dissipation	1449 BTU/hr
Maximum PoE power	247 W redundant, or 494 W non-redundant
Average power consumption	85 W
Input frequency	50-60 Hz
Maximum current consumption	7.5 A @ 100 VAC with single PSU with PoE, 10.5 A @ 100 VAC with dual PSU with PoE
Maximum inrush current	45 A for half-cycle
Acoustic noise level	51.8 Db
