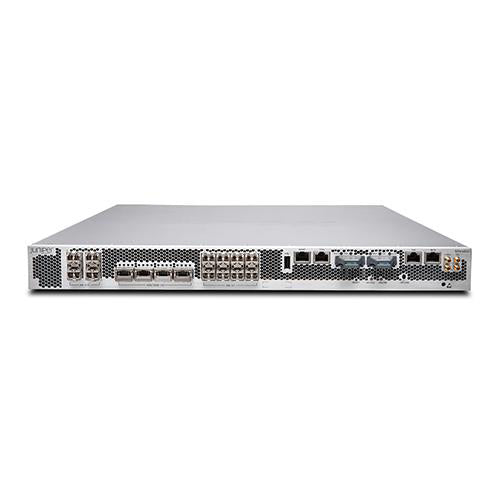

Juniper SRX4600-SYS-JB-DC Firewall

Juniper SRX4600-SYS-JB-DC Firewall

The Juniper SRX4600-SYS-JB-DC Firewall is a high-performance services gateway built for enterprise campuses, data centers, secure WAN edge deployments, and VPN concentration. It combines advanced firewall capabilities with routing, NAT, IPSec, and MPLS services in a 1U platform designed for demanding network environments. With support for up to 24 x 1GbE/10GbE SFP+ interfaces and 4 x 40GbE/100GbE QSFP28 ports, the SRX4600 delivers the connectivity and scale needed for modern security architectures while maintaining reliable performance with redundant DC power.

Properties	Juniper SRX4600-SYS-JB-DC
Description	SRX4600 Services Gateway includes hardware (up to 24x1GbE/10GbE, 4x40GbE/100GbE, 256 GB RAM, 2x 1 TB M.2 SSD, two DC power entry modules, cables and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing and MPLS).
Product Family	SRX4600 Series
Product Type	Security Firewall
Connectivity Specification
Total onboard I/O ports	Up to 24x1GbE/10GbE (SFP+) and 4x40GbE/100GbE (QSFP28)
Out-of-Band (OOB) management ports	RJ-45 (1 Gbps)
Dedicated high availability (HA) ports	2x1GbE/10GbE (SFP+) Control, 2x1GbE/10GbE (SFP+) Data
Console	RJ-45 (RS232)
USB 2.0 ports (Type A)	1
Form factor	1U
Size (WxHxD)	With DC PEMs: 17.4 x 1.7 x 29.20 in (44.19 x 4.32 x 74.17 cm)
Weight (system and 2 power entry modules)	With DC PEMs: 40 lb (18.14 kg) Shipping weight: 47.47 lb (21.53 kg)
Power
Power supply	2x 1100 W DC-DC PSU redundant
Redundant PSU	1+1
Average power consumption	650 W

Specifications	SRX4600-SYS-JB-DC
System memory (RAM)	256 GB
Secondary storage (SSD)	2x 1 TB M.2 SSD
Firewall (IMIX) throughput in Gbps	400
Firewall throughput (1518 B) in Gbps	400
IPsec VPN throughput (IMIX) in Gbps	44
IPsec VPN throughput (1400 B) in Gbps	71
Application security performance (TPS/CPS) in Gbps	92/41
Next-generation firewall (TPS/CPS) in Gbps	90/21
Secure Web Access firewall (CPS) in Gbps	19
Advanced Threat (CPS) Gbps	10.5
Connections per second (64B)	570,000
SSL connections per second	16,000
Maximum concurrent sessions (IPv4 or IPv6)	60 million
Route table size (RIB/FIB) (IPv4)	4 million/1.2 million
IPsec VPN tunnels	7,500
