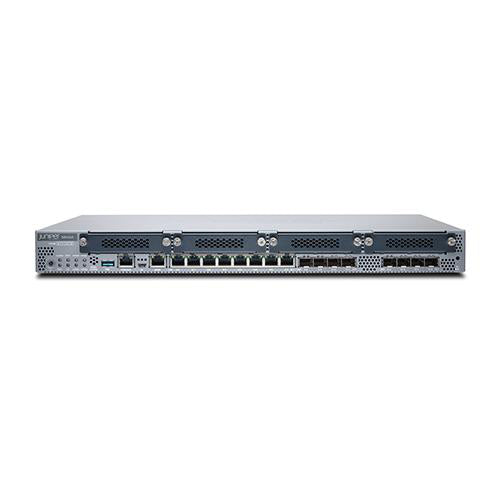

Juniper SRX345-SYS-JE-DC Firewall

Harden Your Distributed WAN with the Juniper SRX345-SYS-JE-DC Services Gateway

The Juniper SRX345-SYS-JE-DC Services Gateway consolidates firewall, routing, VPN, and switching capabilities for midsize distributed enterprises that demand secure, always-on connectivity. Featuring 16x1GbE ports, four MPIM expansion slots, and an internal DC power supply, it delivers scalable WAN edge security in a compact 1U rackmount platform. Advanced threat mitigation and unified threat management (UTM) capabilities help protect applications while simplifying branch and regional site network architectures.

Key Benefits & Features

• High-Performance Firewall: Achieve up to 5 Gbps stateful firewall throughput, ensuring branch and regional traffic flows securely without bottlenecks.
• Secure VPN Connectivity: Get up to 800 Mbps AES256 / 3DES IPsec VPN performance for securely connecting remote sites and cloud workloads with strong encryption.
• Integrated Services Gateway: Consolidates firewall, NAT, routing, MPLS, switching, and application security on a single, powerful Junos OS platform.
• Flexible WAN Expansion: Four Mini-PIM (MPIM) slots allow you to add additional WAN or specialized interfaces as your business requirements evolve.
• Carrier-Friendly DC Design: Internal DC power with support for redundant power supply (PSU) options is ideal for telco racks, industrial facilities, and other critical infrastructure sites.

Ideal Use Cases

• Securing WAN edge connectivity for midsize branch offices and regional hubs.
• Service provider and MSP managed security services for distributed enterprise customers.
• DC-powered deployments in telecom rooms and critical infrastructure.
• Consolidating legacy firewall, router, and VPN appliances into a single, manageable platform.

Technical Specifications Overview

• Firewall performance (max): 5 Gbps.
• IPS performance: 500 Mbps.
• IPsec VPN performance: 800 Mbps (AES256+SHA-1 / 3DES+SHA-1).
• Maximum concurrent sessions: 375,000.
• Total onboard ports: 16x1GbE (8x RJ-45, 8x SFP).
• Mini-PIM slots: 4 WAN expansion slots.
• Management interfaces: 1x OOB 1GbE, console (RJ-45 + mini-USB), and USB 3.0.
• Form factor: 1U rack-mount chassis.
• Power: Internal DC supply with redundant PSU support.

Secure Your Branch Edge

Standardize on the high-performance Juniper SRX345-SYS-JE-DC to simplify branch security, improve uptime, and order today.

Model	SRX345
Manufacturer Part Number	SRX345-SYS-JE-DC
Product Series	SRX
Product Type	Router
Junos OS Version Tested	Junos OS 15.1X49
Total Onboard Ports	16 x 1GbE
Onboard RJ-45 Ports	8 x 1GbE
Onboard SFP Ports	8 x 1GbE SFP
Mini-PIM (WAN) Slots	4
Management Port	1 x 1GbE out-of-band
Console Ports	RJ-45 + mini-USB
USB Ports	1 x USB 3.0 Type A
System Memory (RAM)	4 GB
Storage (Flash)	8 GB
SSD Slots	1
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Size (W × H × D)	17.36 × 1.72 × 14.57 in. (44.09 × 4.36 × 37.01 cm) / 17.36 × 1.72 × 18.7 in. (44.09 × 4.36 × 47.5 cm)
Redundant Power Supply	Yes
Power Source	DC
Average Power Consumption	122 W
Average Heat Dissipation	420 BTU/h
Maximum Current Consumption	1.496 A / 6 A @ −48 VDC
Airflow / Cooling	Front to back
Operating Temperature	−22 °F to 131 °F (−30 °C to 55 °C)
Nonoperating Temperature	4 °F to 158 °F (−20 °C to 70 °C)

Firewall Performance (Max)	5 Gbps
IPS Performance	500 Mbps
VPN Performance (AES256+SHA-1 / 3DES+SHA-1)	800 Mbps
Maximum Concurrent Sessions	375,000
New Sessions per Second	20,000 (sustained, TCP, 3-way)
Maximum Security Policies	4000
Security Intelligence Entries	N/A
MACsec-Capable Ports	16 x 1GbE
Optional PoE+ Ports	0
PoE (RJ-45) Port	No
Maximum PoE Power	N/A
Acoustic Noise Level	45.5 dBA
Operating Humidity	10% to 90% noncondensing
Nonoperating Humidity	5% to 95% noncondensing
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2

Included

SRX345 router; DC power supply; Cable; Rack mount kit
