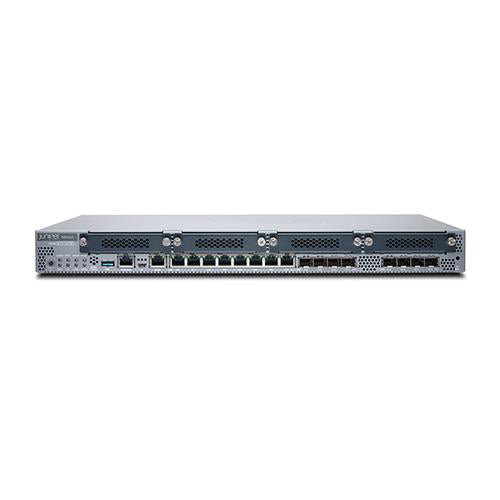

Juniper SRX345-SYS-JE-2AC Firewall

Juniper SRX345-SYS-JE-2AC Firewall

Juniper SRX345-SYS-JE-2AC is a 1U branch firewall and services gateway designed for midsize to large distributed enterprise offices. This bundle includes SRX345 hardware with 16 Gigabit Ethernet interfaces, four MPIM expansion slots, 4 GB RAM, 8 GB flash, rack mount kit, and dual internal AC power supplies. It ships with Junos Software Enhanced, delivering firewall, NAT, IPsec VPN, routing, MPLS, switching, and application security in a consolidated platform for secure branch connectivity.

• Performance: supports up to 5 Gbps firewall throughput, 500 Mbps IPS throughput, and up to 800 Mbps IPsec VPN throughput
• Flexible branch connectivity: combines 8 x RJ-45 ports, 8 x SFP ports, 4 MPIM expansion slots, and dedicated management and console interfaces
• Resilient hardware design: includes dual internal AC power supplies, front-to-back airflow, 1U rack-mount form factor, and advanced security through Junos Software Enhanced

Properties	Juniper SRX345-SYS-JE-2AC Firewall
Description	SRX345 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, dual internal AC power supplies, cable and RMK) and Junos Software Enhanced (Firewall, NAT, IPSec, Routing, MPLS, Switching and Application Security)
Product Family	SRX300 LINE OF FIREWALLS
Product Type	Firewall
SRX300 Highlights	The SRX300 line of services gateways delivers next-generation networking and security for cloud-enabled enterprise networks. It combines security, routing, switching, and WAN connectivity in a cost-effective platform designed for distributed enterprise branch environments.
SRX345	Best suited for midsize to large distributed enterprise branch offices, the SRX345 consolidates security, routing, switching, and WAN connectivity in a 1U form factor. The platform supports up to 5 Gbps firewall throughput and up to 800 Mbps IPsec VPN throughput in a consolidated branch firewall and networking solution.
Performance	• Up to 5 Gbps firewall throughput • Up to 500 Mbps IPS throughput • Up to 800 Mbps IPsec VPN throughput
Branch deployment	• Designed for midsize to large branch offices • 1U rack-mountable form factor • Rack mount kit included
Connectivity	• 16 x 1GbE onboard ports • 8 x 1000Base-T RJ-45 ports • 8 x 1000Base-X SFP ports • 4 x MPIM slots for WAN expansion
Management and access	• 1 x management RJ-45 port • 1 x console RJ-45 port and 1 x mini-USB • 1 x USB Type-A port • CLI, SSH, Telnet, SNMP, and HTTP management support
Capacity and scale	• Maximum concurrent sessions: 375,000 • New sessions per second: 20,000 • Maximum security policies: 4,000
Power and cooling	• Dual internal AC power supplies installed • Maximum supported internal power supplies: 2 • Front-to-back airflow • Operational power consumption: 122 W
Junos Software Enhanced	• Includes Firewall, NAT, IPSec, Routing, MPLS, Switching, and Application Security • Runs on Junos OS • Adds enhanced security capabilities for branch deployments

Specifications	Juniper SRX345-SYS-JE-2AC Firewall
Software and Performance
Junos OS software version tested	Junos OS 15.1X49
Firewall performance (max)	5 Gbps
IPS performance	500 Mbps
AES256+SHA-1 / 3DES+SHA-1 VPN performance	800 Mbps
Maximum concurrent sessions	375,000
New sessions/second (sustained, TCP, 3-way)	20,000
Maximum security policies	4000
Software included	Junos Software Enhanced
Hardware Specifications
Total onboard ports	16x1GbE
Onboard RJ-45 ports	8x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports	8x1GbE
MACsec-capable ports	16x1GbE
Out-of-band (OOB) management ports	1x1GbE
Mini PIM (WAN) slots	4
Console (RJ-45 + miniUSB)	1
USB 3.0 ports (type A)	1
Optional PoE+ ports	0
Memory and Storage
System memory (RAM)	4 GB
Storage (flash)	8 GB
SSD slots	1
Dimensions and Power
Form factor	1U
Dimensions (W x D x H)	17.4 x 14.6 x 1.7 in
Redundant PSU	Yes
Power supply	Dual internal AC power supplies
Installed power supplies	2
Maximum supported power supplies	2
Maximum PoE power	N/A
Average power consumption	122 W
Airflow/cooling	Front to back airflow
Environmental
Min operating temperature	32 °F
Max operating temperature	104 °F
Humidity range operating	10 - 90% (non-condensing)
Capacity
IPv4 routing table entries	2,000,000
IPv6 routing table entries	1,000,000
Maximum NAT rules	2,000
MAC addresses	15,000
IPSec VPN tunnels	2,048
GRE tunnels	1,024
Security zones	64
Virtual routers	128
Virtual interfaces (VLANs)	3000
