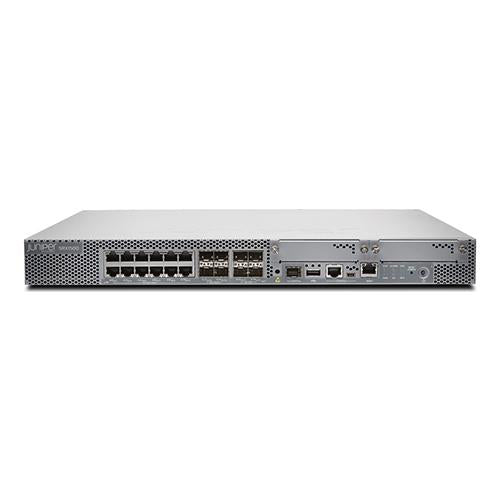

JUNIPER SRX1500-SYS-JB-DC FIREWALL

Model: SRX1500-SYS-JB-DC
Detail: SRX1500 Services Gateway
, Junos Software Base, 16GbE, 4 x 10GbE, 16G RAM, 16G Flash, 100G SSD, DC power supply, Routing & switching, MPLS, IPSec, NAT
List Price: US$26,107.00
Price:
$21,929.88
You Save: $4,177.12 (16% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

[accesories]


Introducing the SRX1500-SYS-JB-DC, a powerful SRX1500 Services Gateway that combines security, routing, and switching in a single device. Preloaded with Junos Software Base, it is equipped for complex networks with 16 Gigabit Ethernet (GbE) ports and 4 ten Gigabit Ethernet (10GbE) ports, providing ample connectivity for a variety of applications. With 16GB RAM and 16GB Flash, it delivers robust performance and efficient data processing, while a 100G SSD ensures quick access to critical data. The included DC power supply caters to environments with direct current power sources. It supports advanced network functions such as routing & switching, MPLS for flexible network architecture, IPSec for secure communication, and NAT for efficient IP address usage. Ideal for enterprises and service providers requiring high-performance, secure, and versatile networking solutions.

Accessories


Introducing the SRX1500-SYS-JB-DC, a powerful SRX1500 Services Gateway that combines security, routing, and switching in a single device. Preloaded with Junos Software Base, it is equipped for complex networks with 16 Gigabit Ethernet (GbE) ports and 4 ten Gigabit Ethernet (10GbE) ports, providing ample connectivity for a variety of applications. With 16GB RAM and 16GB Flash, it delivers robust performance and efficient data processing, while a 100G SSD ensures quick access to critical data. The included DC power supply caters to environments with direct current power sources. It supports advanced network functions such as routing & switching, MPLS for flexible network architecture, IPSec for secure communication, and NAT for efficient IP address usage. Ideal for enterprises and service providers requiring high-performance, secure, and versatile networking solutions.

Specifications

Specifications SRX1500-SYS-JB-AC
System memory (RAM) 16 GB
Primary boot storage (mSATA) 16 GB
Secondary storage (SSD) 100 GB
Routing/firewall (IMIX packet size) Gbps 4.8
Routing/firewall (1,518 B packet size) Gbps 9.2
IPsec VPN (IMIX packet size) Gbps 1.3
IPsec VPN (1400 B packet size) in Gbps 4.5
Application visibility and control in Gbps 7.9
Recommended IPS in Gbps 3.3
Next-generation firewall in Gbps 2.1
Secure Web Access firewall in Gbps 1.6
Route table size (RIB/FIB) (IPv4) 2 million / 1 million
Maximum concurrent sessions (IPv4 or IPv6) 2,000,000
Maximum security policies 16,000
Connections per second 90,000
NAT rules 8,000
Media access control (MAC) table size 64,000 (standalone mode)
IPsec VPN tunnels 2,000
Number of remote access/SSL VPN (concurrent) users 2,000
GRE tunnels 2,048
Maximum security zones 512
Maximum virtual router 512
Maximum VLANs 3,900
Software Specifications
Routing Protocols IPv4, IPv6
Static routes
RIP v1/v2
OSPF/OSPF v3
BGP with Route Reflector
IS-IS
Multicast: Internet Group Management Protocol (IGMP) v1/v2; Protocol Independent Multicast (PIM) sparse mode (SM)/dense mode (DM)/source-specific multicast (SSM); Session Description Protocol (SDP); Distance Vector Multicast Routing Protocol (DVMRP); Multicast Source Discovery Protocol (MSDP); Reverse Path Forwarding (RPF)
Encapsulation: VLAN, Point-to-Point Protocol over Ethernet (PPPoE)
Virtual routers
Policy-based routing, source-based routing
Equal-cost multipath (ECMP)
QoS Features Support for 802.1p, DiffServ code point (DSCP), EXP
Classification based on VLAN, data-link connection identifier (DLCI), interface, bundles, or multifield filters
Marking, policing, and shaping
Classification and scheduling
Weighted random early detection (WRED)
Guaranteed and maximum bandwidth
Ingress traffic policing
Virtual channels
Hierarchical shaping and policing
Switching Features ASIC-based Layer 2 forwarding
MAC address learning
VLAN addressing and integrated routing and bridging (IRB) support
Link aggregation and LACP
LLDP and LLDP-MED
STP, RSTP, MSTP
MVRP
802.1X authentication
Firewall Services Stateful and stateless firewall
Zone-based firewall
Screens and distributed denial of service (DDoS) protection
Protection from protocol and traffic anomalies
Integration with Pulse Unified Access Control (UAC)
Integration with Aruba Clear Pass Policy Manager
User role-based firewall
SSL Inspection
Network Address Translation (NAT) Source NAT with Port Address Translation (PAT)
Bidirectional 1:1 static NAT
Destination NAT with PAT
Persistent NAT
IPv6 address translation
VPN Features Tunnels: Site-to-Site, Hub and Spoke, Dynamic Endpoint, AutoVPN, ADVPN, Group VPN (IPv4/IPv6/Dual Stack)
Juniper Secure Connect: Remote access/SSL VPN
Configuration payload: Yes
IKE Encryption algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB
IKE authentication algorithms: MD5, SHA-1, SHA-128, SHA-256, SHA-384
Authentication: Pre-shared key and public key infrastructure (PKI) (X.509)
IPsec (Internet Protocol Security): Authentication Header (AH)/Encapsulating Security Payload (ESP) protocol
IPsec Authentication Algorithms: hmac-md5, hmac-sha-196
IPsec Encryption Algorithms: Prime, DES-CBC, 3DES-CBC, AEC-CBC, AES-GCM, SuiteB
Perfect forward secrecy, anti-reply
Internet Key Exchange: IKEv1, IKEv2
Monitoring: Standard-based dead peer detection (DPD) support, VPN monitoring
VPNs GRE, IP-in-IP, and MPLS
Network Services Dynamic Host Configuration Protocol (DHCP) client/server/relay
Domain Name System (DNS) proxy, dynamic DNS (DDNS)
Juniper real-time performance monitoring (RPM) and IP monitoring
Juniper flow monitoring (J-Flow)
Bidirectional Forwarding Detection (BFD)
Two-Way Active Measurement Protocol (TWAMP)
IEEE 802.3ah Link Fault Management (LFM)
IEEE 802.1ag Connectivity Fault Management (CFM)
High Availability Features Virtual Router Redundancy Protocol (VRRP)
Stateful high availability
-Dual box clustering
-Active/passive
-Active/active
-Configuration synchronization
-Firewall session synchronization
-Device/link detection
-In-Service Software Upgrade (ISSU)
IP monitoring with route and interface failover
Management, Automation, Logging, and Reporting Management, Automation, Logging, and Reporting
SSH, Telnet, SNMP
Smart image download
Juniper CLI and Web UI
Juniper Networks Junos Space and Security Director
Python
Junos OS event, commit and OP scripts
Application and bandwidth usage reporting
Auto installation
Debug and troubleshooting tools
Advanced Routing Services Packet mode
MPLS (RSVP, LDP)
Circuit cross-connect (CCC), translational cross-connect (TCC)
L2/L2 MPLS VPN, pseudo-wires
Virtual private LAN service (VPLS), next-generation multicast VPN (NG-MVPN)
MPLS traffic engineering and MPLS fast reroute
Application Security Services Application visibility and control
Application-based firewall
Application QoS
Advanced/application policy-based routing (APBR)
Application Quality of Experience (AppQoE)
Application-based multipath routing
Threat Defense and Intelligence Services Intrusion prevention
Antivirus
Antispam
Category/reputation-based URL filtering
Protection from botnets (command and control)
Adaptive enforcement based on GeoIP
Juniper Advanced Threat Prevention, a cloud-based SaaS offering, to detect and block zero-day attacks
Juniper ATP Appliance, a distributed, on-premises advanced threat prevention solution to detect and block zero-day attacks
Adaptive Threat Profiling
Encrypted Traffic Insights
SecIntel to provide threat intelligence
Operating temperature 32° to 104° F (0° to 40° C)
Storage temperature -4° to 158° F (-20° to 70° C)
Relative humidity operating 10% to 90% (noncondensing)
Relative humidity non-operating 5% to 95% (noncondensing)
Meantime between failures (MTBF) 9.78 years (85,787 hours)
FCC classification Class A
RoHS compliance RoHS 2
FIPS 140-2 Level 2 (Junos 19.2)

Properties

Properties Juniper SRX1500-SYS-JB-DC
Description SRX1500 Services Gateway includes hardware (16GbE, 4x10GbE, 16G RAM, 16G Flash, 100G SSD, DC PSU, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)
Product Family SRX1500 Series
Product Type Security Firewall
Connectivity Specification
Total onboard ports 16x1GbE and 4x10GbE
Onboard RJ-45 ports 12x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports 4x1GbE
MACsec-capable ports 2x1GbE
Onboard SFP+ ports 4x10GbE
Out-of-band (OOB) management ports 1x1GbE
Dedicated high availability (HA) ports 1x1GbE (SFP)
PIM slots 2
Console (RJ-45 + miniUSB) 1
USB 2.0 ports (type A) 1
Form factor 1 U
Dimensions (WxHxD) 17.28 x 1.75 x 18.2 in (43.9 x 4.44 x 46.22 cm)
Weight (device and PSU) 16.1 lb (7.30 kg)
Power
Power supply DC (external)
Redundant PSU 1+1
Average power consumption 150 W
Average heat dissipation 512 BTU / hour
Maximum current consumption 6.2A (for DC PSU)
Maximum inrush current 50A by 1 AC cycle
Airflow/cooling Front to back
Acoustic noise level 66.5dBA
