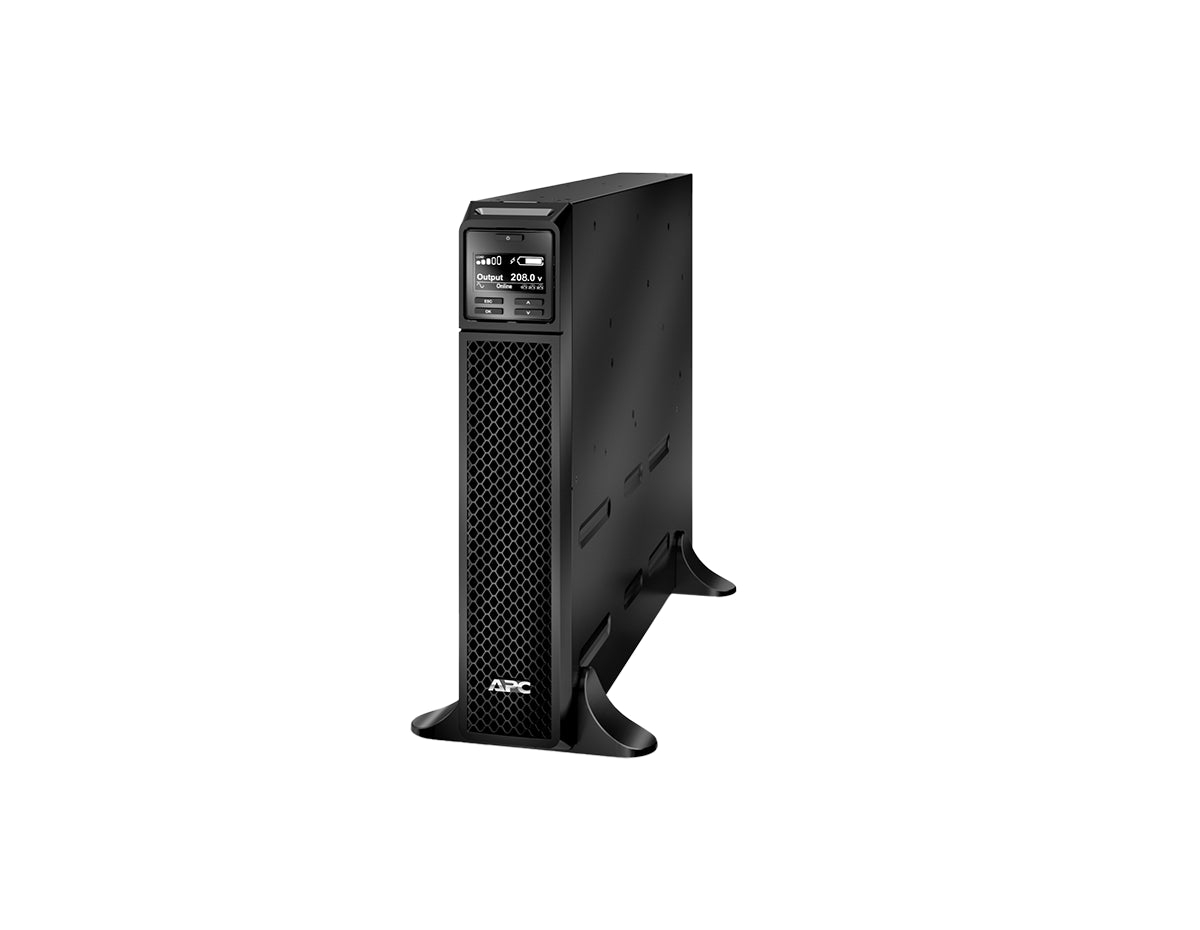

APC SRT3000XLT - Smart-UPS On-Line 3kVA Tower UPS

Overview

The APC Smart-UPS On-Line SRT3000XLT delivers continuous, regenerated AC power for critical IT loads. Rated at 3000VA / 2700W, this tower model provides 208V output (configurable for 208 or 240V), pure sine wave, and scalable runtime to maintain uptime for servers, storage, and network hardware in demanding environments.

Key Features & Benefits

• Double-Conversion Online – Continuous power conditioning that isolates loads from sags, surges, and frequency drift.
• Pure Sine Wave Output – Stable power quality for sensitive computing and network devices.
• Scalable Runtime – Extend backup with external battery packs; typical recharge about 3 hours.
• High-Capacity Connections – 2x L6-20R and 1x L6-30R outlets support 208/240V equipment.
• SmartSlot & USB – Add network management via SmartSlot and manage locally over USB.
• ENERGY STAR® V2.0 – Verified efficiency for reduced operating impact.

Technical Deep Dive

True double-conversion architecture continuously converts incoming AC to DC and back to AC, delivering a tightly regulated sine wave output independent of input variations. This design also keeps harmonic distortion low (less than 2%) and maintains output frequency at 50/60 Hz ±3 Hz in sync with mains.

The SRT3000XLT uses a 96V lead-acid battery system with a typical 3-hour recharge, supporting extended runtime through optional external battery modules. A 3:1 crest factor handles dynamic IT loads effectively, while the internal bypass (automatic and manual) maintains power to equipment if the UPS requires service.

For connectivity and control, administrators can utilize the SmartSlot for optional network cards, USB for direct management, and audible/visible alarms prioritized by severity. A 340 J surge rating adds suppression against transients, and EPO support enables emergency shutdown integration.

Ideal Applications

• 208/240V IT loads requiring continuous online conditioning
• Tower deployments in server rooms and network closets
• Sites needing expandable backup time via external batteries

Frequently Asked Questions (FAQs)

Q1: How is the SRT3000XLT deployed?
A: It is a tower unit that ships with removable support feet and setup accessories for straightforward floor/desk installation.

Q2: What performance can I expect?
A: The unit provides 3000VA / 2700W with sine wave output at 208V (configurable for 240V). Runtime depends on load and can be extended with external battery packs; actual backup time varies with load and battery condition.

Q3: What management options are available?
A: USB for local monitoring and a SmartSlot for optional network management cards; alarms and EPO support aid in operational control.

Brand	APC by Schneider Electric
Model	SRT3000XLT
Product Type	Smart-UPS On-Line, Double Conversion
Form Factor	Tower (Rackmount with kit)
Dimensions (H x W x D)	17.008" x 3.3" x 25.0" (432 x 85 x 635 mm)
Weight	69.005 lb (31.3 kg)
Color	Black
Number of Rack Units	Not specified
Cable Length	10 ft (3.05 m)
Cooling	Not specified

Capacity	3000 VA / 2700 W
Input Voltage	208 V (other: 240 V) • Adjustable range: 100–275 V
Input Connection Type	NEMA L6-20P
Input Frequency	40–70 Hz auto-sensing
Output Voltage	208 V (other: 240 V)
Output Connections	2 × NEMA L6-20R, 1 × NEMA L6-30R
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	0 ms (on-line)
Bypass Type	Internal Bypass (Automatic and Manual)
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • Voltage: 96 V • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC152 • Charge power: 165 W rated
Extendable Runtime	Yes
Surge Energy Rating	340 J
Acoustic Noise	55 dBA
Thermal Dissipation	773 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	USB, EPO, Audible/visible alarms, SmartSlot (1 free)
Certifications	ENERGY STAR V2.0 (USA)

Removable Support Feet	Included in the box
USB Cable	Included in the box
Documentation	CD with software, Documentation CD, Installation guide, Warranty card
