Overview

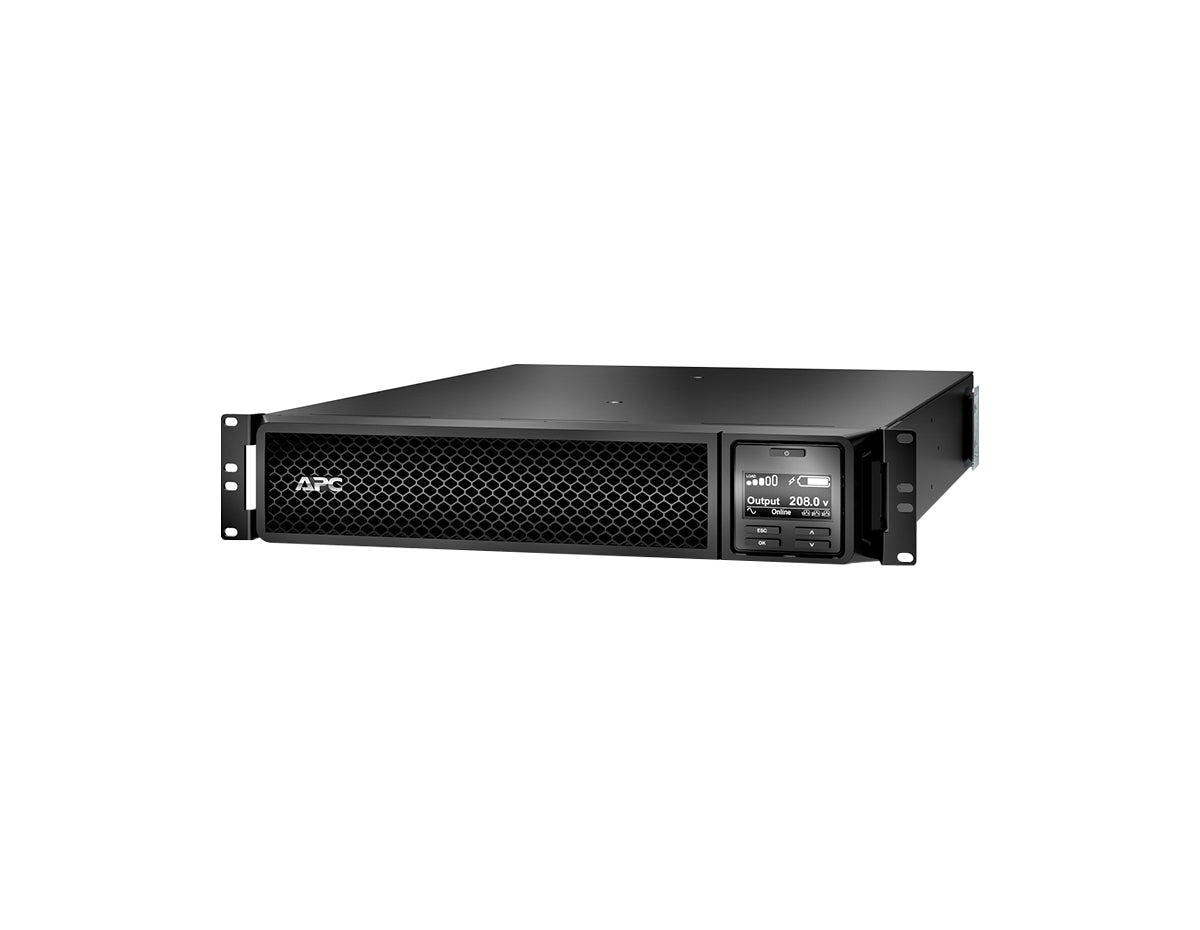

The APC SRT3000RMXLT delivers high-density, double-conversion on-line protection at 3000VA / 2700W in a compact 2U rackmount design. Built for mission-critical IT, it outputs 208V with a configurable 240V option and supports external batteries to scale runtime as your load grows.
Key Features & Benefits
- Double-Conversion Online – Continuous AC–DC–AC processing provides clean sine wave power independent of utility conditions.
- 208V/240V Flexibility – Configurable nominal output supports common North American rack power schemes.

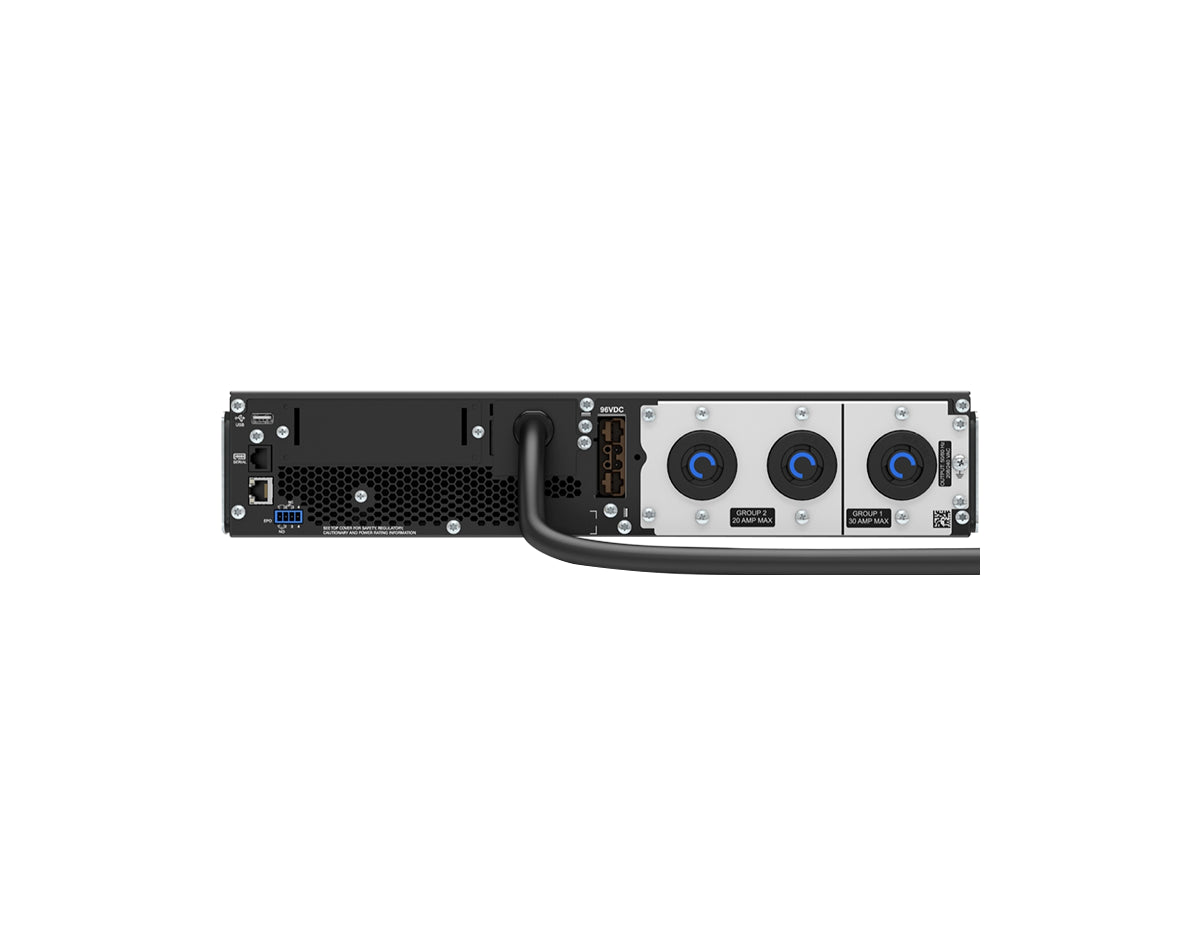

- Enterprise Outlet Mix – 2x NEMA L6-20R and 1x NEMA L6-30R simplify distribution to varied IT loads.
- SmartSlot Expansion – Add optional management cards for advanced monitoring and control.

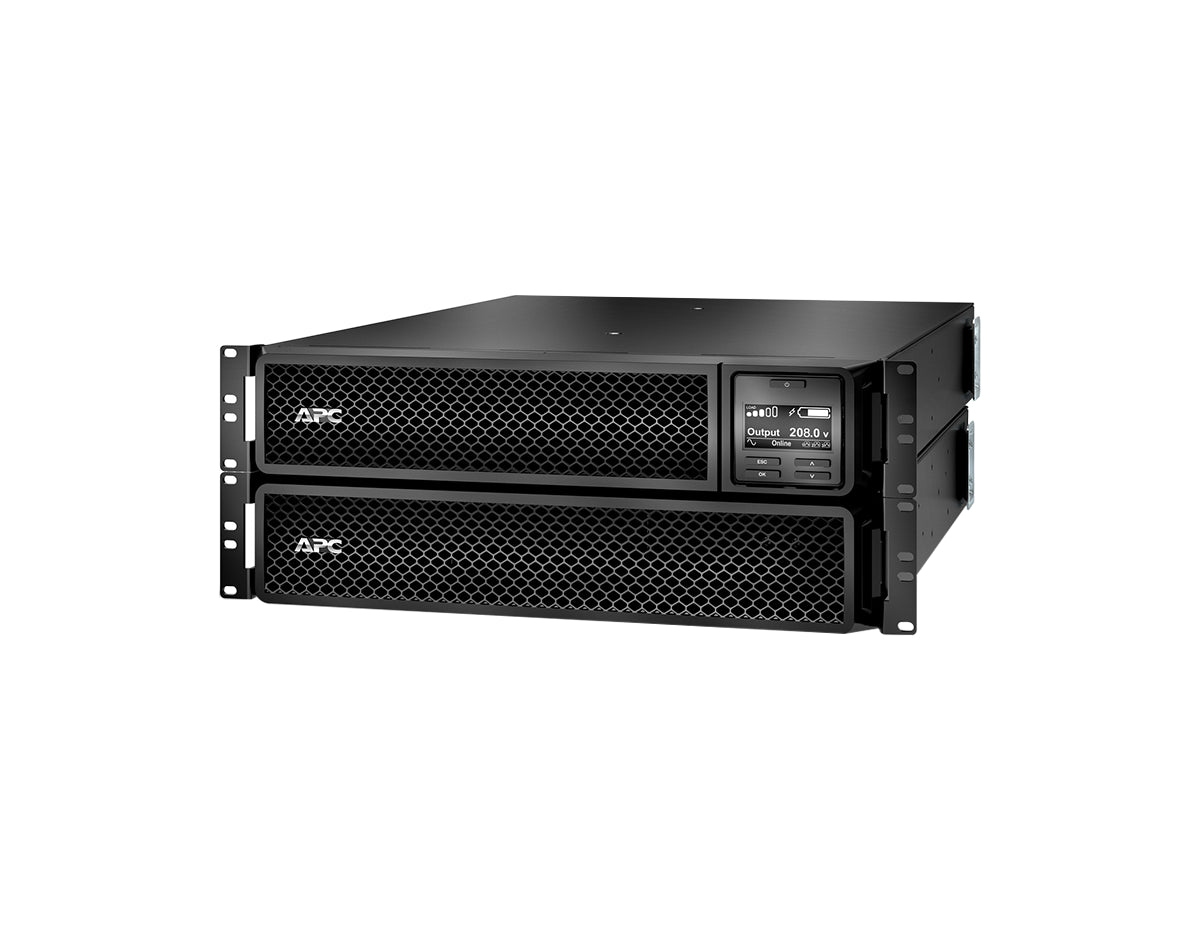

- External Runtime Ready – Connect external battery packs; typical internal recharge is about 3 hours.
- Installation Kit Included – Ships with rails, brackets, support hardware, and USB cable for fast deployment.
Technical Deep Dive
Using double-conversion topology, the inverter continuously supplies the load, isolating equipment from voltage sags, surges, and frequency drift. Output harmonic distortion is kept to less than 2% with a 3:1 crest factor, supporting dynamic server and storage demands.
A 96V lead-acid battery system underpins the DC bus for predictable performance. After discharge, the UPS has a typical 3-hour recharge to restore readiness. External battery capability enables longer backup windows for extended outages.
The unit includes an internal bypass (automatic and manual) to maintain power to loads during fault or maintenance events. Via the SmartSlot, administrators can fit optional cards to centralize monitoring; audible/visible alarms are prioritized by severity for rapid response.
Ideal Applications
- Enterprise server and storage racks requiring 208V
- Network aggregation and campus distribution closets
- Branch and edge IT where runtime scaling is needed
- Industrial and healthcare systems needing conditioned power
Frequently Asked Questions (FAQs)
Q1: How is the SRT3000RMXLT installed?
A: It mounts as a 2U rack unit and includes rack rails, mounting brackets, support rails, documentation, and a USB cable for straightforward setup.
Q2: What performance and runtime can I expect?
A: The UPS delivers 3000VA / 2700W at 208V (configurable to 240V). Backup time depends on the connected load and attached external battery packs; typical internal battery recharge is ~3 hours. Actual runtime varies with load level, battery condition, and environment.
Q3: How is it managed?
A: Use the SmartSlot to add optional management cards. The UPS also includes EPO and audible/visible alarms prioritized by severity for proactive operations.
