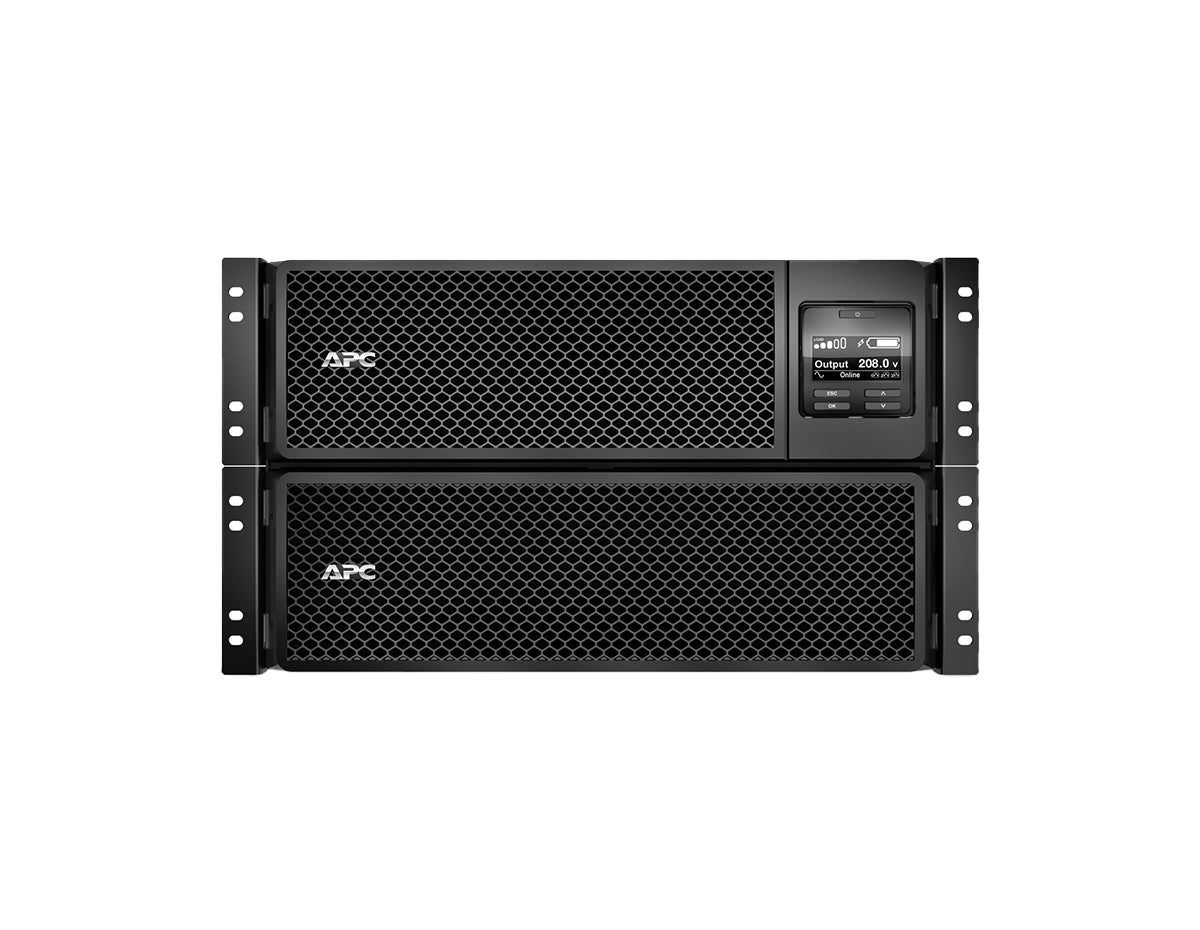

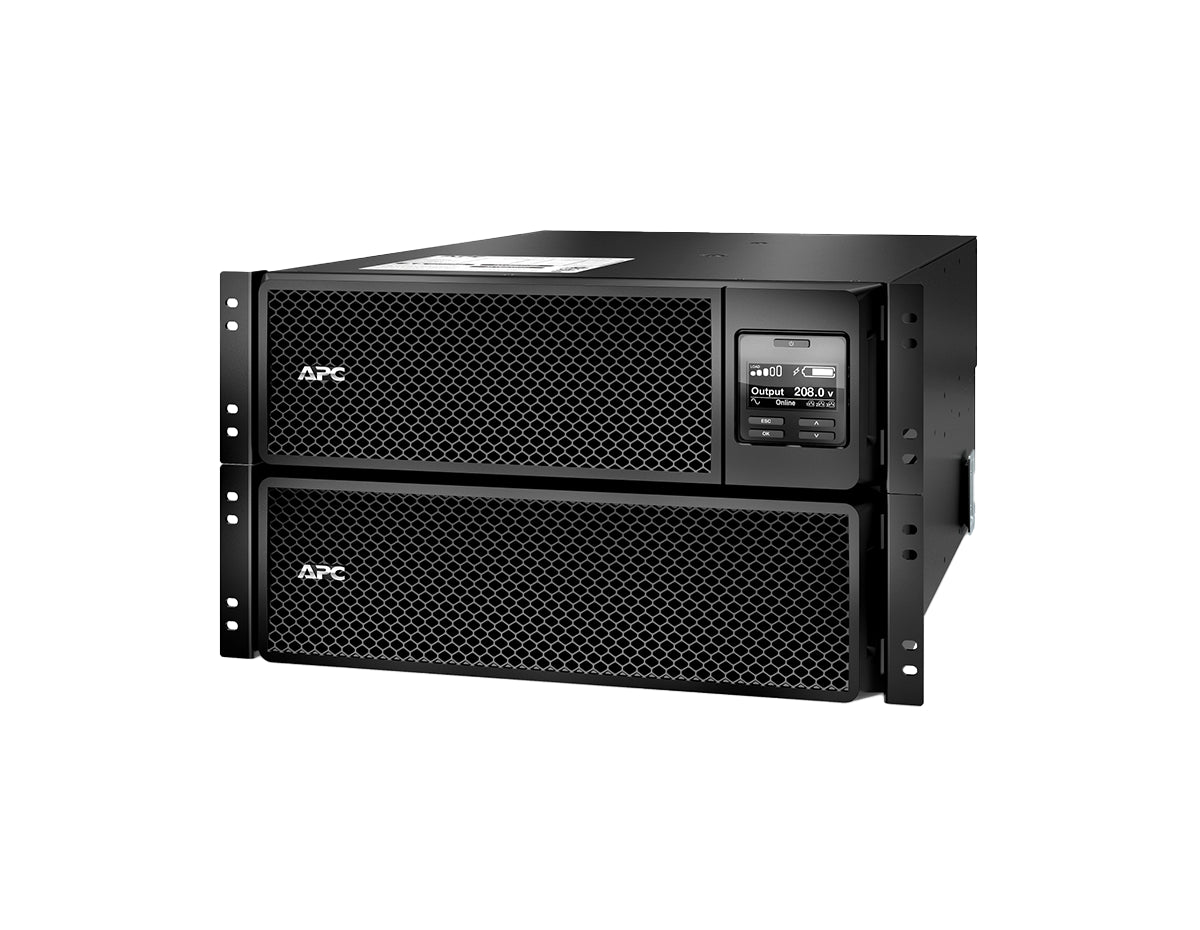

APC SRT10KRMXLT - Smart-UPS On-Line 10kVA 10kW Rackmount 6U UPS

Overview

The APC SRT10KRMXLT delivers high-density online power protection with a full 10kVA / 10kW capacity in a 6U rackmount form factor. Designed for demanding IT environments, it ensures continuous uptime with double-conversion topology, advanced management features, and scalable runtime options.

Key Features & Benefits

• 10kVA / 10kW Capacity: Reliable protection for large network devices, servers, and critical systems.
• Double-Conversion Online: Provides pure, conditioned power independent of utility fluctuations.
• 6U Rackmount Design: Space-efficient installation with included rails and hardware.

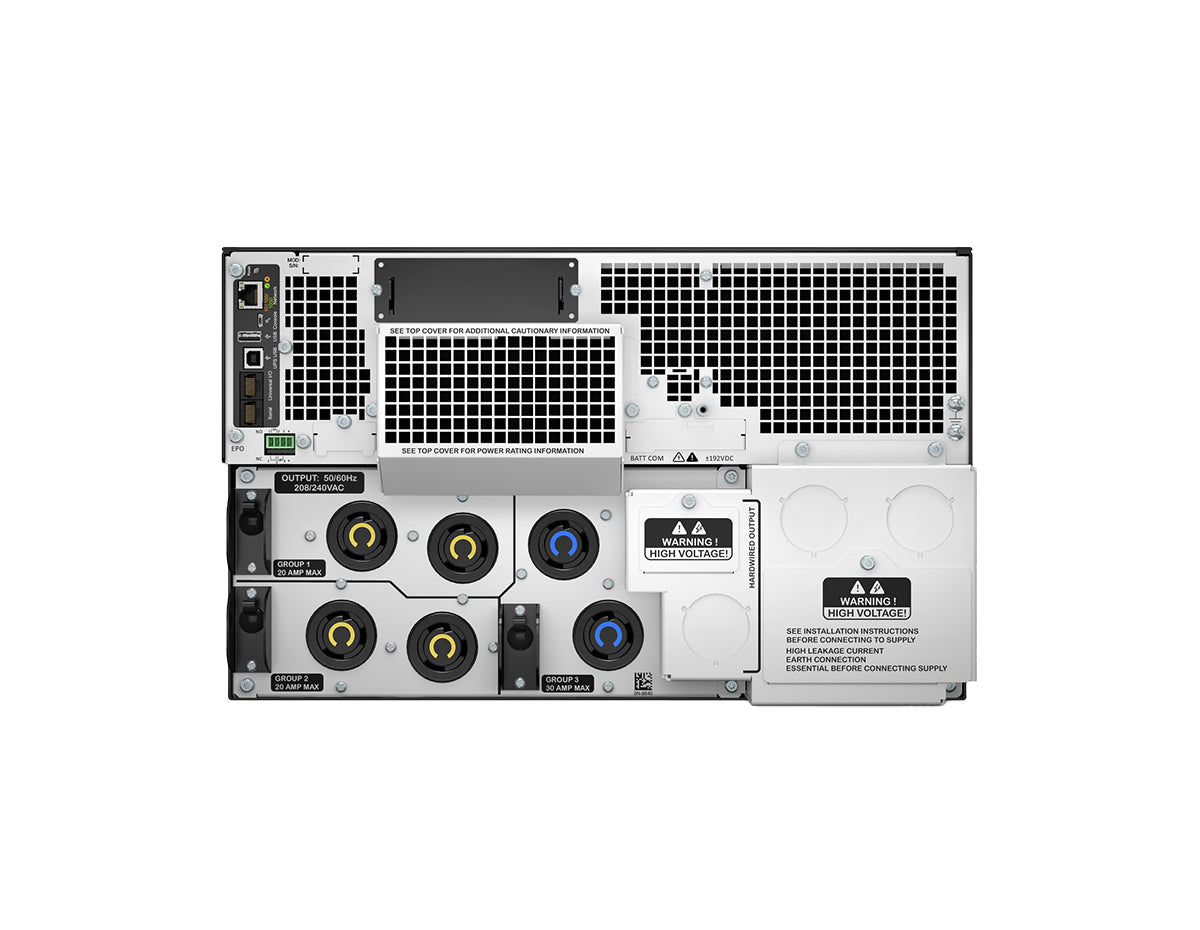

• Flexible Output Connections: 4x NEMA L6-20R and 2x L6-30R outlets plus hardwire option.
• Pre-Installed SNMP Card: Remote monitoring and environmental management built in.
• Scalable Runtime: Extendable with external battery packs for long backup needs.

Technical Deep Dive

As a double-conversion online UPS, the SRT10KRMXLT continuously regenerates clean sine wave power, ensuring complete isolation from voltage dips, surges, and frequency variations. This architecture provides the highest level of protection for mission-critical loads.

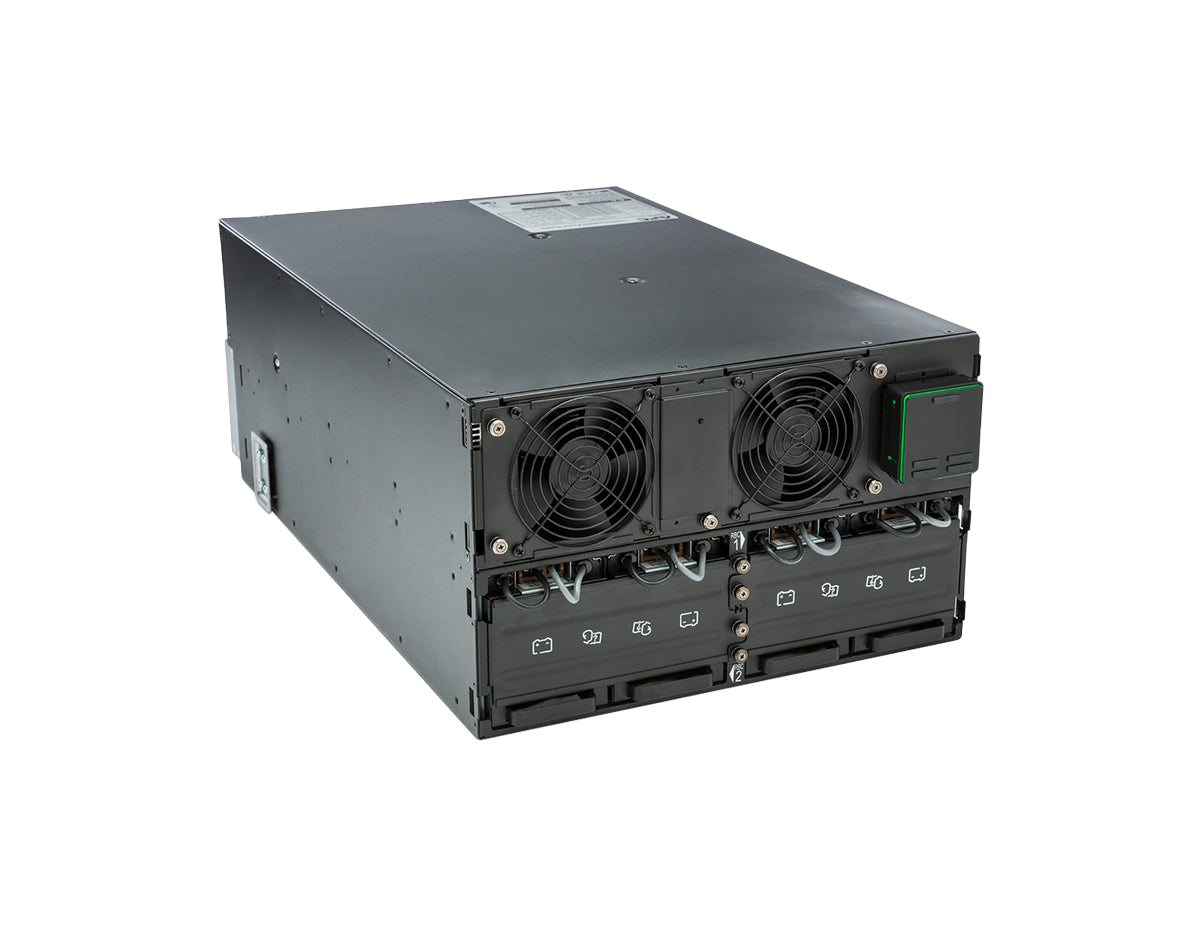

Equipped with a split-battery 192V system, the UPS ensures stable DC bus performance with rapid 1.5-hour recharge time. Lead-acid modules are hot-swappable, enabling quick service without downtime.

The integrated Network Management Card 3 enhances visibility, offering environmental monitoring and remote control through SNMP protocols. Together, these features make it suitable for enterprise data centers and distributed IT environments where uptime is essential.

Ideal Applications

• Data centers requiring 10kW power capacity
• Enterprise server and storage racks
• Network hardware in branch or campus environments
• Industrial or healthcare IT systems with zero tolerance for downtime

Frequently Asked Questions (FAQs)

Q1: How is the SRT10KRMXLT installed?
A: It is a 6U rackmount UPS delivered with rails, brackets, and mounting support for seamless integration into standard racks.

Q2: What performance can I expect?
A: It delivers 10kVA / 10kW with sine wave output. Backup runtime depends on load and can be extended using additional battery packs. Actual runtime may vary with battery age and environment.

Q3: How can this UPS be managed?
A: The UPS includes a pre-installed Network Management Card 3, supporting SNMP monitoring, remote management, and environmental sensors for comprehensive oversight.

Brand	APC by Schneider Electric
Model	SRT10KRMXLT
Product Type	Smart-UPS On-Line, Double Conversion
Form Factor	Rackmount 6U
Dimensions (H x W x D)	10.4" x 17.0" x 28.1" (263 x 432 x 715 mm)
Weight	245.99 lb (111.58 kg)
Color	Black
Number of Rack Units	6U
Cooling	Active (fan-based)

Capacity	10000 VA / 10000 W
Input Voltage	208 V (other: 240 V)
Input Connection Type	Hard Wire 3-wire (2PH + G)
Input Frequency	40–70 Hz auto-sensing
Output Voltage	208 V (other: 240 V)
Output Frequency	50/60 Hz ±3 Hz sync to mains
Output Connections	4 × NEMA L6-20R, 2 × NEMA L6-30R, 1 × Hard Wire 3-wire (2PH + G)
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	0 ms (on-line)
Bypass Type	Internal Bypass (Automatic and Manual)
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • Voltage: +/-192 V • Recharge time: 1.5 h • Life: 3–5 years • RBC Qty: 2 • Replacement: APCRBC140 • Charge power: 1191 W rated
Extendable Runtime	Yes
Surge Energy Rating	480 J
Acoustic Noise	55 dBA
Thermal Dissipation	2490 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	USB, RS-232, EPO, Audible/visible alarms, SmartSlot (1 free), Pre-installed Network Management Card 3 with environmental monitoring
Certifications	ENERGY STAR V2.0 (USA), UL 1778, FCC Part 15 Class A, NOM
Warranty	3 years repair or replace (excluding battery), 2 years (battery)

Rack Mounting Hardware	Included in the box
Rack Mounting Brackets	Included in the box
Rack Mounting Support Rails	Included in the box
Temperature Probe	Included in the box
USB Cable	Included in the box
Documentation	CD with software, Documentation CD, Installation guide, Warranty card
Web/SNMP Management Card	Pre-installed in the unit
