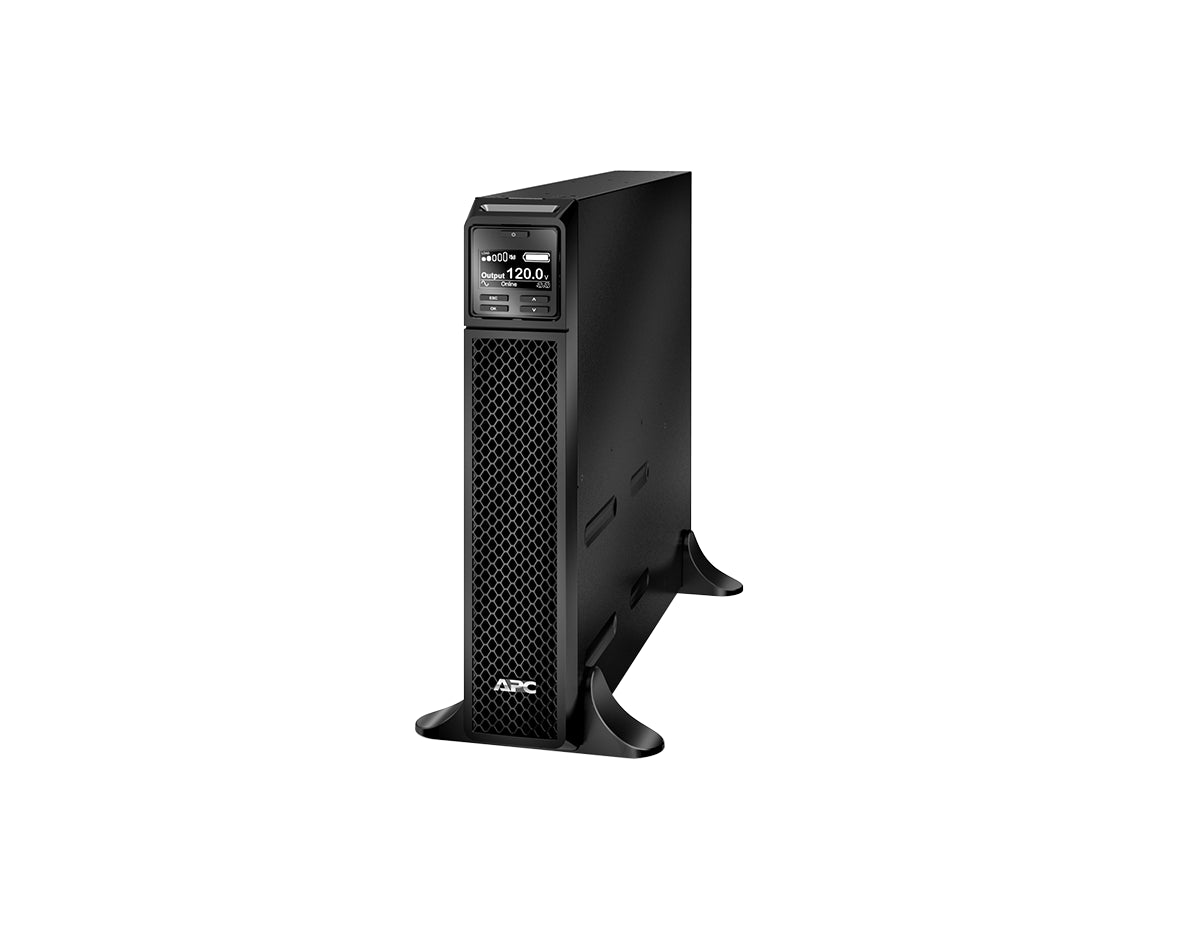

APC SRT1000XLA - Smart-UPS On-Line 1000VA Tower, 120V

Overview

The APC Smart-UPS On-Line SRT1000XLA provides continuous double-conversion protection in a compact tower form factor. Delivering 1000VA / 900W at 120V, it ensures clean sine wave output for mission-critical servers, storage, and network devices. Designed with scalable runtime and SmartSlot expansion, this UPS combines reliability with flexibility for evolving IT environments.

Key Features & Benefits

• Double Conversion Online: Continuous AC to DC and back to AC power conditioning delivers stable sine wave output.
• 1000VA/900W Capacity: Supports essential IT loads, storage, and networking hardware.
• Outlet Flexibility: Six NEMA 5-15R outlets for versatile equipment support.
• Extendable Runtime: Connects to external battery packs for longer backup during outages.
• USB & SmartSlot: Provides local management and expansion capability for network cards.
• ENERGY STAR® Certified: High efficiency minimizes operating costs and environmental impact.

Technical Deep Dive

The SRT1000XLA leverages double-conversion online topology, where input power is continuously converted to DC and inverted back to AC. This isolates connected loads from power anomalies such as surges, dips, and harmonic distortion, ensuring pure sine wave output suitable for sensitive IT hardware.

Its battery system uses a 48 V lead-acid configuration with a typical recharge time of 3 hours. Extended runtime is possible through additional battery modules. With a 3:1 crest factor and less than 2% harmonic distortion, it handles demanding electronic loads reliably.

The unit includes SmartSlot expansion for management cards, plus USB connectivity for configuration and monitoring. Audible and visual alarms notify users of operational states by severity, and built-in surge suppression (432 J) provides additional protection.

Ideal Applications

• Tower deployments for servers, network devices, and storage
• Small to medium business IT environments requiring scalable runtime
• Distributed IT and edge computing setups
• Healthcare and finance environments demanding zero downtime

Frequently Asked Questions (FAQs)

Q1: How is the SRT1000XLA installed?
A: It is designed as a vertical tower unit with removable support feet. It can also be rack-mounted with an optional kit.

Q2: What performance can I expect?
A: Rated at 1000VA / 900W, it provides clean sine wave output. Runtime depends on load and external batteries; consult APC runtime resources for precise values. Actual results vary by conditions.

Q3: How can the UPS be managed?
A: Local management is available via USB, while the SmartSlot supports optional management cards for advanced monitoring and control.

Brand	APC by Schneider Electric
Model	SRT1000XLA
Product Type	Smart-UPS On-Line, Double Conversion
Form Factor	Tower (Rackmount with kit)
Dimensions (H x W x D)	17.008" x 3.3" x 20.0" (432 x 85 x 508 mm)
Weight	48.5 lb (22 kg)
Color	Black
Number of Rack Units	—
Cable Length	6 ft (1.8 m)
Cooling	Not specified

Capacity	1000 VA / 900 W
Input Voltage	120 V
Input Connection Type	NEMA 5-15P
Input Frequency	40–70 Hz auto-sensing
Output Voltage	120 V

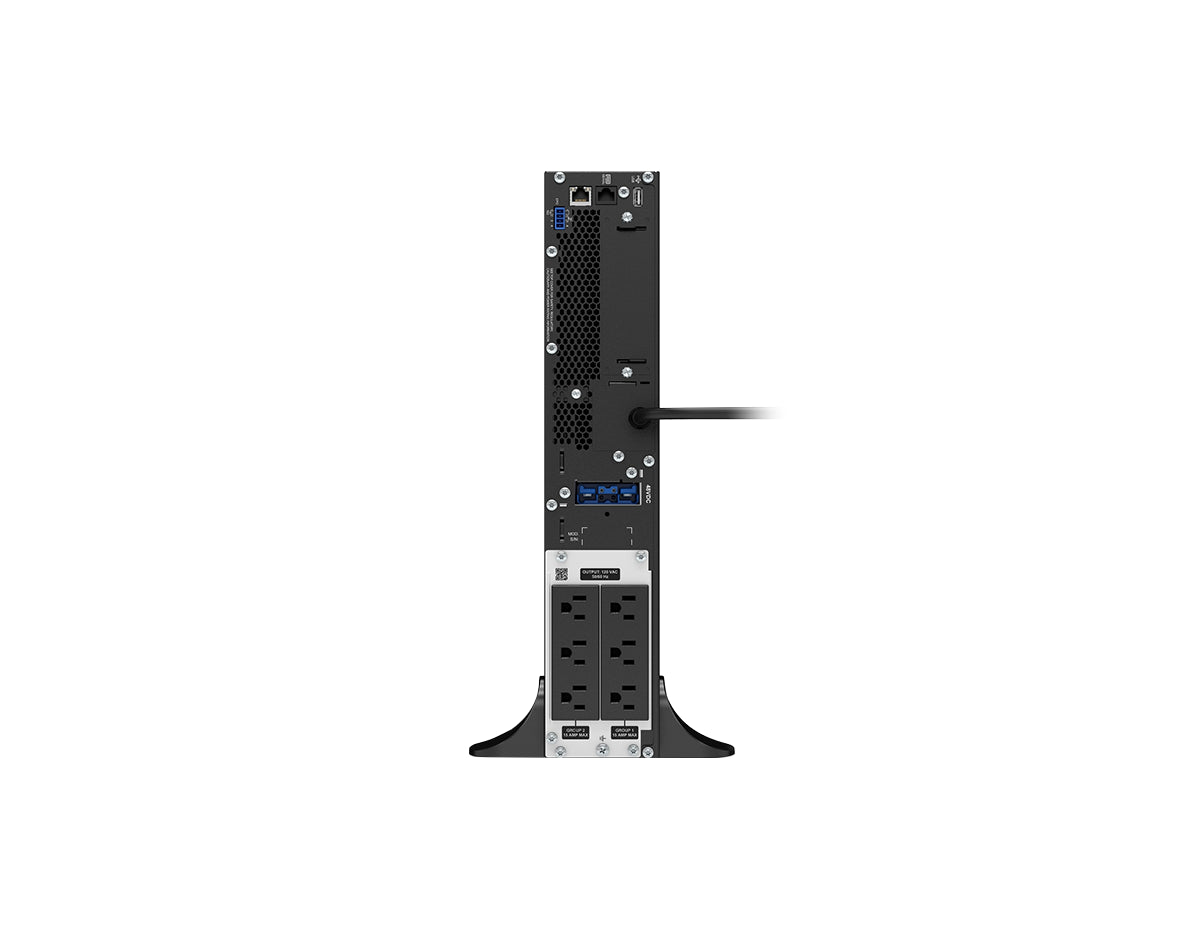

Output Connections	6 × NEMA 5-15R
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	0 ms (on-line)
Bypass Type	Built-in Bypass
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • Voltage: 48 V • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC155 • Charge power: 102 W rated
Extendable Runtime	Yes
Surge Energy Rating	432 J
Acoustic Noise	50 dBA
Thermal Dissipation	317 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	USB, EPO, Audible/visible alarms, 1 SmartSlot (free)
Certifications	ENERGY STAR V2.0 (USA)
Warranty	3 years repair or replace (excluding battery) • 2 years for battery

Removable Support Feet	Included in the box
USB Cable	Included in the box
Documentation	CD with software, Documentation CD, Installation guide, Warranty card
