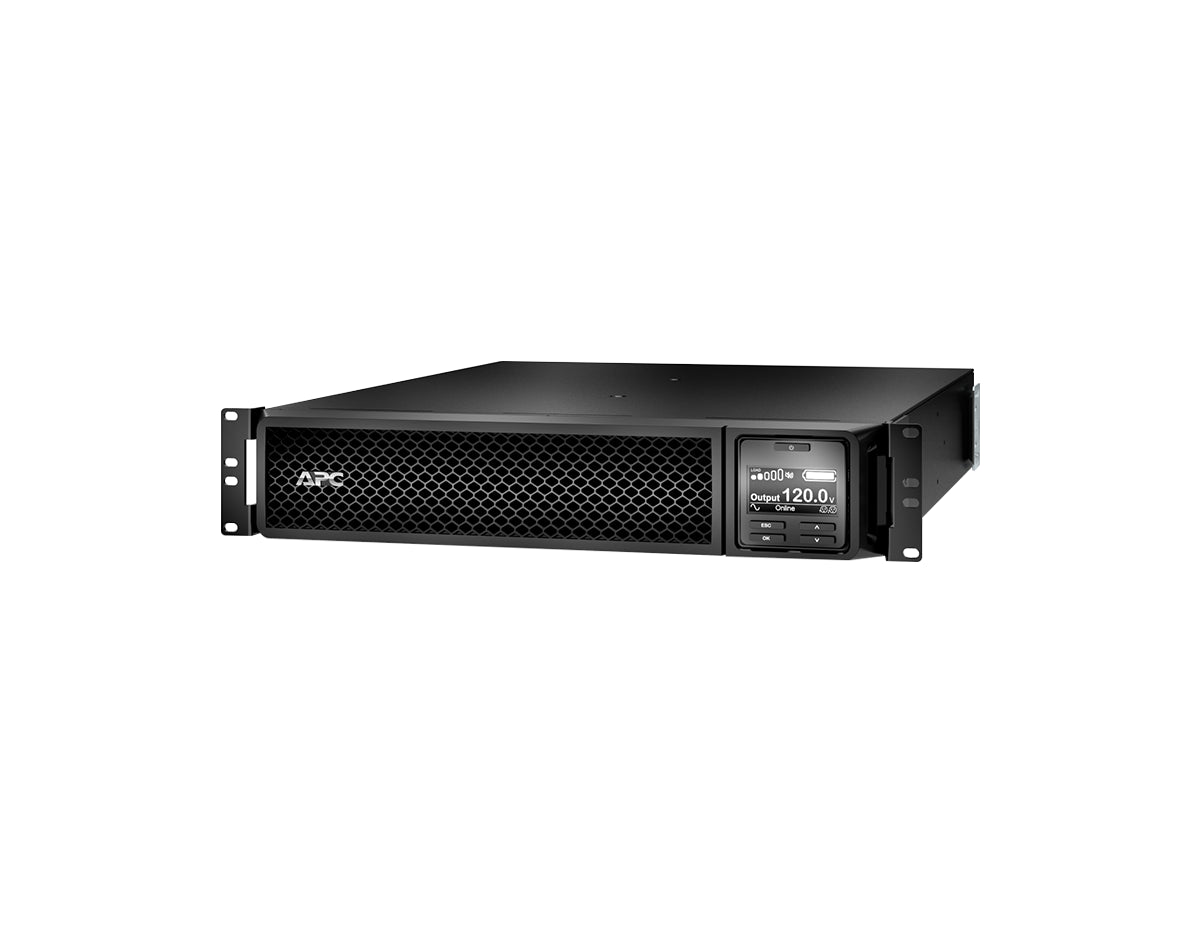

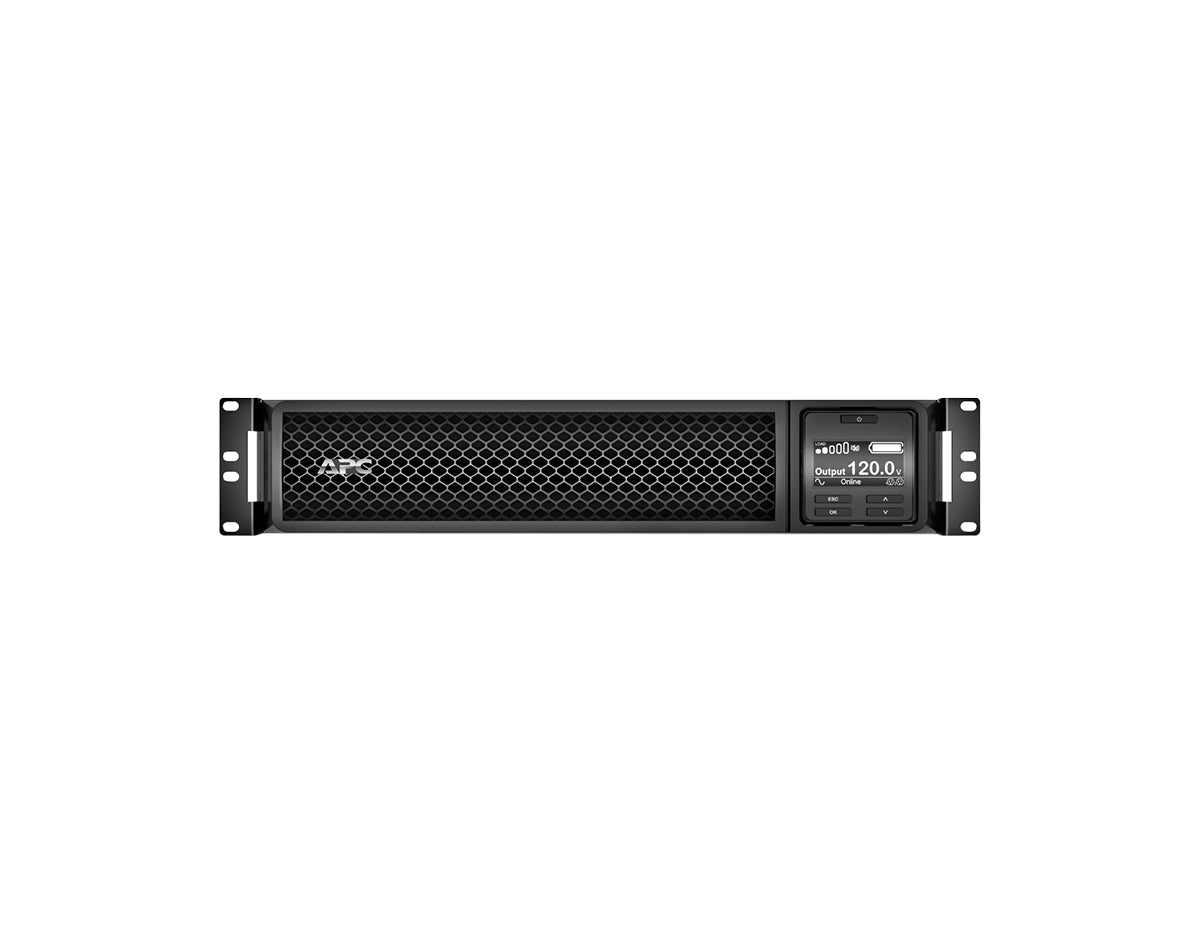

APC SRT1000RMXLA - Smart-UPS On-Line 1000VA Rackmount 2U UPS

Overview

The APC SRT1000RMXLA is a high-density 2U rackmount UPS delivering 1000VA / 900W of reliable double-conversion online protection. With pure sine wave output, extendable runtime, and SmartSlot expandability, it helps keep business-critical IT and network devices powered under adverse conditions.

Key Features & Benefits

• Double-Conversion Online: Provides continuous, clean power by isolating connected loads from utility disturbances.
• Pure Sine Wave Output: Ensures compatibility with sensitive IT and network equipment.
• SmartSlot Capability: Enables integration of network management cards for remote monitoring.
• Compact 2U Design: Saves rack space while delivering 1000VA / 900W performance.
• Scalable Runtime: Supports external battery packs to meet extended backup needs.

Technical Deep Dive

The SRT1000RMXLA employs double-conversion online topology, constantly converting incoming AC to DC and regenerating stable AC for uninterrupted sine wave output.

It features a 48V lead-acid battery with a typical 3-hour recharge time, supporting extended runtime options with external packs. Intelligent battery management provides temperature-compensated charging and proactive replacement notifications.

With SmartSlot expandability, administrators can integrate advanced monitoring tools for remote power visibility and control.

Ideal Applications

• Rack servers and storage appliances
• Network hardware and communication systems
• Healthcare IT and financial systems
• Edge deployments requiring compact backup power

Frequently Asked Questions (FAQs)

Q1: How is the SRT1000RMXLA installed?
A: It is a 2U rackmount UPS, supplied with rails and brackets for straightforward rack integration.

Q2: What performance can I expect?
A: It provides 1000VA / 900W with pure sine wave output. Runtime varies by load and can be extended with external batteries.

Q3: How can it be managed?
A: Management is supported via USB. SmartSlot expansion allows advanced network management integration.

Brand	APC by Schneider Electric
Model	SRT1000RMXLA
Product Type	Smart-UPS On-Line, Double Conversion
Form Factor	Rackmount 2U
Dimensions (H x W x D)	3.3" x 17.008" x 20.0" (85 x 432 x 508 mm)
Weight	48.5 lb (22 kg)
Color	Black
Number of Rack Units	2U
Cable Length	6 ft (1.8 m)
Cooling	Not specified

Capacity	1000 VA / 900 W
Input Voltage	120 V • Adjustable: 100–275 V • Operating: 80–150 V
Input Connection Type	NEMA 5-15P
Input Frequency	40–70 Hz auto-sensing
Output Voltage	120 V

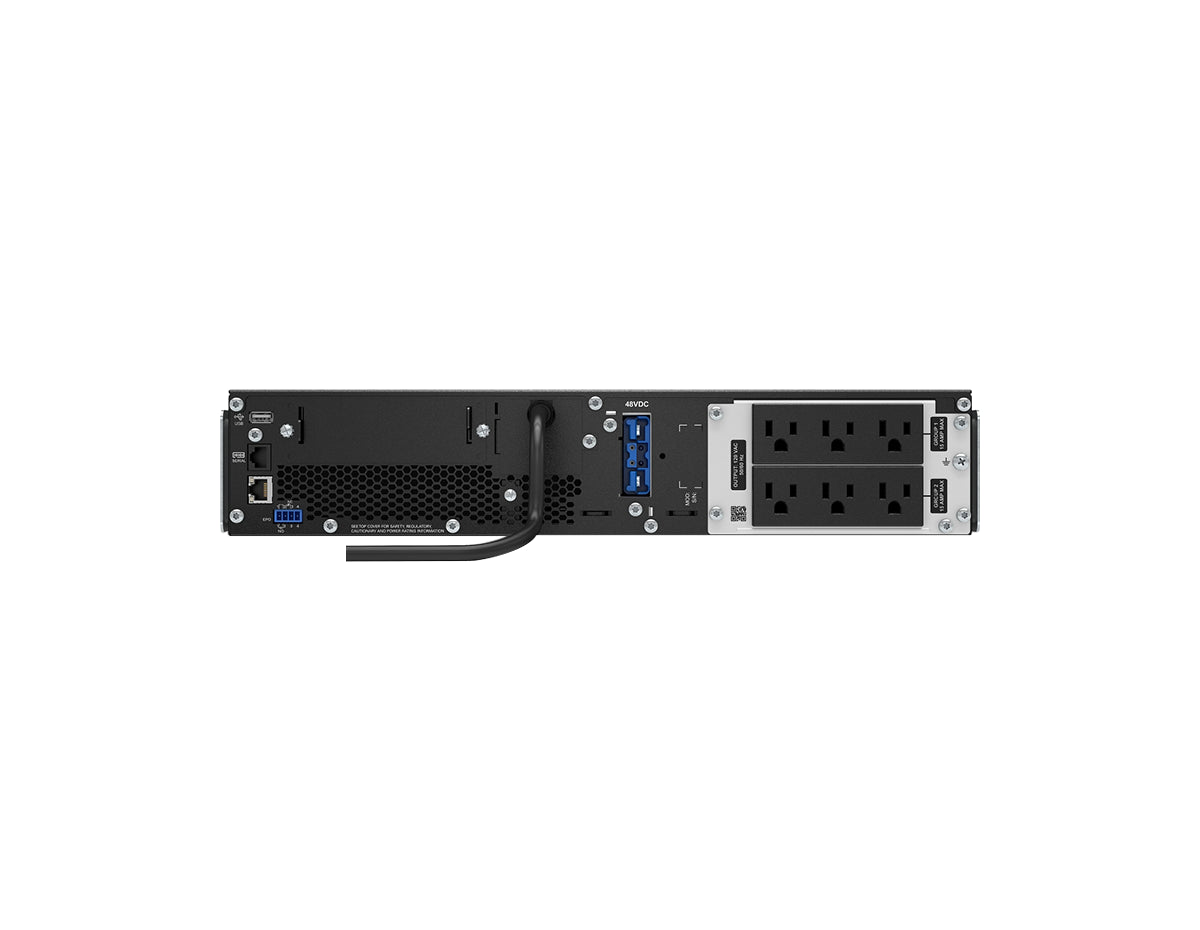

Output Connections	6 × NEMA 5-15R
Waveform Type	Sine wave
Topology	Double Conversion On-Line
Transfer Time	0 ms (on-line)
Bypass Type	Built-in Bypass
Crest Factor	3:1
Harmonic Distortion	<2%
Battery Type	Lead-Acid • Voltage: 48 V • Recharge: 3 h • Life: 3–5 years • RBC Qty: 1 • Replacement: APCRBC155 • Charge power: 102 W rated
Extendable Runtime	Yes
Surge Energy Rating	432 J
Acoustic Noise	50 dBA
Thermal Dissipation	317 BTU/h
Operating Temperature	0–40 °C (32–104 °F)
Operating Humidity	0–95% non-condensing
Altitude	0–10,000 ft operating
Communications	USB, EPO, Audible/visible alarms, SmartSlot (1 free)
Certifications	ENERGY STAR V2.0 (USA)

Rack Mounting Hardware	Included in the box
Rack Mounting Brackets	Included in the box
Rack Mounting Support Rails	Included in the box
USB Cable	Included in the box
Documentation	CD with software, Documentation CD, Installation guide, Warranty card
