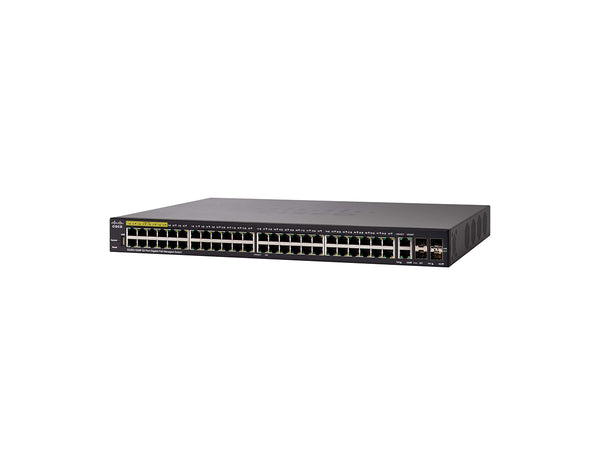

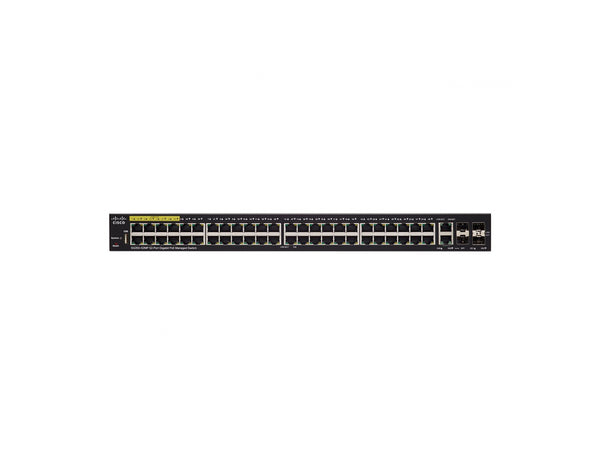

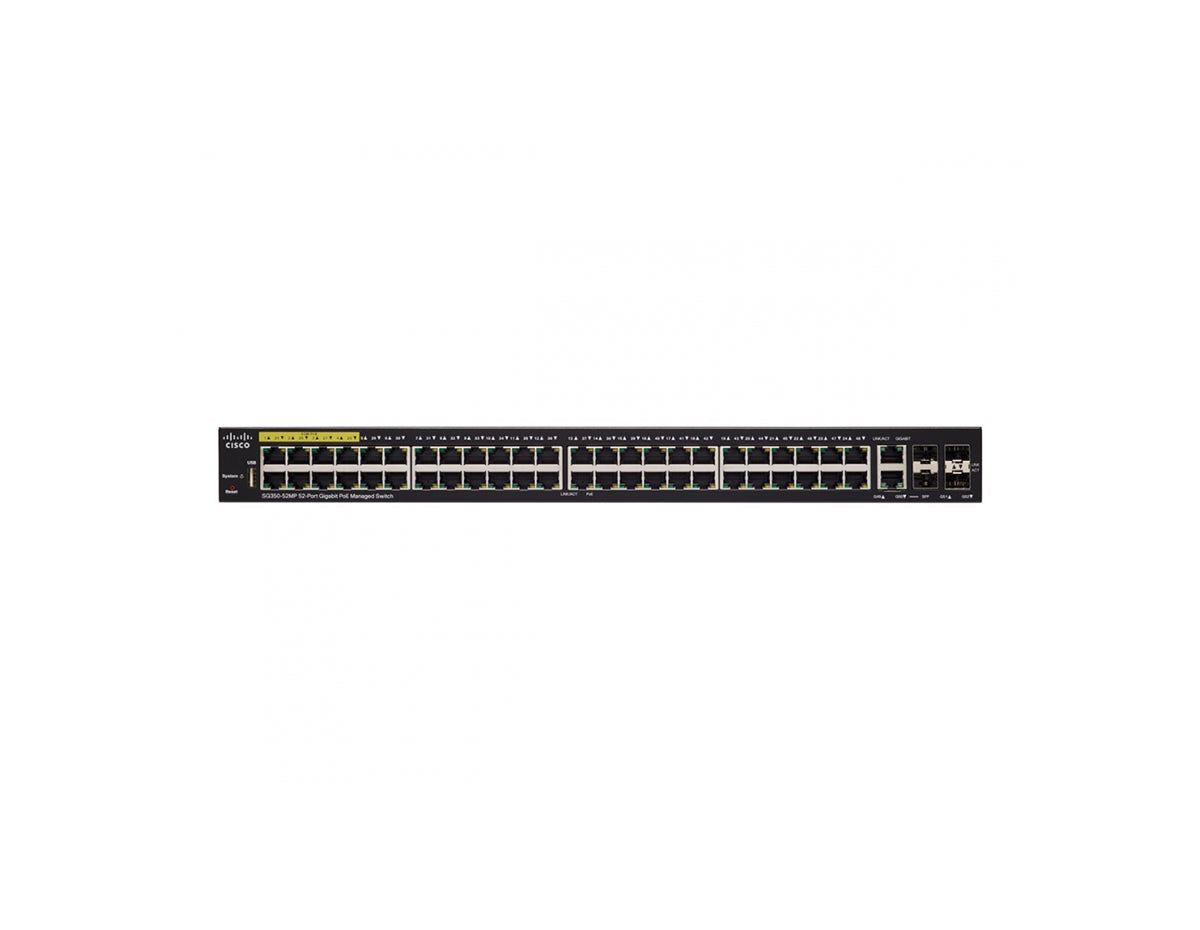

CISCO SG350-52MP-K9 SWITCH
| Part No: | SG350-52MP-K9 |
| Detail: | Managed, Rack-mountable, 48 x 1G PoE+ ports, 2 x 1G copper/SFP combo + 2 SFP Uplinks, PoE+ (740W), Layer 3 |
| Price: |
$2,995.00
|
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
Cisco SG350-52MP-K9 Switch
The Cisco SG350-52MP-K9 is a high-performance managed switch designed for small to medium-sized businesses that require Power over Ethernet (PoE) capabilities. Offering 48 Gigabit Ethernet PoE+ ports with a robust 740W power budget, this switch can power a wide range of devices such as IP phones, cameras, and wireless access points. With advanced Layer 3 traffic management and secure, scalable connectivity, the SG350-52MP ensures reliable and high-speed network performance.
Key Features:
- 48 x Gigabit Ethernet PoE+ Ports: Provides up to 60W per port, ideal for powering high-demand devices such as IP phones and cameras.
- 4 Gigabit Uplink Ports: Includes 2 Gigabit copper/SFP combo ports and 2 SFP ports for flexible network expansion.
- Layer 3 Traffic Management: Supports VLANs, static routing, and access control lists (ACLs) for improved traffic management and network security.
- Energy Efficiency: Compliant with IEEE 802.3az standards, reducing power consumption without compromising performance.
- Robust Security: Features such as DHCP snooping, IP Source Guard, and dynamic ARP inspection protect your network from unauthorized access.
Technical Overview:
- Recommended for: Small to medium-sized businesses needing reliable PoE+ support and advanced Layer 3 management.
- Ports: 48 x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports (8 support 60W PoE).
- Uplink Modules: 2 Gigabit copper/SFP combo ports + 2 SFP ports.
- Switching Capacity: 104 Gbps.
- Forwarding Rate: 77.38 Mpps.
- PoE Power Budget: 740W for connected PoE devices.
- Energy Efficiency: Supports IEEE 802.3az for energy-efficient operation.
You can check the related tab for the Cisco SG350-52MP-K9 datasheet.
Accessories
| Hardware | |
| LEDs | System, Link/Act, PoE, Speed |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5e or better for 1000BASE-T |
| Accessories | There is no additional accessory other than the mounting kit and power cord included in the product package. |
| Supported SFP modules | |
| SKU | Media |
| MGBSX1 | Multimode fiber |
| MGBLH1 | Single-mode fiber |
| MGBLX1 | Single-mode fiber |
| MGBT1 | UTP cat 5e |
| GLC-LH-SMD | Single-mode fiber |
| GLC-BX-U | Single-mode fiber |
| Package contents | Cisco 350 Series Managed Switch Power Cord (Power Adapter for select SKUs) Mounting Kit Console Cable Quick Start Guide |
| Minimum requirements | Web browser: Chrome, Firefox, Edge, Safari Category 5 Ethernet network cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network |
Specifications
| Specifications | SG350-52MP-K9 |
| Capacity in millions of packets (mpps) | 77.38 |
| Switching capacity (Gbps) | 104.0 |
| Flash Memory | 256 MB |
| CPU | 800 MHz ARM |
| CPU Memory | 512MB |
| Packet Buffer | 3 MB |
| MAC addresses | 16K |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| Quality of Service (QoS) | 8 hardware queues, Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS) |
| Loopback detection | Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 826, RFC 879, RFC 896, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3176, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330 |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Properties
| Properties | SG350-52MP-K9 |
| Description | 48 10/100/1000 PoE+ ports (8 support 60W PoE) 2 Gigabit copper/SFP combo + 2 SFP ports 740W PoE power budget |
| Product Family | SG350 - SF350 Series |
| Product Type | Small Business Switch |
| Number of Ports (Gigabit Ethernet) | 52 |
| RJ-45 ports (Gigabit Ethernet) | 48 |
| Downlinks total 10/100/1000 ports | 48 |
| Power dedicated to PoE | 740W |
| Number of ports that support PoE | 48 (8 support 60W PoE) |
| Power | 100 to 240V 50 to 60 Hz, internal, universal |
| Fans | 4 |
| Unit dimensions in. (W x D x H) | 17.3 x 1.73 x 13.78 |
