CISCO SG350-28SFP-K9 SWITCH
| Part No: | SG350-28SFP-K9 |
| Detail: | Managed, Rack-mountable, 48 x 1G PoE+ ports, 2 x 1G copper/SFP combo + 2 SFP Uplinks, PoE+ (375W), Layer 3, |
| List Price: |
|
| Price: |
$875.00
|
| You Save: | $488.00 (36% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

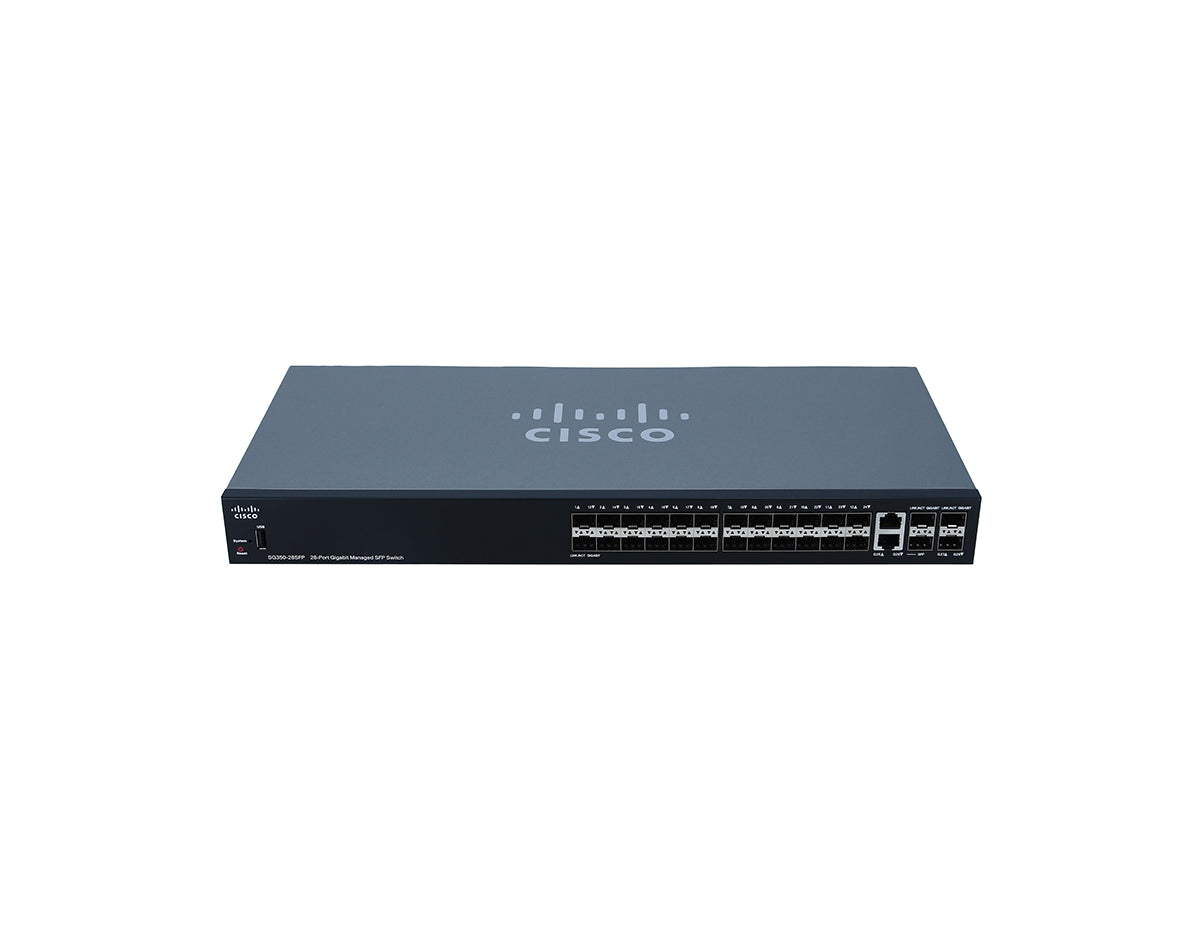

Cisco SG350-28SFP-K9 Switch
The Cisco SG350-28SFP-K9 is a high-performance managed switch, ideal for small to medium-sized businesses that require flexible, high-speed fiber connections. Featuring 24 SFP Gigabit slots and 4 additional Gigabit uplink ports, this switch offers reliable fiber connectivity while providing advanced Layer 3 traffic management, ensuring secure and efficient network performance.
Key Features:
- 24 x SFP Gigabit Ports: Provides high-speed fiber connectivity, ideal for long-distance networking and secure data transfer.
- 4 Gigabit Uplink Ports: Includes 2 Gigabit copper/SFP combo ports and 2 SFP ports for scalable network expansion.
- Layer 3 Traffic Management: Supports VLANs, static routing, and access control lists (ACLs) for optimized traffic control and enhanced network security.
- Energy Efficiency: Compliant with IEEE 802.3az standards, reducing power consumption while maintaining performance.
- Comprehensive Security: Features such as DHCP snooping, IP Source Guard, and dynamic ARP inspection protect the network from unauthorized access.
Technical Overview:
- Recommended for: Small to medium-sized businesses needing reliable fiber connectivity and advanced Layer 3 management.
- Ports: 24 x SFP Gigabit Ethernet slots.
- Uplink Modules: 2 x Gigabit copper/SFP combo ports + 2 SFP ports.
- Switching Capacity: 56 Gbps.
- Forwarding Rate: 41.66 Mpps.
- Layer 3 Features: VLANs, static routing, and ACLs for efficient traffic management.
- Energy Efficiency: Supports IEEE 802.3az for energy-efficient operation.
You can check the related tab for the Cisco SG350-28SFP-K9 datasheet.
Accessories
| Hardware | |
| LEDs | System, Link/Act, PoE, Speed |
| Cabling type | Unshielded Twisted Pair (UTP) Category 5 or better for 10BASE-T/100BASE-TX; UTP Category 5e or better for 1000BASE-T |
| Accessories | There is no additional accessory other than the mounting kit and power cord included in the product package. |
| Supported SFP modules | |
| SKU | Media |
| MGBSX1 | Multimode fiber |
| MGBLH1 | Single-mode fiber |
| MGBLX1 | Single-mode fiber |
| MGBT1 | UTP cat 5e |
| GLC-LH-SMD | Single-mode fiber |
| GLC-BX-U | Single-mode fiber |
| Package contents | Cisco 350 Series Managed Switch Power Cord (Power Adapter for select SKUs) Mounting Kit Console Cable Quick Start Guide |
| Minimum requirements | Web browser: Chrome, Firefox, Edge, Safari Category 5 Ethernet network cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in the network |
Specifications
| Specifications | SG350-28SFP-K9 |
| Capacity in millions of packets (mpps) | 41.66 |
| Switching capacity (Gbps) | 56.0 |
| Flash Memory | 256 MB |
| CPU | 800 MHz ARM |
| CPU Memory | 512MB |
| Packet Buffer | 1.5 MB |
| MAC addresses | 16K |
| Head-of-line (HOL) blocking | HOL blocking prevention |
| Quality of Service (QoS) | 8 hardware queues, Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS) |
| Loopback detection | Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 826, RFC 879, RFC 896, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3176, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330 |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Certification | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Properties
| Properties | SG350-28SFP-K9 |
| Description | 24 SFP Gigabit slots 2 Gigabit copper/SFP combo + 2 SFP ports |
| Product Family | SG350 - SF350 Series |
| Product Type | Small Business Switch |
| Number of Ports (Gigabit Ethernet) | 28 |
| RJ-45 ports (Gigabit Ethernet) | 24 |
| Downlinks total 10/100/1000 ports | 24 |
| Power dedicated to PoE | - |
| Number of ports that support PoE | - |
| Power | 100-240V 50-60 Hz, internal, universal |
| Fans | 1 |
| Unit dimensions in. (W x D x H) | 17.3 x 1.73 x 7.99 |
