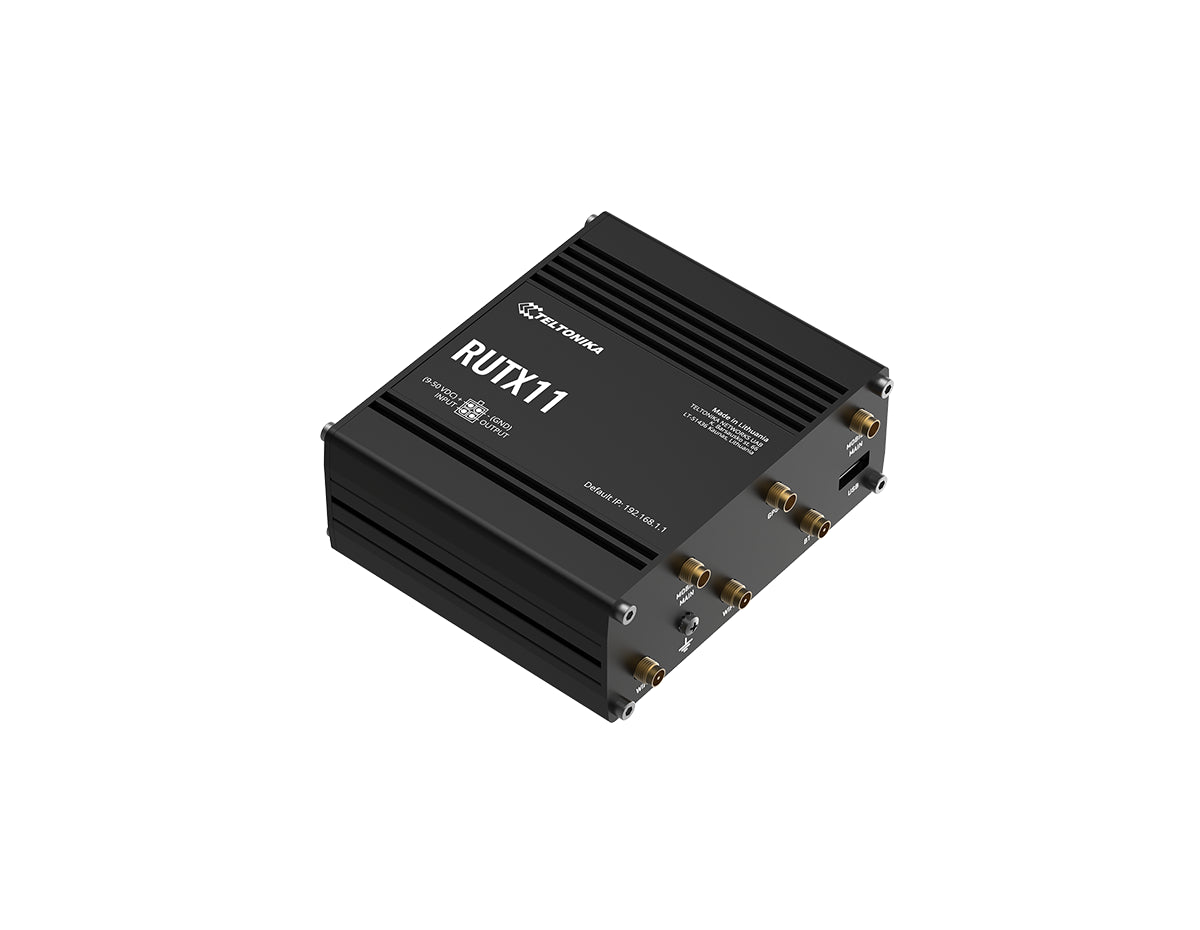

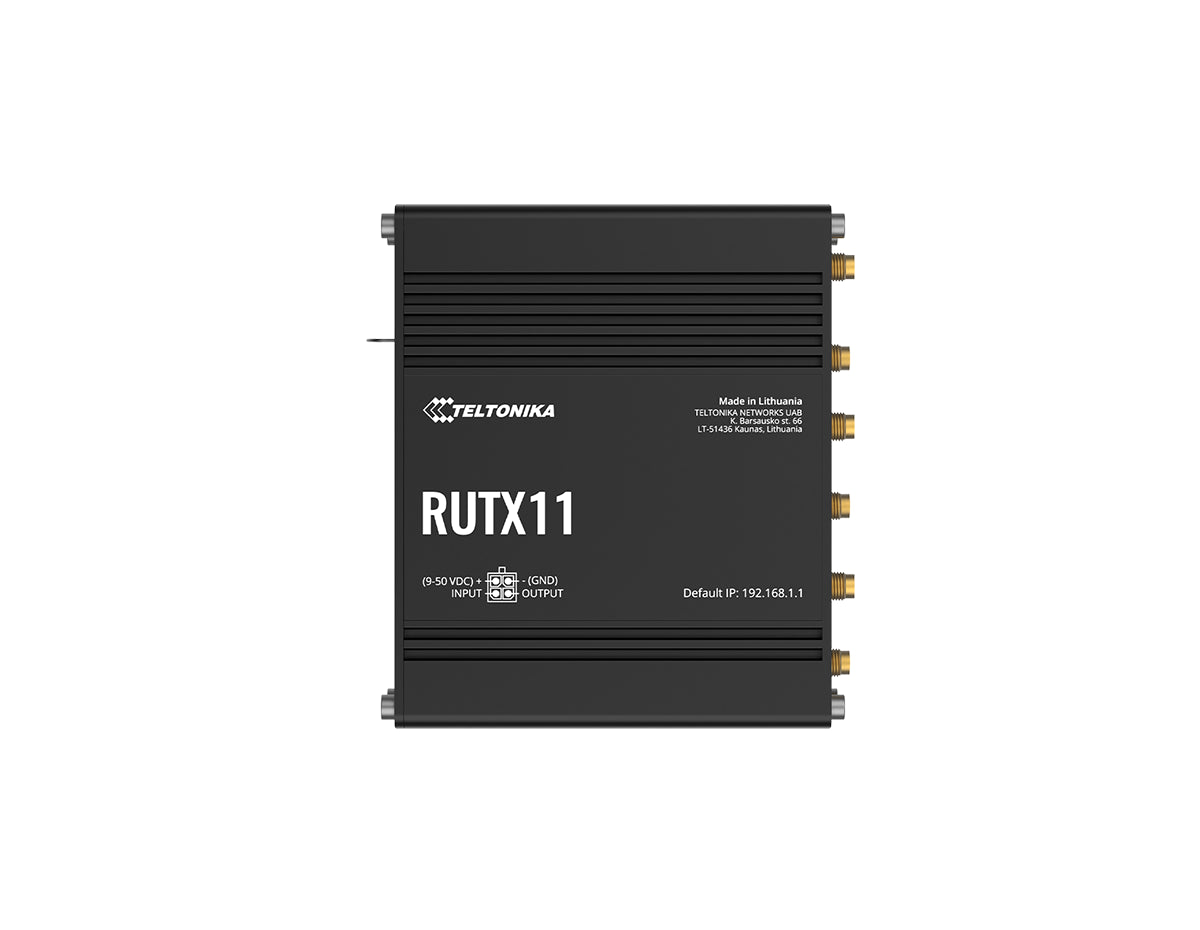

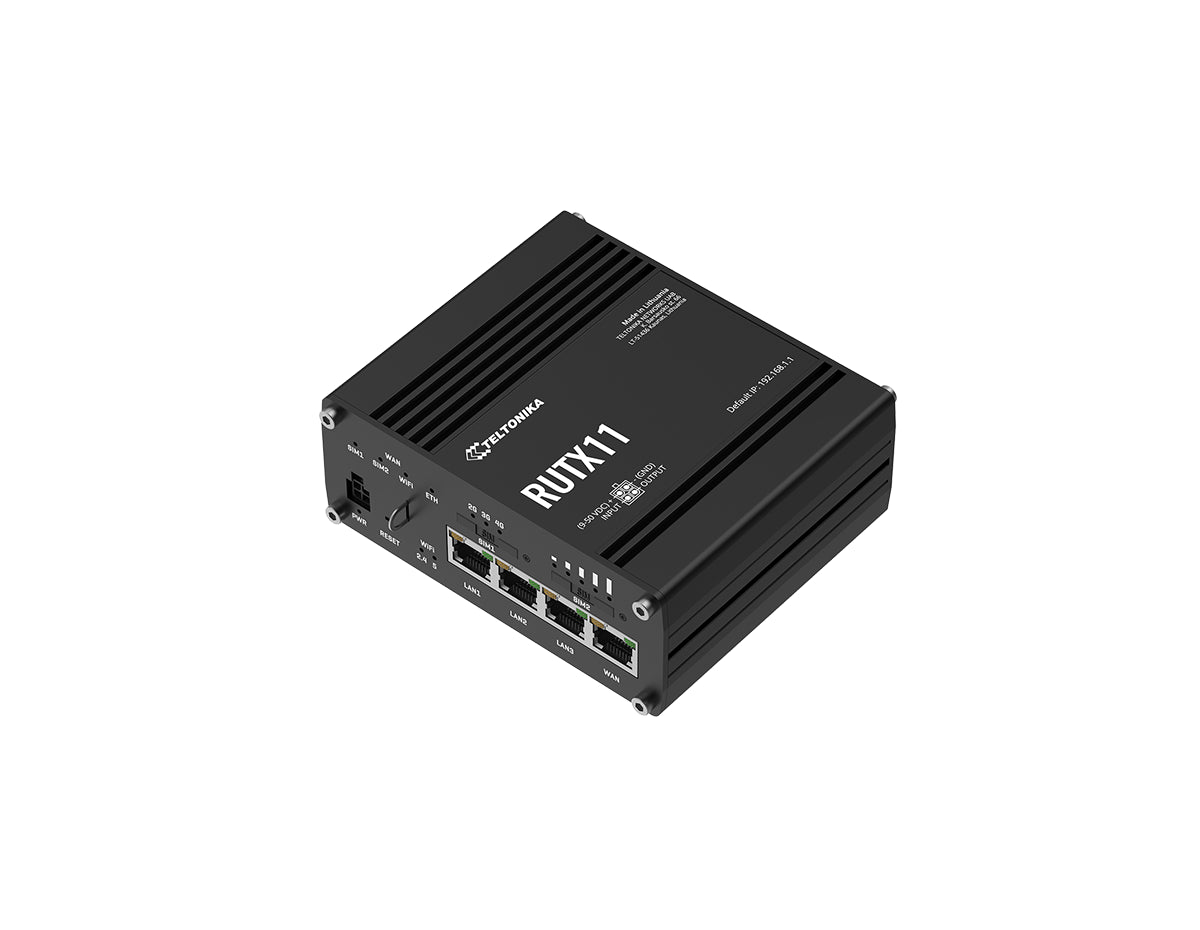

Teltonika RUTX11 Industrial 4G LTE Cat 6 Gigabit Router (RUTX11300400)

Reliable Industrial Connectivity with High-Speed LTE and Failover

The Teltonika RUTX11 industrial cellular router is engineered for mission-critical connectivity across industrial, enterprise, and IoT environments. Combining LTE Cat 6 speeds with dual SIM failover and advanced networking capabilities, this router ensures uninterrupted connectivity in demanding deployments. Built on RutOS and powered by a quad-core CPU, it delivers both performance and flexibility for modern network infrastructures.

Key Benefits & Features

• LTE Cat 6 with Carrier Aggregation: Achieve download speeds up to 300 Mbps with enhanced bandwidth efficiency, ideal for data-intensive industrial applications.
• Dual SIM Failover: Automatic switching between SIM cards ensures continuous connectivity during network failures, signal loss, or data limits.
• Dual Band WiFi 5 & Bluetooth: Wave-2 802.11ac MU-MIMO wireless with up to 867 Mbps and Bluetooth 5.0 LE support for short-range device integration.
• Gigabit Ethernet Connectivity: Four RJ45 Gigabit ports with up to 128 port/tag-based VLANs supported enable flexible wired network segmentation.
• Advanced Routing & Security: Supports BGP, OSPF, specialized VPN protocols like WireGuard and DMVPN, and enterprise-grade DDoS protection.

Ideal Use Cases

• Industrial automation and remote monitoring systems
• Smart city infrastructure and IoT deployments
• Retail branch connectivity and backup WAN solutions
• Enterprise failover networking and remote offices
• Energy and utilities communication networks

Technical Specifications

• Cellular Technology: 4G LTE Cat 6 (300 Mbps DL / 50 Mbps UL) with 3G fallback
• SIM Configuration: Dual SIM slots with automatic switching and SIM idle protection
• WiFi: Dual band 802.11ac Wave 2 (speeds up to 867 Mbps)
• Ethernet Ports: 4 x Gigabit RJ45 (1 x WAN, 3 x LAN)
• CPU: Quad-core ARM Cortex A7, 717 MHz
• RAM / Storage: 256 MB DDR3 RAM, 256 MB SPI Flash
• Bluetooth: Bluetooth 5.0 Low Energy (LE)
• VPN Support: OpenVPN, IPsec, WireGuard, L2TP, GRE, ZeroTier, Tailscale
• Power Input: 9 to 50 VDC with Passive PoE support via LAN1
• Operating Temperature: Industrial-grade -40 C to 75 C

Upgrade Your Network Reliability Today

Deploy the Teltonika RUTX11 for secure, high-speed, and resilient connectivity across any environment. Order today.

Model	RUTX11
SKU	RUTX11300400
Product Type	Industrial Cellular Router
Cellular Technology	4G LTE Cat 6, 3G
Max Cellular Speed	Up to 300 Mbps DL / 50 Mbps UL
SIM Support	2 x SIM slots (Mini SIM 2FF)
Wi-Fi	802.11b/g/n/ac Wave 2 (Wi-Fi 5) Dual Band, MU-MIMO
Bluetooth	Bluetooth 5.0 LE
Ethernet Ports	4 x Gigabit RJ45 (1 x WAN, 3 x LAN)
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB DDR3
Flash Storage	256 MB SPI Flash
Operating System	RutOS (OpenWrt-based Linux OS)
GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS
USB	1 x USB 2.0 Type A
Digital I/O	1 x Digital Input, 1 x Digital Output on 4-pin connector
Power Input	9 – 50 VDC, 4-pin industrial connector
PoE	Passive PoE (9 – 50 VDC, Mode B via LAN1)
Power Consumption	16 W max
Dimensions (W x H x D)	115 x 44.2 x 95.1 mm
Weight	456 g
Casing	Aluminium housing with grounding screw
Mounting Options	DIN rail, wall mount, flat surface (requires additional kit)
Operating Temperature	-40 C to 75 C
Humidity	10% to 90% non-condensing
Ingress Protection	IP30

Mobile Module	4G LTE Cat 6 (300 Mbps DL), 3G (42 Mbps DL)
Wi-Fi Features	MU-MIMO, 802.11r Fast Transition, 802.11s Mesh, up to 150 users
Wi-Fi Security	WPA3-EAP, WPA3-SAE, WPA2-Enterprise, AES-CCMP, TKIP, PMF
Routing Protocols	BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, Static/Policy based routing
Network Protocols	TCP, UDP, IPv4, IPv6, HTTP(S), MQTT, SNMP, SSH, DHCP, VRRP, VXLAN
Firewall Features	Port forwarding, traffic rules, NAT, NAT-T, NAT64, DMZ, Port Scan Prevention
VPN Support	OpenVPN, IPsec, WireGuard, GRE, PPTP, L2TP, SSTP, ZeroTier, Tailscale, DMVPN, Stunnel
Load Balancing	Balance Internet traffic over multiple WAN connections
Failover	Auto-switch: Mobile, Wi-Fi WAN, VRRP, Wired
QoS	Traffic prioritization by source/destination, service, protocol, or port
Monitoring & Management	Web UI, SSH, SMS, TR-069, MQTT, SNMP, JSON-RPC, RMS
IoT Platforms	Azure IoT Hub, AWS IoT Core, Cumulocity, ThingWorx
Location Tracking	GNSS (NMEA 0183), Geofencing, TAVL support
USB Functions	Samba share, USB-to-serial, External HDD/Modem/Printer support
Input/Output Functions	I/O Juggler, Event triggers via Email, RMS, SMS
Power Protection	Reverse polarity, voltage surge and transient protection

Included

RUTX11 router, 18W PSU, 2 x Mobile SMA antennas, 2 x Wi-Fi dual-band RP-SMA antennas, GNSS SMA adhesive antenna, Bluetooth RP-SMA antenna, Ethernet cable (1.5 m), SIM adapter kit, QSG
