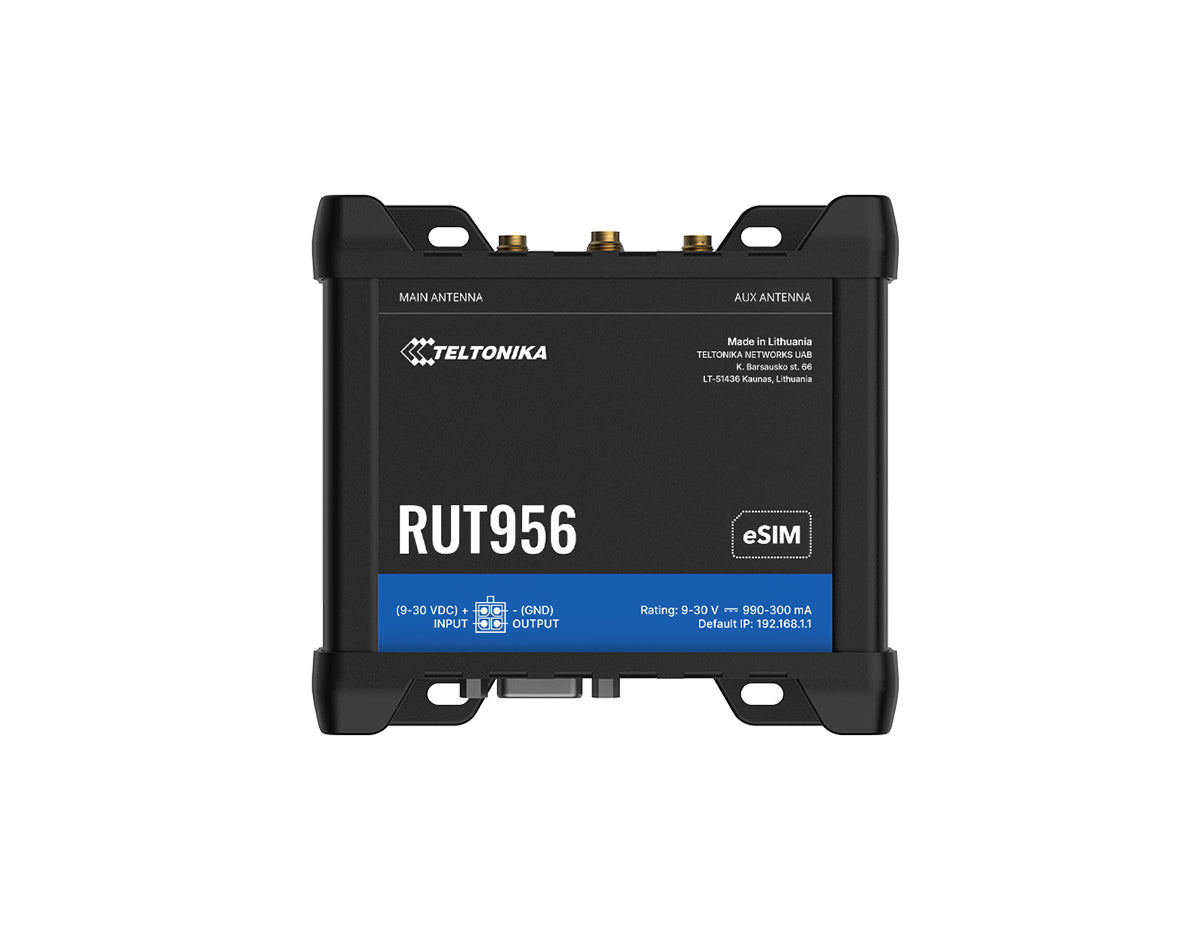

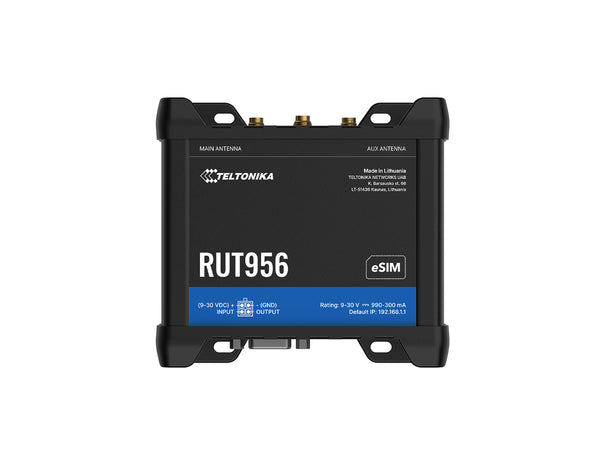

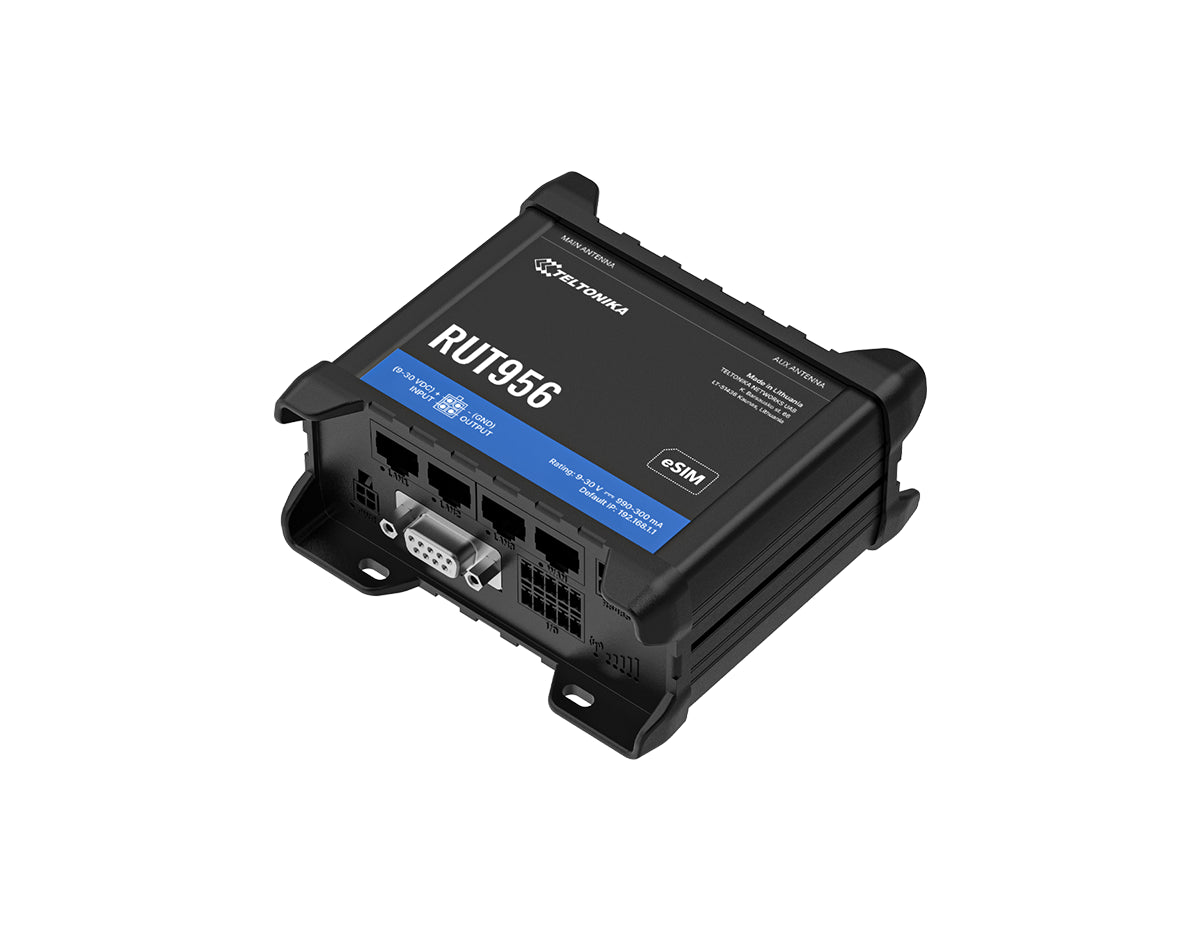

Teltonika RUT956 Industrial Cellular 4G LTE Router (RUT956400500)

Connect Industrial Networks with Reliable Global 4G LTE

The Teltonika RUT956 is an industrial cellular router built for demanding IoT, automation, utility, retail, and enterprise deployments. Combining 4G LTE Cat 4 connectivity, dual SIM failover, Wi-Fi 4, GNSS, Ethernet, serial interfaces, and configurable I/O, it helps maintain secure and flexible communication across remote or mission-critical sites.

Key Benefits & Features

• Global 4G LTE Connectivity: Supports LTE Cat 4 speeds up to 150 Mbps downlink and 50 Mbps uplink, with 3G and 2G fallback for broader deployment flexibility.
• Dual SIM Failover: Enables automatic switching for weak signal, data limits, roaming, no network, denied network, or data connection failure scenarios.
• Industrial Interfaces: Includes Ethernet, RS232, RS485, USB, configurable digital/analog inputs, relay output, and open collector outputs for automation and monitoring tasks.
• Advanced VPN & Security: Supports firewall rules, VLAN separation, OpenVPN, IPsec, WireGuard, GRE, ZeroTier, DMVPN, and attack prevention features.
• GNSS Location Services: Provides GPS, GLONASS, BeiDou, Galileo, and QZSS support for positioning, tracking, time synchronization, and geofencing.

Ideal Use Cases

• Industrial automation and remote machine connectivity
• Energy, utility, and smart metering communication
• Retail branch backup internet and secure VPN access
• Smart city, transportation, and IoT gateway deployments
• Enterprise sites requiring cellular WAN failover

Technical Specifications

• Model: RUT956
• Product Type: Industrial cellular router
• Mobile Connectivity: 4G LTE Cat 4, 3G, 2G
• Wireless: 802.11b/g/n Wi-Fi 4, AP and Station modes
• Ethernet Ports: 1 x WAN and 3 x LAN, 10/100 Mbps RJ45
• Serial Interfaces: 1 x RS232 DB9, 1 x RS485 industrial socket
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Power Input: 9 to 30 VDC, 4-pin industrial DC socket
• Power Consumption: Less than 2 W idle, less than 7 W maximum
• Operating Temperature: -40°C to 75°C
• Dimensions: 110 x 50 x 100 mm
• Package Type: Standard package with Universal PSU

Secure Your Industrial Connectivity Today

Deploy dependable cellular networking for critical sites with Teltonika RUT956. Order today.

Model	RUT956
Product Type	Industrial Cellular Router
Mobile Module	4G LTE Cat 4, 3G, 2G
SIM Slots	2 x SIM slots (Mini SIM - 2FF), eSIM support
Wireless Mode	802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Ethernet Ports	1 x WAN port (10/100 Mbps), 3 x LAN ports (10/100 Mbps)
Serial Interfaces	1 x RS232 (DB9), 1 x RS485 (6-pin industrial)
GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS
USB	1 x USB A port (USB 2.0)
SD Card Support	Micro SD slot (internal), up to 2 TB
Power Connector	4-pin industrial DC power socket
Input Voltage Range	9 - 30 VDC
IP Rating	IP30
Dimensions (W × H × D)	110 × 50 × 100 mm
Weight	287 g
Operating Temperature	-40 °C to 75 °C

Wi-Fi Capacity	Up to 100 simultaneous connections
Wi-Fi Security	WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE
Network Failover	Automatic Failover and Load Balancing (Wi-Fi WAN, Mobile, Wired VRRP)
VPN Capabilities	OpenVPN, IPsec, GRE, PPTP, L2TP, WireGuard, ZeroTier, Stunnel, DMVPN, SSTP, Tinc
Industrial Protocols	MODBUS (TCP/RTU), OPC UA, BACnet, DNP3, DLMS/COSEM
Input / Output Interfaces	4 x Inputs (1 x digital dry, 1 x digital isolated, 1 x analog, 1 x digital on power connector); 3 x Outputs (1 x digital open collector, 1 x SPST relay, 1 x digital open collector on power connector)
Hardware Architecture	CPU: MediaTek 580 MHz / RAM: 128 MB DDR2 / Flash: 16 MB SPI Flash
Operating System	RutOS (OpenWrt based Linux OS)
Power Consumption	<2 W idle, <7 W Max
Casing Material	Aluminium housing, plastic panels
Certifications	CE, UKCA, FCC, IC, PTCRB, RCM, UL/CSA Safety, CB, RoHS, REACH, Anatel, Giteki, IMDA, NCC

Optional Mounting Kits

DIN rail kit, wall mount kit, flat surface mounting kit
