Intel NUC 11 - RNUC11PAHi70Z00

Intel NUC11 RNUC11PAHi70Z00

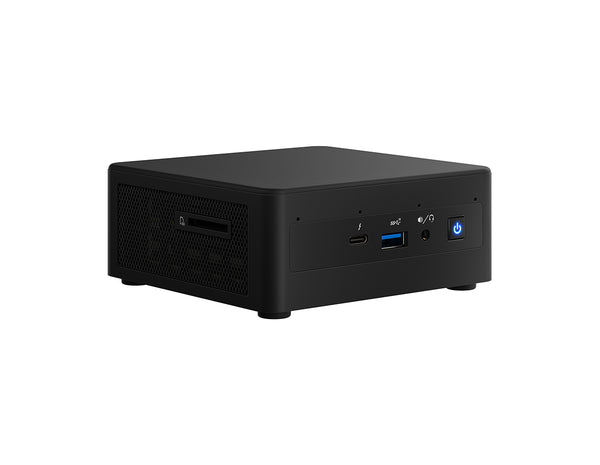

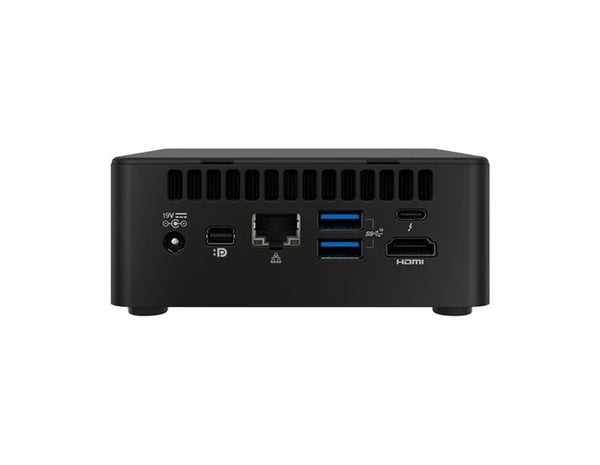

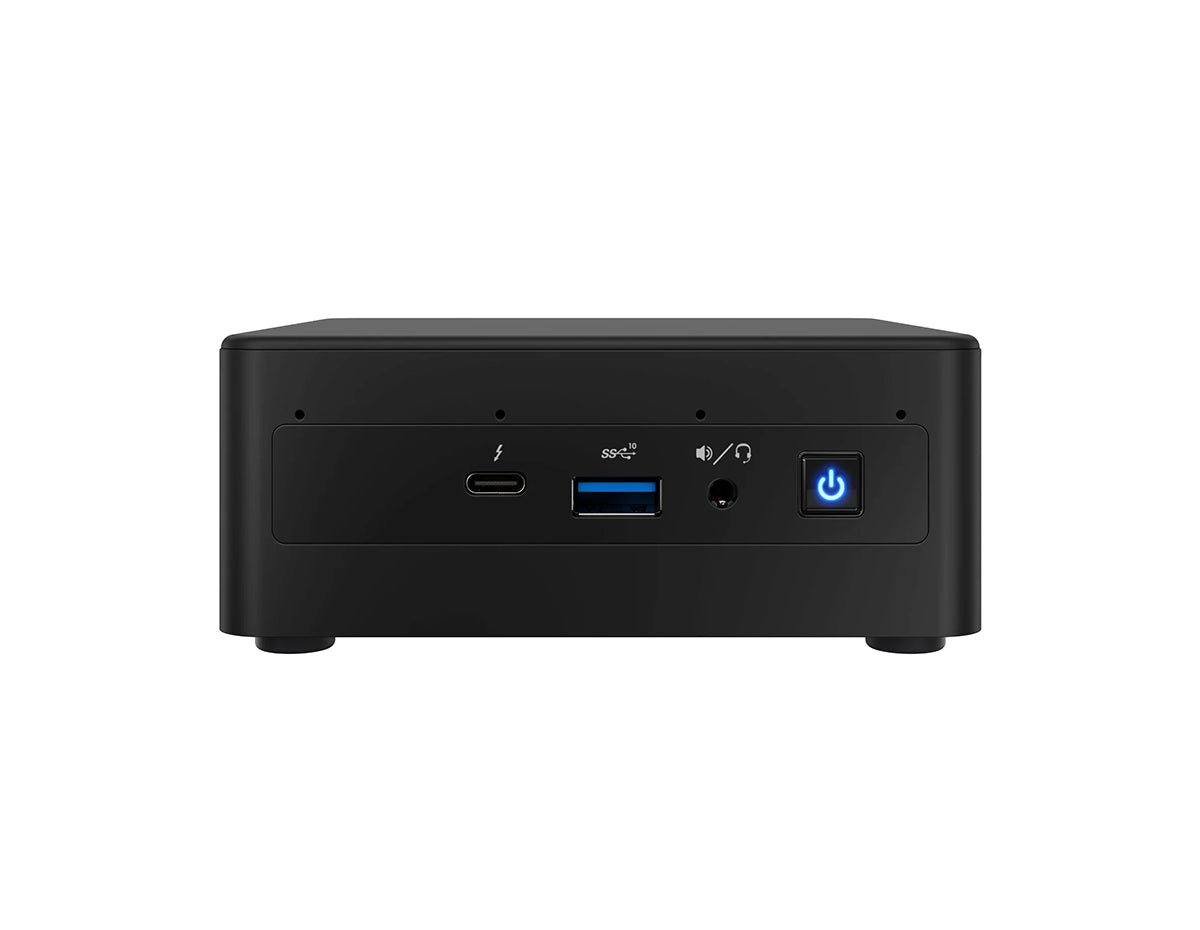

The Intel NUC 11 (RNUC11PAHi70Z00) is a compact and high-performing mini PC equipped with an Intel Core i7 processor running at 4.7 GHz. It features integrated graphics, a small form factor, and supports up to 64 GB of memory using DDR4 technology. This device is well-suited for individuals seeking a robust workstation in a small footprint, making it suitable for professional and personal use. This product comes with 7 USB ports: 2x front (Type-A, Type-C) and 3x rear USB 3.2 Gen2 (2x Type-A, Type-C), USB 2.0, USB 3.1 Gen 2 via internal headers.

Quick Specs:

• Intel Core i7-1165G7 CPU (4 core, up to 4.70GHz)
• 2x ThunderBolt3 port
• 64 MB DDR4 RAM
• Integrated LAN: Intel Ethernet Controller i225-V

Please see the related tabs for the RNUC11PAHi70Z00 datasheet and compatible accessories.

Properties	Intel NUC 11 Performance kit – NUC11PAHi70Z
Description	The Intel NUC 11 Performance kit NUC11PAHi70Z offers impressive processing power with 11th Gen Intel Core processors and Intel Iris Xe graphics, along with a range of connectivity options including Thunderbolt 3 ports and Intel Wi-Fi 6 for enhanced performance.
Product Family	Intel NUC
Product Type	Mini PC
Graphics	Intel Iris® Xe Graphics
Graphics Output	HDMI 2.0b; USB-C (DP1.4); MiniDP 1.4
Numbers of Displays Supported	4
Numbers of Thunderbolt Ports	2x Thunderbolt 3
Numbers of USB Ports	7
USB Configuration	2x front (Type-A, Type-C) and 3x rear USB 3.2 Gen2 (2x Type-A, Type-C); USB 2.0, USB 3.1 Gen2 via internal headers
USB Revision	2.0, 3.2 Gen2
Total number of SATA Ports	2
Max # of SATA 6.0 Gb/s Ports	2
Audio (back channel + front channel)	7.1 digital (HDMI mDP); L+R out, mono mic in (F)
Integrated LAN	Intel Ethernet Controller i225-V
Wireless Included	Intel Wi-Fi 6E AX201 (Gig+)
Bluetooth Version	5.2
Consumer Infrared Rx Sensor	Yes
Additional Headers	CEC, USB3.1, USB2.0, FRONT_PANEL, RGB
DC Input Voltage Supported	19 W
Chassis Dimensions	117 x 112 x 51 mm
Board Form Factor	UCFF (4" x 4")

Processor	Intel® Core™ i7-1165G7 Processor (12M Cache, up to 4.70 GHz)
Total Cores	4
Total Threads	8
Max Turbo Frequency	4.70 GHz
Max Memory Size (dependent on memory type)	64 GB
Number of Memory Slots	2
Memory Types	DDR4-3200 1.2V SODIMMs
Max Numbers of Memory Channels	2
Max Memory Bandwidth	51.2 GB/s
ECC Memory Supported	No
Number of Internal Drives Supported	2
Removable Memory Card Slot	SDXC with UHS-II support
M.2 Card Slot (storage)	22x80
PCI Express Revision	Gen 4
PCI Express Configurations	M.2 slot with PCIe X4 lanes
Supported Operating Systems	Windows 11, 64-bit, Windows 10, 64-bit
Advanced Technologies	Intel HD Audio Technology Intel® Rapid Storage Technology Intel Virtualization Technology for Directed I/O (VT-d)  Intel Virtualization Technology (VT-x)
Intel Platform Trust Technology (Intel PTT)	Yes
Intel AES New Instructions	Yes
