MIKROTIK RBWAPR-2ND&R11E-LR9 WIRELESS ACCESS POINT
| Model: | RBWAPR-2ND-R11E-LR9 |
| Detail: | |
| Price: | $152.00 |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
Description

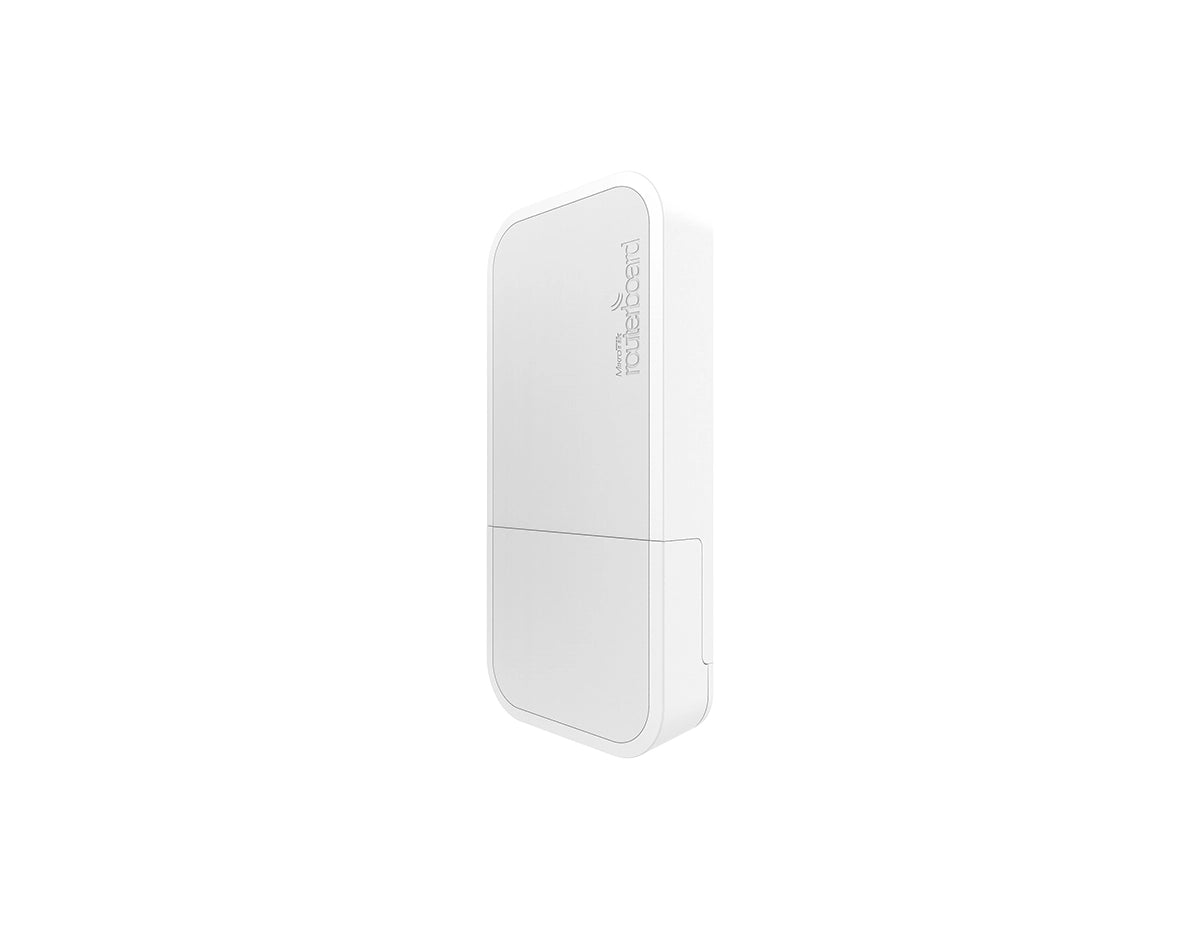

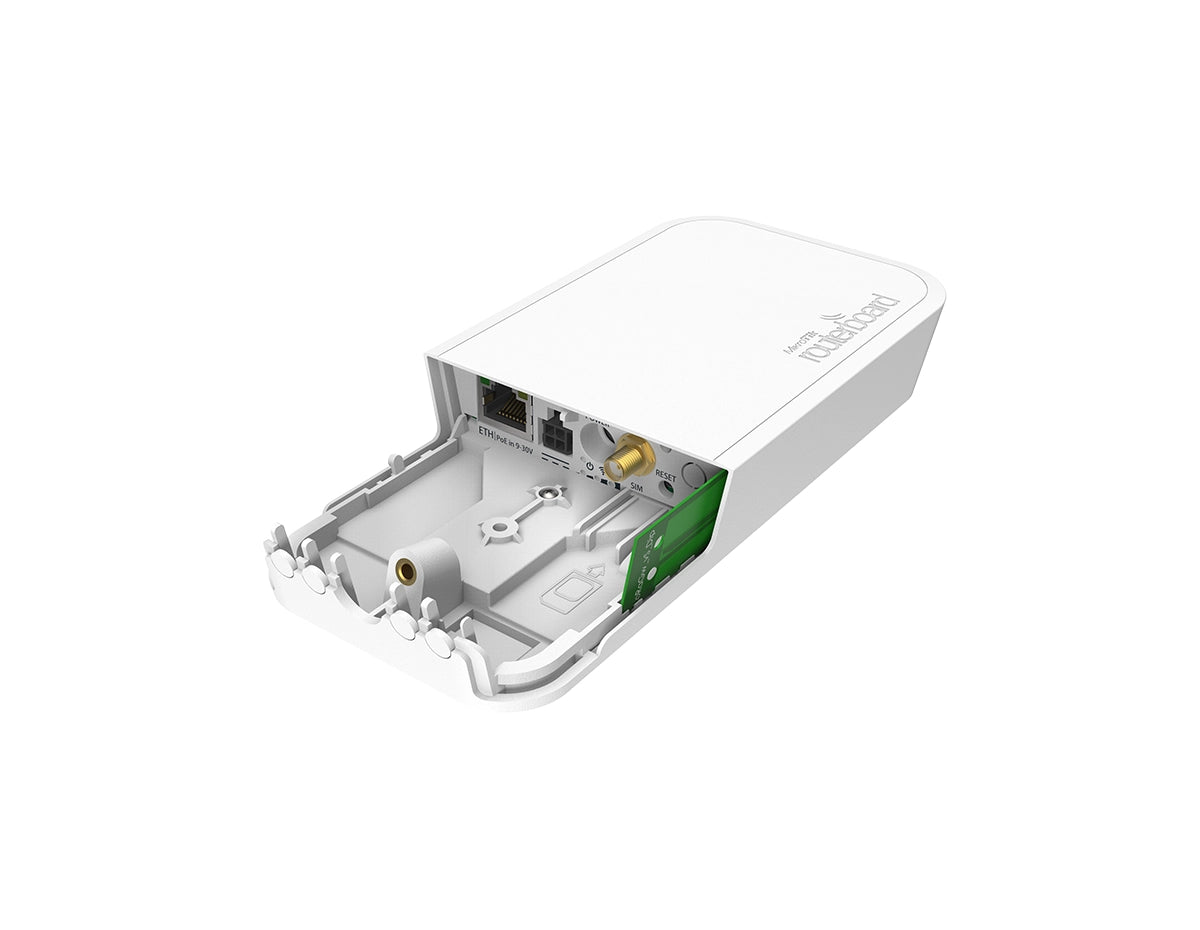

The wAP LR9 kit (RBwAPR-2nD&R11e-LR9) is a wireless access point designed for use in challenging environmental conditions. It features a MIPSBE architecture, QCA9531 CPU, and 64 MB of RAM, as well as 16 MB of storage. The device supports passive PoE and offers three DC input options, with a maximum power consumption of 7W. Operating on the 2.4 GHz frequency, it provides a maximum data rate of 300 Mbit/s and is equipped with two chains. This kit is a ready-to-use solution for utilizing LoRa technology.
Quick Specs:
- 1x 10/100 Ethernet Port
- 1x miniPCI-e slot
- Antenna Design: Omni
- IP54
Please see the related tabs for the RBwAPR-2nD&R11e-LR9 datasheet and compatible accessories.
Accessories
Specifications
| Specifications | MikroTik RBwAPR-2nD&R11e-LR9 Wireless Access Point |
| Product code | RBwAPR-2nD&R11e-LR9 |
| Architecture | MIPSBE |
| CPU | QCA9531 |
| CPU core count | 1 |
| CPU nominal frequency | 650 MHz |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 60°C |
| Powering | |
| Number of DC inputs | 3 (DC jack, PoE-IN, Automotive) |
| DC jack input Voltage | 9-30 V |
| Automotive input Voltage | 9-30 V |
| Max power consumption | 7 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 9-30 V |
| Wireless specifications | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Peripherals | |
| Number of SIM slots | 1 Modem (Mini-SIM) |
| MiniPCI-e slots | 1 |
| Other | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Certification | FCC, IC, EAC |
| IP | IP54 |
| Wireless specifications (2.4 GHz) | |
| 1MBit/s | Transmit (dBm): 22 Receive Sensitivity: -96 |
| 11MBit/s | Transmit (dBm): 22 Receive Sensitivity: -89 |
| 6MBit/s | Transmit (dBm): 20 Receive Sensitivity: -93 |
| 54MBit/s | Transmit (dBm): 18 Receive Sensitivity: -74 |
| MCS0 | Transmit (dBm): 20 Receive Sensitivity: -93 |
| MCS7 | Transmit (dBm): 16 Receive Sensitivity: -93 |
Properties
| Properties | MikroTik RBwAPR-2nD&R11e-LR9 Wireless Access Point |
| Description | The MikroTik RBwAPR-2nD&R11e-LR9 is a compact outdoor wireless access point with an integrated LTE modem, providing dual-band 2.4 GHz wireless connectivity and Category 9 LTE speeds. Ideal for remote locations, surveillance, and IoT applications, it features a weatherproof design for outdoor use. |
| Product Family | Mikrotik Wireless Access Points |
| Product Type | Access Point |
| Key Features | • Compact outdoor wireless access point • Dual-band 2.4 GHz wireless (802.11b/g/n) support • Integrated LTE modem (R11e-LR9) for Category 9 LTE speeds • Ideal for remote locations, surveillance, and IoT applications • Weatherproof design for outdoor use • Easy installation and setup |
