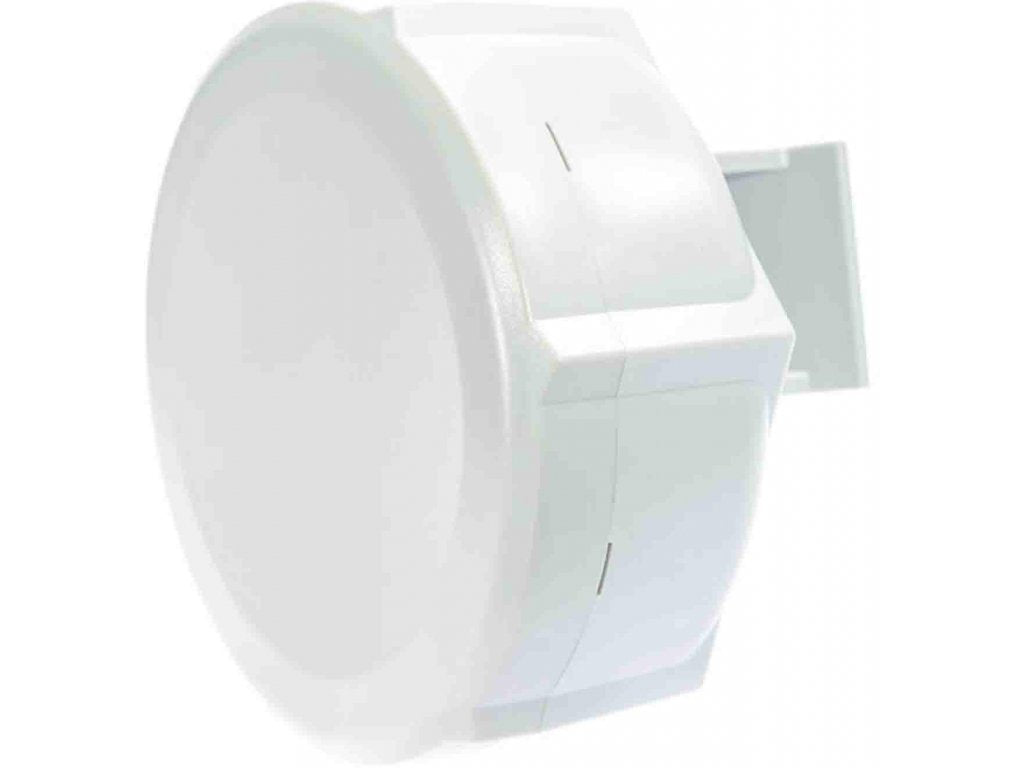

MikroTik RBSXTG-5HPacD-SA Antenna

The RBSXTG-5HPacD-SA model features a 90-degree wide beam-width sector antenna and is equipped to support 802.11ac mode. It is also compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols, and includes a Gigabit Ethernet port. This product supports passive PoE and 802.3af/at PoE input (15-60V). The RBSXTG-5HpacD-SAr2 supports 5150-5875 range.

Quick Specs:

• 1x 10/100/1000 Ethernet port
• IP54
• 128MB RAM
• QCA9557,1 core, 720MHz CPU

Please see the related tabs for the RBSXTG-5HPacD-SA datasheet and compatible accessories.

Properties	MikroTik RBSXTG-5HPacD-SA Antenna
Description	The MikroTik RBSXTG-5HPacD-SA is a 5 GHz outdoor sector antenna with 19 dBi gain. It's designed for point-to-multipoint wireless setups, providing reliable and high-speed connections over long distances. The weather-resistant design makes it ideal for outdoor use.
Product Family	MikroTik SXT Series Antenna
Product Type	Antenna
Key Features	• 5 GHz frequency with dual-polarization • 19 dBi gain • Outdoor sector antenna design • Ideal for point-to-multipoint wireless setups • Weather-resistant construction • Provides extended coverage and strong signal strength



Specifications	MikroTik RBSXTG-5HPacD-SA Antenna
Product code	RBSXTG-5HPacD-SA
Architecture	MIPSBE
CPU	QCA9557
CPU core count	1
CPU nominal frequency	720 MHz
RouterOS license	4
Operating System	RouterOS
Size of RAM	128 MB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Powering
Number of DC inputs	1 (PoE-IN)
Supported Voltage	15-60V
Max power consumption	12 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V
Wireless specifications
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	14
Wireless 5 GHz chip model	QCA9892
Wireless 5 GHz generation	Wi-Fi 5
Ethernet
10/100/1000 Ethernet ports	1
Peripherals
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Other
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes
Certification & Approvals
Certification	CE, FCC, IC, EAC, ROHS
IP	IP54
Wireless specifications (2.4 GHz)
1MBit/s	Transmit (dBm): 31 Receive Sensitivity: -96
6MBit/s	Transmit (dBm): 28 Receive Sensitivity: -81
54MBit/s	Transmit (dBm): 30 Receive Sensitivity: -96
MCS0	Transmit (dBm): 22 Receive Sensitivity: -77
MCS7	Transmit (dBm): 22 Receive Sensitivity: -72
