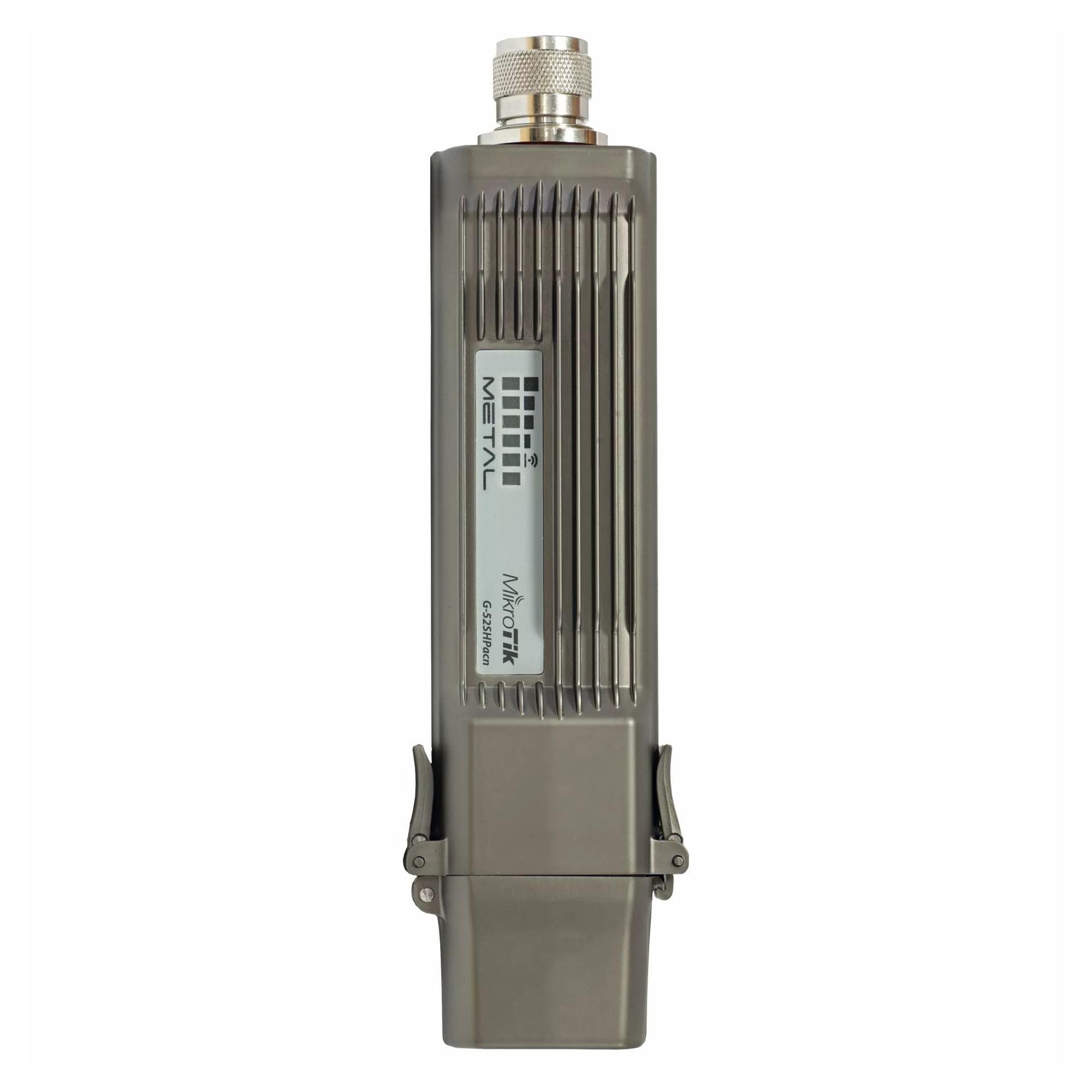

MikroTik RBMetalG-52SHPacn-US Access Point

The MikroTik Metal 52 AC is a durable device designed for industrial use. It comes in a sturdy, fully enclosed metal case with an IP55 protection rating. The device is built upon the RouterBOARD platform, a specialized router unit. It operates on RouterOS, the proprietary operating system developed by MikroTik. RouterOS enables smooth routing and network management, providing a range of features such as routing, firewall configuration, bandwidth control, and wireless connectivity. The Metal 52 AC can function as an AP, Backbone device, or CPE, showcasing its versatility.

Quick Specs:

• QCA9556,1 core, 720MHz CPU
• 64MB RAM
• 1x 10/100/1000 Ethernet Port
• IP55

Please see the related tabs for the RBMetalG-52SHPacn-US datasheet and compatible accessories.

Properties	MikroTik RBMetalG-52SHPacn-US Access Point
Description	The MikroTik RBMetalG-52SHPacn-US is a rugged outdoor access point with dual-band 2.4 GHz and 5 GHz wireless support. It's designed for high-performance wireless networks, featuring a sturdy metal enclosure and a high-gain antenna for extended coverage.
Product Family	MikroTik Metal Series Access Point
Product Type	Access Point
Key Features	• Outdoor wireless access point • Dual-band 2.4 GHz and 5 GHz wireless support • Rugged metal enclosure for durability • High-gain antenna for extended coverage • Ideal for high-performance wireless networks in outdoor environments

Specifications	MikroTik RBMetalG-52SHPacn-US Access Point
Product code	RBMetalG-52SHPacn-US
Architecture	MIPSBE
CPU	QCA9556
CPU core count	1
CPU nominal frequency	720 MHz
Dimensions	215x60x38mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
Powering
Number of DC inputs	1 (PoE-IN)
Max power consumption	11 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-30 V
Wireless specifications
Wireless 2.4 GHz/5 GHz Max data rate	433 Mbit/s
Wireless 2.4 GHz/5 GHz number of chains	1
Wireless 2.4 GHz/5 GHz standards	802.11a/n/ac, 802.11b/g/n
Antenna gain dBi for 2.4 GHz/5 GHz	6
Wireless 2.4 GHz/5 GHz chip model	QCA9889
Wireless 2.4 GHz/5 GHz generation	Wi-Fi 5
Ethernet
10/100/1000 Ethernet ports	1
Other
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes
Certification & Approvals
Certification	CE, FCC, IC, EAC, ROHS
IP	IP55
Wireless specifications (5 GHz)
6MBit/s	Transmit (dBm): 31 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 27 Receive Sensitivity: -78
MCS0	Transmit (dBm): 30 Receive Sensitivity: -93
MCS7	Transmit (dBm): 26 Receive Sensitivity: -74
MCS9	Transmit (dBm): 22 Receive Sensitivity: -69
Wireless specifications (2.4 GHz)
1MBit/s	Transmit (dBm): 31 Receive Sensitivity: -97
11MBit/s	Transmit (dBm): 31 Receive Sensitivity: -91
6MBit/s	Transmit (dBm): 31 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 28 Receive Sensitivity: -77
MCS0	Transmit (dBm): 31 Receive Sensitivity: -93
MCS7	Transmit (dBm): 27 Receive Sensitivity: -72
