MIKROTIK RB952UI-5AC2ND-TC-US ACCESS POINT
| Part No: | RB952UI-5AC2ND-TC-US |
| Detail: |
|
| List Price: |
|
| Price: |
$65.00
|
| You Save: | $34.00 (34% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
|
Description

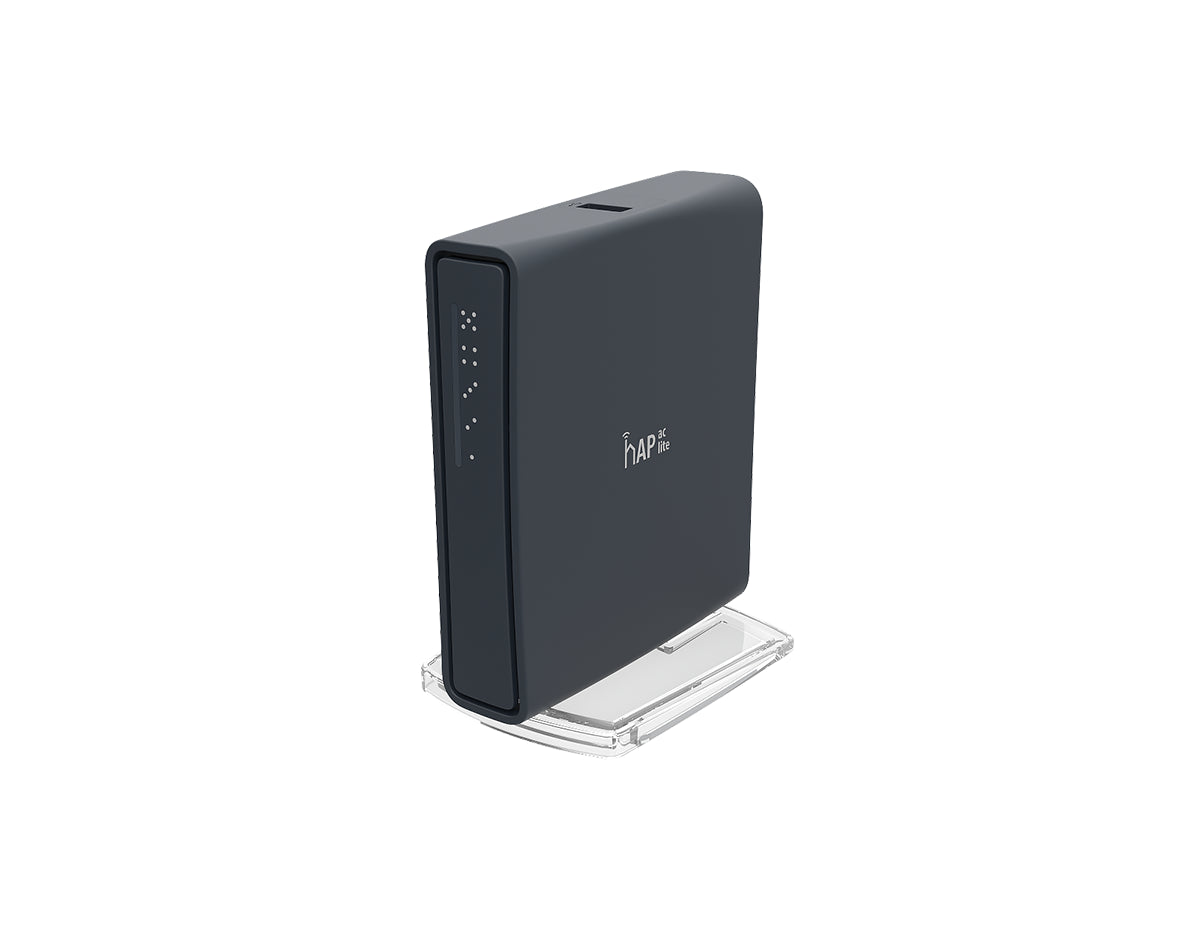

MikroTik RB952UI-5AC2ND-TC-US Access Point
The RB952UI-5AC2ND-TC-US is a Dual-concurrent Access Point that offers simultaneous Wifi coverage for both 2.4 GHz and 5 GHz frequencies. It is equipped with five 10/100Mbps Ethernet ports, each supporting data transfer rates of 10 or 100 Mbps. This device serves as a versatile connector for various devices within your local network, ensuring smooth and uninterrupted connectivity. The RB952Ui-5ac2nD-TC-US (USA)is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.
Quick Specs:
- 5x 10/100 Ethernet Ports
- Passive PoE output on port5
- Dual chain wireless 2.4 GHz
- Single chain wireless 5 GHz
Please see the related tabs for the RB952UI-5AC2ND-TC-US datasheet and compatible accessories.
Accessories
| 24V 1.2A power adapter |
| K-47 wall mount set |
Specifications
| Specifications | RB952UI-5AC2ND-TC-US |
| Memory | 64 MB |
| Flash Storage size | 16 MB |
| CPU | QCA9531 650 MHz |
| CPU core count | 1 |
| Switch chip model | QCA9531 |
| OS | RouterOS level 4 license |
| Wireless capabilities | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 1.5 |
| Wireless 2.4 GHz chip model | QCA9531 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 433 Mbit/s |
| Wireless 5 GHz number of chains | 1 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2 |
| Wireless 5 GHz chip model | QCA9887 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| WiFi speed | AC750 |
| Wireless specifications | |
| 2.4 GHz | |
| 1MBit/s | Transmit (dBm): 22 Receive Sensitivity: -96 |
| 11MBit/s | Transmit (dBm): 22 Receive Sensitivity: -89 |
| 6MBit/s | Transmit (dBm): 20 Receive Sensitivity: -93 |
| 54MBit/s | Transmit (dBm): 18 Receive Sensitivity: -74 |
| MCS0 | Transmit (dBm): 20 Receive Sensitivity: -93 |
| MCS7 | Transmit (dBm): 16 Receive Sensitivity: -71 |
| 5 GHz | |
| 6MBit/s | Transmit (dBm): 23 Receive Sensitivity: -93 |
| 54MBit/s | Transmit (dBm): 20 Receive Sensitivity: -75 |
| MCS0 | Transmit (dBm): 23 Receive Sensitivity: -93 |
| MCS7 | Transmit (dBm): 19 Receive Sensitivity: -71 |
| MCS9 | Transmit (dBm): 16 Receive Sensitivity: -63 |
| MTBF | Approximately 100.000 hours at 25C |
| Temperature | -30°C to 70°C tested |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP20 |
Properties
| Properties | MikroTik hAP ac Lite RB952UI-5AC2ND-TC-US |
| Description | Dual-Concurrent 2.4/5GHz AP, 802.11ac, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support, universal tower case |
| Product Family | hAP Series |
| Product Type | Access Point |
| Features | • Dual chain wireless 2.4 GHz • Single chain wireless 5 GHz • 650 MHz CPU • 64 MB of RAM • Five x 10/100 Mbps Ethernet ports • Passive PoE output on port 5 • USB port for 3G/4G modem |
| 10/100 Ethernet ports | 5 |
| Number of USB ports | 1 USB type A |
| Extras | Beeper |
| Dimensions | 34 x 119 x 98mm |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-28 V |
| Max power consumption | 20 W |
| Max power consumption without attachments | 8 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| PoE-out ports | Ether5 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 500 mA |
| Max total out (A) | 500 mA |
