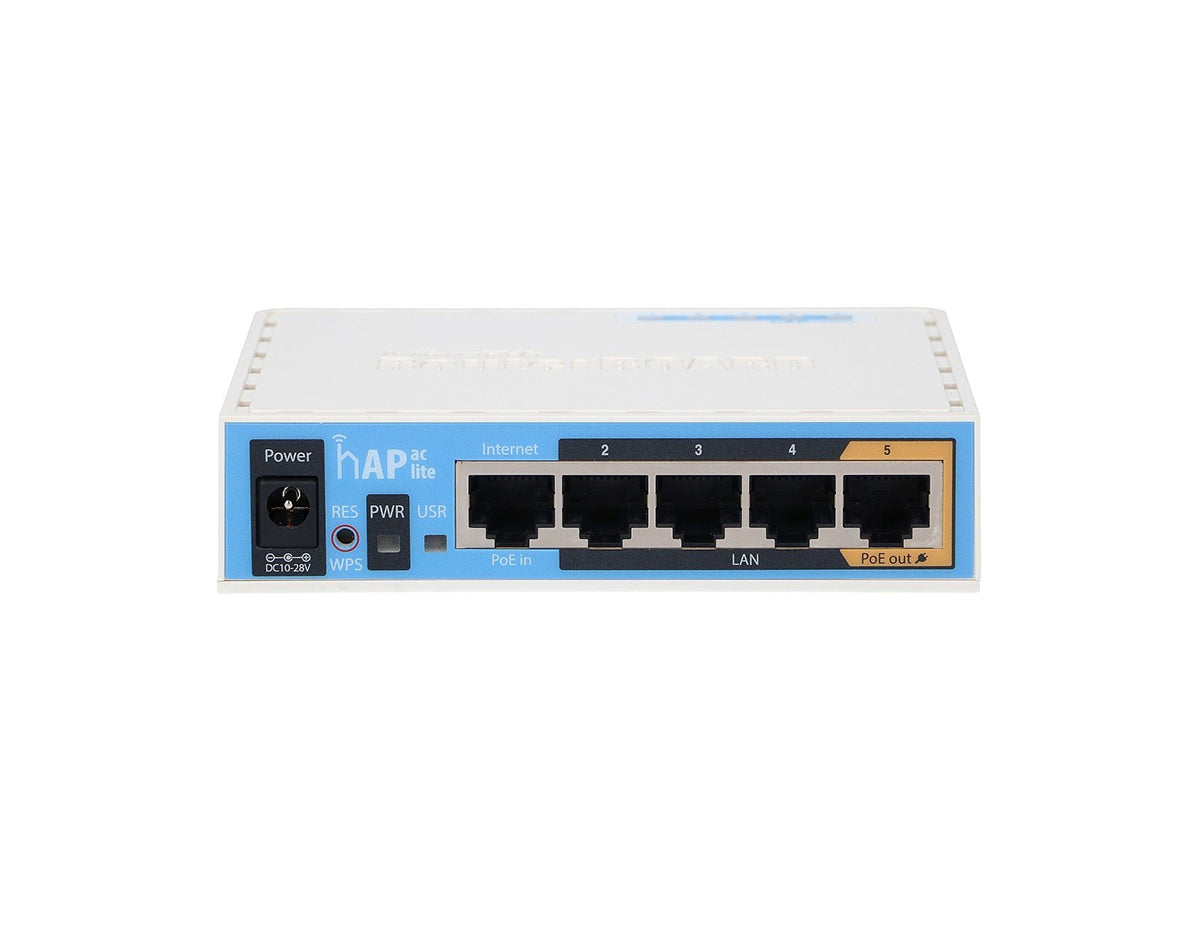

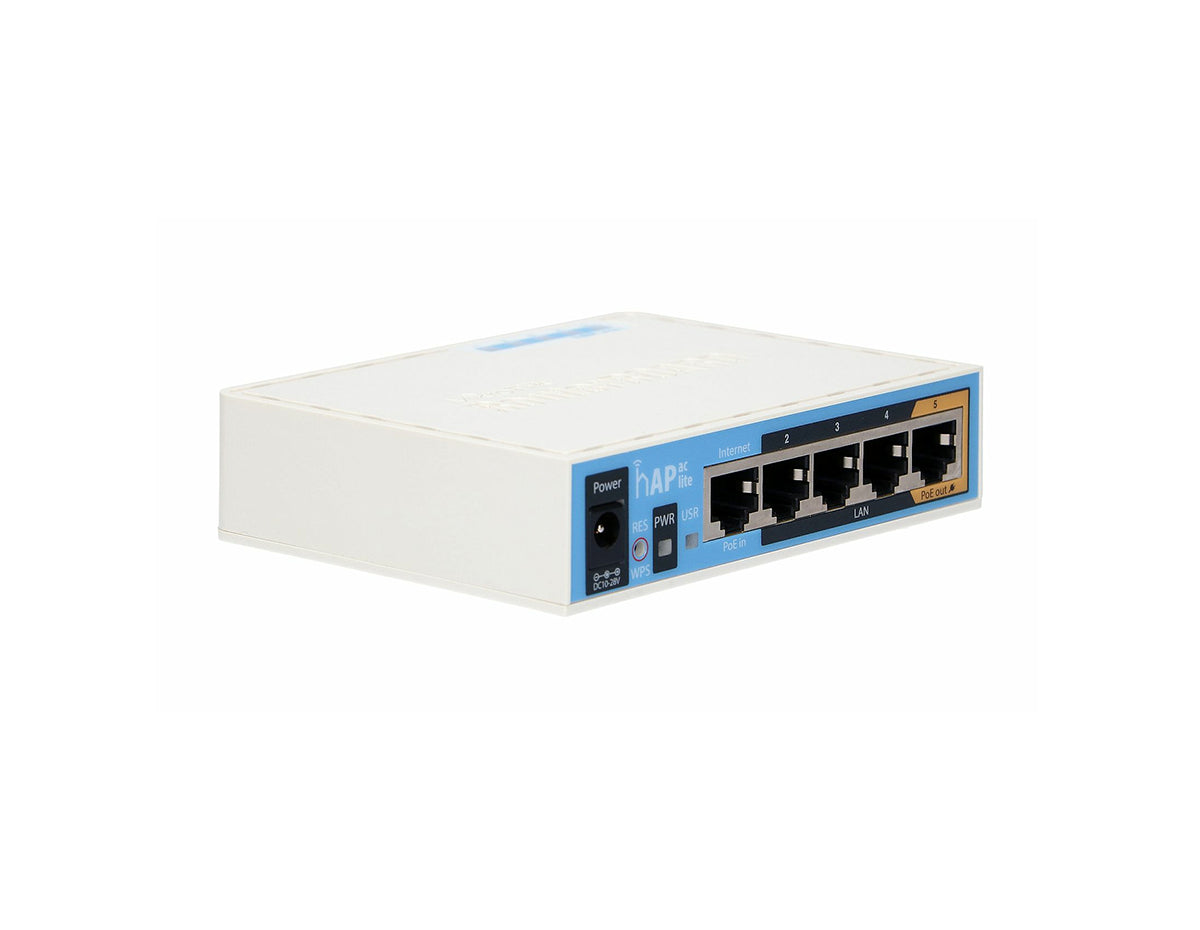

MikroTik RB952Ui-5ac2nD Router

The RB952Ui-5ac2nD is a Dual-concurrent Access Point designed to offer simultaneous Wifi coverage for both 2.4 GHz and 5 GHz frequencies. Its compact size makes it suitable for any home or office environment, and it comes with wall-mounting anchor holes for easy installation. This product is equipped with five 10/100Mbps Ethernet ports, each supporting data transfer rates of 10 or 100 Mbps. It also includes Passive PoE Input, which allows power to be supplied through either the traditional power jack or a PoE injector.

Quick Specs:

• 5x 10/100 Ethernet Ports
• Passive PoE output on port5
• Dual chain wireless 2.4 GHz
• Single chain wireless 5 GHz

Please see the related tabs for the RB952Ui-5ac2nD datasheet and compatible accessories.

Properties	MikroTik RB952Ui-5ac2nD Router
Description	The MikroTik RB952Ui-5ac2nD is a compact dual-band wireless router, perfect for small networks. It offers fast internet speeds, multiple Ethernet ports, USB connectivity, and advanced security features through MikroTik's RouterOS software. Ideal for homes and small offices.
Product Family	Mikrotik hAP ac lite
Product Type	Access Point
Key Features	• Dual-Band Wireless (2.4 GHz and 5 GHz) • Multiple Ethernet Ports • USB Port for additional connectivity • RouterOS Software for customization • Compact design • Access Point Mode • Advanced security features

Specifications	MikroTik RB952Ui-5ac2nD Router
Product code	RB952Ui-5ac2nD
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Switch chip model	QCA9531
Dimensions	113 x 89 x 28mm
RouterOS license	4
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-30°C to 70°C
Wireless capabilities
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9531
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless 5 GHz Max data rate	433 Mbit/s
Wireless 5 GHz number of chains	1
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	2
Wireless 5 GHz chip model	QCA9887
Wireless 5 GHz generation	Wi-Fi 5
WiFi speed	AC750
Ethernet
10/100 Ethernet ports	5
Peripherals
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB type A
Max USB current (A)	1
Powering
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-28 V
Max power consumption	20 W
Max power consumption without attachments	8 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-28 V
PoE-out
PoE-out ports	Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	500 mA
Max total out (A)	500 mA
Certification & Approvals
Certification	CE, FCC, IC, EAC, ROHS
IP	IP20
Wireless specifications (2.4 GHz)
1MBit/s	Transmit (dBm): 22 Receive Sensitivity: -96
11MBit/s	Transmit (dBm): 22 Receive Sensitivity: -89
6MBit/s	Transmit (dBm): 20 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 18 Receive Sensitivity: -74
MCS0	Transmit (dBm): 20 Receive Sensitivity: -93
MCS7	Transmit (dBm): 16 Receive Sensitivity: -71
Wireless specifications (5 GHz)
6MBit/s	Transmit (dBm): 23 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 20 Receive Sensitivity: -75
MCS0	Transmit (dBm): 23 Receive Sensitivity: -93
MCS7	Transmit (dBm): 19 Receive Sensitivity: -71
MCS9	Transmit (dBm): 16 Receive Sensitivity: -63
