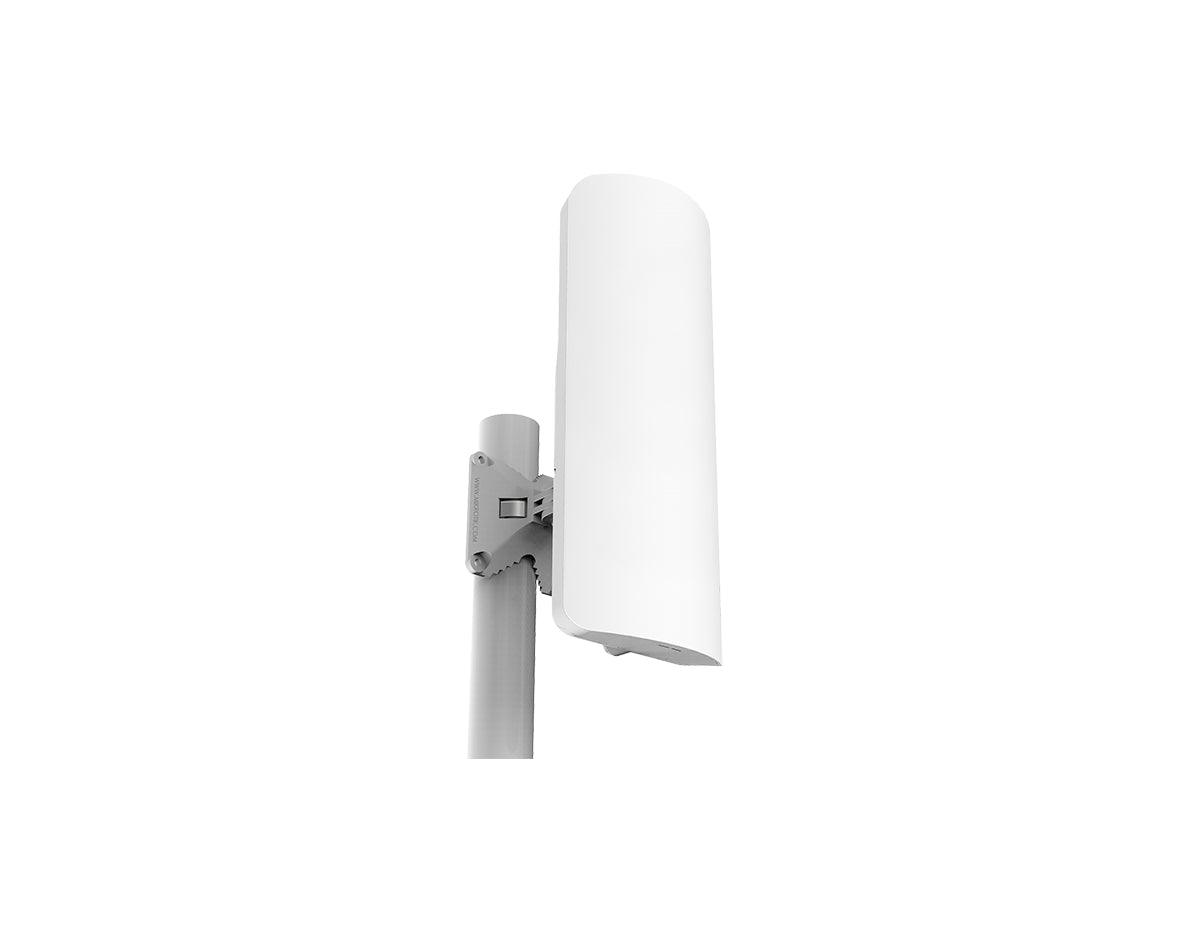

Mikrotik RB921GS-5HPacD-15S-US Antenna - mANTBox 15s

Mikrotik RB921GS-5HPacD-15S-US Antenna - mANTBox 15s

Name: Mikrotik RB921GS-5HPacD-15S-US Antenna - mANTBox 15s
Brand: Mikrotik
Price: 140.00 USD
Availability: OutOfStock

Part Number: RB921GS-5HPACD-15S-US

Technical Details

5GHz 120 degree 15dBi dual polarization sector Integrated antenna with 720Mhz CPU, 128MB RAM, SFP, PSU and PoE

$140.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

MikroTik RB921GS-5HPacD-15S-US Antenna

The RB921GS-5HPacD-15S-US is fully equipped and operational, with all necessary components included. It is equipped with a high-speed 720 MHz CPU and features an integrated 802.11 ac/a/n wireless device capable of delivering up to 31 dBm output power. The RB921GS-5HPacD-15S-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock cannot be removed due to country regulations.

Quick Specs:

1x 10/100/1000 Ethernet Ports
1x 1G SFP Port uplink
QCA9557, 1 core, 720 MHz CPU
PoE-in: Passive PoE

Please see the related tabs for the RB921GS-5HPacD-15S-US datasheet and compatible accessories.

Properties

Properties	MikroTik mANTBox 15S Antenna RB921GS-5HPACD-15S-US
Description	5GHz 120 degree 15dBi dual polarization sector Integrated antenna with 720Mhz CPU, 128MB RAM, SFP, PSU and PoE
Product Family	mANTBox Series
Product Type	Access Point
10/100/1000 Ethernet ports	1
SFP	1
Extras	PCB temperature monitor Voltage Monitor Beeper
Dimensions	140 x 348 x 82 mm
Weight	Package: 1.35 Kg Unit: 816g
Polarization	Vertical and horizontal
Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	9-30 V
Max power consumption	13 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	12-28 V

Specifications

Memory	128 MB
NAND Storage size	128 MB
CPU	QCA9557 720 MHz
CPU core count	1
OS	RouterOS level 4 license
3DB Beamwidth - azimuth	120 deg
3DB Beamwidth - elevation	10 deg
VSWR	1.43 typ, 1.8 max
Port to Port isolation	>40 dB min
Front-to-Back ratio	>30 Db
Cross Polarization	>30 dB
Frequency range	5.17 - 5.825 GHz
Wireless capabilities
Wireless 5 GHz Max data rate	867 Mbit/s
Wireless 5 GHz number of chains	2
Wireless 5 GHz standards	802.11a/n/ac
Antenna gain dBi for 5 GHz	15
Wireless 5 GHz generation	Wi-Fi 5
Wireless 5 GHz chip model	QCA9892
Wireless specifications
5 GHz
6MBit/s	Transmit (dBm): 31 Receive Sensitivity: -96
54MBit/s	Transmit (dBm): 21 Receive Sensitivity: -81
MCS0	Transmit (dBm): 30 Receive Sensitivity: -96
MCS7	Transmit (dBm): 27 Receive Sensitivity: -77
MCS9	Transmit (dBm): 22 Receive Sensitivity: -72
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification	CE, FCC, IC, EAC, ROHS
IP	IP54

Accessories

24V 0.8A power adapter

Gigabit PoE injector

DIN mount (K-27)

Metal ring (one)

Fastening set K-25 for 1/2 Mini PCI express card
