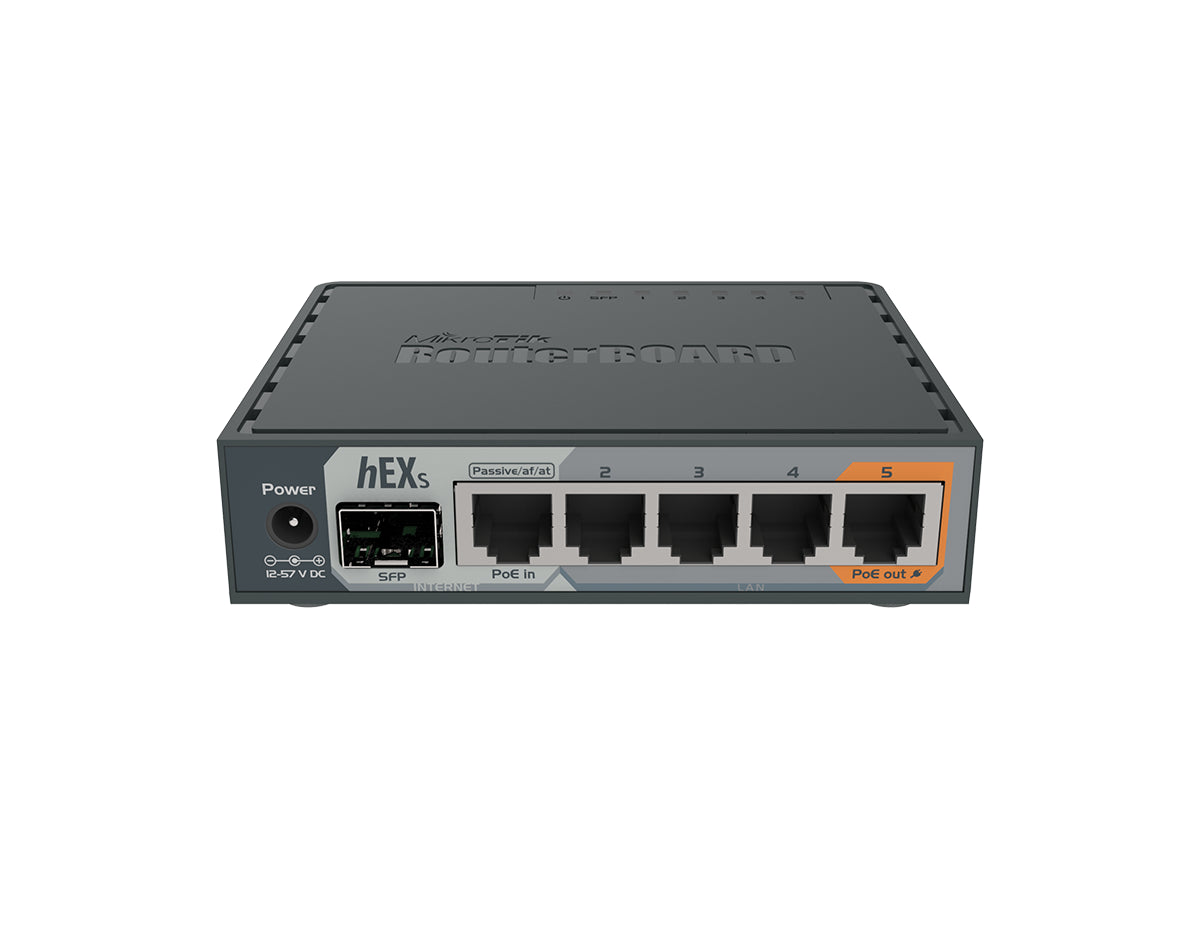

Mikrotik hEX S Router (RB760iGS)

Name: Mikrotik hEX S Router (RB760iGS)
Brand: Mikrotik
Price: 80.00 USD
Availability: OutOfStock

Part Number: RB760IGS

Technical Details

5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package

$80.00

Ask an Expert

sales@networkdevicesinc.com

1-201-559-1474

Availability: Request ETA

Condition: Brand New Sealed

Free Shipping on Orders $100+Arrives in 1-6 business days within the U.S.

International DeliveryWorldwide shipping in 7–15 business days

30 Days Return

12 Months Warranty Support

sales@networkdevicesinc.com

1-201-559-1474

MikroTik RB760iGS Router

The RB760iGS is a router with five Gigabit Ethernet ports designed for use in environments where wireless connectivity is unnecessary. The product is cost-effective, compact, and user-friendly, while also featuring a robust dual core 880 MHz CPU and 256 MB RAM, enabling advanced configurations supported by RouterOS. Additionally, it includes a USB 2.0 port, PoE output for Ethernet port5, and a 1.25Gbit/s SFP cage. Port5 has the capability to power other passive PoE capable devices with the same voltage as applied to the unit.

Quick Specs:

5x 10/100/1000 Ethernet Ports
1 SFP port uplink
256 MB RAM
PoE in: 802.3af/at

Please see the related tabs for the RB760iGS datasheet and compatible accessories.

Properties

Properties	MikroTik hEX RB750GR3
Description	5x Gigabit Ethernet, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4
Product Family	hEX Series
Product Type	Ethernet Router
Ports
10/100 Ethernet ports	5
Number of USB ports	1
Memory Cards	1
Features	hEX (revision 3) 880 MHz CPU, 2 cores and 4 threads 256 MB RAM microSD slot for œDude Serversupport Full size USB IPsec hardware acceleration ~450 Mbps Same form factor Same price
Extras	PCB temperature monitor Voltage Monitor Mode button Beeper
Dimensions	113x89x28mm
USB slot type	USB type A
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	8-30 V
Max power consumption	10 W
Max power consumption without attachments	5 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	8-30 V

Specifications

Specifications	RB750GR3
Memory	256 MB
Flash Storage size	16 MB
CPU	MT7621A 880 MHz
CPU core count	4
Switch chip model	MT7621A
OS	RouterOS level 4 license
MTBF	Approximately 100.000 hours at 25C
Temperature	-40°C to 60°C tested
IPsec hardware acceleration	Yes
Certification & Approvals
Certification	CE, FCC, EAC, ROHS
IP	IP20
Bridging	64 byte: 523 Mbps 1518 byte: 1972 Mbps 1400 byte: 1972 Mbps
Routing	64 byte: 530 Mbps 1518 byte: 1972 Mbps 1400 byte: 1972 Mbps
AES-128	64 byte: 21 Mbps 1518 byte: 472 Mbps 1400 byte: 450 Mbps

Accessories

24V 0.38A power adapter
