MIKROTIK RB4011IGS+RM ROUTER
| Part Number: | RB4011IGS-RM |
| Detail: |
|
| List Price: | |
| Price: | $195.00 |
| You Save: | $4.00 (2% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX and FL |
| Quantity: |
Description

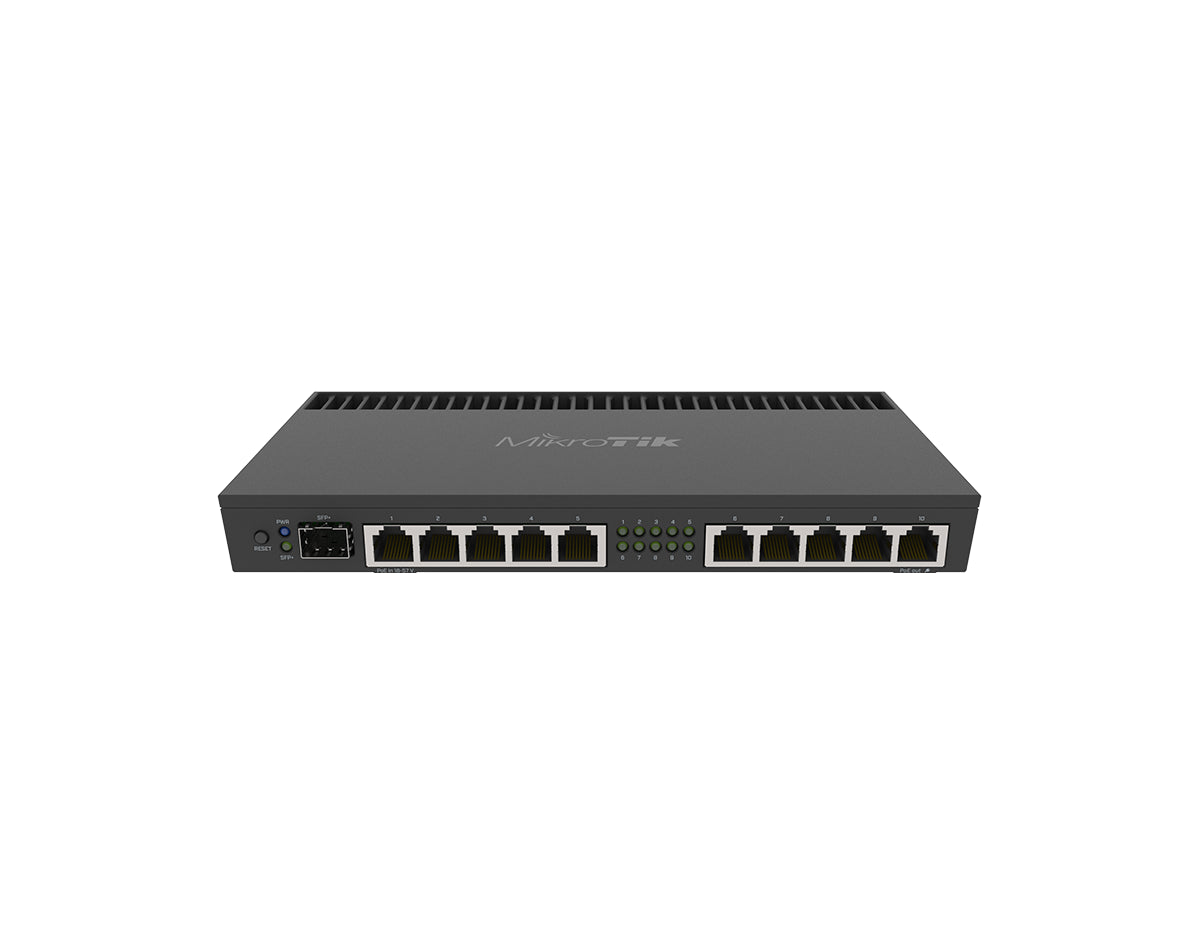

MikroTik RB4011iGS+RM Router
The RB4011iGS+RM is equipped with the AL21400 chipset, featuring a sturdy quad-core processor running at 1400 MHz. This substantial processing capacity results in a network router adept at efficiently and swiftly managing intricate operations. It is ideal for data-heavy networks. It has a compact design and a solid metal enclosure which makes your hardware more durable.
Quick Specs:
- 10x 10/100/1000 Ethernet Ports
- 1 SFP+ Ports
- PoE in (port1), 18-57V
- PoE out (port10) up to 57V
- PCB temperature monitor
Please see the related tabs for the RB4011iGS+RM datasheet and compatible accessories.
Accessories
| Accessories | 24V 1.5A power adapter 4011 ears K-60 kit |
Specifications
| Specifications | RB4011IGS+RM |
| Memory | 1 GB |
| NAND Storage size | 512 MB |
| CPU | AL21400 auto (533 - 1900) MHz |
| CPU core count | 4 |
| Switch chip model | RTL8367SB |
| OS | RouterOS v7 level 5 license |
| MTBF | Approximately 200.000 hours at 25C |
| Temperature | -40°C to 70°C tested |
| Performance test results | |
| Bridging | |
| 1518 byte | |
| none (fast path) | kpps: 806.4 Mbps: 9,792.9 |
| 25 bridge filter rules | kpps: 806.4 Mbps: 9,792.9 |
| 512 byte | |
| none (fast path) | kpps: 2,312.9 Mbps: 9,473.6 |
| 25 bridge filter rules | kpps: 1,037.4 Mbps: 4,249.2 |
| 64 byte | |
| none (fast path) | kpps: 5,509.7 Mbps: 2,821.0 |
| 25 bridge filter rules | kpps: 1,153.2 Mbps: 590.4 |
| Routing | |
| 1518 byte | |
| none (fast path) | kpps: 806.4 Mbps: 9,792.9 |
| 25 simple queues | kpps: 806.4 Mbps: 9,792.9 |
| 25 ip filter rules | kpps: 593.7 Mbps: 7,209.9 |
| 512 byte | |
| none (fast path) | kpps: 1,923.3 Mbps: 7,877.8 |
| 25 simple queues | kpps: 1,046.6 Mbps: 4,286.9 |
| 25 ip filter rules | kpps: 625.2 Mbps: 2,560.8 |
| 64 byte | |
| none (fast path) | kpps: 5092,3 Mbps: 2,607.3 |
| 25 simple queues | kpps: 960.3 Mbps: 491.7 |
| 25 ip filter rules | kpps: 564.6 Mbps: 289.1 |
| IPsec test results | |
| Mode | IPsec throughput |
| Single tunnel | |
| 1400 byte | |
| AES-128-CBC + SHA1 | kpps: 140.8 Mbps: 1577 |
| 512 byte | |
| AES-128-CBC + SHA1 | kpps: 141.2 Mbps: 578.4 |
| 64 byte | |
| AES-128-CBC + SHA1 | kpps: 139.9 Mbps: 71.6 |
| 256 tunnels | |
| 1400 byte | |
| AES-128-CBC + SHA1 | kpps: 192.7 Mbps: 2158.2 |
| AES-128-CBC + SHA256 | kpps: 192.4 Mbps: 2154.9 |
| AES-256-CBC + SHA1 | kpps: 180.0 Mbps: 2016.0 |
| AES-256-CBC + SHA256 | kpps: 180.0 Mbps: 2016.0 |
| AES-128-GCM | kpps: 192.7 Mbps: 2158.2 |
| 512 byte | |
| AES-128-CBC + SHA1 | kpps: 200.5 Mbps: 821.2 |
| AES-128-CBC + SHA256 | kpps: 200.5 Mbps: 821.2 |
| AES-256-CBC + SHA1 | kpps: 188.2 Mbps: 770.9 |
| AES-256-CBC + SHA256 | kpps: 188.2 Mbps: 770.9 |
| kpps: 202.2 Mbps: 828.2 |
|
| 64 byte | |
| AES-128-CBC + SHA1 | kpps: 203.4 Mbps: 104.1 |
| AES-128-CBC + SHA256 | kpps: 203.4 Mbps: 104.1 |
| AES-256-CBC + SHA1 | kpps: 190.3 Mbps: 97.4 |
| AES-256-CBC + SHA256 | kpps: 190.3 Mbps: 97.4 |
| AES-128-GCM | kpps: 203.4 Mbps: 104.1 |
| Certification & Approvals | |
| Certification | CE, EAC, ROHS |
| IP | IP20 |
Properties
| Properties | MikroTik RB4011IGS+RM |
| Description | Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage and desktop case with rack ears |
| Product Family | RB4011 Series |
| Product Type | Ethernet Router |
| Ports | |
| 10/100/1000 Ethernet ports | 10 |
| SFP+ | 1 |
| Serial console port | 1 RJ45 |
| Extras | PCB temperature monitor Voltage Monitor |
| Dimensions | 228 x 120 x 30 mm |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| Max power consumption | 33 W |
| Max power consumption without attachments | 18 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 18-57 V |
| PoE-out ports | Ether10 |
| PoE out | Passive PoE up to 57V |
| Max out per port output (input 18-30 V) | 600 mA |
| Max out per port output (input 30-57 V) | 420 mA |
| Max total out (A) | 600 mA |
