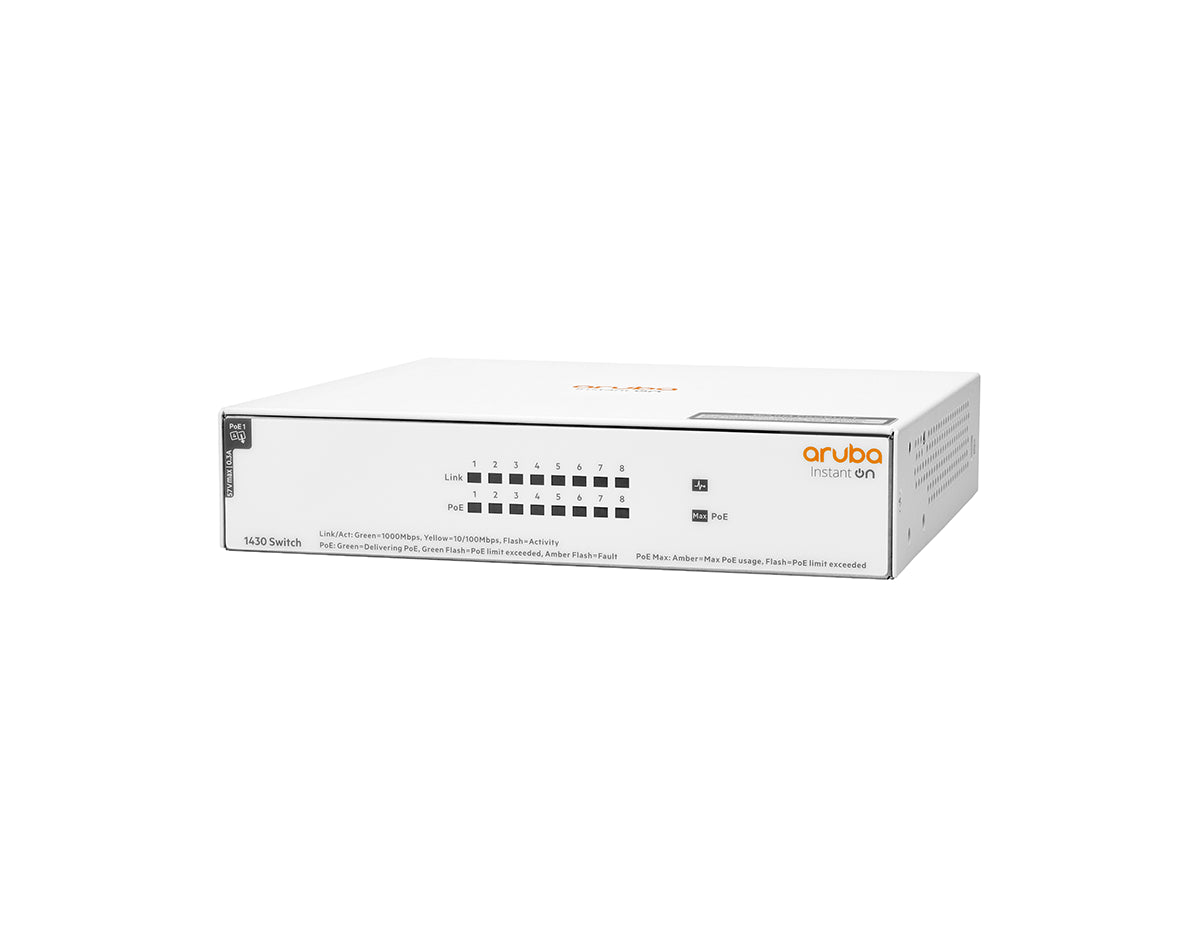

HPE Networking Instant On 1430 R8R46A 8-Port Class 4 PoE Switch, Gigabit Unmanaged, 64 W

Brand:
HPE Aruba
Part Number:
R8R46A
8-port Gigabit Ethernet switch with Class 4 PoE support (64W budget). Plug-and-play unmanaged Layer 2 switching in a fanless, silent desktop form factor.
$92.99

Net 30 or as low as $—/month Apply Now

Quote

Overview

The HPE Networking Instant On 1430 Series is a family of plug-and-play unmanaged Layer 2 Gigabit switches for small businesses and home offices, with fully automated functions and no configuration; the switches are not managed by Instant On management. The R8R46A is the 8-port PoE model, one of two PoE configurations in the series, closely matched to the data-only 8-port R8R45A but adding Class 4 PoE on all eight ports, a larger chassis, and an included 2-post rack kit. Like every 1430 switch it is fanless, which suits acoustically sensitive areas.

Technical Details

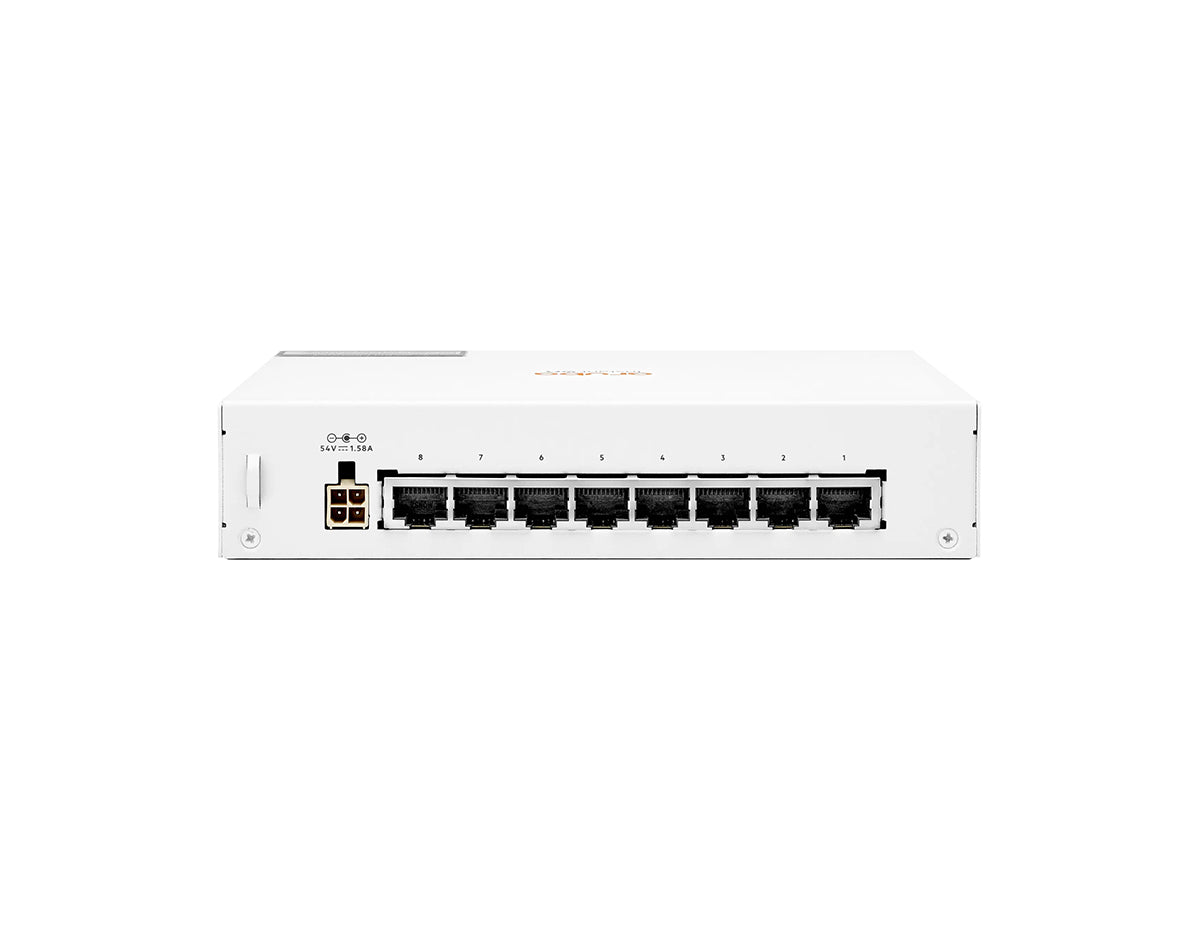

The HPE Networking Instant On 1430 R8R46A is an unmanaged Layer 2 compact switch with eight 10/100/1000 RJ-45 ports, all supporting IEEE 802.3at Class 4 Power over Ethernet. Its external power adapter supports a 64 W total PoE budget at up to 30 W per port, so the shared budget, not the port count, limits how many devices draw full power. Switching capacity is 16 Gbps and forwarding rate is 11.90 Mpps. It has no SFP uplink ports and is fanless and plug-and-play. It connects and powers small-office devices such as access points, IP phones, and IP cameras alongside desktops and printers.

Best For

The R8R46A suits small offices and home offices that need eight Gigabit ports and power for a few PoE devices without any configuration. A 64 W Class 4 PoE budget is suitable for small mixed deployments of access points, IP phones, and IP cameras at up to 30 W per port; actual device counts depend on each powered device's power draw. Its fanless design fits noise-sensitive spaces.

Not suitable if:

  • you need VLANs, monitoring, or remote management, since this switch is unmanaged and has no management interface
  • you need Class 6 (60 W) ports or more than 64 W of total PoE, since this model supplies up to 30 W per port from a 64 W budget
  • you need fiber or SFP uplinks, since all eight ports are copper RJ-45
  • you need more than eight ports, since this model provides eight

R8R46A Specifications

Class & Licensing
License TierNone (unmanaged)
License Detail / MTBFNone (unmanaged); MTBF 131.1 years
Ports & Uplinks
PoE Budget64 W Class 4 PoE (up to 30 W per port); external power adapter
Port SpeedGigabit
Uplink ConfigurationNone (no dedicated uplink ports)
Performance & Scale
StackingNo
Switching Capacity16 Gbps
Forwarding Rate11.90 Mpps
MAC Table8,192 entries
Hardware & Memory
DRAMNot published
Power & Thermal
Power Input / PSUExternal power adapter (54 VDC, 1.58 A), 100-240 VAC, 50/60 Hz; 90 W maximum power rating
Redundant PSUNo (single external power adapter)
CoolingFanless
Physical & Environmental
Dimensions (H x W x D)1.45 x 6.96 x 5.91 in (3.7 x 17.7 x 15.0 cm)
Weight1.70 lbs (0.77 kg)
Operating Temperature32 to 104 °F (0 to 40 °C), up to 10,000 ft (3 km)
Software
Operating SystemNot published

R8R46A Accessories

Included in the BoxHPE Instant On Switch 1430 unit; External power adapter; Mounting accessories; Documentation

FAQ

Does the HPE Networking Instant On 1430 R8R46A support PoE, and how much?

Yes. All eight Gigabit ports on the HPE Networking Instant On 1430 R8R46A support IEEE 802.3at Class 4 Power over Ethernet at up to 30 W per port, for devices such as video IP phones, wireless access points, and surveillance cameras. The switch has a 64 W total PoE budget shared across the ports and supplied through its external power adapter, so the number of devices it can power at once depends on each device's draw. It also powers any 15.4 W IEEE 802.3af device.

Does the R8R46A have SFP or fiber uplink ports?

No. The R8R46A has eight 10/100/1000 RJ-45 copper ports and no SFP or fiber uplink ports, so it does not accept transceivers. Any of the eight copper ports can connect to another switch or a router. In the 1430 Series, the 26-port R8R50A is the model with two 1G SFP ports for fiber uplinks; it has no PoE, and HPE lists the S0G20A 1G LX and R9D16A 1G SX transceivers for it. Transceivers are sold separately.

Can the R8R46A be stacked?

No. The R8R46A is an unmanaged switch with no stacking feature, so each unit operates independently. Additional switches connect through standard copper links on any port. The R8R46A forwards STP BPDU frames so that Spanning Tree Protocol running on other switches in the network can still prevent loops, and it forwards 802.1X EAPoL frames so clients behind it can authenticate to an upstream authenticator.

What is the difference between the R8R46A and the R8R45A?

The R8R46A and R8R45A are closely matched 8-port unmanaged Gigabit switches in the Instant On 1430 Series, both fanless with 16 Gbps of switching capacity and 11.90 Mpps forwarding. Differences documented by HPE include PoE: the R8R46A supplies Class 4 PoE on all eight ports from a 64 W budget, while the R8R45A has none. The R8R46A is also larger, 5.91 x 6.96 x 1.45 in (D x W x H) versus 5.43 x 6.18 x 1.45 in, and ships with a 2-post rack kit, while the R8R45A mounts on a table, wall, or under a table only.

Does the R8R46A need any configuration or management?

No. The R8R46A is an unmanaged, plug-and-play switch that HPE lists with device management as unmanaged, and it is not managed by HPE Networking Instant On management. It forwards traffic as soon as it is connected, with fully automated functions. Quality of Service prioritizes voice and video based on DSCP or IEEE 802.1p markings, and flow control, jumbo frames up to 9216 bytes, and Energy Efficient Ethernet work without setup.

How can the R8R46A be mounted?

The R8R46A mounts in an EIA-standard 19-inch telco rack or equipment cabinet using the included 2-post rack kit, and it also supports table-top mounting, wall mounting with ports facing up or down using the base mounting holes or the brackets provided, and under-table mounting with the brackets. HPE adds a restriction: it must be mounted top surface up and should not be mounted upside-down, to prevent possible impact to long-term reliability.

Is the R8R46A end of sale?

Yes. HPE announced the end of sale of the Instant On 1430 R8R46A, R8R47A, and R8R49A switches on January 31, 2026, with an End of Sale date of July 31, 2026. The notice lists End of Support Life as July 31, 2029. HPE names the JL811A as an "Alternate, non-equivalent replacement - Aruba Instant On 1830 8G 4p Class4 PoE 65W Switch".

What condition is the R8R46A sold in, and what warranty applies?

The R8R46A is sold new and factory-sealed. It is covered by the Network Devices Inc. 1-year warranty and a 30-day return policy.
