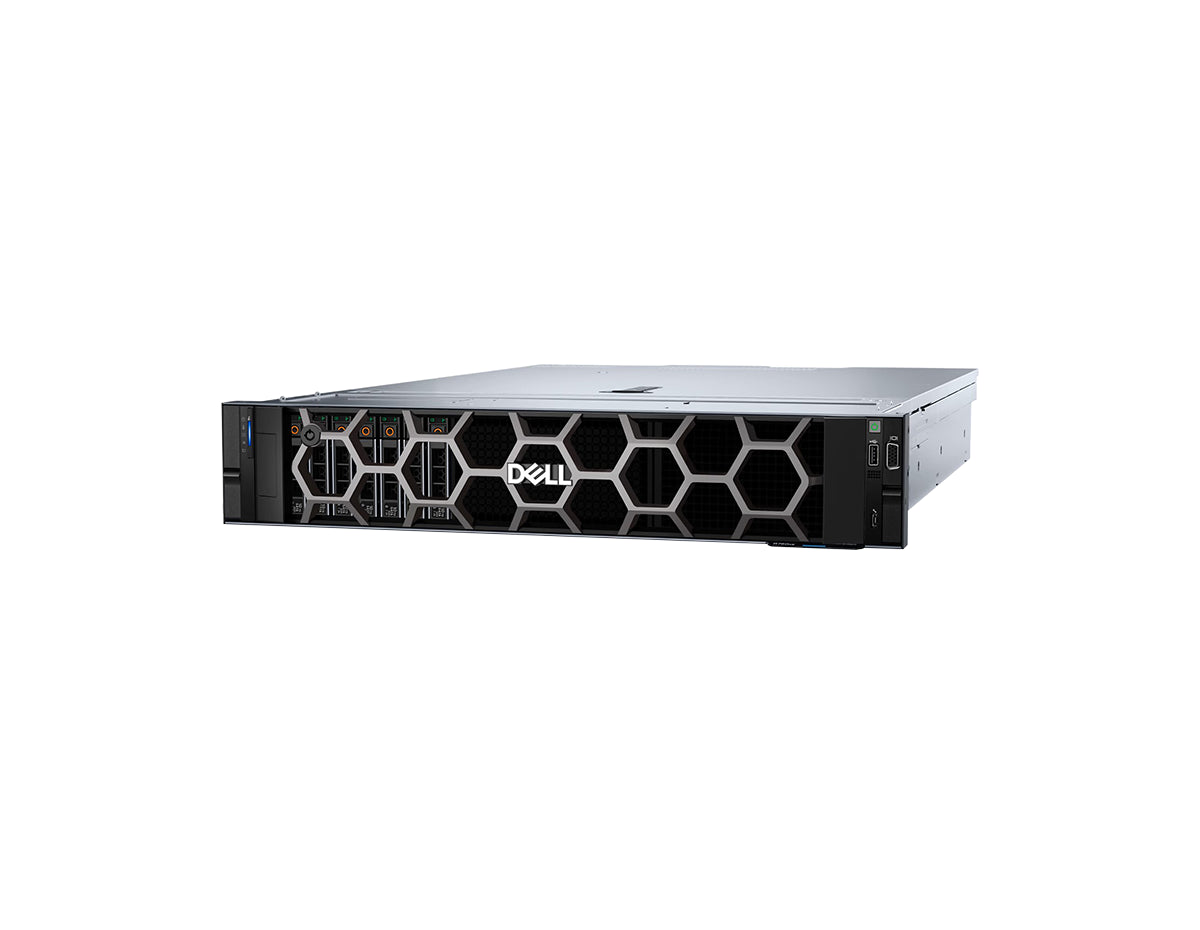

Dell PowerEdge R760xs 2U Rack Server

Balanced Compute and Flexible Storage for Business Workloads

The Dell PowerEdge R760xs is a 2U, two-socket rack server built for scalable performance, large storage capacity, and efficient deployment in existing air-cooled infrastructure. It is designed for popular IT workloads such as virtual desktop infrastructure, virtual machines, and software-defined storage.

Key Benefits and Features

• Supports up to two 5th Generation Intel Xeon Scalable processors with up to 28 cores or 4th Generation Intel Xeon Scalable processors with up to 32 cores per processor.
• Offers 16 DDR5 DIMM slots with RDIMM support up to 1.5 TB and speeds up to 5200 MT/s, supporting registered ECC modules exclusively.
• Provides flexible storage options with versatile front and rear configurations for 3.5-inch, 2.5-inch, SAS, SATA, and NVMe drives.
• Includes PCIe Gen5 expansion capability for enhanced data throughput and reduced I/O latency.
• Uses Dell OpenManage and iDRAC9 tools for centralized, secure, and automated server management.

Ideal Use Cases

• Virtual desktop infrastructure (VDI) deployments.
• Virtual machine (VM) hosting for business applications.
• Software-defined storage (SDS) node configurations.
• General-purpose enterprise compute environments.
• Air-cooled data center infrastructure updates looking to bypass liquid cooling retrofits.

Technical Specifications

• Brand: Dell Technologies
• Model: PowerEdge R760xs
• SKU: R760xs
• Form Factor: 2U rack server
• Processor Support: Up to two 5th Generation Intel Xeon Scalable processors or 4th Generation Intel Xeon Scalable processors
• Memory: 16 DDR5 DIMM slots, RDIMM support up to 1.5 TB, speeds up to 5200 MT/s
• Storage Controllers: PERC H965I, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i, HBA355e, S160
• Embedded NIC: 2 x 1 GbE LOM
• Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module
• Operating Systems: Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Canonical Ubuntu Server LTS

Configure Dell PowerEdge R760xs for Your IT Environment

Choose the Dell PowerEdge R760xs for a right-sized 2U server platform with scalable compute, flexible storage, integrated management, and security features designed for modern business infrastructure.

Brand	Dell Technologies
Model	PowerEdge R760xs
SKU	R760xs
Product Type	Rack Server
Form Factor	2U rack server
Processor	Up to two 5th Generation Intel Xeon Scalable processors with up to 28 cores and 4th Generation Intel Xeon Scalable processors with up to 32 cores per processor
Memory	16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5200 MT/s (Supports registered ECC DDR5 DIMMs only)
Drive Bays	Front: Up to 12 x 3.5-inch SAS/SATA (max 288 TB), up to 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe (max 244.48 TB); Rear: Up to 2 x 2.5-inch SAS/SATA/NVMe (max 30.72 TB, supported with 12 x 3.5-inch configuration)
Embedded NIC	2 x 1 GbE LOM
Dimensions	86.8 mm x 482 mm x 707.78 mm without bezel; 86.8 mm x 482 mm x 721.62 mm with bezel
Weight	Max 28.6 kg (63.0 lbs.)

Storage Controllers	Internal Controllers: PERC H965I, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i
Internal Boot	Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB
External HBA	HBA355e; Software RAID: S160
GPU Options	2 x 75 W SW, LP
Power Supplies	1800 W Titanium 200-240 VAC or 240 VDC; 1400 W Titanium 100-240 VAC or 240 VDC; 1400 W Titanium 277 VAC or HVDC (336V DC); 1400 W Platinum 100-240 VAC or 240 VDC; 1100 W Titanium 100-240 VAC or 240 VDC; 1100 W -(48V-60V) DC; 800 W Platinum 100-240 VAC or 240 VDC; 700 W Titanium 200-240 VAC or 240 VDC; 600 W Platinum 100-240 VAC or 240 VDC
Cooling Options	Air cooling
Fans	Standard (STD) fans, High performance Silver (HPR) fans, High performance Gold (VHP) fans, up to 6 hot swappable fans
Embedded Management	iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module
Network Options	1 x OCP card 3.0 (optional)
Front Ports	1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
Internal Ports	1 x USB 3.0 (optional)

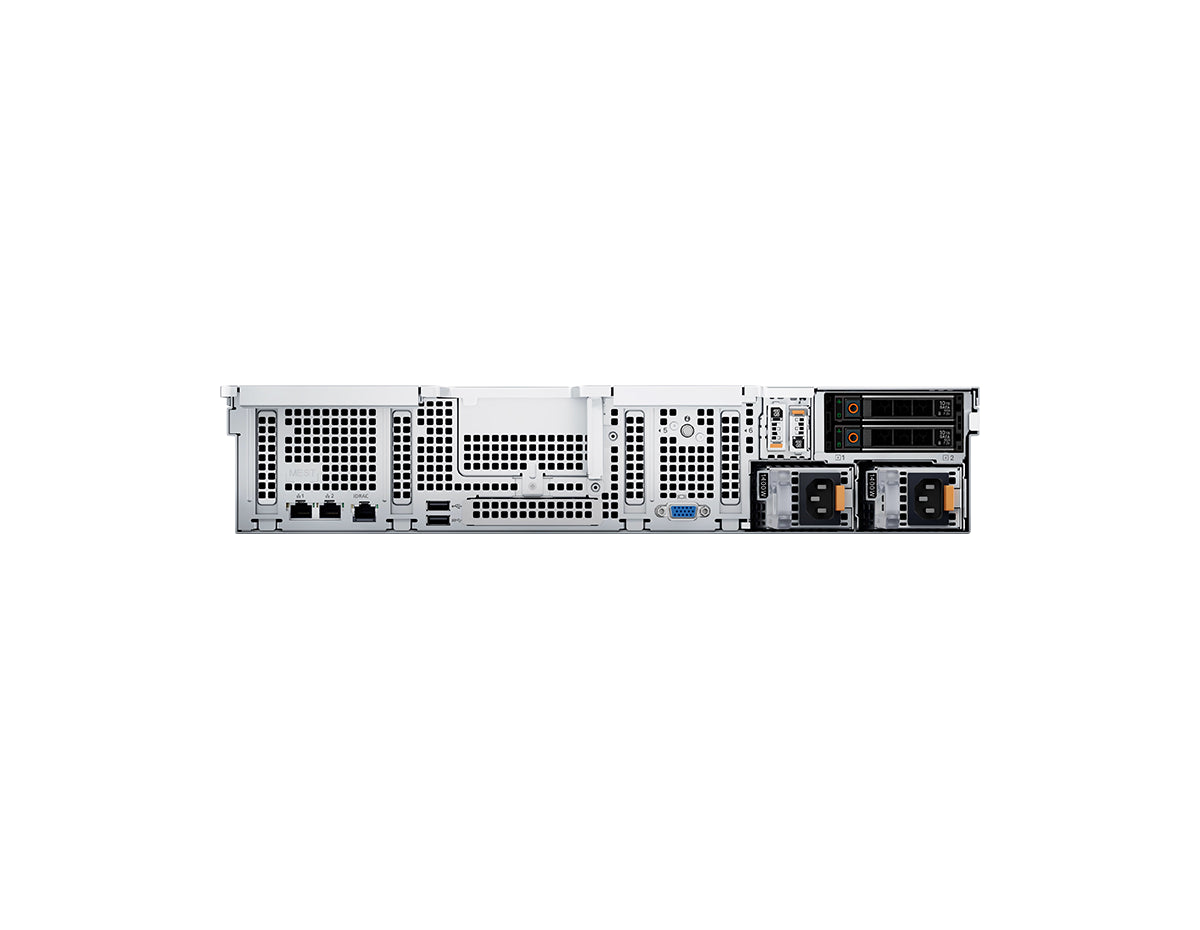

Rear Ports	1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA, 1 x Serial (optional)
PCIe	1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4); 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)
Operating System	Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Canonical Ubuntu Server LTS
Security Features	Cryptographically signed firmware, Data at Rest Encryption (SEDs with local or external key mgmt), Secure Boot, Secure Erase, Secured Component Verification (Hardware integrity check), Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Compatible Accessories

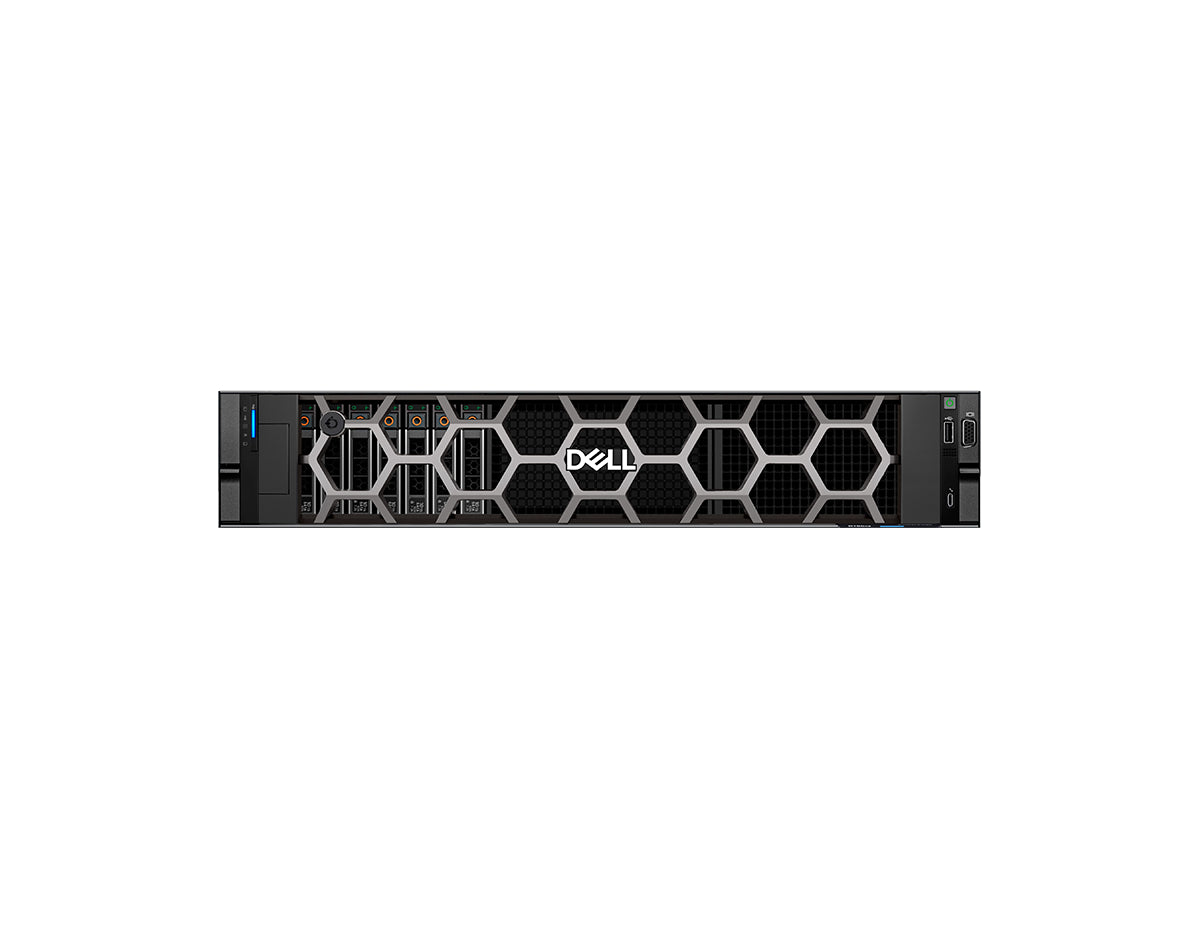

Optional LCD bezel or security bezel
