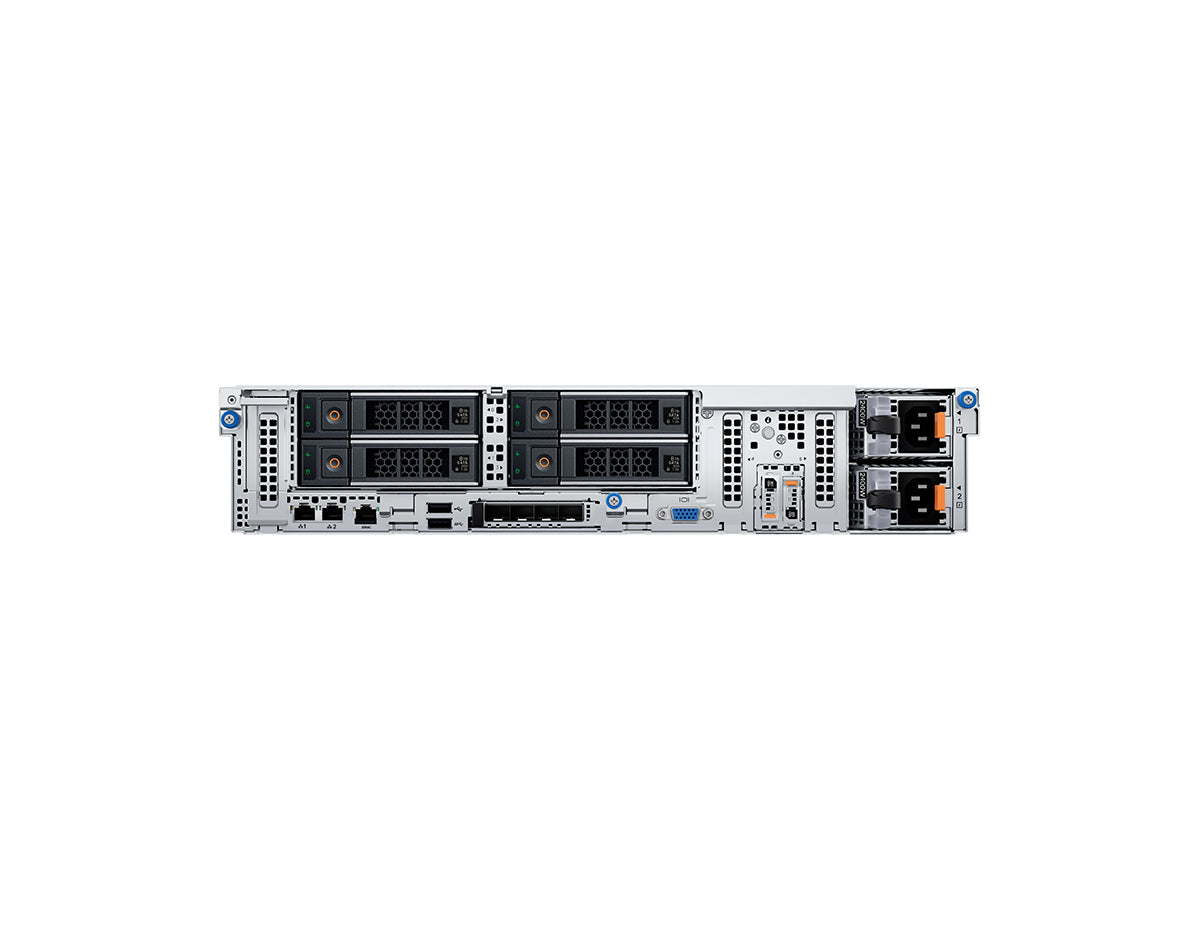

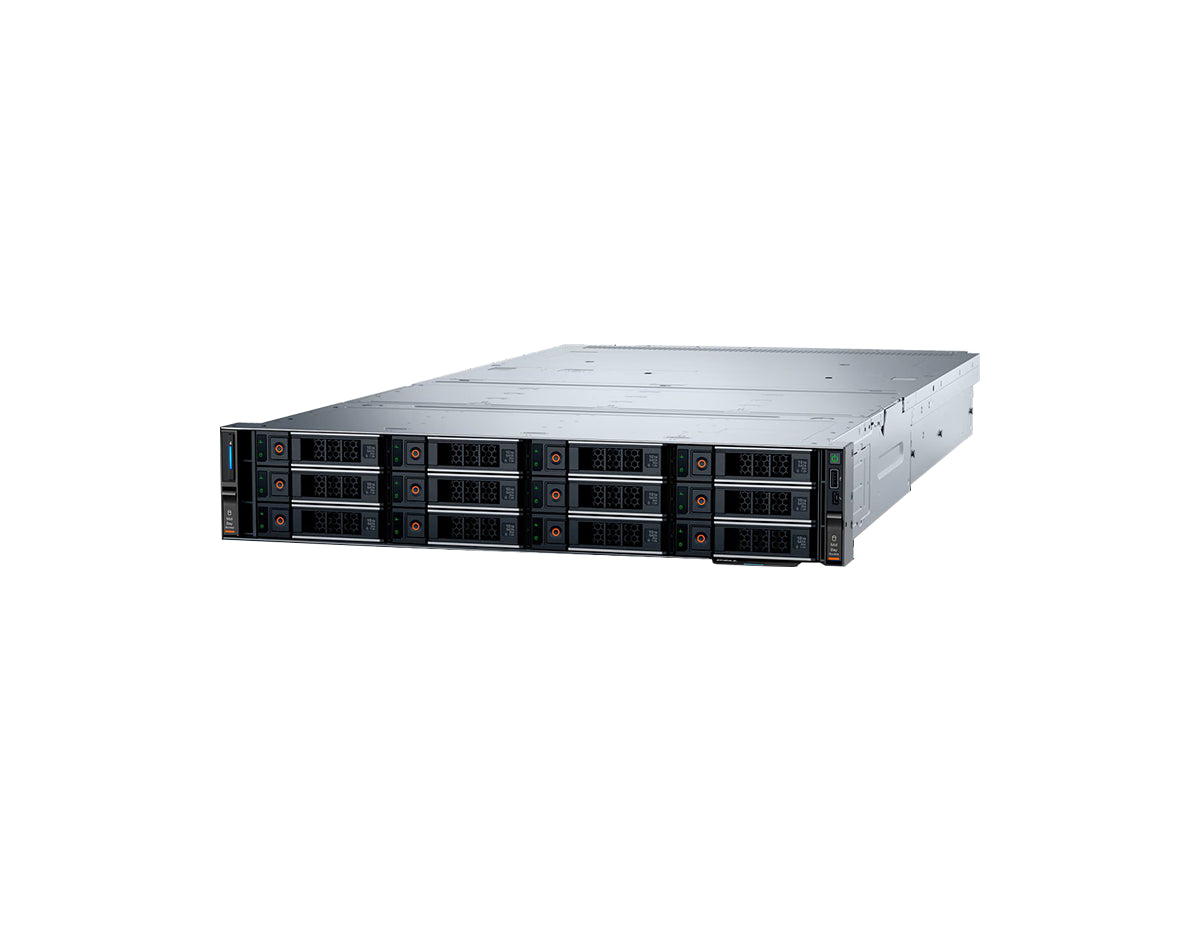

Dell PowerEdge R760xd2 Storage Rack Server

The Dell PowerEdge R760xd2 is a 2U, two-socket rack server built for growing unstructured data environments. Designed for object storage, file storage, video capture and retrieval, and content delivery networks, it provides scalable storage density with enterprise management and security features.

High-Capacity Storage for Data-Heavy Workloads

With support for up to 28 drives and up to 616 TB total capacity, the PowerEdge R760xd2 helps organizations expand storage infrastructure while maintaining serviceability, air cooling, and flexible PCIe Gen4 expansion options.

Key Benefits and Features

• Supports up to two 4th or 5th Generation Intel Xeon Scalable processors.
• Offers up to 16 DDR5 DIMM slots with RDIMM support up to 1.5 TB.
• Provides front, mid, and rear drive bay options for scalable 3.5 inch storage.
• Includes iDRAC9 and Dell OpenManage tools for centralized server management.
• Supports security features such as Secure Boot, Secure Erase, and Silicon Root of Trust.

Ideal Use Cases

• File and object storage infrastructure for enterprise data growth.
• Video capture, video retrieval, and media storage workflows.
• Content delivery network deployments requiring dense rack storage.
• Data center environments needing air-cooled 2U rack server capacity.

Technical Specifications

• Brand: Dell
• Model: PowerEdge R760xd2
• Form Factor: 2U rack server
• Processor Support: Up to two 4th Generation Intel Xeon Scalable processors or up to two 5th Generation Intel Xeon Scalable processors
• Memory: 16 DDR5 DIMM slots, RDIMM support up to 1.5 TB
• Drive Bays: Up to 12 front 3.5 inch SAS/SATA, up to 12 mid 3.5 inch SAS/SATA, and rear bay options (3.5-inch SAS/SATA, 2.5-inch NVMe, or E3.S NVMe)
• Maximum Storage Capacity: Up to 616 TB
• Embedded NIC: 2 x 1 GbE LOM
• Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
• Cooling: Air cooling with up to 6 hot swappable standard fans

Build Scalable Storage with Dell PowerEdge R760xd2

Choose the Dell PowerEdge R760xd2 for dense 2U storage, enterprise management, and flexible expansion in data-intensive IT environments.

Brand	Dell
Model	PowerEdge R760xd2
SKU	R760xd2
Product Type	Rack Server
Series	PowerEdge
Form Factor	2U rack server
Processor	Up to two 4th Generation Intel Xeon Scalable processors with up to 32 cores per processor or up to two 5th Generation Intel Xeon Scalable processors with up to 28 cores per processor
Memory	16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5600 MT/s
Drive Bays	Up to 12 x 3.5-inch SAS/SATA front bays, up to 12 x 3.5-inch SAS/SATA mid bays, and rear bay options
Power	Hot swap redundant power supplies
Dimensions	86.8 mm x 481.6 mm x 837 mm
Cooling	Air cooling

Memory Type	Registered ECC DDR5 DIMMs only
Maximum Memory Speed	4800 MT/s supported due to processor limitation; 5600 MT/s RDIMMs applicable for 5th Gen Intel Xeon Scalable Processors
Storage Controllers	PERC H755, PERC H9651, PERC H355, HBA3551, HBA4651, BOSS-N1, HBA355e, HBA4650, H965e
Front Bays	Up to 12 x 3.5-inch SAS/SATA max 264 TB
Mid Bays	Up to 12 x 3.5-inch SAS/SATA max 264 TB
Rear Bays	Up to 4 x 3.5-inch SAS/SATA max 88 TB; up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB; up to 2 x 2.5-inch NVMe max 15.36 TB; 4 x E3.S NVMe max 61.44 TB
Power Supplies	1800 W Titanium 200-240 VAC or 240 VDC; 1400 W Platinum 100-240 VAC or 240 VDC; 1400 W Titanium 277 VAC or 336 VDC; 1400 W Titanium 100-240 VAC or 240 VDC; 1100 W Titanium 100-240 VAC or 240 VDC; 1100W LVDC 48-60 VDC; 700 W Titanium 200-240 VAC or 240 VDC
Fans	Up to 6 Standard fans, hot swappable
Embedded Management	iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module
OpenManage Software	OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage Service plugin, OpenManage Update Manager plugin, CloudIQ for PowerEdge plug in, OpenManage Enterprise Integration for VMware vCenter, OpenManage Integration for Microsoft System Center, OpenManage Integration with Windows Admin Center
Management Tools	iDRAC RESTful API with Redfish, IPMI, RACADM CLI, Dell System Update, Enterprise Catalogs, Dell Repository Manager
Security Features	Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secure Erase, Secured Component Verification, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC	2 x 1 GbE LOM
Network Options	1 x OCP card 3.0 optional
GPU Options	Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW
Front Ports	1 x iDRAC Direct Micro-AB USB port, 1 x USB 2.0
Rear Ports	1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x VGA
Internal Ports	1 x USB 3.0 optional
PCIe	Up to five PCIe slots
Operating Systems	Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
