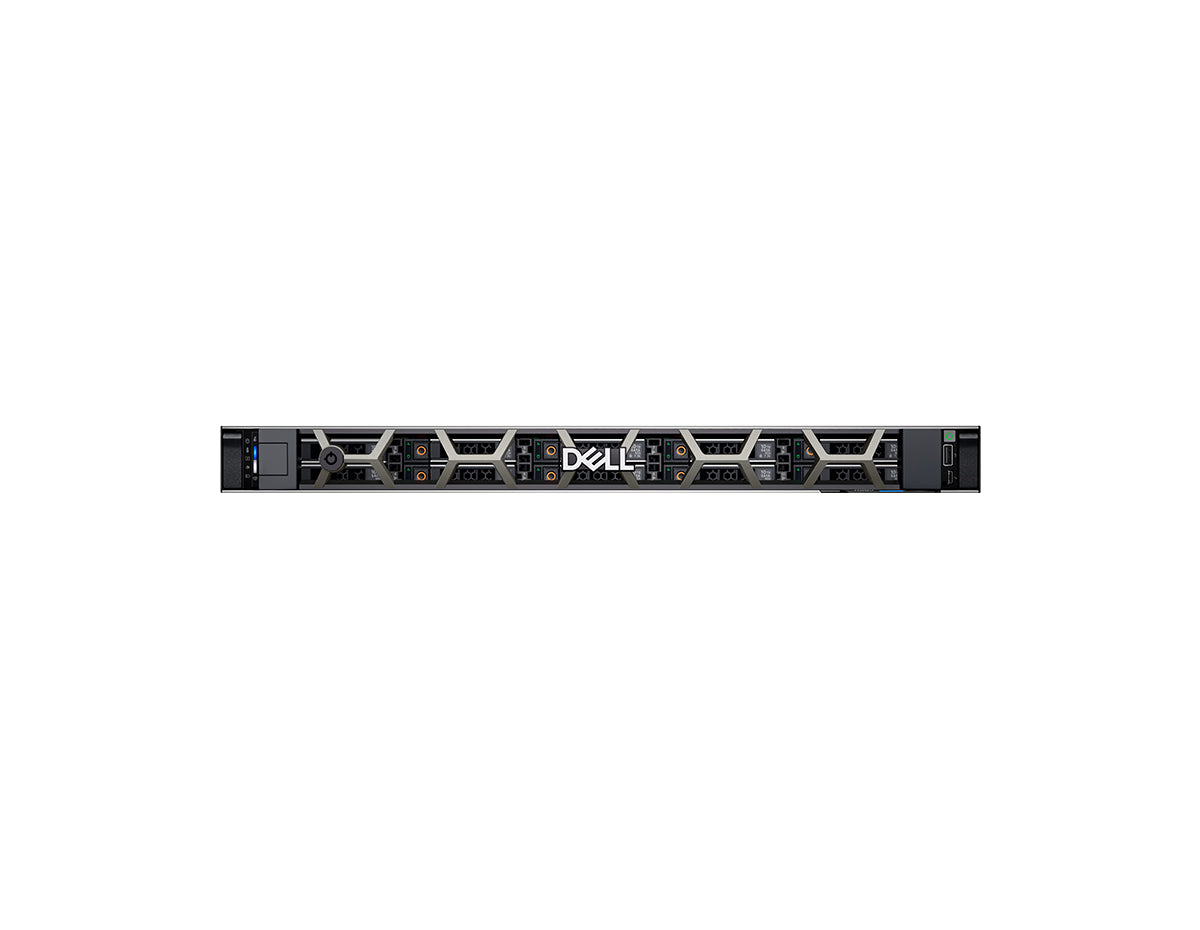

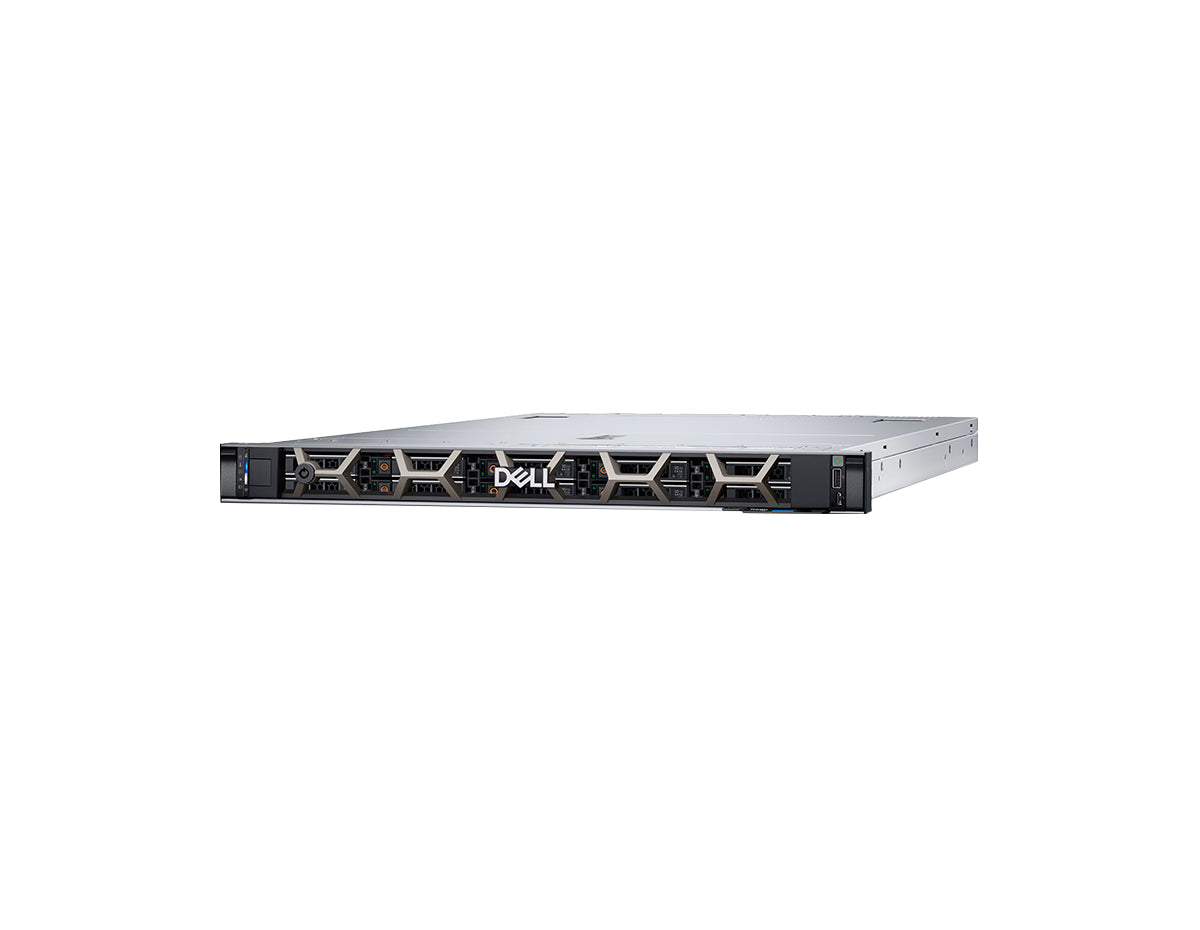

Dell PowerEdge R660 for Dense Enterprise Workloads
The Dell PowerEdge R660 is a 1U, two-socket rack server built for demanding enterprise applications, including dense database analytics, high-density virtualization, and mixed workload standardization. Its compact rack design combines high compute density, flexible storage options, PCIe expandability, and integrated systems management for modern IT environments.
Key Benefits and Features
- Supports up to two 4th Generation Intel Xeon Scalable, Intel Xeon Max, or 5th Generation Intel Xeon Scalable processors.
- Provides up to 32 DDR5 DIMM slots with registered ECC DDR5 memory support.
- Offers flexible front and rear storage configurations for SAS, SATA, NVMe, and EDSFF E3.S Gen5 NVMe SSD options.
- Includes Dell iDRAC9 and OpenManage support for secure, centralized server management.
- Supports multiple PCIe Gen4 and Gen5 riser configurations with up to three PCIe slots.
Ideal Use Cases
- High-density virtualization in data center environments.
- Dense database analytics requiring scalable CPU and memory resources.
- Mixed workload standardization across enterprise infrastructure.
- Rack environments that need a compact 1U two-socket server platform.
Technical Specifications
- Product Type: 1U rack server
- Processor Support: Up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors with up to 56 cores, or up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores
- Memory Slots: 32 DDR5 DIMM slots
- Maximum Memory: Supports RDIMM up to 8 TB
- Memory Speed: Up to 4800 MT/s with 4th Generation Intel Xeon processors and up to 5600 MT/s with 5th Generation Intel Xeon processors
- Drive Bays: Front bays up to 10 x 2.5-inch, 8 x 2.5-inch, 14 x EDSFF E3.S, or 16 x EDSFF E3.S Gen5 NVMe; Rear bays up to 2 x 2.5-inch or 2 x EDSFF E3.S Gen5 NVMe SSD
- GPU Support: Up to 3 x 75 W single-wide GPUs
- PCIe Expansion: Up to three PCIe slots with Gen4 and Gen5 configurations
- Embedded Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module
- Dimensions: 42.8 mm height, 482 mm width, 822.88 mm depth with bezel
Build Dense Compute Capacity with Dell PowerEdge R660
Choose the Dell PowerEdge R660 for a compact enterprise server platform designed to support demanding compute, memory, storage, and virtualization workloads in modern rack infrastructure.
