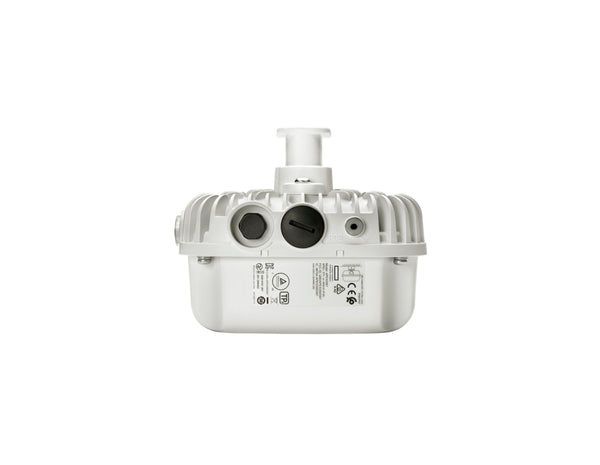

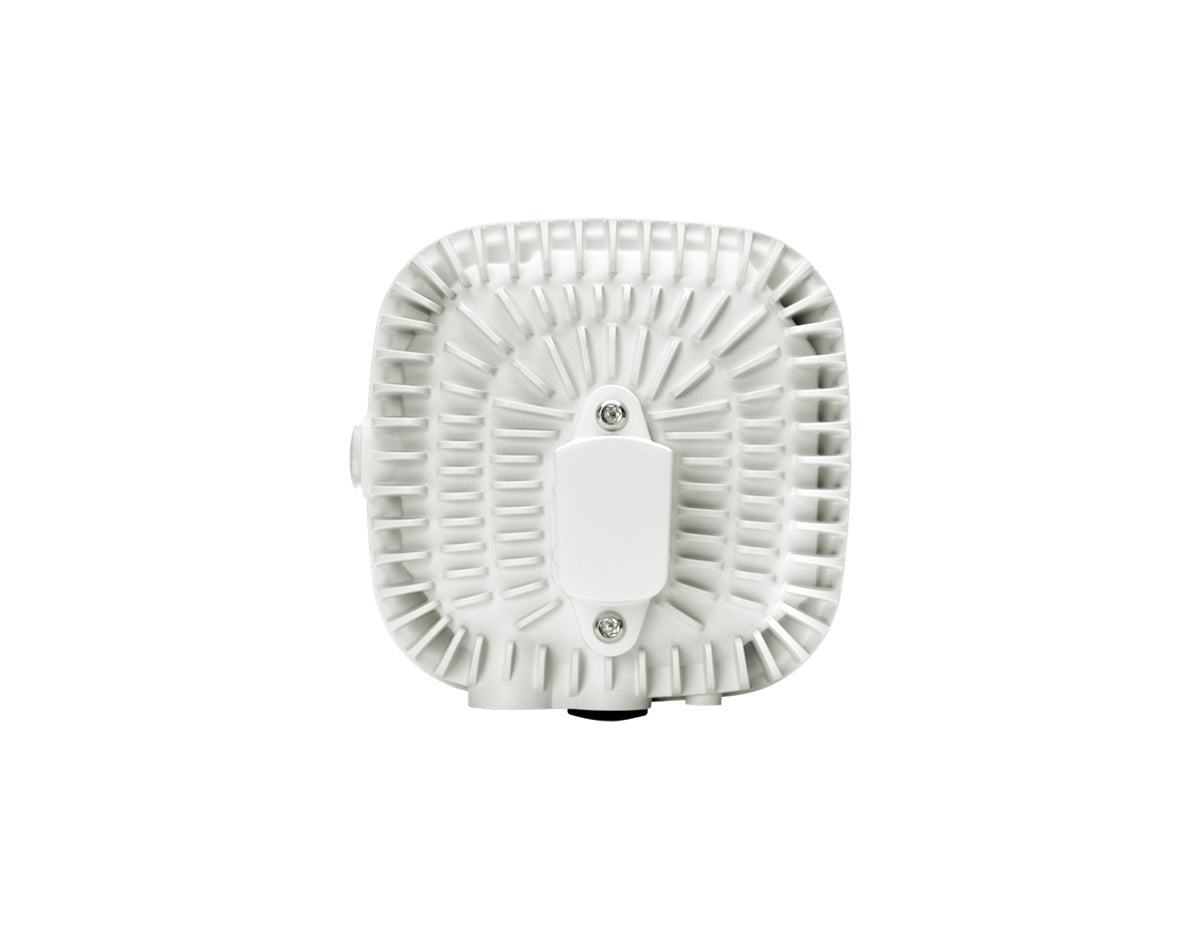

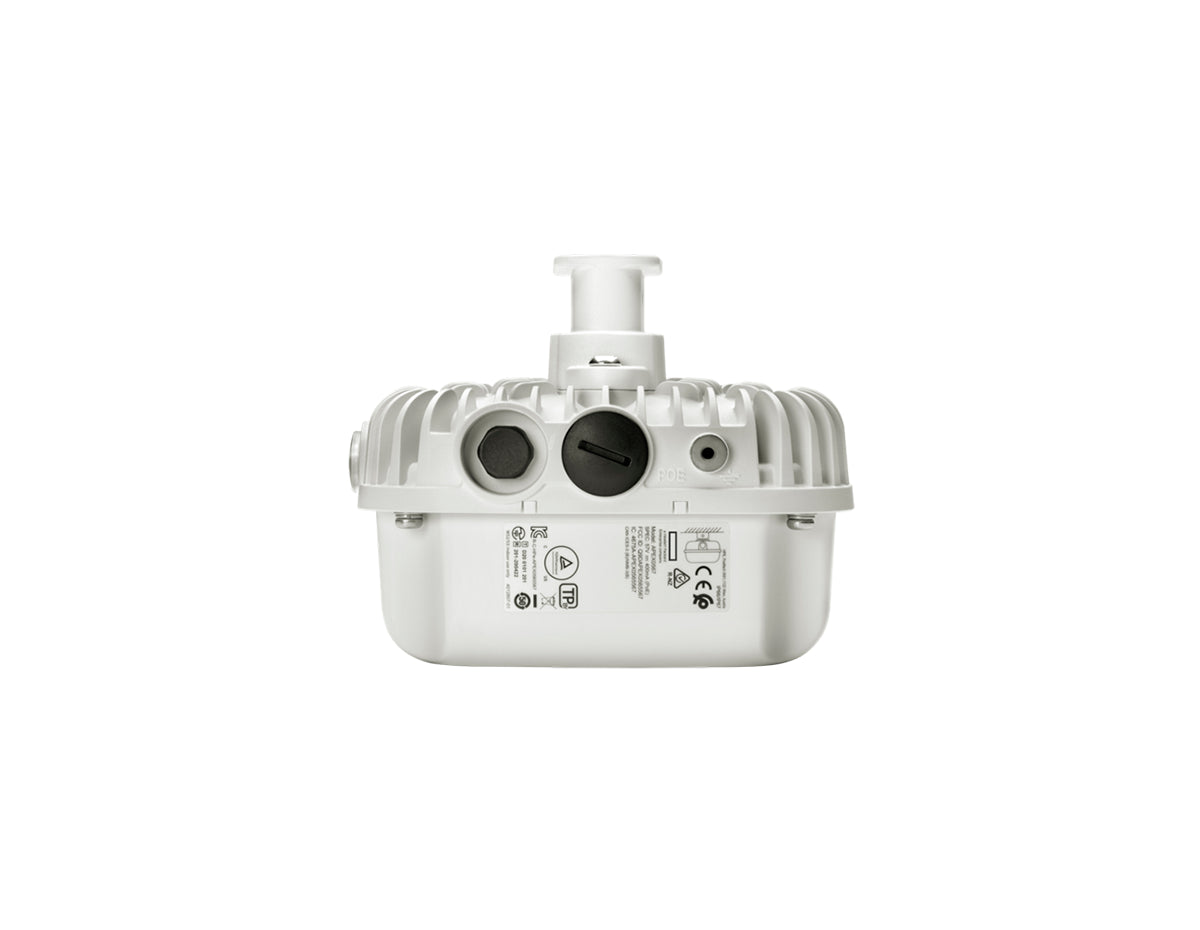

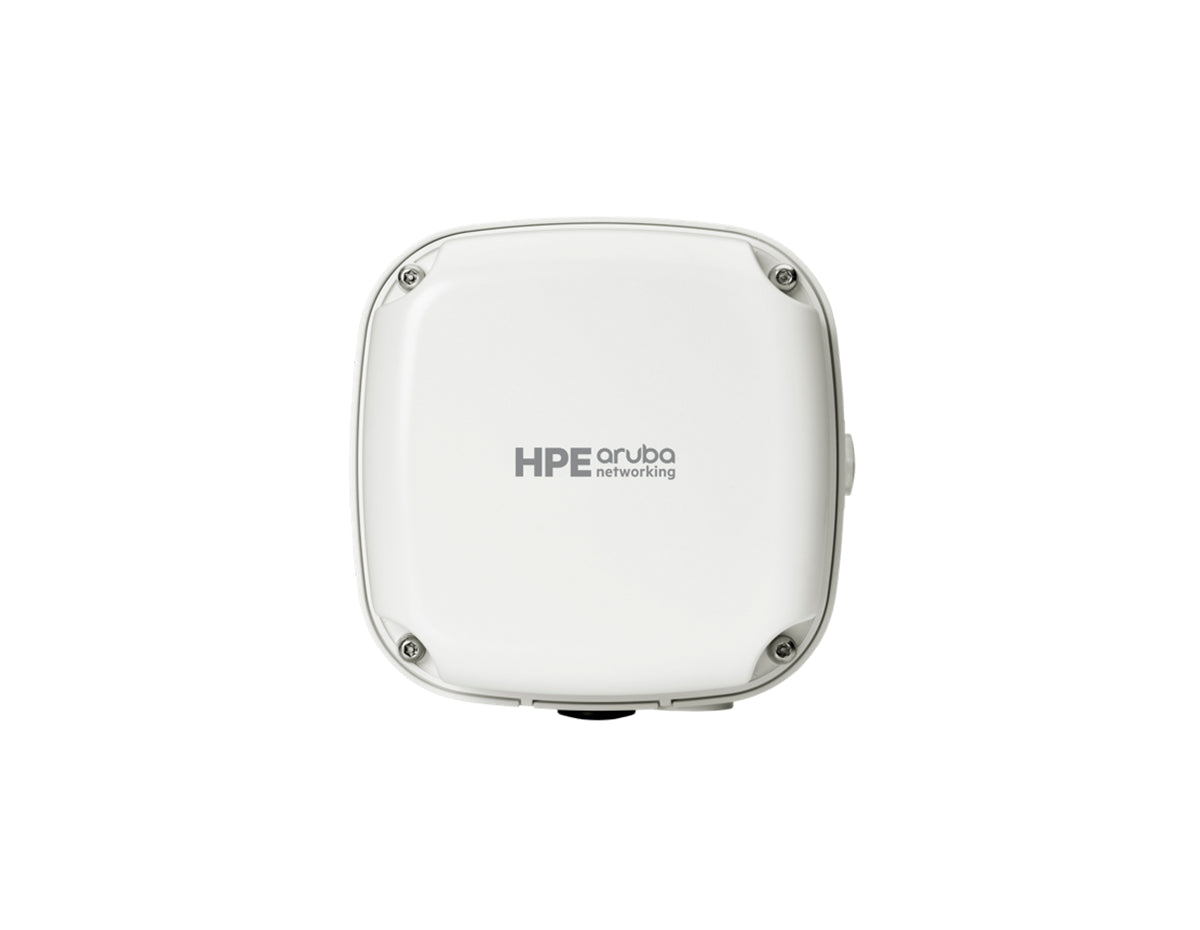

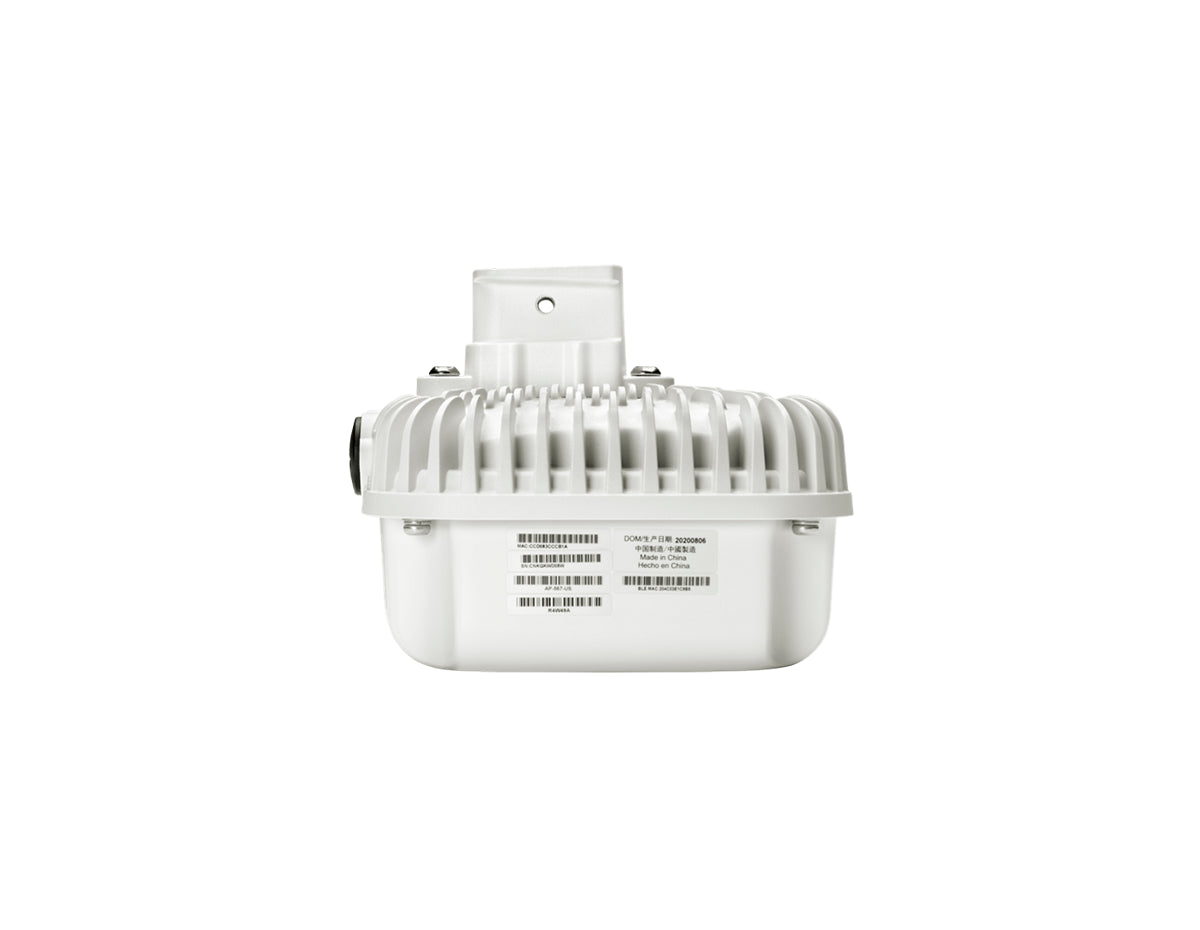

HPE ARUBA AP-567 (RW) WIRELESS ACCESS POINT (R4W48A)
| Model: | R4W48A |
| Detail: | |
| Price: | $470.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |
The HPE Aruba Networking 560 Series access points have been specifically engineered to enhance user experience by optimizing Wi-Fi efficiency and significantly reducing airtime contention among clients. This product incorporates elements of Zero Trust Security to improve the security of user authentication security and wireless data transmission. Tailored for durability in challenging outdoor settings, it can withstand extreme temperature variations and prolonged exposure to moisture and precipitation. It is completely sealed to prevent the entry of airborne pollutants.
Quick Specs:
- -40 C to 55 C
- Rated for operation in all weather conditions
- Wind survival: Up to 165 Mph
- IP66/67
Please see the related tabs for the R4W48A datasheet and compatible accessories.
Specifications
| Frequency Bands | 2.4 GHz (up to 574 Mbps), 5 GHz (up to 1.2 Gbps) |
| Transmit Power | Up to 23 dBm |
| Certifications | CE, FCC, UL, Wi-Fi 6 certified, RoHS compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU), low-halogen materials used |
| EMC Compliance | Complies with EN 301 489, EN 55032, and FCC Part 15 standards |
| MTBF | >1,000,000 hours at 25°C |
| Shock Resistance | Tested to withstand up to 30 G for 11 ms per IEC 60068-2-27 |
| Vibration Resistance | Tested up to 1 Grms (5-500 Hz) according to IEC 60068-2-6 |
| Power Consumption | Maximum 25.5W with PoE+ |
| Thermal Cycling | Tested to withstand 500 cycles from -40°C to 65°C without performance degradation |
| Ingress Protection | IP66/67-rated, suitable for extreme weather conditions |
| Latency | <3 ms under typical conditions |
| Firmware Updates | Supports automated updates via ArubaOS and Aruba Central |
| Deployment | Optimized for continuous operation in challenging outdoor installations |
| Reliability | Tested for 100,000 hours of operation under extreme temperature and humidity, with no performance loss |
| Security Features | Supports WPA3 encryption, secure boot, and integrated firewall |
| Monitoring and Diagnostics | Real-time monitoring and diagnostics through Aruba Central |
Properties
| Product Name | R4W48A |
| Description | HPE Aruba AP-567 (RW), a dual-radio outdoor Wi-Fi 6 (802.11ax) access point with N-type connectors for external antennas, designed for high-density, rugged outdoor environments. |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Radio Configuration | Dual-band, 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) |
| Maximum Data Rate | 1.77 Gbps (574 Mbps on 2.4 GHz, 1.2 Gbps on 5 GHz) |
| Ethernet Ports | 1 x 2.5 Gbps Ethernet with PoE+ (802.3at) |
| Antenna Type | N-type connectors for external antennas (antennas sold separately) |
| Power Supply | Powered via 802.3at PoE+ (30W) or optional AC adapter |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 20.3 cm x 20.3 cm x 7.7 cm (8.0 in x 8.0 in x 3.0 in) |
| Weight | 1.45 kg (3.2 lb) |
| Mounting Options | Pole or wall mount (brackets included) |
| Usage | Designed for outdoor, high-density environments, such as campuses, stadiums, and industrial sites |
| Durability | IP66/67-rated for protection against dust and water ingress |
