HPE ARUBA AP-565 (RW) WIRELESS ACCESS POINT (R4W43A)
| Model: | R4W43A |
| Detail: | |
| Price: | $464.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

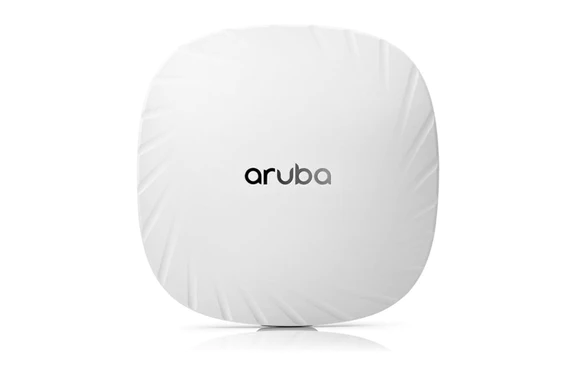

The HPE Aruba AP-565 is a member of the Aruba 560 Access Point series. It is explicitly designed to endure the most challenging outdoor conditions; the 560 series is capable of withstanding exposure to extreme high and low temperatures, persistent moisture, and precipitation and is fully sealed to prevent airborne contaminants. All electrical interfaces come with industrial-strength surge protection. This product is ideal for organizations requiring high-performance connectivity and experiencing increased IoT and mobility requirements. The Aruba advanced ClientMatch technology and an integrated Bluetooth beacon can help enable Aruba location services.
Quick Specs:
- Built-in Omni Directional Antennas
- 5GHz Antennas 5.4 dBi
- 2.4GHz Antennas 3.2 dBi
- BLE/802.15.4 Antennas 3.3 dBi
Please see the related tabs for the R4W43A datasheet and compatible accessories.
Specifications
| Frequency Bands | 2.4 GHz (up to 574 Mbps), 5 GHz (up to 1.2 Gbps) |
| Transmit Power | Up to 23 dBm |
| Certifications | CE, FCC, UL, Wi-Fi 6 certified, RoHS compliant |
| Environmental Safety | RoHS 3 compliant (Directive 2015/863/EU), low-halogen materials used |
| EMC Compliance | Complies with EN 301 489, EN 55032, and FCC Part 15 standards |
| MTBF | >1,000,000 hours |
| Shock Resistance | Tested to withstand 30 G for 11 ms under IEC 60068-2-27 |
| Vibration Resistance | Tested up to 1 Grms (5-500 Hz) per IEC 60068-2-6 |
| Power Consumption | Maximum 25.5W with PoE+ |
| Advanced Features | Supports OFDMA, MU-MIMO, Target Wake Time, and BSS Coloring for efficient airtime utilization |
| Latency | <3 milliseconds under typical conditions |
| Firmware Updates | Supports automatic updates via ArubaOS |
| Ingress Protection | IP66/67 for dust and water resistance |
| Deployment | Optimized for outdoor installations in demanding environments |
| Reliability | Tested for continuous outdoor operation under extreme temperature and humidity conditions |
| Security Features | Supports WPA3 encryption, secure boot, and integrated firewall |
| Monitoring and Diagnostics | Real-time monitoring and diagnostics through Aruba Central |
Properties
| Product Name | R4W43A |
| Description | HPE Aruba AP-565 (RW), a dual-radio, outdoor-rated Wi-Fi 6 (802.11ax) access point with integrated omnidirectional antennas, designed for high-performance and high-density environments. |
| Wireless Standard | Wi-Fi 6 (802.11ax) |
| Radio Configuration | Dual-band, 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) |
| Maximum Data Rate | 1.77 Gbps (574 Mbps on 2.4 GHz, 1.2 Gbps on 5 GHz) |
| Ethernet Ports | 1 x 2.5 Gbps Ethernet with PoE+ (802.3at) |
| Antenna Type | Integrated omnidirectional antennas |
| Power Supply | Powered via 802.3at PoE+ (30W) or optional AC adapter |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 20.3 cm x 20.3 cm x 7.7 cm (8.0 in x 8.0 in x 3.0 in) |
| Weight | 1.35 kg (2.98 lb) |
| Mounting Options | Pole or wall mount (bracket included) |
| Usage | Designed for outdoor and high-density environments, such as stadiums, campuses, and industrial sites |
| Durability | IP66/67-rated for dust and water resistance, suitable for outdoor conditions |
