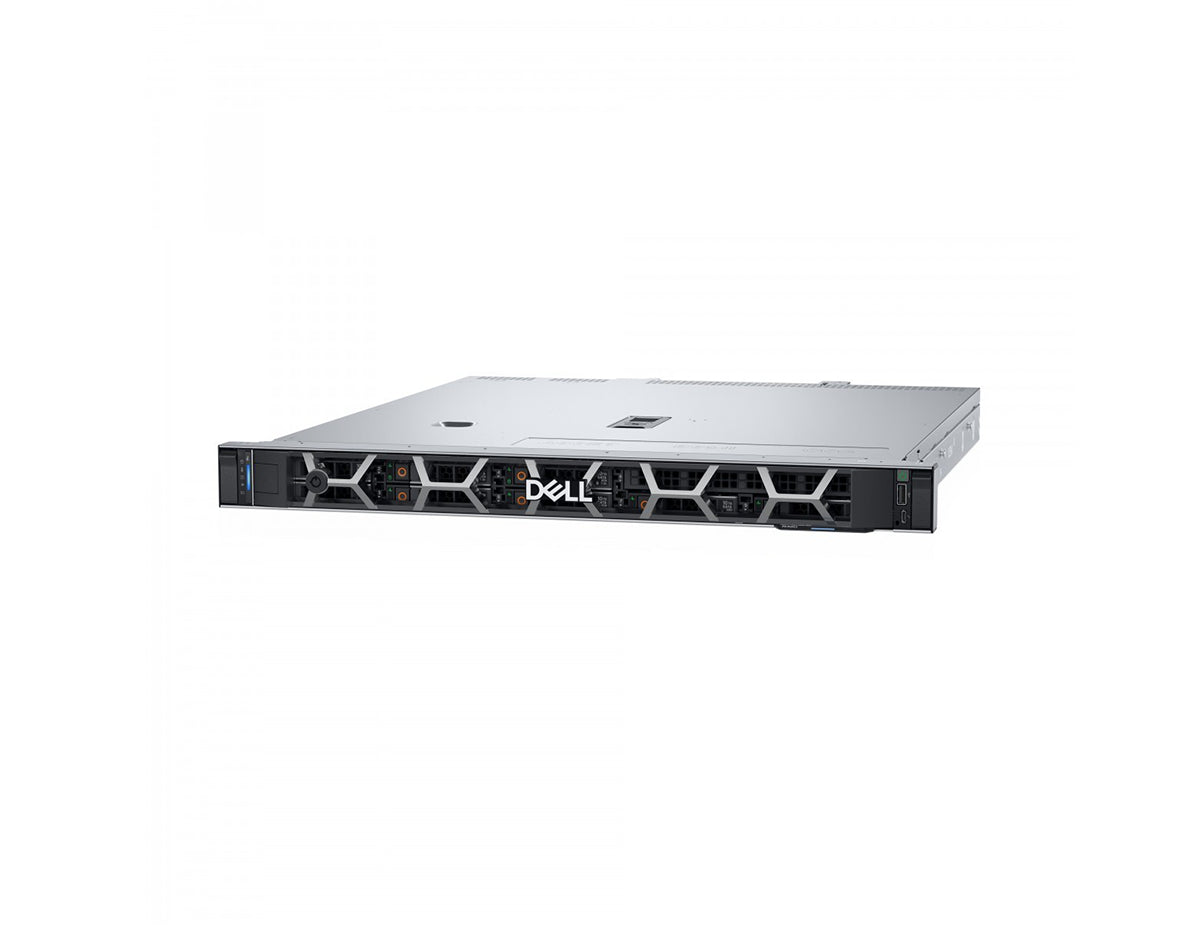

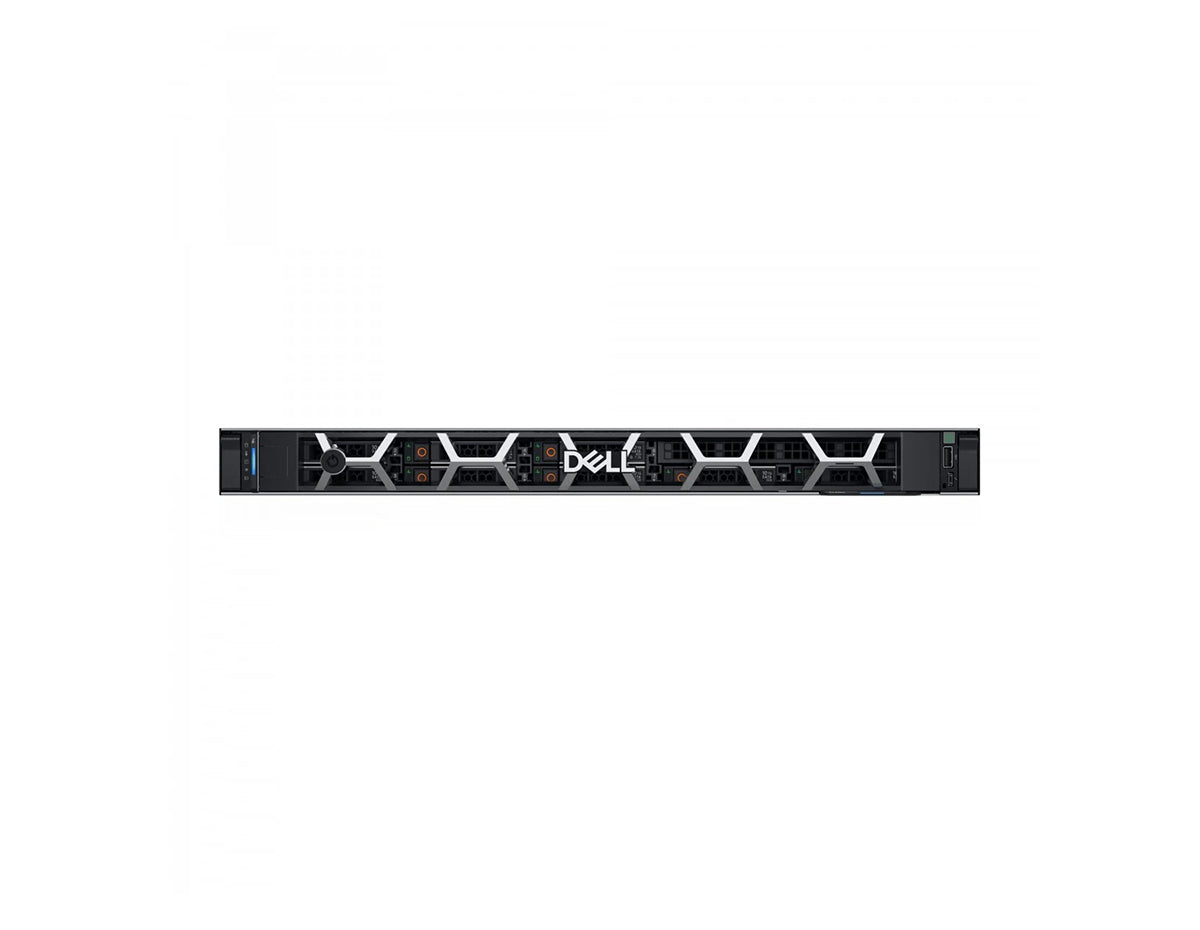

Dell PowerEdge R360 1U Rack Server

Powerful Single Processor Compute for Business Workloads

The Dell PowerEdge R360 is a 1U rack server designed for businesses that need streamlined compute, high speed memory, scalable storage options, and secure infrastructure management. Powered by Intel Xeon 6300 series or Intel Xeon E-2400 series processor options, the R360 supports productivity, data intensive applications, database support, virtualization, and collaboration workloads.

Key Benefits and Features

• Supports one Intel Xeon 6300 series or Intel Xeon E-2400 series processor with up to 8 cores.
• Offers 4 DDR5 DIMM slots with support for up to 128 GB UDIMM memory at speeds up to 4400 MT/s.
• Provides flexible front drive bay options for SAS and SATA HDD or SSD storage configurations.
• Includes iDRAC9, iDRAC Direct, and iDRAC RESTful API with Redfish for embedded management.
• Supports cyber resilient features such as Secure Boot, Silicon Root of Trust, Secure Erase, and TPM 2.0 options.

Ideal Use Cases

• Small to mid sized business server deployments.
• ROBO and near edge infrastructure environments.
• Collaboration, file sharing, and business productivity applications.
• Database support, management, and virtualization workloads.
• Point of sale and data analysis environments.

Technical Specifications

• Brand: Dell
• Model: PowerEdge R360
• Form Factor: 1U rack server
• Processor Support: One Intel Xeon 6300 series or one Intel Xeon E-2400 series processor with up to 8 cores
• Memory: 4 DDR5 DIMM slots, up to 128 GB UDIMM, speeds up to 4400 MT/s
• Memory Type: Supports unregistered ECC DDR5 DIMMs only
• Drive Bays: Up to 4 x 3.5 inch SAS/SATA HDD or SSD, or up to 8 x 2.5 inch SAS/SATA SSD
• Embedded NIC: 2 x 1 GbE LOM
• Power Supplies: 600 W Platinum or 700 W Titanium hot swap redundant options
• Management: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish

Build Reliable Rack Compute with Dell PowerEdge R360

Choose the Dell PowerEdge R360 for compact 1U server performance, efficient management, and flexible storage support for growing business infrastructure.

Brand	Dell
Model	PowerEdge R360
SKU	R360
Product Type	Rack Server
Form Factor	1U rack server
Processor Support	One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to 8 cores
Memory	4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s
Drive Bays	Up to 4 x 3.5-inch SAS/SATA or up to 8 x 2.5-inch SAS/SATA
Embedded NIC	2 x 1 GbE LOM
Power Supplies	600 W Platinum or 700 W Titanium hot swap redundant
Cooling	Air cooling
Dimensions	42.8 mm H x 482.0 mm W x 585.3 mm D without bezel
Bezel	Security bezel or Optional Filter bezel

Processor Options	One Intel® Xeon® 6300 series, one Intel® Xeon® E-2400 series, or one Intel® Pentium® G7400/G7400T processor
Memory Type	Supports unregistered ECC DDR5 DIMMs only
Maximum Memory	128 GB
Storage Controllers	HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt, HBA355i front, H355 front, H755 front, HBA355e Adpt, S160
Internal Boot	Internal USB 3.0 or Boot Optimized Storage Subsystem BOSS-N1
Storage Capacity	Up to 64 TB with 3.5-inch SAS/SATA HDD/SSD or up to 61.44 TB with 2.5-inch SAS/SATA SSD
Fans	Up to 4 fans
Embedded Management	iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Manual
OpenManage Software	OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage Service plugin, OpenManage Update Manager plugin, CloudIQ for PowerEdge plug in
Security Features	Cryptographically signed firmware, Secure Boot, Secure Erase, Secured-core server, Silicon Root of Trust, TPM 2.0 FIPS
GPU Options	1 x 60 W single-width GPU
Front Ports	1 x iDRAC Direct Micro-AB USB port, 1 x USB 2.0

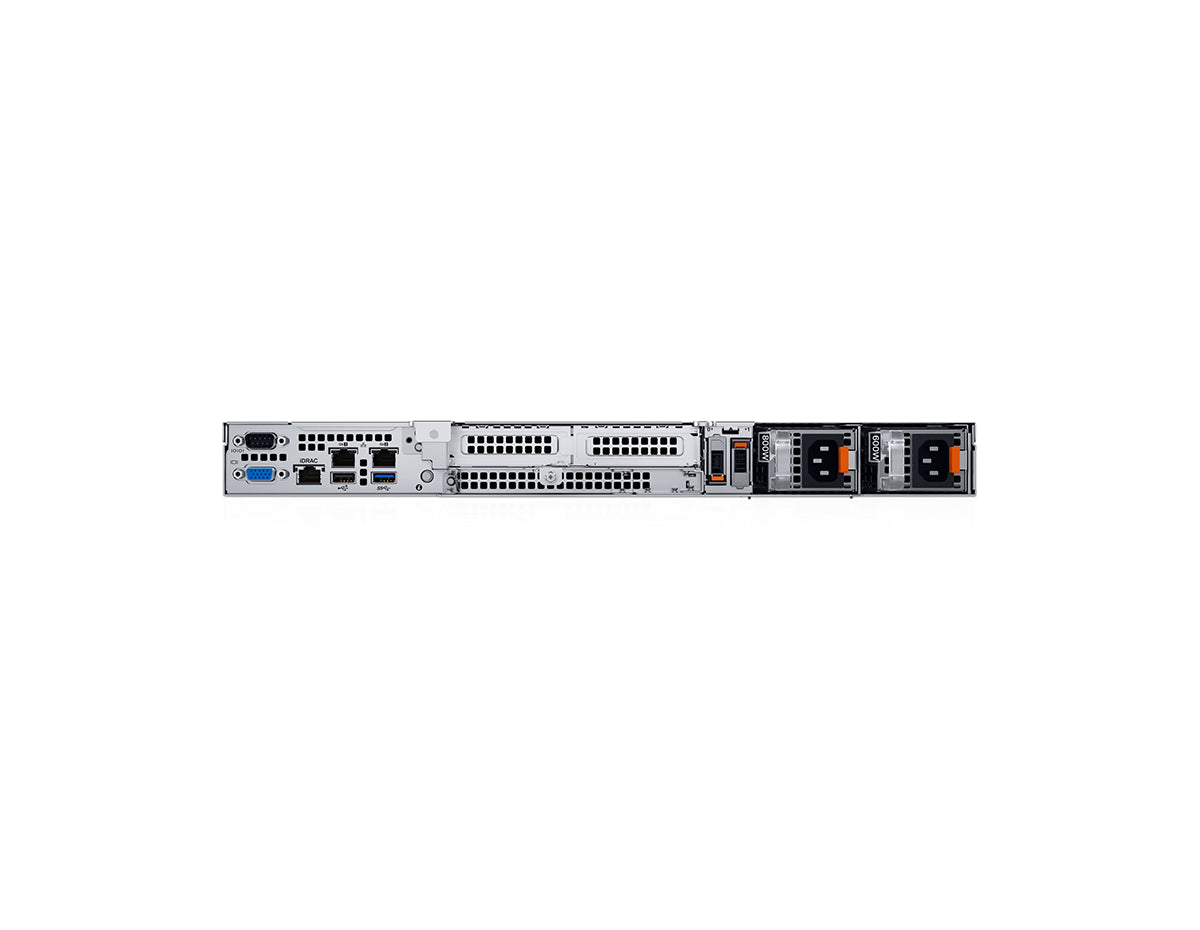

Rear Ports	1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.2 Gen1, 1 x VGA, 1 x Serial
Internal Ports	1 x USB 3.2 Gen1
PCIe	Up to two PCIe Gen4 slots on the Gen4 Riser and one dedicated PCIe x8 slot on the system board for internal PERC
Operating Systems	Canonical Ubuntu Server LTS, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
