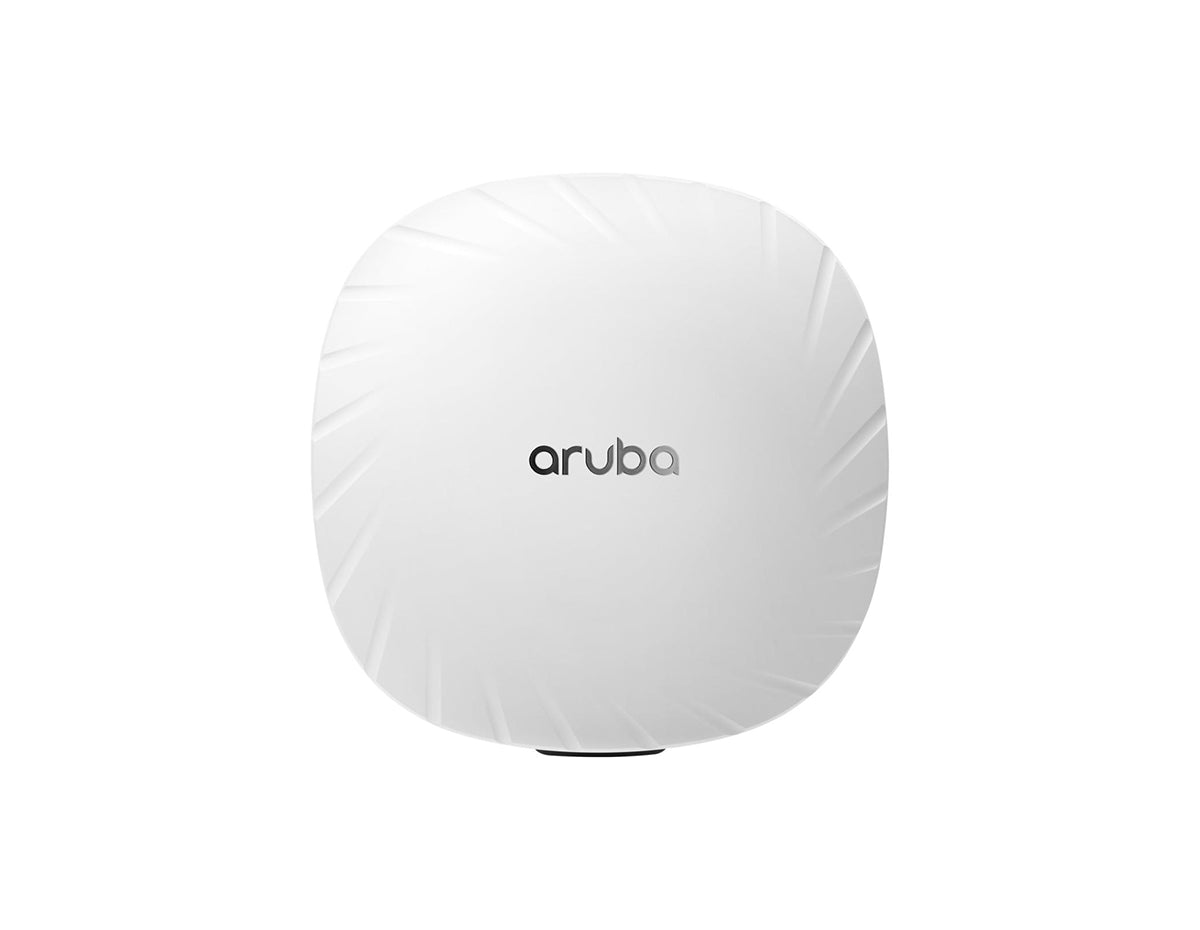

ARUBA AP-505 WIFI-6 WIRELESS ACCESS POINT (R2H29A)
| Model: | R2H29A | ||
| Detail: |
| ||
| Condition: | Brand New Sealed | ||
| Availability: | Out of Stock | ||
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. | ||
| Tax: | $0.00 Tax Outside NJ and TX | ||
| Quantity: |
Description
Aruba AP-505 WiFi-6 Wireless Access Point (R2H29A)
The Aruba AP-505 is a member of the Aruba 500 Access Point series. This product line is engineered to cater to diverse clients and traffic varieties within high-density settings, enhancing network performance by as much as 400% in contrast to 802.11ac access points. It incorporates MU-MIMO technology, enabling concurrent data transmission and reception across multiple users. Additionally, the product is equipped with sophisticated security functionalities to safeguard the network against unauthorized intrusions. Supported security protocols include WPA2-PSK, WPA2-Enterprise, MAC-based authentication, and encryption mechanisms like AES and TKIP.
Quick Specs:
- MIMO Technology: 2x2:2 MIMO for enhanced performance
- Wi-Fi 6
- Supports PoE
- Dual Band
Please see the related tabs for the R2H29A datasheet and compatible accessories.
Accessories
| HPE Aruba Networking 500 series Optional Kit and Accessories |
|
| Antenna Mount Kit | |
| JW020A | AP-ANT-MNT-3 AP-ANT-25A/35A/38 Azimuth and Elevation Adjustable Mount Kit |
| JW021A | AP-ANT-MNT-4 AP-ANT-28A Azimuth and Elevation Adjustable Mount Kit |
| S1J09A | HPE Aruba Networking AP-ANT-MNT-U Universal AZ/EL Adjustable Antenna Pole/Wall Mount Kit |
| Power accessories | |
| R6P68A | AP-POE-AFGE 1-Port GbE 802.3af 15.4W midspan injector |
| R6P67A | AP-POE-ATSR 1-Port Smart Rate 802.3at 30W midspan injector |
| R3K00A | AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector |
| AC power cord | |
| JW113A | PC-AC-ARG AC Power Cord (Argentina) 250V/10A 1.8m C13 to IRAM 2073 |
| JW114A | PC-AC-AUS AC Power Cord (Australia) 250V/10A 1.8m C13 to AS3112 |
| JW115A | PC-AC-BR AC Power Cord (Brazil) 250V/10A 1.8m C13 to NBR 14136 |
| JW116A | PC-AC-CHN AC Power Cord (China) 250V/10A 1.8m C13 to GB2099 |
| JW117A | PC-AC-DEN AC Power Cord (Denmark) 250V/10A 1.8m C13 to AFSNIT 107-2-D1 |
| JW118A | PC-AC-EC AC Power Cord (Europe) 250V/10A 1.8m C13 to CEE7/7 |
| JW120A | PC-AC-IL AC Power Cord (Israel) 250V/10A 1.8m C13 to SI32 |
| JW119A | PC-AC-IN AC Power Cord (India) 250V/6A 1.8m C13 to IS1293 |
| JW121A | PC-AC-IT AC Power Cord (Italy) 250V/10A 1.8m C13 to CEI 23-50 |
| JW122A | PC-AC-JPN AC Power Cord (Japan) 125V/12A 1.8m C13 to JISC 8303 |
| JW123A | PC-AC-KOR AC Power Cord (Korea) 250V/7A 1.8m C13 to KSC 8305 |
| JW124A | PC-AC-NA AC Power Cord (North America) 125V/10A 1.8m C13 to NEMA 5-15P |
| JW125A | PC-AC-SWI AC Power Cord (Switzerland) 220V/10A 1.8m C13 to SEV 1011 |
| S0P44A | PC-AC-TH AC Power Cord (Thailand) 250V/10A 1.8m C13 to TIS 166-2549 |
| JW126A | PC-AC-TW AC Power Cord (Taiwan) 125V/7A 1.8m C13 to CNS 10917 |
| JW127A | PC-AC-UK AC Power Cord (United Kingdom) 250V/10A 1.8m C13 to BS1363 |
| JW128A | PC-AC-ZA AC Power Cord (South Africa) 250V/10A 1.8m C13 to SANS 164-1 |
| Cosmetic covers | |
| R2H24A | AP-505-CVR-20 20-pack for AP-505 white non-glossy snap-on covers |
| Other Accessories | |
| JY728A | AP-CBL-SERU Micro-USB TTL3.3V to USB2.0 AP Console Adapter Cable |
| R6Q99A | AP-MOD-SERU Micro-USB TTL3.3V to RJ45 RS232 AP Console Adapter Module |
| R2X45A | HPE Aruba Networking AP-USB-ZB External USB based Dongle with Zigbee and BLE for AP |
| R2Y09A | HPE Aruba Networking AP-USB-ZB 10-pk External USB based Dongle with Zigbee and BLE for AP |
| R2Y10A | HPE Aruba Networking AP-USB-ZB 50-pk External USB based Dongle with Zigbee and BLE for AP |
| R8F34A | HPE Aruba Networking USB LTE Modem for use with Access Points and Gateways |
| R8G76A | HPE Aruba Networking USB Extender Cable Kit for use with HPE Aruba Networking USB LTE Modem |
Specifications
| Specifications | R2H29A |
| WI-FI RADIO SPECIFICATIONS | |
| AP type | Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO |
| 5GHz radio | Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously |
| 2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate with individual 2SS HE40 802.11ax client devices or with two 1SS HE40 802.11ax MU-MIMO capable client devices simultaneously |
| Maximum number of associated client devices | Up to 256 associated client devices per radio |
| Maximum number of BSSIDs | 16 BSSIDs per radio |
| Supported frequency bands (country-specific restrictions apply): | • 2.400 to 2.4835GHz • 5.150 to 5.250GHz • 5.250 to 5.350GHz • 5.470 to 5.725GHz • 5.725 to 5.850GHz |
| Available channels | Dependent on configured regulatory domain |
| Supported radio technologies | • 802.11b: Direct-sequence spread-spectrum (DSSS) • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) • 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units |
| Supported modulation types | • 802.11b: BPSK, QPSK, CCK • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension) • 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) • 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| 802.11n high-throughput (HT) support | HT20/40 |
| 802.11ac very high throughput (VHT) support | VHT20/40/80 |
| 802.11ax high efficiency (HE) support | HE20/40/80 |
| Supported data rates (Mbps) | • 802.11b: 1, 2, 5.5, 11 • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 • 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM • 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM • 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) • 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) |
| 802.11n/ac packet aggregation | A-MPDU, A-MSDU |
| Transmit power | Configurable in increments of 0.5 dBm |
| Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements) | 2.4 GHz band: +21 dBm (18dBm per chain) 5 GHz band: +21 dBm (18 dBm per chain) Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain. |
| WI-FI ANTENNAS | |
| AP-505 | Two integrated dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.9dBi in 2.4GHz and 5.7dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 4.3dBi in 2.4GHz and 5.6dBi in 5GHz. |
| OTHER INTERFACES | |
| E0: Ethernet wired network port (RJ-45) | • Auto-sensing link speed (10/100/1000BASE-T) and MDI/MDX • PoE-PD: 48Vdc (nominal) 802.3af/at PoE (class 3 or 4) • 802.3az Energy Efficient Ethernet (EEE) |
| DC power interface | 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length |
| USB 2.0 host interface (Type A connector) | Capable of sourcing up to 1A / 5W to an attached device |
| Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio | • BLE: up to 7dBm transmit power (class 1) and -93dBm receive sensitivity (1Mbps) • Zigbee: up to 6dBm transmit power and -96dBm receive sensitivity Integrated vertically polarized omnidirectional antenna with roughly 30 degrees down tilt and peak gain of 3.3dBi |
| Visual indicators (two multi-color LEDs) | For System and Radio status |
| Reset button | Factory reset, LED mode control (normal/off) |
| Serial console interface | Proprietary, micro-B USB physical jack |
| Security slot | Kensington security slot |
| POWER SOURCES AND POWER CONSUMPTION | |
| The AP supports direct DC power and Power over Ethernet | • The AP supports direct DC power and Power over Ethernet • When both DC and PoE power sources are available, DC power takes priority over PoE units • Power sources are sold separately; see the 500 Series Ordering Guide for details • When powered by DC or 802.3at (class 4) PoE, the AP will operate without restrictions units • When powered by 802.3af (class 3) PoE and with the IPM feature disabled, the AP will disable the USB port. In the same configuration but with IPM enabled, the AP will start up in unrestricted mode, but may dynamically apply restrictions depending on the PoE budget and actual power. The feature restrictions and order can be programmed. |
| Maximum (worst-case) power consumption (without / with a USB device attached) | • DC powered: 8.9W / 14.2W • PoE powered (802.3at): 11.0W / 16.5W • PoE powered (802.3af): 11.0W / 13.5W • This assumes that up to 5W is supplied to the attached USB device |
| Maximum (worst-case) power consumption in idle mode | 4.3W (DC) or 6.1W (PoE) |
| Maximum (worst-case) power consumption in deep-sleep mode | 1.7W (DC) or 3.3W (PoE) |
| MECHANICAL SPECIFICATIONS | |
| Dimensions/weight (AP-505; unit, excluding mount bracket) | 160mm (W) x 161mm (D) x 37mm (H) Weight: 500g |
| Dimensions/weight (AP-505; shipping) | 193mm (W) x 183mm (D) x 63mm (H) Weight: 645g |
| Mounting details (AP-505) | A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately); see the 500 Series Ordering Guide for details. |
| MOUNTING DETAILS | A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the Aruba mount kits (sold separately) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating conditions | • Temperature: 0°C to +50°C / +32°F to +122°F • Humidity: 5% to 93% non-condensing • AP is plenum-rated for use in air-handling spaces • ETS 300 019 class 3.2 environments |
| Storage and transportation conditions | • Temperature: -40°C to +70°C / -40°F to +158°F • Humidity: 5% to 93% non-condensing ETS 300 019 classes 1.2 and 2.3 environments |
| RELIABILITY | |
| Mean Time Between Failure (MTBF) | 1.3Mhrs (148yrs) at +25°C operating temperature |
| REGULATORY AND SAFETY COMPLIANCE | |
| Minimum ArubaOS Release | ArubaOS and Aruba InstantOS 8.6.0.0 |
| Regulatory compliance (for more country-specific regulatory information and approvals, please see your Aruba representative) | • FCC/ISED • CE Marked • RED Directive 2014/53/EU • EMC Directive 2014/30/EU • Low Voltage Directive 2014/35/EU • UL/IEC/EN 60950 • EN 60601-1-1, EN60601-1-2 |
| Certifications | • UL2043 plenum rating • Wi-Fi Alliance: o Wi-Fi CERTIFIED a, b, g, n, ac o Wi-Fi CERTIFIED 6 (ax) o WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) o WMM, WMM-PS, Wi-Fi Vantage, W-Fi Agile Multiband o Wi-Fi Location o Passpoint (release 2) • Bluetooth SIG • Ethernet Alliance (PoE, PD device, class 4) |
Properties
| Properties | R2H29A |
| Description | Aruba AP-505 (US) dual radio 2x2:2 802.11ax internal antennas unified campus AP |
| Product Family | HPE Aruba Networking 500 series wireless access points |
| Product Type | Access Points |
