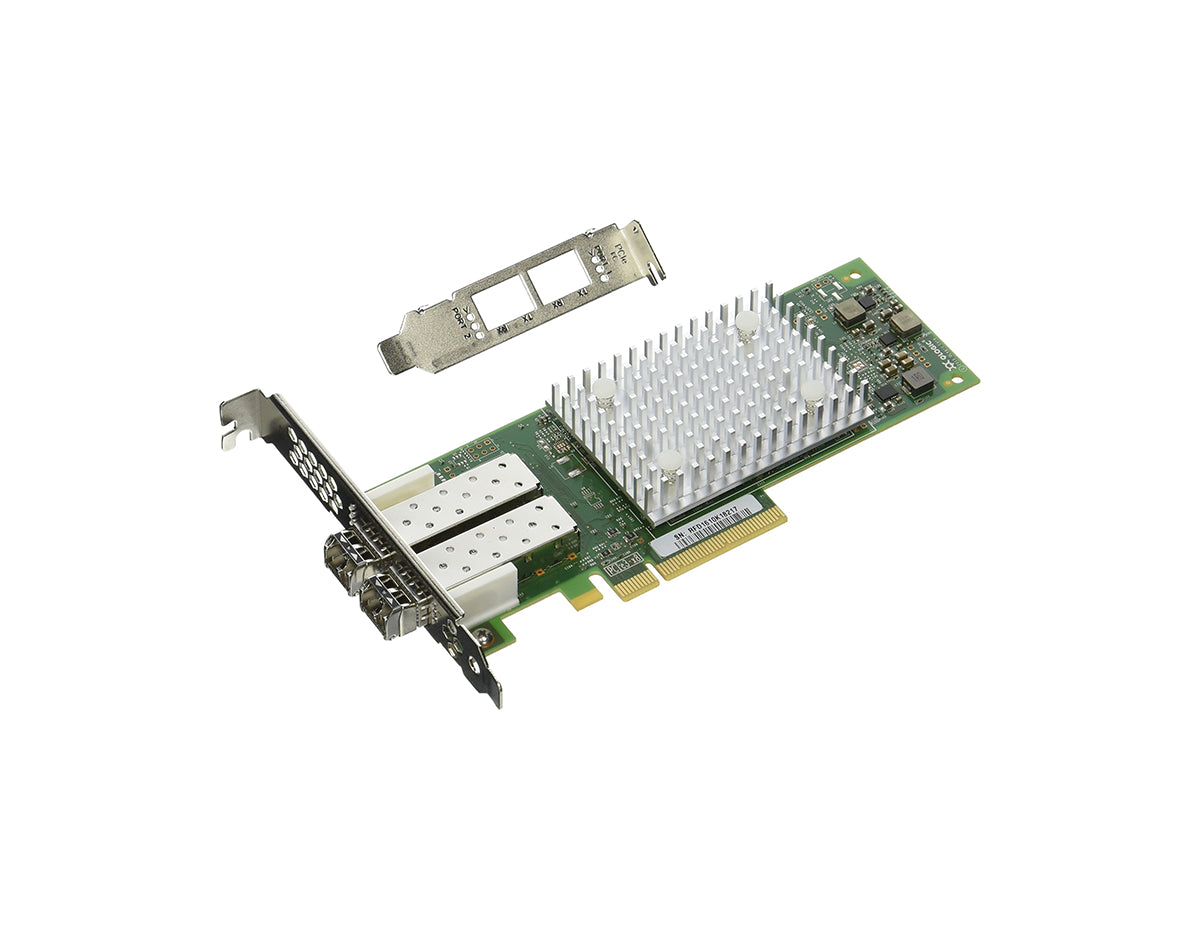

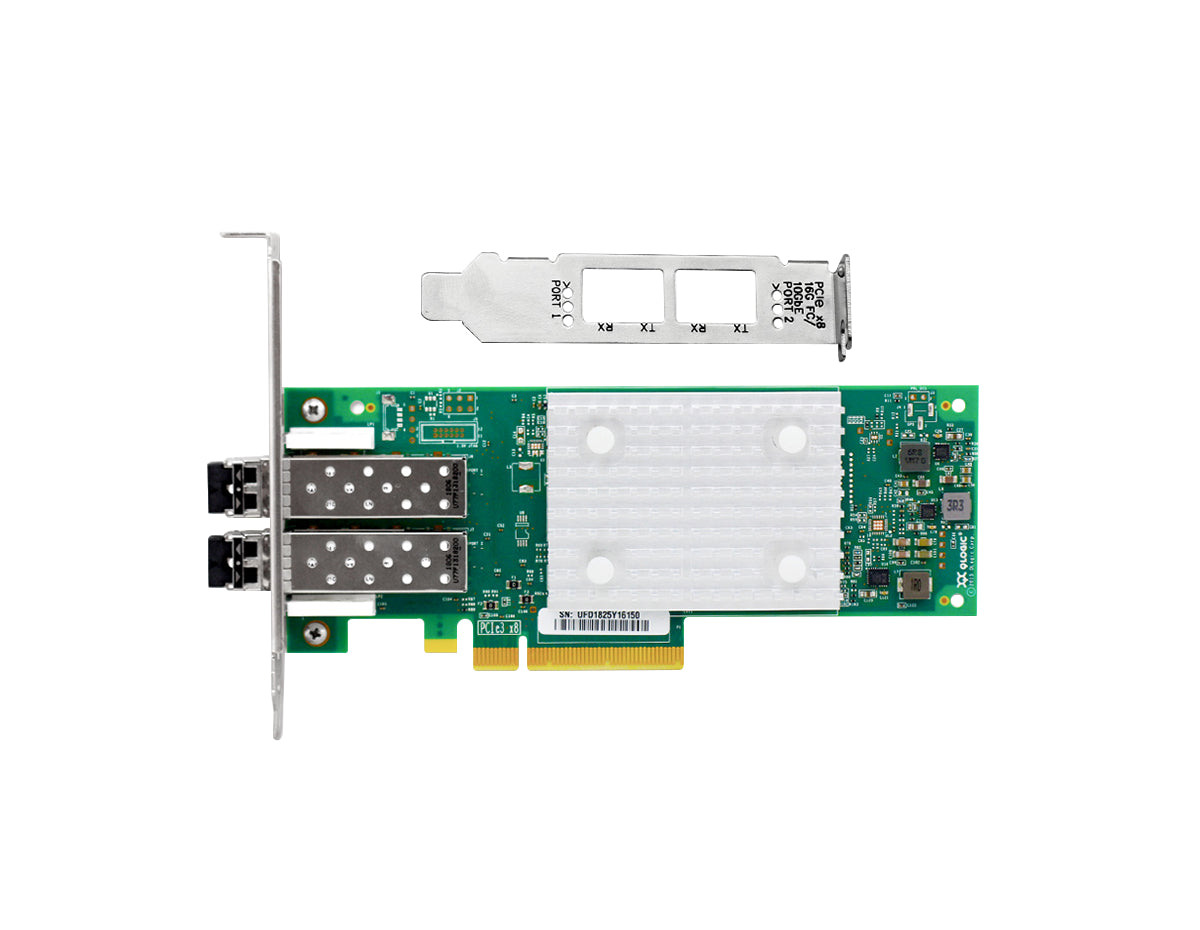

Qlogic QLE2692-SR Fibre Channel Host Bus Adapter



QLogic QLE2692-SR Fibre Channel Host Bus Adapter

The QLE2692-SR is packed with numerous features that are specifically designed to optimize data transfer and ensure a reliable connection. With a speed of 16 gigabits per second (Gbps), this device guarantees rapid data transfer, making it ideal for demanding scenarios where low latency is crucial. The QLE2692-SR also includes Qlogic technology, which means that it benefits from the expertise of a reputable technology provider. Qlogic is renowned for its innovative solutions in the networking and storage connectivity industry.

Quick Specs:

• 8x PCIe 3.0
• 2x 16GB Fibre Channel
• Data Transfer Rate: 16Gbps
• Remote Management Protocol: SMI-S, CLI

Please see the related tabs for the QLE2692-SR datasheet and compatible accessories.



Properties	QLE2692-SR
Description	The Qlogic QLE2692 is a high-performance 16GFC HBA by Marvell, delivering up to 1.3 million IOPS. It utilizes Marvell StorFusion™ technology for enhanced reliability and supports simultaneous access to NVMe and SCSI-based storage through NVMe over Fibre Channel.
Product Family	Qlogic Fibre Channel Host Bus Adapter
Product Type	Adapter
Ports	Dual-port, 16GFC
Form Factor	Low-profile PCIe card (6.6 inches × 2.731 inches) (Custom form factors are also available)
Maximum Cable Distances	OM2:35 OM3: 100 OM4:125

Specifications	QLE2692-SR
Bus Interface	QLE2690/2692 PCI Express® (PCIe®) 3.0 x8
Host Interrupts	INTx and MSI-X
Throughput	3,200MBps full duplex line rate per port
Logins	Support for 2,048 concurrent logins and 2,048 active exchanges per port
Port Virtualization	NPIV
Management Tools and Device Utilities	• QConvergeConsole CLI: a unified management tool that supports multiple generations of Marvell FC adapters • MCTP/PLDM • ESXCLI Plug-in for vSphere • MRVLFC PowerKit (cmdlets for Windows PowerShell) • QCC Plug-ins for vSphere • Marvell QLogic FC QCC Extension for Windows Admin Center
Boot Support	• BIOS • Unified Extensible Firmware Interface (UEFI) • Forth code (FCode)
APIs	• SNIA HBA API V2 • SMI-S
Operating Temperature	0°C to 55°C (32°F to 131°F)
Host Bus Compliances	•    PCI Express Base Specification, Rev. 3.1 •    PCI Express Card Electromechanical Specification, Rev. 3.0 •    PCI Bus Power Management Interface Specification, Rev. 1.2 •    PCI Hot Plug Specification, Rev 1.1
Fibre Channel Compliances	•    Fibre Channel Physical Interface 5 (FC-PI5) •    Fibre Channel Tape (FC-TAPE) Profile •    SCSI Fibre Channel Protocol-4 (FCP-4) •    SCSI-3 Fibre Channel Protocol (SCSI-FCP) •    Second Generation Fibre Channel Generic Services (FC-GS-2) •    Third Generation Fibre Channel Generic Services (FC-GS-3) •    Fibre Channel-NVMe-2 (FC-NVMe-2)
Safety Approvals	• UL 60950-1 • CSA C22.2
EMI and EMC (Class A) Approvals	• FCC Rules, CFR Title 47, Part 15, Subpart Class A • Industry Canada, ICES-003: Class A
