QLE2690-SR-CK QLOGIC HOST BUS ADAPTER
| Part No: | QLE2690-SR-CK |
| Detail: | Single-port 16Gb FC HBA, PCIe 3.0 x8, Supports up to 16Gb/s of throughput per port, FC-NVMe compliant, Supports Qlogic Storfusion suite of software tools, Wide operating temperature range (-40°C to 85°C), Low power consumption, |
| Price: | $469.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

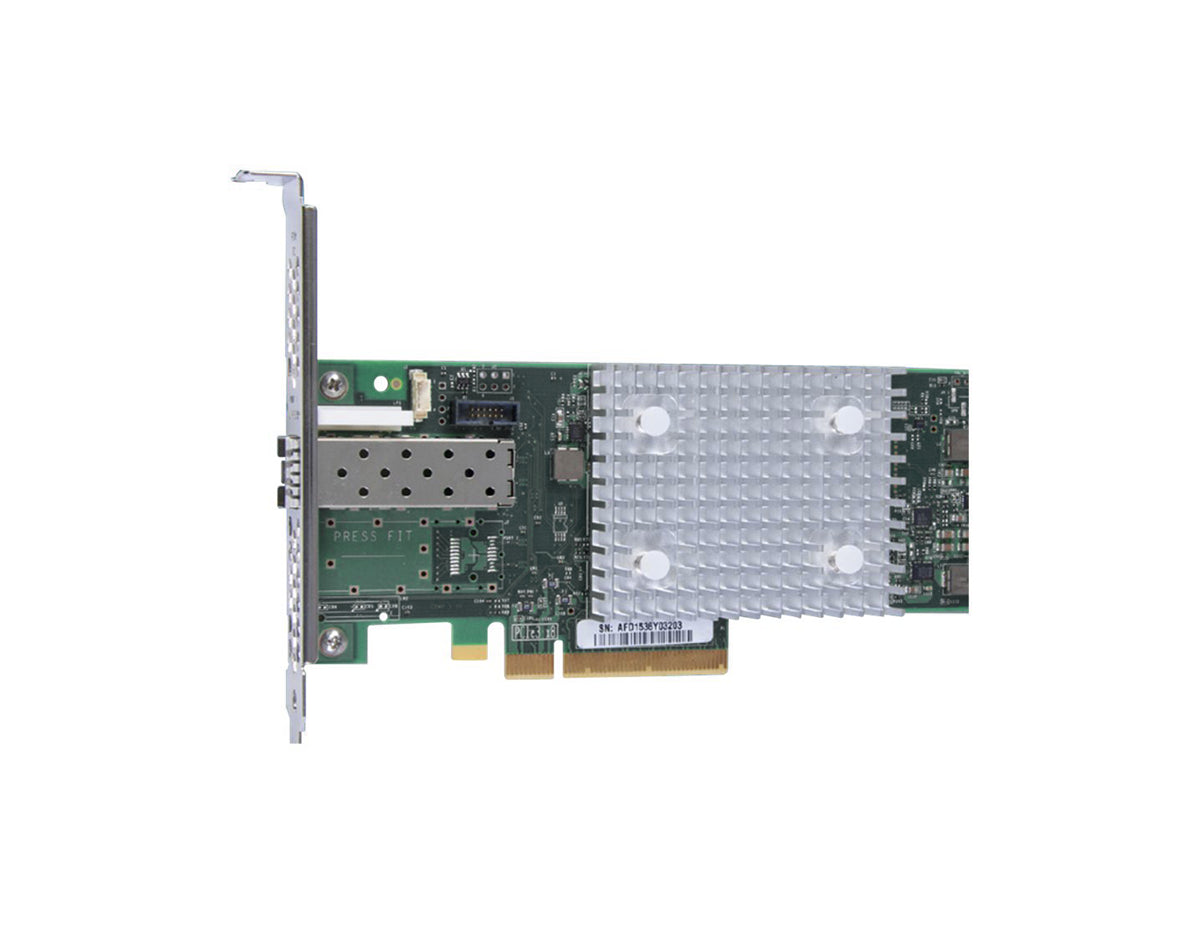

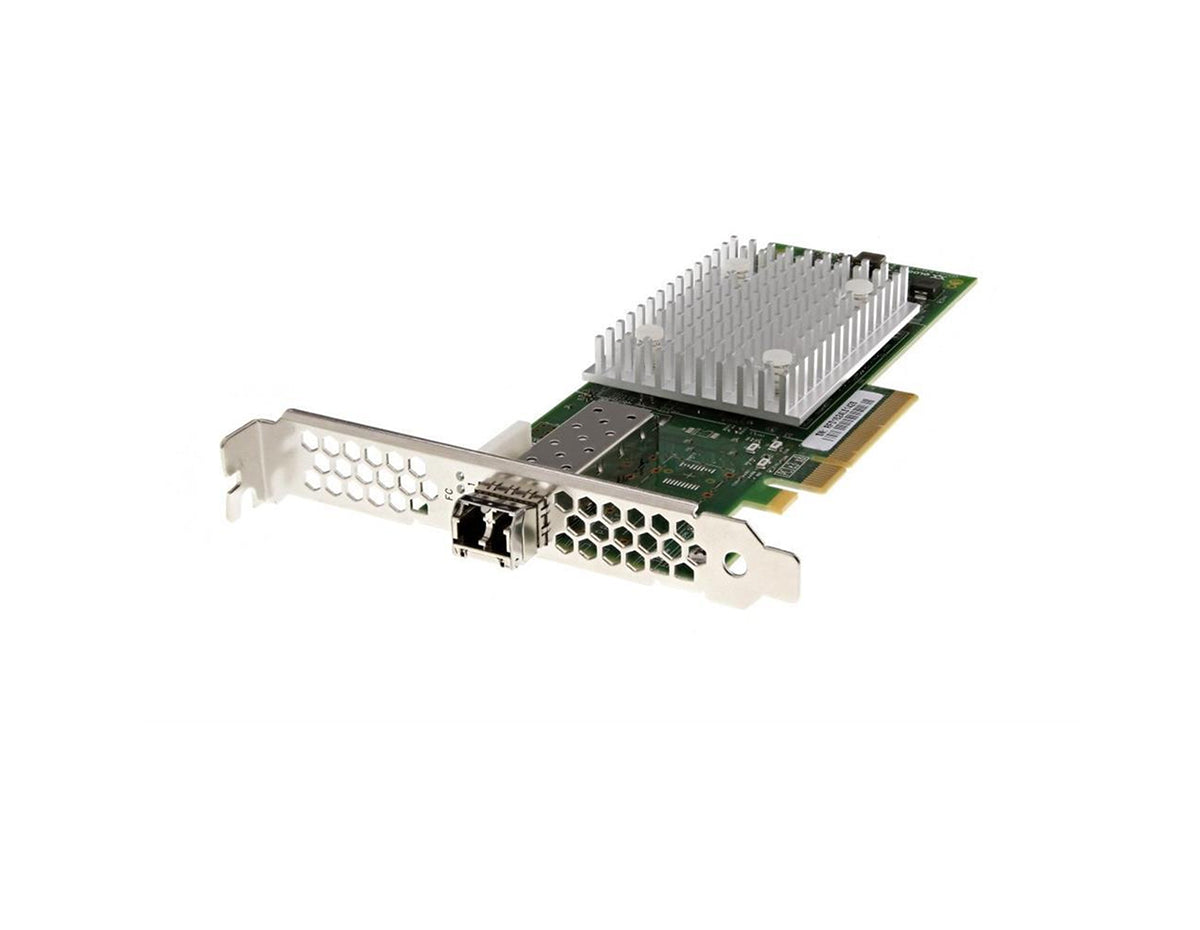

QLogic QLE2690-SR-CK Host Bus Adapter
The QLogic QLE2690-SR-CK is a member of the QLogic 2960 series. The QLogic 2690 family of Fiber Channel adapters support robust virtualization features, making them ideal for virtualized applications requiring high I/O performance to service virtual machines. This product offers 16 gigabits per second (Gb/s) Fibre Channel connectivity, facilitating rapid data transfer among servers, storage devices, and networks. The adapter utilizes the PCIe 3.0 x8 interface, delivering substantial bandwidth and minimal latency to optimize optical performance. It is easy to deploy and manage.
Quick Specs:
- 8x PCIe 3.0
- 1x 16GB Fibre Channel
- Data Transfer Rate: 16Gbps
- Max Transfer Distance: 1312ft
Please see the related tabs for the QLE2690-SR-CK datasheet and compatible accessories.
Specifications
| Key Features | Enhanced 16Gb FC performance, QLogic StorFusion™ technology for streamlined provisioning and improved resiliency, support for over 1.3 million IOPS |
| Compliance Standards | PCI Express Base Specification 3.1, SCSI-3 Fibre Channel Protocol, Fibre Channel Tape Profile |
| Management Tools | QLogic QConvergeConsole® (QCC) for unified management |
| Supported Operating Systems | Windows Server, Linux, VMware ESXi |
| Advanced Diagnostics | Support for ClearLink® diagnostic port (D_Port), Link Cable Beacon (LCB), and Read Diagnostic Parameters (RDP) |
| Security Features | Support for T10 Protection Information (T10 PI) for end-to-end data integrity |
| MTBF | 2 million hours |
| RoHS Compliance | Yes |
| Additional Information | Backward compatible with 4Gb and 8Gb FC infrastructure, optimized for all-flash arrays (AFAs) and high-density virtualized environments |
Properties
| Product Name | QLogic QLE2690-SR-CK Host Bus Adapter | |
| Product Description | Single-port Enhanced 16Gb Fibre Channel (FC) Host Bus Adapter (HBA) with PCIe 3.0 x8 interface, designed for high-performance virtualized environments | |
| Product Family | QLogic 2690 Series | |
| Product Type | Fibre Channel Host Bus Adapter | SATA 6 Gbps |
| Port Configuration | Single 16Gb FC port | |
| Interface | PCIe 3.0 x8 | |
| Data Transfer Rate | 16 Gbps per port | |
| Maximum Transfer Distance | Up to 1312 feet (400 meters) over OM4 multimode fiber | |
| Form Factor | Low-profile PCIe card | |
| Connector Type | LC-style | |
| Supported Fibre Channel Protocols | SCSI-FCP, FC-TAPE, FCP-2 | |
| Virtualization Support | NPIV (N_Port ID Virtualization) | |
| Power Consumption | Typical: 8.6W; Maximum: 10.7W | |
| Operating Temperature | 0°C to 55°C | |
| Dimensions | Full-height: 6.6 x 2.7 inches; Low-profile: 6.6 x 2.2 inches | |
| Weight | 0.3 lbs (136 g) | |
