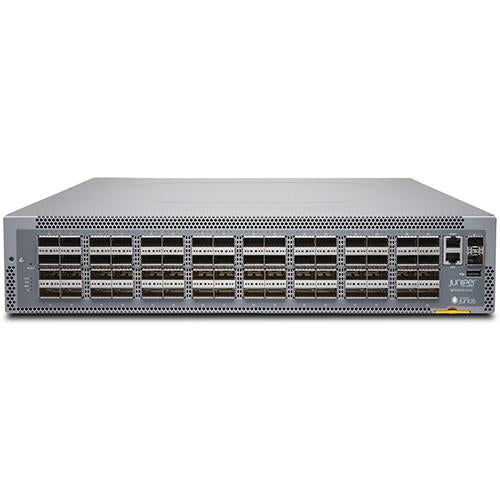

JUNIPER QFX5210-64C-SAFO SWITCH

Accessories

Accessories
JPSU-1100W-AC-AFO	PSU,1100 W AC,12 V output, FRU, front-to-back airflow
QFX5210-FANAFO	QFX5210-FANAFO FAN model, front-to-back airflow
EX4500-4PST-RMK	4-post rack mount kit
Software Licenses (non-SONiC versions only)
QFX5K-C2-PFL	QFX5K Class 2 Premium Feature License
QFX5K-C2-AFL	QFX5K Class 2 Advanced Feature License
S-QFX5K-C3-A1-3/5 (Flex licensing)	3/5 Year Advanced 1 License for QFX5100 and QFX5200 Class 3 Products
S-QFX5K-C3-A1-P (Flex licensing)	Perpetual Advanced 1 License for QFX5100 and QFX5200 Class 3 products
S-QFX5K-C3-A2-3/5 (Flex licensing)	3/5 Year Advanced 2 License for QFX5100 and QFX5200 Class 3 Products
S-QFX5K-C3-A2-P (Flex licensing)	Perpetual Advanced 2 License for QFX5100 and QFX5200 Class 3 products
S-QFX5K-C3-P1-3/5 (Flex licensing)	3/5 Year Premium 1 License for QFX5100 and QFX5200 Class 3 Products
S-QFX5K-C3-P1-P (Flex licensing)	Perpetual Premium 1 License for QFX5100 and QFX5200 Class 3 products
Optics and Transceivers (non-SONiC versions only)
QFX-SFP-10GE-LR	SFP+ 10GBASE-LR 10GbE optics, 1310 nm for 10 km transmission on single-mode fiber-optic (SMF) (for management port)
JNP-QSFP-4X10GE-IR	QSFP+ 40GBASE optics, up to 1.4 km transmission on parallel single mode (4x10GbE long reach up to 1.4 km)
JNP-QSFP-4X10GE-LR	QSFP+ 40GBASE optics, up to 10 km transmission on parallel single mode (4x10GbE long reach up to 10 km)
QFX-QSFP-DACBO-3M	QSFP+-to-SFP+ 10GbE DAC breakout copper (twinax copper cable), 3 m
QFX-QSFP-DACBO-1M	QSFP+-to-SFP+ 10GbE DAC breakout copper (twinax copper cable), 1 m
JNP-QSFP-100G-CWDM	QSFP28 100GBASE-CWDM4 optics for up to 2 km transmission over serial SMF
JNP-QSFP-100G-PSM4	QSFP28 100GBASE-PSM4 optics for up to 500 transmission over serial SMF
JNP-100G-4X25G-1M	QSFP28-to-SFP+ 25 Gigabit Ethernet DAC breakout copper (twinax copper cable), 1 m
JNP-100G-4X25G-3M	QSFP28-to-SFP+ 25 Gigabit Ethernet DAC breakout copper (twinax copper cable), 3 m
JNP-100G-AOC-1M	100GbE QSFP-to-QSFP active optical cables, 1 m
JNP-100G-AOC-3M	100GbE QSFP-to-QSFP active optical cables, 3 m
JNP-100G-AOC-5M	100GbE QSFP-to-QSFP active optical cables, 5 m
JNP-100G-AOC-10M	100GbE QSFP-to-QSFP active optical cables, 10 m
JNP-100G-AOC-20M	100GbE QSFP-to-QSFP active optical cables, 20 m
JNP-100G-AOC-30M	100GbE QSFP-to-QSFP active optical cables, 30 m

Specifications

Specifications	QFX5210-64C-SAFO
CPU	Intel Broadwell-DE, 4 Core, 2.2 GHz
Memory	16 GB DDR4
Storage	100 GB SSD
System throughput	Up to 12.8 Tbps (bidirectional)
Forwarding capacity	Up to 4.2 Bpps
Total packet buffer	42 MB
MAC addresses per system	264,000
VLAN Ids	4096 (3 VLANs reserved for internal use)
Number of link aggregation groups (LAGs)	64
Number of ports per LAG	64
Firewall filters	Ingress: 768 routed ACL (RACL) rules, 768 VLAN ACL (VACL) rules, 768 port ACL (PACL) rules Egress: 1024 RACL, VACL, and PACL rules
IPv4 route capacity	262,140
IPv4 host table capacity	204,750
IPv6 route capacity	172,016
IPv6 host table capacity	102,339
Address Resolution Protocol (ARP) entries	49,000
Generic routing encapsulation (GRE) tunnels	2040
MPLS labels	32,000
MPLS IPv4 L3 VPNs (Premium Services License)	2048
Jumbo frame	9,216 bytes
Spanning Tree Protocol (STP)	- Multiple Spanning Tree Protocol (MSTP) instances: 64 - VLAN Spanning Tree Protocol (VSTP) instances: 509
Traffic mirroring	- Mirroring destination ports per switch: 4 - Maximum number of mirroring sessions: 4 - Mirroring destination VLANs per switch: 4
Software Specifications
Layer 2 Features	EVPN-VXLAN STPIEEE 802.1D (802.1D-2004) Rapid Spanning Tree Protocol (RSTP) (IEEE 802.1w); MSTP (IEEE 802.1s) Bridge protocol data unit (BPDU) protect Loop protect Root protect RSTP and VSTP running concurrently VLANIEEE 802.1Q VLAN trunking Routed VLAN Interface (RVI) Port-based VLAN MAC address filtering Q-in-Q VLAN translation Static MAC address assignment for interface Per VLAN MAC learning (limit): -MAC learning disable -Link Aggregation and Link Aggregation Control Protocol (LACP) (IEEE 802.3ad) -IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Layer 3 Features	Static routing RIP v1/v2 OSPF v1/v2 OSPF v3 Filter-based forwarding Virtual Router Redundancy Protocol (VRRP) IPv6 Virtual routers Unicast RPF (uRPF) Loop-free alternate (LFA) BGP (Advanced Services or Premium Services license) IS-IS (Advanced Services or Premium Services license) Dynamic Host Configuration Protocol (DHCP) v4/v6 relay VR-aware DHCP IPv4/IPv6 over GRE tunnels (interface-based with decap/encap and firewall-based with decap only) DSCP-based PFC
Multicast Features	Internet Group Management Protocol (IGMP) v1/v2 Multicast Listener Discovery (MLD) v1/v2 IGMP proxy, querier IGMP snooping MLD snooping Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-Bidir Multicast Source Discovery Protocol (MSDP) Selective Multicast Ethernet Tag (SMET)EVPN Type-6 EVPNType-7/8
Link Aggregation	Multichassis link aggregation (MC-LAG) Redundant trunk group (RTG) LAG load sharing algorithmbridged or routed (unicast or multicast) traffic -IP: Session Initiation Protocol (SIP), Dynamic Internet Protocol (DIP), TCP/UDP source port, TCP/UDP destination port -Layer 2 and non-IP: MAC SA, MAC DA, Ethertype, VLAN ID, source port
Quality of Service (QoS)	L2 and L3 QoS: Classification, rewrite, queuing Rate limiting -Ingress policing: 1 rate 2 color, 2 rate 3 color -Egress policing: Policer, policer mark down action -Egress shaping: Per queue, per port 10 hardware queues per port (8 unicast and 2 multicast) Strict priority queuing (LLQ), shaped-deficit weighted round- robin (SDWRR), weighted random early detection (WRED) 802.1p remarking Layer 2 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN Congestion avoidance capabilities: WRED Trust IEEE 802.1p (ingress) Remarking of bridged packets
Security and Filters	Secure interface login and password RADIUS TACACS+ Ingress and egress filters: Allow and deny, port filters, VLAN filters, and routed filters, including management port filters Filter actions: Logging, system logging, reject, mirror to an interface, counters, assign forwarding class, permit, drop, police, mark SSH v1, v2 Static ARP support Storm control, port error disable, and autorecovery Control plane denial-of-service (DoS) protection DHCP snooping
Data Center Bridging (DCB)	Priority-based flow control (PFC)IEEE 802.1Qbb
High Availability	Sub-second Bidirectional Forwarding Detection (BFD) Uplink failure detection (UFD)
MPLS (Advanced Services License)	Static label-switched paths (LSPs) RSVP-based signaling of LSPs LDP-based signaling of LSPs LDP tunneling (LDP over RSVP) MPLS class of service (CoS) MPLS access control list (ACL)/policers MPLS LSR support IPv4 L3 VPN (RFC 2547, 4364) MPLS fast reroute (FRR)
Visibility and Analytics	Local port mirroring (comparable to SPAN) Remote port mirroring (comparable to RSPAN) Remote port mirroring with a GRE tunnel (comparable to ERSPAN) Cloud Analytics Engine flow path analysis sFlow v5
Device Management and Operations	Role-based CLI management and access CLI via console, telnet, or SSH Extended ping and traceroute Junos OS configuration rescue and rollback Image rollback SNMP v1/v2/v3 Junos XML management protocol High frequency statistics collection Beacon LED for port and system Automation and orchestration Zero touch provisioning (ZTP) OpenStack Neutron Plug-in Puppet Chef Python Junos OS event, commit, and OP scripts
Operating temperature	32° to 104° F (0° to 40° C)
Storage temperature	-40° to 158° F (-40° to 70° C)
Operating altitude	Up to 6000 ft. (1828 m)
Relative humidity operating	5% to 90% (noncondensing)
Relative humidity non-operating	0% to 95% (noncondensing)
Seismic	Designed to meet GR-63, Zone 4 earthquake requirements
IEEE Standards	IEEE 802.1D IEEE 802.1w IEEE 802.1 IEEE 802.1Q IEEE 802.1p IEEE 802.1ad IEEE 802.3ad IEEE 802.1AB IEEE 802.3x IEEE 802.1Qbb
T11 Standards	INCITS T11 FC-BB-5
Supported RFCs	RFC 768 UDP RFC 783 Trivial File Transfer Protocol (TFTP) RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 Telnet client and server RFC 894 IP over Ethernet RFC 903 RARP RFC 906 TFTP Bootstrap RFC 951 1542 BootP RFC 1058 Routing Information Protocol RFC 1112 IGMP v1 RFC 1122 Host requirements RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 1256 IPv4 ICMP Router Discovery (IRDP) RFC 1492 TACACS+ RFC 1519 Classless Interdomain Routing (CIDR) RFC 1587 OSPF not-so-stubby area (NSSA) Option RFC 1591 Domain Name System (DNS) RFC 1745 BGP4/IDRP for IPOSPF Interaction RFC 1772 Application of the Border Gateway Protocol in the Internet RFC 1812 Requirements for IP Version 4 routers RFC 1997 BGP Communities Attribute RFC 2030 SNTP, Simple Network Time Protocol RFC 2068 HTTP server RFC 2131 BOOTP/DHCP relay agent and Dynamic Host RFC 2138 RADIUS Authentication RFC 2139 RADIUS Accounting RFC 2154 OSPF w/Digital Signatures (Password, MD-5) RFC 2236 IGMP v2 RFC 2267 Network ingress filtering RFC 2328 OSPF v2 (edge mode) RFC 2338 VRRP RFC 2362 PIM-SM (edge mode) RFC 2370 OSPF Opaque link-state advertisement (LSA) Option RFC 2385 Protection of BGP Sessions via the TCP Message Digest 5 (MD5) Signature Option RFC 2439 BGP Route Flap Damping RFC 2453 RIP v2 RFC 2474 Definition of the Differentiated Services Field in the IPv4 and IPv6 Headers RFC 2597 Assured Forwarding PHB (per-hop behavior) Group RFC 2598 An Expedited Forwarding PHB RFC 2697 A Single Rate Three Color Marker RFC 2698 A Two Rate Three Color Marker RFC 2796 BGP Route ReflectionAn Alternative to Full Mesh IBGP RFC 2918 Route Refresh Capability for BGP-4 RFC 3065 Autonomous System Confederations for BGP RFC 3376 IGMP v3 (source-specific multicast include mode only) RFC 3392 Capabilities Advertisement with BGP-4 RFC 3446, Anycast RP RFC 3569 SSM RFC 3618 MSDP RFC 3623 Graceful OSPF Restart RFC 4271 Border Gateway Protocol 4 (BGP-4) RFC 4360 BGP Extended Communities Attribute RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP) RFC 4486 Subcodes for BGP Cease Notification Message RFC 4724 Graceful Restart Mechanism for BGP RFC 4812 OSPF Restart Signaling RFC 4893 BGP Support for Four-octet AS Number Space RFC 5176 Dynamic Authorization Extensions to RADIUS RFC 5396 Textual Representation of Autonomous System (AS) Numbers RFC 5668 4-Octet AS Specific BGP Extended Community RFC 5880 Bidirectional Forwarding Detection (BFD) Configuration Protocol (DHCP) server
Supported MIBs	RFC 155 SMI RFC 1157 SNMPv1 RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB and TRAPs RFC 1850 OSPFv2 MIB RFC 1901 Introduction to Community-based SNMPv2 RFC 2011 SNMPv2 for Internet protocol using SMIv2 RFC 2012 SNMPv2 for transmission control protocol using SMIv2 RFC 2013 SNMPv2 for user datagram protocol using SMIv2 RFC 2233, The Interfaces Group MIB using SMIv2 FC 2287 System Application Packages MIB RFC 2570 Introduction to Version 3 of the Internet-standard Network Management Framework RFC 2571 An Architecture for describing SNMP Management Frameworks (read-only access) RFC 2572 Message Processing and Dispatching for the SNMP (read-only access) RFC 2576 Coexistence between SNMP Version 1, Version 2, and Version 3 RFC 2578 SNMP Structure of Management Information MIB RFC 2579 SNMP Textual Conventions for SMIv2 RFC 2580 Conformance Statements for SMIv2 RFC 2665 Ethernet-like interface MIB RFC 2787 VRRP MIB RFC 2790 Host Resources MIB RFC 2819 RMON MIB RFC 2863 Interface Group MIB RFC 2932 IPv4 Multicast MIB RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework RFC 3411 An architecture for describing SNMP Management Frameworks RFC 3412 Message Processing and Dispatching for the SNMP RFC 3413 Simple Network Management Protocol (SNMP)all MIBs are supported except the Proxy MIB RFC 3414 User-based Security Model (USM) for SNMPv3 RFC 3415 View-based Access Control Model (VACM) for the SNMP RFC 3416 Version 2 of the Protocol Operations for the SNMP RFC 3417 Transport Mappings for the SNMP RFC 3418 Management Information Base (MIB) for the SNMP RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet Standard Network Management Framework RFC 3826 The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model RFC 4188 Definitions of Managed Objects for Bridges RFC 4318 Definitions of Managed Objects for Bridges with Rapid Spanning Tree Protocol RFC 4363b Q-Bridge VLAN MIB
Safety	CAN/CSA-C22.2 No. 60950-1 UL 60950-1 (2nd Edition) IEC 60950-1: 2005/A2:2013
EMC	EN 300 386 EN 55032/CISPR 32, Class A EN 55022/CISPR 22, Class A EN 55024/CISPR 24, Class A FCC 47 CFR Part 15, Class A ICES-003, Class A AS/NZS CISPR 32 VCCI-CISPR 32, Class A BSMI CNS 13438 KN32/KN35 EN 61000-3-2 EN 61000-3-3 ETSI ETSI EN 300 019: Environmental Conditions & Environmental Tests for Telecommunications Equipment ETSI EN 300 019-2-1 (2000)Storage ETSI EN 300 019-2-2 (1999)Transportation

Properties

Properties	Juniper QFX5210-64C-SAFO
Description	QFX5210, 64 QSFP+/QSFP28 ports, reduced latency, redundant fans, 2 AC power supplies, front-to-back airflow, with SONiC
Product Family	QFX5210 Series
Product Type	Ethernet Switch
Included	SONiC
Dimensions (HxWxD) Inches	17.26 x 3.45 x 24.1 in. (43.84 x 8.77 x 61.2 cm) (depth including fan handle; otherwise 22.83 in. (58 cm)
Rack units	2 U
Weight	14.1 kg
Deployment Options for QFX5210-64C
Port Combinations	Deployment
64x100GbE	Spine/leaf
96x25GbE + 8x100GbE	25GbE access
Interface Options
QSFP+/QSFP28 ports	64 QSFP+ or QSFP28
25GbE (breakout cable, QSFP28)	128
10GbE (breakout cable, QSFP+)	128+2
Management interfaces	1 RJ-45 management port provided
Cooling	Front-to-back cooling Redundant (N+1) hot-pluggable fan modules with variable speed to minimize power draw
Power	Redundant (1+1) hot-pluggable 1100 W AC power supplies 110-240 V single phase AC power
Maximum Thermal Output
Maximum power draw	960 W (AC), 980 W (DC)
Typical power draw	680 W (AC), 680 W (DC)
