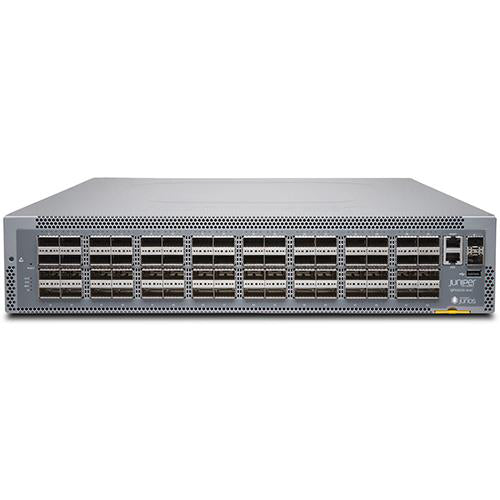

JUNIPER QFX5210-64C-DCSAFI SWITCH

Model: QFX5210-64C-DCSAFI
Detail: QFX5210
, 64 x QSFP+/QSFP28 ports
, Reduced latency, Redundant fans, 2 x DC power supplies, Back-to-front airflow, with SONiC
List Price: US$53,706.00
Price:
$37,594.00
You Save: $16,112.00 (30% OFF)
Condition: Brand New Sealed
Availability: SPECIAL ORDER
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

Description

The QFX5200 line of access switches is ideally suited for leaf deployments in next-generation IP fabrics. It features line-rate, high-density SFP28/QSFP+/QSFP28 ports that support 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE connections. Offering an advanced L2, L3, and MPLS feature set, network operators can use the QFX5200 to build large, high-density IP fabrics that support upgrades to 25GbE servers, network virtualization, and intelligent traffic forwarding based on proven, Internet-scale technology. The QFX5200 also supports a version of Junos OS software in which control plane and data plane processes and functions run in parallel, maximizing utilization of the high-performance quad-core CPU.

Accessories

Accessories
JPSU-1100W-DC-AFI PSU,1100 W DC,12 V output, FRU, back-to-front airflow
QFX5210-FANAFI QFX5210-FANAFI FAN model, back-to-front airflow
EX4500-4PST-RMK 4-post rack mount kit
Software Licenses (non-SONiC versions only)
QFX5K-C2-PFL QFX5K Class 2 Premium Feature License
QFX5K-C2-AFL QFX5K Class 2 Advanced Feature License
S-QFX5K-C3-A1-3/5 (Flex licensing) 3/5 Year Advanced 1 License for QFX5100 and QFX5200 Class 3 Products
S-QFX5K-C3-A1-P (Flex licensing) Perpetual Advanced 1 License for QFX5100 and QFX5200 Class 3 products
S-QFX5K-C3-A2-3/5 (Flex licensing) 3/5 Year Advanced 2 License for QFX5100 and QFX5200 Class 3 Products
S-QFX5K-C3-A2-P (Flex licensing) Perpetual Advanced 2 License for QFX5100 and QFX5200 Class 3 products
S-QFX5K-C3-P1-3/5 (Flex licensing) 3/5 Year Premium 1 License for QFX5100 and QFX5200 Class 3 Products
S-QFX5K-C3-P1-P (Flex licensing) Perpetual Premium 1 License for QFX5100 and QFX5200 Class 3 products
Optics and Transceivers (non-SONiC versions only)
QFX-SFP-10GE-LR SFP+ 10GBASE-LR 10GbE optics, 1310 nm for 10 km transmission on single-mode fiber-optic (SMF) (for management port)
JNP-QSFP-4X10GE-IR QSFP+ 40GBASE optics, up to 1.4 km transmission on parallel single mode (4x10GbE long reach up to 1.4 km)
JNP-QSFP-4X10GE-LR QSFP+ 40GBASE optics, up to 10 km transmission on parallel single mode (4x10GbE long reach up to 10 km)
QFX-QSFP-DACBO-3M QSFP+-to-SFP+ 10GbE DAC breakout copper (twinax copper cable), 3 m
QFX-QSFP-DACBO-1M QSFP+-to-SFP+ 10GbE DAC breakout copper (twinax copper cable), 1 m
JNP-QSFP-100G-CWDM QSFP28 100GBASE-CWDM4 optics for up to 2 km transmission over serial SMF
JNP-QSFP-100G-PSM4 QSFP28 100GBASE-PSM4 optics for up to 500 transmission over serial SMF
JNP-100G-4X25G-1M QSFP28-to-SFP+ 25 Gigabit Ethernet DAC breakout copper (twinax copper cable), 1 m
JNP-100G-4X25G-3M QSFP28-to-SFP+ 25 Gigabit Ethernet DAC breakout copper (twinax copper cable), 3 m
JNP-100G-AOC-1M 100GbE QSFP-to-QSFP active optical cables, 1 m
JNP-100G-AOC-3M 100GbE QSFP-to-QSFP active optical cables, 3 m
JNP-100G-AOC-5M 100GbE QSFP-to-QSFP active optical cables, 5 m
JNP-100G-AOC-10M 100GbE QSFP-to-QSFP active optical cables, 10 m
JNP-100G-AOC-20M 100GbE QSFP-to-QSFP active optical cables, 20 m
JNP-100G-AOC-30M 100GbE QSFP-to-QSFP active optical cables, 30 m

Specifications

Specifications QFX5210-64C-DCSAFI
CPU Intel Broadwell-DE, 4 Core, 2.2 GHz
Memory 16 GB DDR4
Storage 100 GB SSD
System throughput Up to 12.8 Tbps (bidirectional)
Forwarding capacity Up to 4.2 Bpps
Total packet buffer 42 MB
MAC addresses per system 264,000
VLAN Ids 4096 (3 VLANs reserved for internal use)
Number of link aggregation groups (LAGs) 64
Number of ports per LAG 64
Firewall filters Ingress: 768 routed ACL (RACL) rules, 768 VLAN ACL (VACL) rules, 768 port ACL (PACL) rules
Egress: 1024 RACL, VACL, and PACL rules
IPv4 route capacity 262,140
IPv4 host table capacity 204,750
IPv6 route capacity 172,016
IPv6 host table capacity 102,339
Address Resolution Protocol (ARP) entries 49,000
Generic routing encapsulation (GRE) tunnels 2040
MPLS labels 32,000
MPLS IPv4 L3 VPNs (Premium Services License) 2048
Jumbo frame 9,216 bytes
Spanning Tree Protocol (STP) - Multiple Spanning Tree Protocol (MSTP) instances: 64
- VLAN Spanning Tree Protocol (VSTP) instances: 509
Traffic mirroring - Mirroring destination ports per switch: 4
- Maximum number of mirroring sessions: 4
- Mirroring destination VLANs per switch: 4
Software Specifications
Layer 2 Features EVPN-VXLAN
STPIEEE 802.1D (802.1D-2004)
Rapid Spanning Tree Protocol (RSTP) (IEEE 802.1w); MSTP (IEEE 802.1s)
Bridge protocol data unit (BPDU) protect
Loop protect
Root protect
RSTP and VSTP running concurrently
VLANIEEE 802.1Q VLAN trunking
Routed VLAN Interface (RVI)
Port-based VLAN
MAC address filtering
Q-in-Q
VLAN translation
Static MAC address assignment for interface
Per VLAN MAC learning (limit):
-MAC learning disable
-Link Aggregation and Link Aggregation Control Protocol (LACP) (IEEE 802.3ad)
-IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Layer 3 Features Static routing
RIP v1/v2
OSPF v1/v2
OSPF v3
Filter-based forwarding
Virtual Router Redundancy Protocol (VRRP)
IPv6
Virtual routers
Unicast RPF (uRPF)
Loop-free alternate (LFA)
BGP (Advanced Services or Premium Services license)
IS-IS (Advanced Services or Premium Services license)
Dynamic Host Configuration Protocol (DHCP) v4/v6 relay
VR-aware DHCP
IPv4/IPv6 over GRE tunnels (interface-based with decap/encap and firewall-based with decap only)
DSCP-based PFC
Multicast Features Internet Group Management Protocol (IGMP) v1/v2
Multicast Listener Discovery (MLD) v1/v2
IGMP proxy, querier
IGMP snooping
MLD snooping
Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-Bidir
Multicast Source Discovery Protocol (MSDP)
Selective Multicast Ethernet Tag (SMET)EVPN Type-6
EVPNType-7/8
Link Aggregation Multichassis link aggregation (MC-LAG)
Redundant trunk group (RTG)
LAG load sharing algorithmbridged or routed (unicast or multicast) traffic
-IP: Session Initiation Protocol (SIP), Dynamic Internet Protocol (DIP), TCP/UDP source port, TCP/UDP destination port
-Layer 2 and non-IP: MAC SA, MAC DA, Ethertype, VLAN ID, source port
Quality of Service (QoS) L2 and L3 QoS: Classification, rewrite, queuing
Rate limiting
-Ingress policing: 1 rate 2 color, 2 rate 3 color
-Egress policing: Policer, policer mark down action
-Egress shaping: Per queue, per port
10 hardware queues per port (8 unicast and 2 multicast)
Strict priority queuing (LLQ), shaped-deficit weighted round- robin (SDWRR), weighted random early detection (WRED)
802.1p remarking
Layer 2 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN
Congestion avoidance capabilities: WRED
Trust IEEE 802.1p (ingress)
Remarking of bridged packets
Security and Filters Secure interface login and password
RADIUS
TACACS+
Ingress and egress filters: Allow and deny, port filters, VLAN filters, and routed filters, including management port filters
Filter actions: Logging, system logging, reject, mirror to an interface, counters, assign forwarding class, permit, drop, police, mark
SSH v1, v2
Static ARP support
Storm control, port error disable, and autorecovery
Control plane denial-of-service (DoS) protection
DHCP snooping
Data Center Bridging (DCB) Priority-based flow control (PFC)IEEE 802.1Qbb
High Availability Sub-second Bidirectional Forwarding Detection (BFD)
Uplink failure detection (UFD)
MPLS (Advanced Services License) Static label-switched paths (LSPs)
RSVP-based signaling of LSPs
LDP-based signaling of LSPs
LDP tunneling (LDP over RSVP)
MPLS class of service (CoS)
MPLS access control list (ACL)/policers
MPLS LSR support
IPv4 L3 VPN (RFC 2547, 4364)
MPLS fast reroute (FRR)
Visibility and Analytics Local port mirroring (comparable to SPAN)
Remote port mirroring (comparable to RSPAN)
Remote port mirroring with a GRE tunnel (comparable to ERSPAN)
Cloud Analytics Engine flow path analysis
sFlow v5
Device Management and Operations Role-based CLI management and access
CLI via console, telnet, or SSH
Extended ping and traceroute
Junos OS configuration rescue and rollback
Image rollback
SNMP v1/v2/v3
Junos XML management protocol
High frequency statistics collection
Beacon LED for port and system
Automation and orchestration
Zero touch provisioning (ZTP)
OpenStack Neutron Plug-in
Puppet
Chef
Python
Junos OS event, commit, and OP scripts
Operating temperature 32° to 104° F (0° to 40° C)
Storage temperature -40° to 158° F (-40° to 70° C)
Operating altitude Sea level only
Relative humidity operating 5% to 90% (noncondensing)
Relative humidity non-operating 0% to 95% (noncondensing)
Seismic Designed to meet GR-63, Zone 4 earthquake requirements
IEEE Standards IEEE 802.1D
IEEE 802.1w
IEEE 802.1
IEEE 802.1Q
IEEE 802.1p
IEEE 802.1ad
IEEE 802.3ad
IEEE 802.1AB
IEEE 802.3x
IEEE 802.1Qbb
T11 Standards INCITS T11 FC-BB-5
Supported RFCs RFC 768 UDP
RFC 783 Trivial File Transfer Protocol (TFTP)
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 Telnet client and server
RFC 894 IP over Ethernet
RFC 903 RARP
RFC 906 TFTP Bootstrap
RFC 951 1542 BootP
RFC 1058 Routing Information Protocol
RFC 1112 IGMP v1
RFC 1122 Host requirements
RFC 1142 OSI IS-IS Intra-domain Routing Protocol
RFC 1256 IPv4 ICMP Router Discovery (IRDP)
RFC 1492 TACACS+
RFC 1519 Classless Interdomain Routing (CIDR)
RFC 1587 OSPF not-so-stubby area (NSSA) Option
RFC 1591 Domain Name System (DNS)
RFC 1745 BGP4/IDRP for IPOSPF Interaction
RFC 1772 Application of the Border Gateway Protocol in the Internet
RFC 1812 Requirements for IP Version 4 routers
RFC 1997 BGP Communities Attribute
RFC 2030 SNTP, Simple Network Time Protocol
RFC 2068 HTTP server
RFC 2131 BOOTP/DHCP relay agent and Dynamic Host
RFC 2138 RADIUS Authentication
RFC 2139 RADIUS Accounting
RFC 2154 OSPF w/Digital Signatures (Password, MD-5)
RFC 2236 IGMP v2
RFC 2267 Network ingress filtering
RFC 2328 OSPF v2 (edge mode)
RFC 2338 VRRP
RFC 2362 PIM-SM (edge mode)
RFC 2370 OSPF Opaque link-state advertisement (LSA) Option
RFC 2385 Protection of BGP Sessions via the TCP Message Digest 5 (MD5) Signature Option
RFC 2439 BGP Route Flap Damping
RFC 2453 RIP v2
RFC 2474 Definition of the Differentiated Services Field in the IPv4 and IPv6 Headers
RFC 2597 Assured Forwarding PHB (per-hop behavior) Group
RFC 2598 An Expedited Forwarding PHB
RFC 2697 A Single Rate Three Color Marker
RFC 2698 A Two Rate Three Color Marker
RFC 2796 BGP Route ReflectionAn Alternative to Full Mesh IBGP
RFC 2918 Route Refresh Capability for BGP-4
RFC 3065 Autonomous System Confederations for BGP
RFC 3376 IGMP v3 (source-specific multicast include mode only)
RFC 3392 Capabilities Advertisement with BGP-4
RFC 3446, Anycast RP
RFC 3569 SSM
RFC 3618 MSDP
RFC 3623 Graceful OSPF Restart
RFC 4271 Border Gateway Protocol 4 (BGP-4)
RFC 4360 BGP Extended Communities Attribute
RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP)
RFC 4486 Subcodes for BGP Cease Notification Message
RFC 4724 Graceful Restart Mechanism for BGP
RFC 4812 OSPF Restart Signaling
RFC 4893 BGP Support for Four-octet AS Number Space
RFC 5176 Dynamic Authorization Extensions to RADIUS
RFC 5396 Textual Representation of Autonomous System (AS) Numbers
RFC 5668 4-Octet AS Specific BGP Extended Community
RFC 5880 Bidirectional Forwarding Detection (BFD)
Configuration Protocol (DHCP) server
Supported MIBs RFC 155 SMI
RFC 1157 SNMPv1
RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB and TRAPs
RFC 1850 OSPFv2 MIB
RFC 1901 Introduction to Community-based SNMPv2
RFC 2011 SNMPv2 for Internet protocol using SMIv2
RFC 2012 SNMPv2 for transmission control protocol using SMIv2
RFC 2013 SNMPv2 for user datagram protocol using SMIv2
RFC 2233, The Interfaces Group MIB using SMIv2
FC 2287 System Application Packages MIB
RFC 2570 Introduction to Version 3 of the Internet-standard Network Management Framework
RFC 2571 An Architecture for describing SNMP Management Frameworks (read-only access)
RFC 2572 Message Processing and Dispatching for the SNMP (read-only access)
RFC 2576 Coexistence between SNMP Version 1, Version 2, and Version 3
RFC 2578 SNMP Structure of Management Information MIB
RFC 2579 SNMP Textual Conventions for SMIv2
RFC 2580 Conformance Statements for SMIv2
RFC 2665 Ethernet-like interface MIB
RFC 2787 VRRP MIB
RFC 2790 Host Resources MIB
RFC 2819 RMON MIB
RFC 2863 Interface Group MIB
RFC 2932 IPv4 Multicast MIB
RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework
RFC 3411 An architecture for describing SNMP Management Frameworks
RFC 3412 Message Processing and Dispatching for the SNMP
RFC 3413 Simple Network Management Protocol (SNMP)all MIBs are supported except the Proxy MIB
RFC 3414 User-based Security Model (USM) for SNMPv3
RFC 3415 View-based Access Control Model (VACM) for the SNMP
RFC 3416 Version 2 of the Protocol Operations for the SNMP
RFC 3417 Transport Mappings for the SNMP
RFC 3418 Management Information Base (MIB) for the SNMP
RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet Standard Network Management Framework
RFC 3826 The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model
RFC 4188 Definitions of Managed Objects for Bridges
RFC 4318 Definitions of Managed Objects for Bridges with Rapid Spanning Tree Protocol
RFC 4363b Q-Bridge VLAN MIB
Safety CAN/CSA-C22.2 No. 60950-1
UL 60950-1 (2nd Edition)
IEC 60950-1: 2005/A2:2013
EMC EN 300 386
EN 55032/CISPR 32, Class A
EN 55022/CISPR 22, Class A
EN 55024/CISPR 24, Class A
FCC 47 CFR Part 15, Class A
ICES-003, Class A AS/NZS CISPR 32
VCCI-CISPR 32, Class A
BSMI CNS 13438
KN32/KN35
EN 61000-3-2
EN 61000-3-3
ETSI
ETSI EN 300 019: Environmental Conditions & Environmental Tests for Telecommunications Equipment
ETSI EN 300 019-2-1 (2000)Storage
ETSI EN 300 019-2-2 (1999)Transportation

Properties

Properties Juniper QFX5210-64C-DCSAFI
Description QFX5210, 64 QSFP+/QSFP28 ports, reduced latency, redundant fans, 2 DC power supplies, back-to-front airflow, with SONiC
Product Family QFX5210 Series
Product Type Ethernet Switch
Included SONiC
Dimensions (HxWxD) Inches 17.26 x 3.45 x 24.1 in. (43.84 x 8.77 x 61.2 cm) (depth including fan handle; otherwise 22.83 in. (58 cm)
Rack units 2 U
Weight 14.1 kg
Deployment Options for QFX5210-64C
Port Combinations Deployment
64x100GbE Spine/leaf
96x25GbE + 8x100GbE 25GbE access
Interface Options
QSFP+/QSFP28 ports 64 QSFP+ or QSFP28
25GbE (breakout cable, QSFP28) 128
10GbE (breakout cable, QSFP+) 128+2
Management interfaces 1 RJ-45 management port provided
Cooling Back-to-front cooling
Redundant (N+1) hot-pluggable fan modules with variable speed to minimize power draw
Power Redundant (1+1) hot-pluggable 1100 W DC power supplies
-36 to -72 V DC power
Maximum Thermal Output
Maximum power draw 960 W (AC), 980 W (DC)
Typical power draw 680 W (AC), 680 W (DC)
INTERNATIONAL -

International buyers must acknowledge that all duties and taxes are their sole responsibility and Network Devices Inc is not held responsible for possible additional charges.

DOMESTIC -

Products are shipped Monday through Friday via UPS/FedEx/USPS. The estimated delivery time is 1-6 business days depending on location. If “Free Shipping” is offered, it will be by Ground only and within USA Continental States Only (48 States). There will be a surcharge on shipments to Hawaii, Alaska, Puerto Rico and APO/FPO addresses. After you have made a purchase, the surcharge will be calculated using the parcel’s weight and size. Network Devices Inc ships the product the same day of receiving an order. Otherwise you will a receive notification of delay or cancellation of said order.

Just added to your wishlist:
My Wishlist
You've just added this product to the cart:
Checkout
