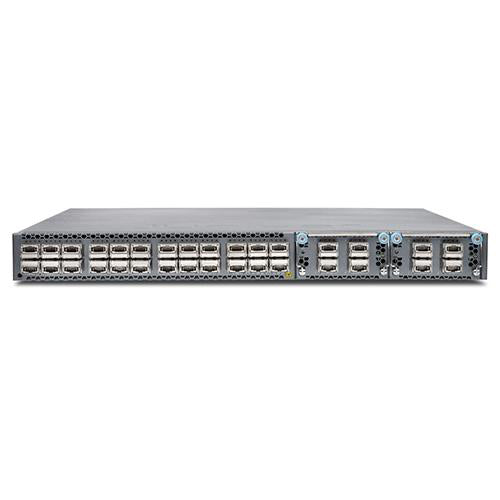

JUNIPER QFX5100-24Q-3AFI SWITCH

Accessories

Accessories
QFX-EM-4Q	4 port QSFP+ expansion module for QFX5100-24Q
EX4600-EM-8F	8 port SFP+/SFP expansion module for EX4600 and QFX5100-24Q
JPSU-650W-AC-AFI	AC 650W PSU, back-to-front airflow for QFX5100-48S, QFX5100-48T, QFX5100-24Q
QFX5100-FAN-AFI	Back-to-front Airflow Fan Module for QFX5100
QFX5100-EM-BLNK	Blank module for QFX5100
Advanced Feature Licenses
QFX5100-HDNSE-LIC	QFX5100-24Q and QFX5100-96S Advanced Feature License for IS-IS, BGP, VxLAN and MPLS
Optics and Transceivers
QFX-SFP-10GE-SR	SFP+ 10GBASE-SR 10 Gigabit Ethernet Optics, 850 nm for up to 300 m transmission on multimode fiber (MMF)
QFX-SFP-10GE-USR	SFP+ 10 Gigabit Ethernet Ultra Short Reach Optics, 850 nm for 10 m on OM1, 20 m on OM2, 100 m on OM3 multimode fiber (MMF)
QFX-SFP-10GE-LR	SFP+ 10GBASE-LR 10 Gigabit Ethernet Optics, 1,310 nm for 10 km transmission on single mode fiber-optic (SMF)
QFX-SFP-10GE-ER	SFP+ 10GBASE-ER 10 Gigabit Ethernet Optics, 1,550 nm for 40 km transmission on single-mode fiber (SMF)
EX-SFP-10GE-ZR	SFP+ 10GBASE-ZR 10 Gigabit Ethernet Optics, 1,550 nm for 80 km transmission on single-mode fiber (SMF)
QFX-SFP-DAC-1M	SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 1 m
QFX-SFP-DAC-3M	SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 3 m
QFX-SFP-DAC-5M	SFP+ 10 Gigabit Ethernet Direct Attach Copper (twinax copper cable) 5 m
QFX-SFP-DAC-1MA	SFP+ 10 Gigabit Ethernet Direct Attach Copper (active twinax copper cable) 1 m
QFX-SFP-DAC-3MA	SFP+ 10 Gigabit Ethernet Direct Attach Copper (active twinax copper cable) 3 m
QFX-SFP-DAC-5MA	SFP+ 10 Gigabit Ethernet Direct Attach Copper (active twinax copper cable) 5 m
QFX-SFP-DAC-7MA	SFP+ 10 Gigabit Ethernet Direct Attach Copper (active twinax copper cable) 7 m
QFX-SFP-DAC-10MA	SFP+ 10 Gigabit Ethernet Direct Attach Copper (active twinax copper cable) 10 m
QFX-QSFP-DAC-1M	QSFP+ to QSFP+ Ethernet Direct Attach Copper (twinax copper cable) 1m passive
QFX-QSFP-DAC-3M	QSFP+ to QSFP+ Ethernet Direct Attach Copper (twinax copper cable) 3m passive
JNP-QSFP-DAC-5M	QSFP+ to QSFP+ Ethernet Direct Attach Copper (twinax copper cable) 5m passive
QFX-QSFP-DACBO-1M	QSFP+ to SFP+ 10 Gigabit Ethernet Direct Attach Breakout Copper (twinax copper cable) 1m
QFX-QSFP-DACBO-3M	QSFP+ to SFP+ 10 Gigabit Ethernet Direct Attach Breakout Copper (twinax copper cable) 3m
QFX-QSFP-40G-SR4	QSFP+ 40GBASE-SR4 40 Gigabit Optics, 850 nm for up to 150 m transmission on MMF
QF

Specifications

Specifications	QFX5100-24Q-3AFI
Switching capacity	2.56 Tbps/1.44 Bpps
MAC addresses per system	288,000
VLAN Ids	4,096
Number of link aggregation groups (LAGs)	128
Number of ports per LAG	32
Number of FCoE VLANs/FC Virtual Fabrics	4,095
Firewall filters	4000
IPv4 unicast routes	128,000 prefixes; 208,000 host routes; 644 ECMP paths
IPv4 multicast routes	104,000
IPv6 multicast routes	52,000
IPv6 unicast routes	64,000 prefixes
ARP entries	48,000
Jumbo frame	9,216 bytes
Spanning Tree Protocol (STP)	- Multiple Spanning Tree Protocol (MSTP) instances: 64 - VLAN Spanning Tree Protocol (VSTP) instances: 253
Traffic mirroring	- Mirroring destination ports per switch: 4 - Maximum number of mirroring sessions: 4 - Mirroring destination VLANs per switch: 4
Software Specifications
Layer 2 Features	• STP—IEEE 802.1D (802.1D-2004) • Rapid Spanning Tree Protocol (RSTP) (IEEE 802.1w); MSTP (IEEE 802.1s) • Bridge protocol data unit (BPDU) protect • Loop protect • Root protect • RSTP and VSTP running concurrently • VLAN—IEEE 802.1Q VLAN trunking • Routed VLAN Interface (RVI) • Port-based VLAN • MAC address filtering • Private VLAN (PVLAN) • QinQ • VLAN Translation • Static MAC address assignment for interface • Per VLAN MAC learning (limit) • MAC learning disable • Link Aggregation and Link Aggregation Control Protocol (LACP) (IEEE 802.3ad) • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
Layer 3 Features (IPv4)	• Static routing • Routing policy • Routing protocols (RIP, OSPF, IS-IS, BGP) • Virtual Router Redundancy Protocol (VRRP) • Virtual router • Dynamic Host Configuration Protocol (DHCP) relay • Proxy Address Resolution Protocol (ARP)
Multicast Features	• Internet Group Management Protocol (IGMP): v1, v2 ,V3 • IGMP snooping: v1, v2, v3 • IGMP Filter • PIM-SM • Multicast Source Discovery Protocol (MSDP) • Security and Filters • Secure interface login and password • RADIUS • TACACS+ • Ingress and egress filters: Allow and deny, port filters, VLAN filters, and routed filters, including management port filters • Filter actions: Logging, system logging, reject, mirror to an interface, counters, assign forwarding class, permit, drop, police, mark • SSH v1, v2 • Static ARP support • Storm control, port error disable, and autorecovery • Control plane denial-of-service (DoS) protection • Dynamic ARP Inspection (DAI) • Sticky MAC address • DHCP snooping
Link Aggregation	• Multi-chassis link aggregation (MC-LAG) • Redundant Trunk Group (RTG) • LAG load sharing algorithm—bridged or routed (unicast or multicast) traffic: - IP: SIP, Dynamic Internet Protocol (DIP), TCP/UDP source port, TCP/UDP destination port - Layer 2 and non-IP: MAC SA, MAC DA, Ethertype, VLAN ID, source port - FCoE packet: Source ID (SID), Destination ID (DID), Originator exchange ID (OXID), source port
Quality of Service (QoS)	• L2 and L3 QoS: Classification, rewrite, queuing • Rate limiting: - Ingress policing: 1 rate 2 color, 2 rate 3 color - Egress policing: Policer, policer mark down action - Egress shaping: Per queue on each port • 12 hardware queues per port (8 unicast and 4 multicast) • Strict priority queuing (LLQ), smoothed deficit weighted roundrobin (SDWRR), weighted random early detection (WRED), weighted tail drop • 802.1p remarking • Layer 2 classification criteria: Interface, MAC address, Ethertype, 802.1p, VLAN • Congestion avoidance capabilities: WRED • Trust IEEE 802.1p (ingress) • Remarking of bridged packets
Data Center Bridging (DCB)	• Priority-based flow control (PFC)—IEEE 802.1Qbb • Enhanced Transmission Selection (ETS)—IEEE 802.1Qaz • Data Center Bridging Exchange Protocol (DCBX), DCBx FCoE, and iSCSI type, length, and value (TLVs)
Fibre Channel over Ethernet (FCoE)	• FCoE transit switch (FIP snooping ACL installation) • FCoE session path learning • FCoE session health monitoring • Graceful restart for FIP snooping • FC-BB-6 VN2VN snooping
Virtual Chassis	• 40GbE and 10GbE as Virtual Chassis port • Virtual Chassis Routing Engine (RE) election • Virtual Chassis pre-provisioning (plug and play) • Auto-LAG formation of Virtual Chassis ports • Mixed Virtual Chassis support • FCoE transit across Virtual Chassis members • QoS on Virtual Chassis ports • Local Designated Forwarding • Graceful RE switchover (GRES) • Nonstop routing (NSR) • Nonstop bridging (NSB) • Monitor distributed aggregate interface • Control plane protection for virtual RE
High Availability	• Topology-independent in-service software upgrade (TISSU) • Sub-second Bidirectional Forwarding Detection (BFD) • Uplink failure detection (UFD)
MPLS	• Static label-switched paths (LSPs) • RSVP-based signaling of LSPs • LDP-based signaling of LSPs • LDP tunneling (LDP over RSVP) • MPLS class of service (CoS) • MPLS access control list (ACL)/policers • MPLS LSR support • IPv6 tunneling (6PE) (via IPv4 MPLS backbone) • MPLS Operation, Administration, and Maintenance (OAM)—LSP ping • IPv4 L3 VPN (RFC 2547, 4364
Server Virtualization Management and SDN-Related Protocols	• Junos Space Virtual Control • IEEE 802.1Qbg (VEPA hairpin forwarding) • VMware NSX VXLAN L2 Gateway • VXLAN OVSDB • OpenFlow 1.3 client
Management and Operations	• Role-based CLI management and access • CLI via console, telnet, or SSH • Extended ping and traceroute • Junos OS configuration rescue and rollback • Image rollback • SNMP v1/v2/v3 • Junos XML management protocol • sFlow v5 • High frequency statistics collection • Beacon LED for port and system • Automation and orchestration • Zero-touch provisioning (ZTP) • OpenStack Neutron Plug-in • Puppet • Chef • Python • Junos OS event, commit, and OP scripts
Traffic Mirroring	• Port-based • LAG port • VLAN-based • Filter-based • Mirror to local • Mirror to remote destinations (L2 over VLAN)
Operating temperature	32° to 104° F (0° to 40° C)
Storage temperature	-40° to 158° F (-40° to 70° C)
Operating altitude	up to 2,000 (610 m)
Relative humidity operating	5% to 90% (noncondensing)
Relative humidity non-operating	0% to 95% (noncondensing)
IEEE Standards	IEEE standard IEEE 802.1D IEEE 802.1w IEEE 802.1 IEEE 802.1Q IEEE 802.1p IEEE 802.1ad IEEE 802.3ad IEEE 802.1AB IEEE 802.3x IEEE 802.1Qbb IEEE 802.1Qaz IEEE 802.3an
T11 Standards	INCITS T11 FC-BB-5
Supported RFCs	RFC 768 UDP RFC 783 Trivial File Transfer Protocol (TFTP) RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 Telnet client and server RFC 894 IP over Ethernet RFC 903 RARP RFC 906 TFTP Bootstrap RFC 951 1542 BootP RFC 1058 Routing Information Protocol RFC 1112 IGMP v1 RFC 1122 Host requirements RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 1256 IPv4 ICMP Router Discovery (IRDP) RFC 1492 TACACS+ RFC 1519 Classless Interdomain Routing (CIDR) RFC 1587 OSPF not-so-stubby area (NSSA) Option RFC 1591 Domain Name System (DNS) RFC 1745 BGP4/IDRP for IP—OSPF Interaction RFC 1772 Application of the Border Gateway Protocol in the Internet RFC 1812 Requirements for IP Version 4 routers RFC 1997 BGP Communities Attribute RFC 2030 SNTP, Simple Network Time Protocol RFC 2068 HTTP server RFC 2131 BOOTP/DHCP relay agent and Dynamic Host RFC 2138 RADIUS Authentication RFC 2139 RADIUS Accounting RFC 2154 OSPF w/Digital Signatures (Password, MD-5) RFC 2236 IGMP v2 RFC 2267 Network ingress filtering RFC 2328 OSPF v2 (edge mode) RFC 2338 VRRP RFC 2362 PIM-SM (edge mode) RFC 2370 OSPF Opaque link-state advertisement (LSA) Option RFC 2385 Protection of BGP Sessions via the TCP Message Digest 5 (MD5) Signature Option RFC 2439 BGP Route Flap Damping RFC 2453 RIP v2 RFC 2474 Definition of the Differentiated Services Field in the IPv4 and IPv6 Headers RFC 2597 Assured Forwarding PHB (per-hop behavior) Group RFC 2598 An Expedited Forwarding PHB RFC 2697 A Single Rate Three Color Marker RFC 2698 A Two Rate Three Color Marker RFC 2796 BGP Route Reflection—An Alternative to Full Mesh IBGP RFC 2918 Route Refresh Capability for BGP-4 RFC 3065 Autonomous System Confederations for BGP RFC 3376 IGMP v3 (source-specific multicast include mode only) RFC 3392 Capabilities Advertisement with BGP-4 RFC 3446, Anycast RP RFC 3569 SSM RFC 3618 MSDP RFC 3623 Graceful OSPF Restart RFC 4271 Border Gateway Protocol 4 (BGP-4) RFC 4360 BGP Extended Communities Attribute RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP) RFC 4486 Subcodes for BGP Cease Notification Message RFC 4724 Graceful Restart Mechanism for BGP RFC 4812 OSPF Restart Signaling RFC 4893 BGP Support for Four-octet AS Number Space RFC 5176 Dynamic Authorization Extensions to RADIUS RFC 5396 Textual Representation of Autonomous System (AS) Numbers RFC 5668 4-Octet AS Specific BGP Extended Community RFC 5880 Bidirectional Forwarding Detection (BFD) Configuration Protocol (DHCP) server
Supported MIBs	RFC 1155 SMI RFC 1157 SNMPv1 RFC 1212, RFC 1213, RFC 1215 MIB-II, Ethernet-Like MIB and TRAPs RFC 1850 OSPFv2 MIB RFC 1901 Introduction to Community-based SNMPv2 RFC 2011 SNMPv2 for Internet protocol using SMIv2 RFC 2012 SNMPv2 for transmission control protocol using SMIv2 RFC 2013 SNMPv2 for user datagram protocol using SMIv2 RFC 2233, The Interfaces Group MIB Using SMIv2 RFC 2287 System Application Packages MIB RFC 2570 Introduction to Version 3 of the Internet-standard Network Management Framework RFC 2571 An Architecture for describing SNMP Management Frameworks (read-only access) RFC 2572 Message Processing and Dispatching for the SNMP (read-only access) RFC 2576 Coexistence between SNMP Version 1, Version 2, and Version 3 RFC 2578 SNMP Structure of Management Information MIB RFC 2579 SNMP Textual Conventions for SMIv2 RFC 2580 Conformance Statements for SMIv2 RFC 2665 Ethernet-like interface MIB RFC 2787 VRRP MIB RFC 2790 Host Resources MIB RFC 2819 RMON MIB RFC 2863 Interface Group MIB RFC 2932 IPv4 Multicast MIB RFC 3410 Introduction and Applicability Statements for Internet Standard Management Framework RFC 3411 An architecture for describing SNMP Management Frameworks RFC 3412 Message Processing and Dispatching for the SNMP RFC 3413 Simple Network Management Protocol (SNMP) (all MIBs are supported except the Proxy MIB) RFC 3414 User-based Security Model (USM) for version 3 of SNMPv3 RFC 3415 View-based Access Control Model (VACM) for the SNMP RFC 3416 Version 2 of the Protocol Operations for the SNMP RFC 3417 Transport Mappings for the SNMP RFC 3418 Management Information Base (MIB) for the SNMP RFC 3584 Coexistence between Version 1, Version 2, and Version 3 of the Internet-standard Network Management Framework RFC 3826 The Advanced Encryption Standard (AES) Cipher Algorithm in the SNMP User-based Security Model RFC 4188 Definitions of Managed Objects for Bridges RFC 4318 Definitions of Managed Objects for Bridges with Rapid Spanning Tree Protocol RFC 4363b Q-Bridge VLAN MIB
Safety	CAN/CSA-C22.2 No. 60950-1 (2007) Information Technology Equipment—Safety UL 60950-1 (2nd Ed.) Information Technology Equipment—Safety EN 60950-1 (2005) Information Technology Equipment—Safety IEC 60950-1 (2005) Information Technology Equipment—Safety (All country deviations): CB Scheme report. EN 60825-1 +A1+A2 (1994) Safety of Laser Products—Part 1: Equipment Classification GR-63-Core (2006) Network Equipment, Building Systems (NEBS) Physical Protection GR-1089-Core (2006) EMC and Electrical Safety for Network Telecommunications Equipment SR-3580 (1995) NEBS Criteria Levels (Level 3)
EMC	FCC 47CFR, Part 15 Class A (2009) USA Radiated Emissions EN 55022 Class A (2006)+ A1 2007 European Radiated Emissions VCCI Class A (2007) Japanese Radiated Emissions BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions AS/NZS CISPR22:2009

Properties

Properties	Juniper QFX5100-24Q-3AFI
Description	QFX5100, 24 QSFP+ ports, 2 expansion slots, dual SFP/RJ-45 management ports, redundant fans, redundant AC power supplies, back-to-front airflow
Product Family	QFX5100 Series
Product Type	Ethernet Switch
Dimensions (HxWxD) Inches	1.72 x17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) • Switching mode: Cut-through and store-and forward • Back-to-front airflow (for hot aisle/cold aisle deployment) • Management and rear console port connections
Weight	21.6 lb (9.8 kg)
Power Consumption	161 W
Interface Options
1GbE SFP	N/A
10GbE SFP+	96/104 (with breakout cable)
40GbE QSFP+	24/32 (with 2 x QFX-EM-4Q)
	• Each QSFP+ port can be configured as a 4 x 10GbE interface • Each QSFP+ port can be configured as a 40 Gbps port • USB port • Console port • 2 management ports: 1 RJ-45 and 1 SFP • Supported transceiver and direct attach cable • SFP+ 10GbE optical modules • SFP+ DAC cables: 1/3/5 m twinax copper and 1/3/5/7/10 m active twinax copper • SFP GbE optical and copper module • QSFP+ to SFP+ 10GbE direct attach break-out copper (1/3 m twinax copper cable)
Rack Installation Kit	Versatile four post mounting options for 19-in server rack or datacom rack
Airflow	• Back-to-front cooling • Redundant variable-speed fans to reduce power draw
Power Supply and Fan Modules	• Dual redundant (1+1) and hot-pluggable power supplies • 110-240 V single phase AC power • -36 to -72 V DC power • Redundant (N+1) and hot-pluggable fan modules for front-toback and back-to-front airflow
