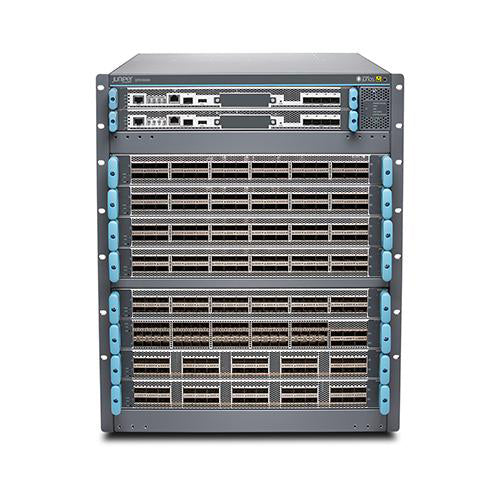

JUNIPER QFX10008-BASE CHASSIS
| Part No: | QFX10008-BASE |
| Detail: | QFX10008, 8-slot chassis, 3 x 2700W AC power supply, 2 x fan tray, 2 x fan tray controller, 5 x switch fabric cards, 1 x routing engine |
| List Price: |
|
| Price: |
$77,948.64
|
| You Save: | $14,847.36 (16% OFF) |
| Condition: | Brand New Sealed |
| Availability: | SPECIAL ORDER |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description
The QFX10000 line of modular data center spine and core Ethernet switches delivers industry-leading scale, flexibility and openness, with a design that enables the seamless transition from 10GbE and 40GbE interface speeds to 100GbE. These high- performance, forward-looking switches are designed to help cloud and data center operators extract maximum value and intelligence from their network infrastructure well into the future.Accessories
| Line Cards | |
| QFX10000-36Q | QFX10000 36-port 40GbE QSFP+ / 12-port 100GbE QSFP28 line card |
| QFX10000-30C | QFX10000 30-port 100GbE QSFP28/40GbE QSFP+ line card |
| QFX10000-30C-M | QFX10000 30-port 100GbE QSFP28/40GbE QSFP+ MACsec line card |
| QFX10000-60S-6Q | QFX10000 60-port 1/10GbE SFP/SFP+ line card with 6 40GbE QSFP+ / 2 100GbE QSFP28 ports |
| QFX10K12C-DWDM | QFX10000 1.2 Tbps 6-port 200GbE line rate Coherent DWDM MACsec line card |
| JNP-QSFP-100G-SR4 | QSFP28 100GBASE-SR4 Optics for up to 100 m transmission over parallel multi-mode fiber (MMF) |
| JNP-QSFP-100G-LR4 | QSFP28 100GBASE-LR4 Optics for up to 10 km transmission over serial single-mode fiber (SMF) |
| JNP-QSFP-100G-PSM4 | QSFP28 100GBASE-PSM4 Optics for up to 2 km transmission over parallel SMF |
| JNP-QSFP-100G-CWDM | QSFP28 100GBASE-CWDM4 Optics for up to 2 km transmission over serial SMF |
| JNP-QSFP-40GE-IR4 | QSFP+ 40GBASE-IR4 40 Gigabit optics, 1,310 nm for up to 2 km transmission on SMF |
| JNP-QSFP-40G-LR4 | QSFP+ 40GBASE-LR4 40 Gigabit optics, 1,310 nm for up to 10 km transmission on SMF |
| JNP-QSFP-40G-LX4 | QSFP+ 40GBASE-LX4 40 Gigabit optics, 100 m (150 m) with OM3 (OM4) duplex MMF fiber |
| JNP-QSFP-4X10GE-IR | QSFP+ 40GBASE Optics, up to 1.4 km transmission on parallel single mode (4X10GbE long reach up to 1.4 km) |
| JNP-QSFP-4X10GE-LR | QSFP+ 40GBASE optics, up to 10 km transmission on parallel single mode (4X10GbE long reach up to 10 km) |
| QFX-QSFP-40G-ESR4 | QSFP+ 40GBASE-ESR4 40 Gigabit optics, 300 m (400 m) with OM3 (OM4) MMF |
| QFX-QSFP-40G-SR4 | QSFP+ 40GBASE-SR4 40 Gigabit optics, 850 nm for up to 150 m transmission on MMF |
| QFX-SFP-10GE-LR | SFP+ 10GBASE-LR 10-Gigabit Ethernet optics, 1,310 nm for 10 km transmission on SMF |
| QFX-SFP-10GE-SR | SFP+ 10GBASE-SR 10-Gigabit Ethernet optics, 850 nm for up to 300 m transmission on MMF |
| Software Feature Licenses | |
| QFX10008-PFL | QFX10008 Premium Feature License |
| QFX10008-AFL | QFX10008 Advanced Feature License |
| QFX10000-30C-LFIB | 1 million FIB license for QFX10000-30C and QFX10000-30C-M line cards |
| QFX10000-36Q-LFIB | 1 million FIB license for QFX10000-36Q and QFX10K-12CDWDM line cards |
| QFX10000-60S-LFIB | 1 million FIB license for QFX10000-60S-6Q line card |
| Power Cords | |
| CBL-EX-PWR-C19-C20 | AC Patch Cable - C20 PDU (16A/250V, 2.5m) |
| QFX-SFP-10GE-SR | SFP+ 10GBASE-SR 10-Gigabit Ethernet optics, 850 nm for up to 300 m transmission on MMF |
| QFX-SFP-10GE-USR | SFP+ 10-Gigabit Ethernet ultra short reach optics, 850 nm for 10 m on OM1, 2 0 m on OM2, 100 m on OM3 multi-mode fiber |
| QFX-SFP-1GE-LX | SFP 1000BASE-LX Gigabit-Ethernet optics, 1,310 nm for 10 km transmission on SMF |
| QFX-SFP-1GE-SX | SFP 1000BASE-SX Gigabit-Ethernet optics, 850 nm for up to 550 m transmission on MMF |
| QFX-SFP-1GE-T | SFP 1000BASE-T Copper transceiver module for up to 100 m transmission on Cat5 |
Specifications
| Specifications | QFX10008-BASE |
| System throughput | Up to 48 Tbps |
| Forwarding capacity | Up to 16 Bpps |
| Maximum bandwidth/slot | 7.2 Tbps/slot |
| Fabric | Up to 86.4 Tbps raw fabric capacity Up to 7.2 Tbps (full duplex) per slot usable fabric capacity 5+1 fabric redundancy |
| Latency | As low as 2.5 microseconds within a PFE As low as 5.5 microseconds across PFEs |
| Media access control (MAC) addresses | Up to 1 million |
| ARP entries | Up to 510,000, or 64,000 per PFE |
| Jumbo frames | 9,216 Bytes maximum |
| VLANs | 4,093 |
| Forwarding information base (FIB) (IPv4/IPv6) | Up to 2 million |
| Host routes | Up to 2 million |
| ECMP | 64-way |
| IPv4 Multicast routes | Up to 128,000 |
| IPv6 Multicast routes | Up to 128,000 |
| Multicast groups | Up to 128,000 |
| Filters | Up to 8,000 |
| Filter terms | Up to 64,000 |
| Policers | Up to 8,000 |
| Output queues per port | 8 |
| Virtual Output Queues | 384,000 per PFE |
| Link aggregation groups (LAG) | 1,000 |
| Distributed BFD sessions | 200/line card |
| Members / LAG | 64 |
| BGP neighbors (Premium Feature License) | 1,024 |
| GRE tunnels | 2,000 |
| VXLAN tunnels | 1,000 |
| MPLS Layer 3 VPNs (Advanced Feature License) | 4,096 |
| LSPs (ingress/egress/transit) (Advanced Feature License) | 4,000 |
| VRFs | 4,000 |
| Software Features | |
| Layer 2 Features | 802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP) VLAN Spanning Tree Protocol (VSTP) 802.1AB Link Layer Discovery Protocol (LLDP) VLAN Registration Protocol QinQ |
| Link Aggregation | 802.3ad Link Aggregation Control Protocol (LACP) Multi-chassis Link Aggregation (MC-LAG) |
| Layer 3 Features | BGP (Premium Feature license or Advanced Feature license) Ethernet VPN (EVPN) Type 5 Filter-based forwarding OSPF v1/v2 OSPF v3 Virtual Router Redundancy Protocol (VRRP) IPv6 Bidirectional Forwarding Detection (BFD) Virtual routers Unicast reverse path forwarding (uRPF) Loop-free alternate (LFA) IS-IS (Premium Feature license or Advanced Feature license) DHCP v4/v6 relay VR-aware DHCP IPv4 / IPv6 over GRE tunnels (interface-based) Static routing RIP v1/v2 |
| Multicast | EVPN Type 6/7/8 Internet Group Management Protocol (IGMP) v1/v2/v3 Multicast Listener Discovery (MLD) v1/v2 IGMP Proxy, Querier IGMP snooping MLD snooping Protocol Independent Multicast PIM-SM, PIM-SSM, PIM-DM Multicast Source Discovery Protocol (MSDP) |
| Firewall Filters | Ingress and egress L2-L4 access control lists (ACLs): - Port ACLs - VLAN ACLs - Router ACLs Control plane denial-of-service (DoS) protection |
| Quality of Service (QoS) | Single rate three color policer Two rate three-color policer Congestion prevention: - Weighted random early detection (WRED) - Tail drop - Explicit congestion notification (ECN) marking Priority-based scheduling: - Low-latency queuing with strict high priority - Weighted round-robin (WRR) queuing |
| MPLS (Advanced Feature License | LDP RSVP LDP tunneling (LDP over RSVP) Fast reroute (FRR) IPv6 tunneling (6PE) Ingress, transit, and egress label-switched paths (LSPs) IPv4 Layer 3 VPNs IPv6 Layer 3 VPNs (6VPE) Layer 2 circuits |
| Overlays (Premium Feature License or Advanced Feature License) | EVPN-VXLAN VXLAN L2 and L3 gateway Integration with VMware NSX SDN controller Open vSwitch Database (OVSDB) |
| High Availability | Graceful Routing Engine switchover (GRES) Nonstop active routing (NSR) Nonstop bridging (NSB) |
| Timing | Precision Timing Protocol (PTP) - Transparent clock |
| Visibility | Switched Port Analyzer (SPAN) RSPAN ERSPAN Firewall filter-based port mirroring sFlow v5 BGP Monitoring Protocol (BMP) IPFIX |
| Data Center Bridging | Priority-based flow control (PFC)IEEE 802.1Qbb Data Center Bridging Exchange Protocol (DCBX), DCBx FCoE, and iSCSI type, length, and value (TLVs) |
| Management and Operations | Juniper Space® Network Director for Campus Junos OS CLI via console, telnet, SSH Out-of-band management: Serial; 10/100/1000BASE-T Ethernet Role-based CLI management and access Junos XML management protocol ASCII configuration file SNMP v1/v2/v3 RADIUS TACACS+ Extensive MIB support Junos OS configuration rescue and rollback Image rollback OpenStack Neutron Plug-in Puppet Chef Python Junos OS event, commit and OP scripts RMON (RFC 2819): Groups 1, 2, 3, 9 Network Time Protocol (NTP) SSHv2 Secure copy DNS resolver System logging Environment monitoring Temperature sensor Configuration backup via FTP/secure copy |
| Troubleshooting | Debugging: CLI via console, telnet, or SSH Diagnostics: Show, debug, and statistics commands Port mirroring IP tools: Extended ping and trace Juniper Networks commit and rollback |
| Operating temperature | 32° to 104° F (0° to 40° C) |
| Storage temperature | -40° to 158° F (-40° to 70° C) |
| Operating altitude | Up to 10,000 ft (3,048 m) |
| Relative humidity operating | 5 to 90% (noncondensing) |
| Relative humidity nonoperating | 5 to 95% (noncondensing) |
| Seismic | : Designed to meet GR-63, Zone 4 earthquake requirements |
| Safety | CAN/CSA-C22.2 No. 60950-1 Information Technology EquipmentSafety UL 60950-1 Information Technology EquipmentSafety EN 60950-1 Information Technology EquipmentSafety IEC 60950-1 Information Technology EquipmentSafety (All country deviations) EN 60825-1 Safety of Laser ProductsPart 1: Equipment Classification |
| Electromagnetic Compatibility | 47CFR Part 15, (FCC) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A EN 55024 CISPR 24 EN 300 386 VCCI Class A AS/NZA CISPR22 Class A KN22 Class A CNS 13438 Class A EN 61000-3-2 EN 61000-3-3 |
| ETSI | ETSI EN 300 019: Environmental Conditions & Environmental Tests for Telecommunications Equipment ETSI EN 300 019-2-1 (2000)Storage ETSI EN 300 019-2-2 (1999)Transportation ETSI EN 300 019-2-3 (2003)Stationary Use at Weatherprotected Locations ETSI EN 300 019-2-4 (2003)Stationary Use at NonWeather-protected Locations ETS 300753 (1997)Acoustic noise emitted by telecommunications equipment |
Properties
| Properties | Juniper QFX10008-BASE |
| Description | QFX10008 Base 8-slot chassis with 1 CB, 3 2,700 W AC power supplies, 2 fan trays, 2 fan tray controllers, and 5 switch fabric cards |
| Product Family | QFX10008 Series |
| Product Type | Base Chassis |
| Maximum Port Densities | |
| Maximum 10GbE port density | 1,152 |
| Maximum 40GbE port density | 288 |
| Maximum 100GbE port density | 240 |
| Operating System | Junos OS |
| Architecture | Midplane-less orthogonal interconnect architecture Separate dedicated data, control, and management planes Secure, modular architecture that isolates faults Transparent failover and network recovery |
| Control Board | Primary and backup CBs (1+1 redundancy) Intel Quad Core 2.5GHz CPU 32 gigabytes SDRAM 50 gigabytes onboard SSD Pluggable solid-state drive (SSD) USB 2.0 storage interface Four SFP/SFP+ MACsec-capable ports Fiber (SFP) or 10/100/1000BASE-T (RJ-45) Ethernet management port One console port |
| Total number of I/O slots | 8 |
| Power | Holds up to six power supplies: 200 to 240 VAC |
| Typical Power | 1,517 W |
| Reserved Power | 2,500 W |
| Maximum Thermal Output | 48,156 BTU/hour (14,113 W) |
| Cooling | Front-to-back airflow Dual hot-swappable fan trays with redundant fans |
| Dimensions (W x H x D) | 17.4 x 22.55 x 32 in (44.2 x 57.3 x 81.3 cm) |
| Weight | 280 lbs (127 kg) |
| Fully loaded chassis weight | 493 lbs (224 kg) |
| Rack units | 13 U |
