CISCO PWR-RGD-LOW-DC-H
| Model: | PWR-RGD-LOW-DC-H |
| Detail: | Hot-swappable design allows for easy replacement of the power supply without having to power down the device., Wide input voltage range makes it compatible with a variety of devices., Durable construction makes it suitable for use in harsh environments., 60V of output power provides sufficient power for a variety of devices., |
| Price: | $850.00 |
| Condition: | Brand New Sealed |
| Availability: | Out of Stock |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ and TX |
| Quantity: |

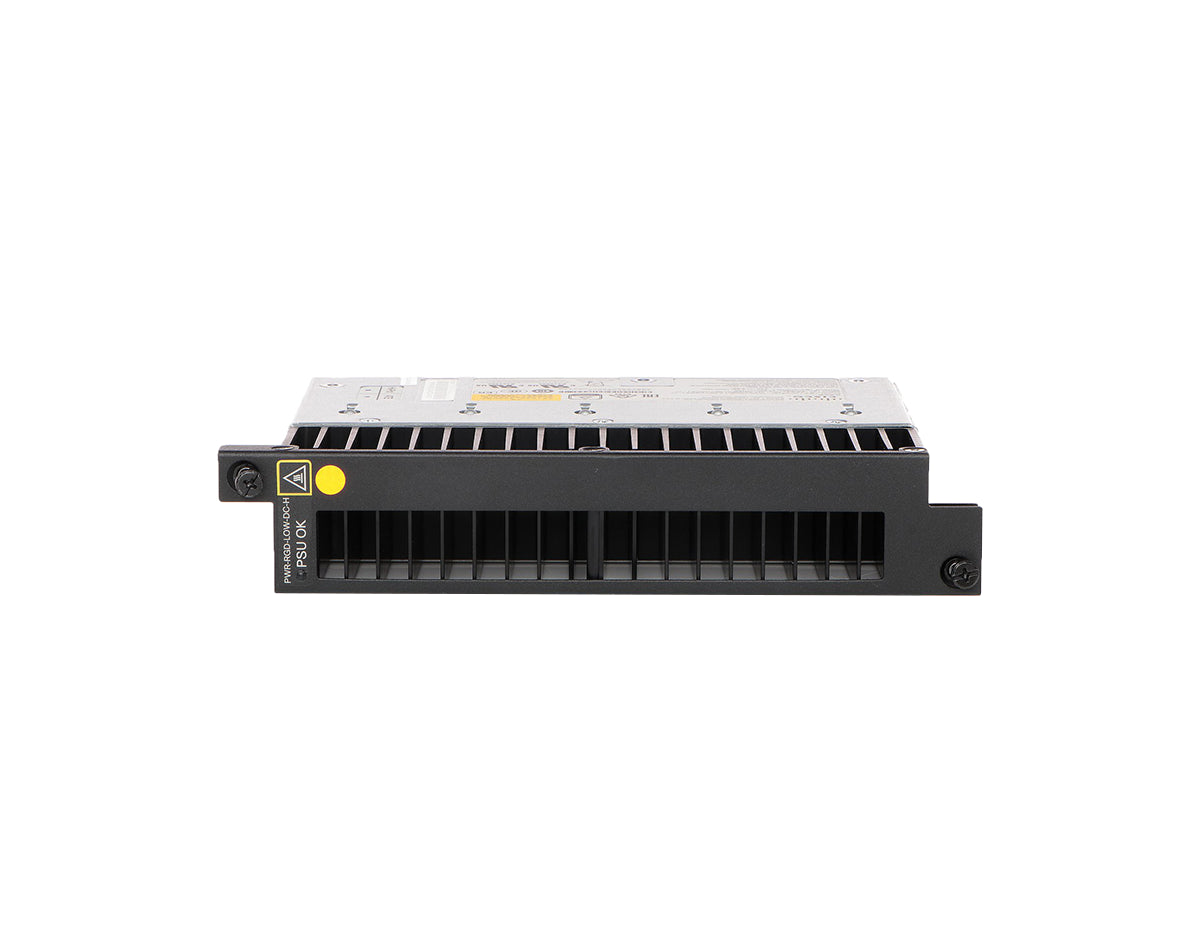

The Cisco PWR-RGD-LOW-DC-H is a hot-pluggable power supply that provides 60V of output power. It is compatible with a variety of Cisco products, including the IE-4010-16S12P, IE-4010-16S12P=, IE-4010-4S24P, IE-5000-12S12P-10G, and IE-5000-16S12P.
The power supply has a wide input voltage range of 18-75V and is rated for a maximum operating temperature of 140 degrees Fahrenheit and a minimum operating temperature of -40 degrees Fahrenheit. It is also 5-95% (non-condensing) humidity resistant.
The power supply is a plug-in module that measures 8.1 inches wide, 5 inches deep, and 1.6 inches high. It weighs 2.49 pounds.
The Cisco PWR-RGD-LOW-DC-H is a reliable and versatile hot-pluggable power supply that is suitable for use in a variety of environments. It is a good option for businesses that need a reliable power supply for their Cisco devices.
Specifications
| Cooling Method | Convection |
| MTBF | Over 500,000 hours |
| Compliance Standards | UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
| Environmental Standards | IEC 60068-2-2 Environmental Type Tested to +85°C for 16 hours |
| Safety Certifications | CE Marking, cULus, CB, CCC, EAC |
| Designed For | Cisco Industrial Ethernet switches requiring low-voltage DC input |
| Additional Features | Supports redundant power configurations for increased reliability |
Properties
| Product Name | Cisco PWR-RGD-LOW-DC-H | |
| Product Description | Low-voltage DC power supply module designed for Cisco Industrial Ethernet switches, offering hot-swappable functionality and durability for harsh environments | |
| Product Type | Power Supply Module | |
| Output Voltage | 54 V DC | SATA 6 Gbps |
| Output Power | 150 W | |
| Input Voltage Range | 24–60 V DC | |
| Input Current | 6.5 A at 24 V DC; 2.6 A at 60 V DC | |
| Hot-Swappable | Yes | |
| Compatibility | Cisco IE 4010 Series, Cisco IE 5000 Series | |
| Dimensions (H x W x D) | 1.58 x 8.15 x 5 inches (4 x 20.7 x 12.7 cm) | |
| Weight | 2.5 lbs (1.13 kg) | |
| Operating Temperature Range | -40°F to 140°F (-40°C to 60°C) | |
| Storage Temperature Range | -40°F to 185°F (-40°C to 85°C) | |
| Operating Humidity | 5% to 95% (non-condensing) | |
