CISCO PWR-IE50W-AC-L POWER SUPPLY
| Part No: | PWR-IE50W-AC-L |
| Detail: | AC 100-240 V, for Catalyst IE3200 Rugged Series, 50 Watt< |
| List Price: |
|
| Price: |
$170.00
|
| You Save: | $297.24 (64% OFF) |
| Condition: | Brand New Sealed |
| Availability: | IN STOCK |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Description

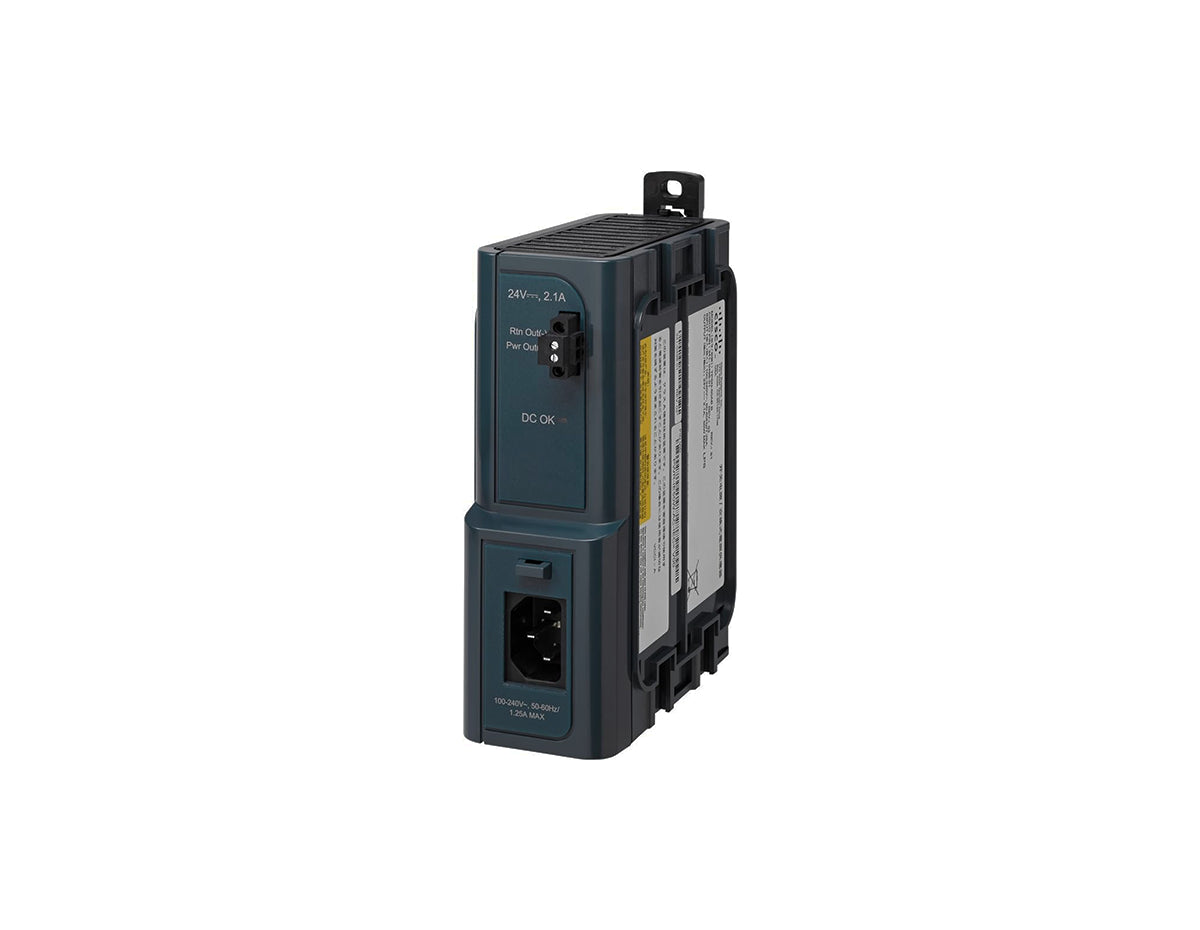

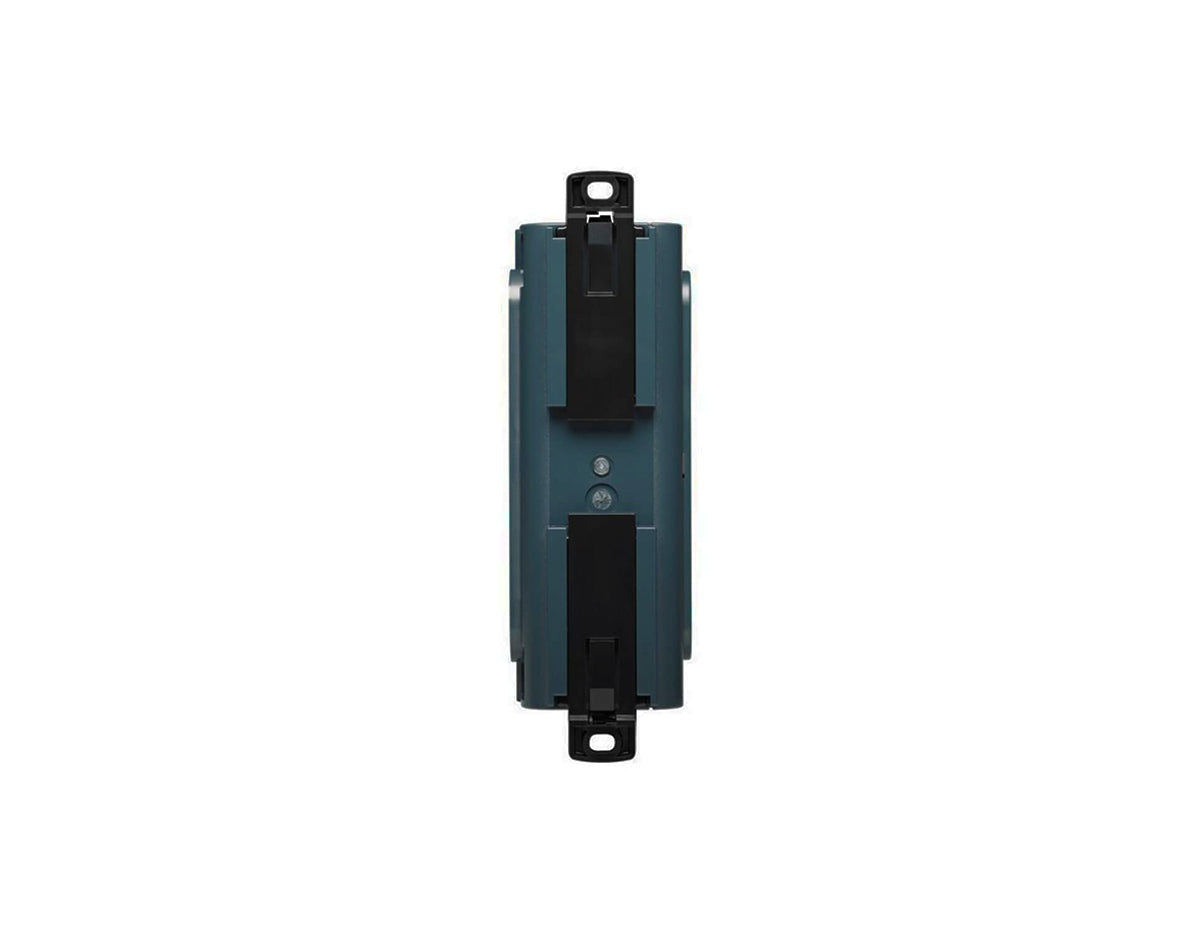

Cisco PWR-IE50W-AC-L Power Supply
Cisco's industrial din-rail power supply portfolio provides versatile options for powering industrial networking equipment. The PWR-IE50W-AC-L delivers a power of 50 watts - AC to DC. Key features comprise operating, din-rail mountable designs, support for high-capacity Power over Ethernet (PoE), options for conformal coating.
Key Features:
- 50W
- High-capacity PoE
- Din-rail
For detailed specifications, refer to the Cisco PWR-IE50W-AC-L datasheet in the tabs.
Accessories
| Accessories and License Upgrade PIDs | |
| IEM-3000-8TM= | ● Expansion Copper module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 8 10/100 TX ports ● 2.8W |
| IEM-3000-8FM= | ● Expansion Fiber module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 8 100 FX ports ● 10.1W |
| IEM-3000-4SM= | ● Expansion SFP module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 4 100M SFP ports ● 7.6W |
| IEM-3000-8SM= | ● Expansion SFP module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 8 100M SFP ports ● 12.2W |
| IEM-3000-4PC= | ● Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 4 10/100 PoE/PoE+ ports ● External PoE power source (44-57 VDC for PoE/50-57 VDC for PoE+) ● 7.3W |
| IEM-3000-4PC-4TC= | ● Expansion PoE/PoE+ module for Cisco IE-3000-4TC and IE-3000-8TC switches ● 4 non-PoE ports and 4 10/100 PoE/PoE+ ports ● External PoE power source (44-57 VDC for PoE/50-57 VDC for PoE+) ● 7.9W |
| PWR-IE50W-AC= | Expansion power module for IE-3000-4TC and IE-3000-8TC switches |
| PWR-IE50W-AC-IEC= | Expansion power module for IE-3000-4TC and IE-3000-8TC switches |
| PWR-IE65W-PC-AC= | AC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules |
| PWR-IE65W-PC-DC= | DC-DC, 54VDC power module to support 65 watts for PoE/PoE+ modules |
| CAB-SM-LCSC-1M | 1m-fiber single-mode LC-to-SC connectors |
| CAB-SM-LCSC-5M | 5m-fiber single-mode LC-to-SC connectors |
| CF-IE3000= | IE 3000 Compact Flash |
| PWR-IE3000-CLP= | IE 3000 Power Transformer Spare connector clip |
| PWR-IE3000-CNCT= | IE 3000 Power Spare connector |
| LPNL-IE3000= | IE 3000 Left Panel Spare |
| RPNL-IE3000= | IE 3000 Right Panel Spare |
| DINCLP-IE3000= | Din-rail clip 4 pack Spare |
| BMP-IE3000= | Din-rail clip bumper 4 pack Spare |
| STK-RACKMNT-2955= | Din-rail adapter for rack mounting |
| IE-SW-SPARE | Spare IOS software upgrade part number (L2 to L3 features) |
| IE3000-DNA-E-L | DNA Essentials license |
| IE3000-DNA-E-L-3Y | DNA Essentials 3-year term license option |
| IE3000-DNA-E-L-5Y | DNA Essentials 5-year term license option |
| GLC-FE-100FX-RGD= | 100BASE-FX |
| GLC-FE-100LX-RGD | 100BASE-LX10 |
| GLC-FE-T-I= | 100BASE-T |
| GLC-FE-100FX= | 100BASE-FX |
| GLC-FE-100LX= | 100BASE-LX10 |
| GLC-FE-100EX= | 100BASE-EX |
| GLC-FE-100ZX= | 100BASE-ZX |
| GLC-FE-100BX-D= | 100BASE-BX10 |
| GLC-FE-100BX-U= | 100BASE-BX10 |
| GLC-SX-MM-RGD= | 1000BASE-SX |
| GLC-LX-SM-RGD= | 1000BASE-LX/LH |
| GLC-ZX-SM-RGD= | 1000BASE-ZX |
| GLC-BX40-U-I= | 1000BASE-BX40 |
| GLC-BX40-D-I= | 1000BASE-BX40 |
| GLC-BX40-DA-I= | 1000BASE-BX40 |
| GLC-BX80-U-I= | 1000BASE-BX80 |
| GLC-BX80-D-I= | 1000BASE-BX80 |
| GLC-SX-MMD= | 1000BASE-SX |
| GLC-LH-SMD= | 1000BASE-LX/LH |
| GLC-EX-SMD= | 1000BASE-EX |
| GLC-ZX-SMD= | 1000BASE-ZX |
| GLC-BX-D= | 1000BASE-BX10 |
| GLC-BX-U= | 1000BASE-BX10 |
| CWDM-SFP-xxxx= (8 freq) | CWDM 1000BASE-X |
| DWDM-SFP-xxxx= (40 freq) | DWDM 1000BASE-X |
| SFP-GE-S= | 1000BASE-SX |
| SFP-GE-L= | 1000BASE-LX/LH |
| SFP-GE-Z= | 1000BASE-ZX |
| GLC-SX-MM= | 1000BASE-SX |
| GLC-LH-SM= | 1000BASE-LX/LH |
| GLC-ZX-SM= | 1000BASE-ZX |
| GLC-TE= | 1000BASE-T |
| GLC-T= | 1000BASE-T |
| GLC-T-RGD= | 1000BASE-T |
Specifications
| Specifications | PWR-IE50W-AC |
| Mean Time Between Failures (MTBF) | 1,662,359 |
| Operating Temperature | • -40C to +75C • -40C to +70C (Vented Enclosure – 40 LFM Air Flow) • -40C to +60C (Sealed Enclosure – 0 LFM Air Flow) • -24C to +75C (Fan or Blower equipped Enclosure – 200 LFM Air Flow) • -40C to +85C (IEC 60068-2-2 Environmental Type Testing – 16 hours) |
| Storage Temperature | -40 C to +85 C |
| Operating Altitude | Up to 13,000 ft (3963m) |
| Storage Altitude | Up to 15,000 ft (4573m) |
| Standard safety certifications | UL 60950-1 CSA C22.2 No. 60950-1 TUV/GS to EN 60950-1 CB to IEC 60950-1 with all country deviations NOM |
| Electromagnetic emissions | FCC Part 15 Class A EN 55022 CISPR 22 CISPR11 VCCI Class A AS/NZS 3548 Class A CNS 13438 Class A KN 22 Class A |
| Electromagnetic immunity | EN 55024 AS/NZS CISPR 24 KN 24 IEC/EN 61000-4-2 (Electro Static Discharge) IEC/EN 61000-4-3 (Radiated Immunity) IEC/EN 61000-4-4 (Fast Transients) IEC/EN 61000-4-5 (Surge) IEC/EN 61000-4-6 (Conducted Immunity) IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity) IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity) IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity) IEC/EN 61000-4-11 (AC power Voltage Immunity) IEC/EN 61000-4-16 (Low Frequency Conducted CM Disturbances) IEC/EN 61000-4-17 (Ripple on DC Input Power) IEC/EN 61000-4-18 (Damped Oscillatory Wave) IEC/EN 61000-4-29 (Voltage Dips Immunity, DC power) IEEE C37.90 (Surge) IEEE C37.90.1 (Fast Transients) IEEE C37.90.2 (Radiated Immunity) IEEE C37.90.3 (Electro Static Discharge) |
| Mechanical stability | IEC 60628-2-27 Shock 20g (operational), 30g (nonoperational) |
| Industry specifications | EN 61131-2 Programmable Controllers (EMC/EMI, environmental, mechanical) IEEE 1613 Power Station and Substation Networking Devices IEC 61850-3 Power Station and Substation Communication Networks and Systems EN 61326-1 Electrical Equipment for Measurement, Control and Laboratory Use - EMC EN 61000-6-1 Immunity for Light Industrial Environments EN 61000-6-2 Immunity for Industrial Environments EN 61000-6-4 Emissions for Industrial Environments TS 61000-6-5 EMC Immunity for Power Station and Substation EN 50155 Railway, Electronic Equipment on Rolling Stock (EMI/EMC, environmental, mechanical) EN 50121-3-2 Railway, Electromagnetic Compatibility on Rolling Stock EN 50121-4 Railway, Emission and Immunity of Signaling and Telecommunications Apparatus EN 60945 Maritime Navigation and Radio-communication Equipment and Systems IEC 60533 Shipboard Electrical and Electronic Installation EMC Marine Type Approval (BV, DNV, Korean Register, Lloyd Register) NEMA TS-2 (EMC, environmental, mechanical) ABB Industrial IT certification ODVA Industrial EtherNet/IP support PROFINETv2 support Directive 2011/65/EU RoHS IP20 |
| Hazardous locations | UL/CSA 60079-0, -15 (Class 1, Div 2 A-D) (requires cabinet enclosure) EN 60079-0, -15 ATEX Certification (Class 1, Zone 2 A-D) (requires cabinet enclosure) IEC 60079-0, -15 (Test report only) (requires cabinet enclosure) UL 508 CSA C22.2 No. 142 |
| Humidity | Relative humidity: 5% to 95% non-condensing |
Properties
| Properties | Cisco PWR-IE50W-AC |
| Description | Expansion power module for IE-3000-4TC and IE-3000-8TC switches |
| Product Family | Industrial Ethernet 3000 |
| Product Type | Power Supply |
| Configurations | Expansion Power Module for Cisco IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E and IE-3000-8TC-E switches, supports input AC 100-240V/1.25A or Input DC 125-250V/1A, Output DC 24V/2.1A, DIN-Rail Mount, compatible with PWR-IE3000-AC |
| Dimensions (HxWxD) Inches | 2.0”W x 5.8”H x 4.4”D (51mm W x 147mm H x 112mm D |
| Weight | 1.4 lb (0.65 kg) |
| Input voltage and currents supported | 100-240VAC/1.25A |
