CISCO PWR-IE50W-AC POWER SUPPLY

Model: PWR-IE50W-AC
Detail: Power Supply (DIN Rail Mountable), AC 110-220/ DC 88-300 V, for Industrial Ethernet 1000/2000/3000/4000 Series
List Price: US$555.52
Price:
$195.00
You Save: $360.52 (65% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside NJ and TX
Quantity:
+
-

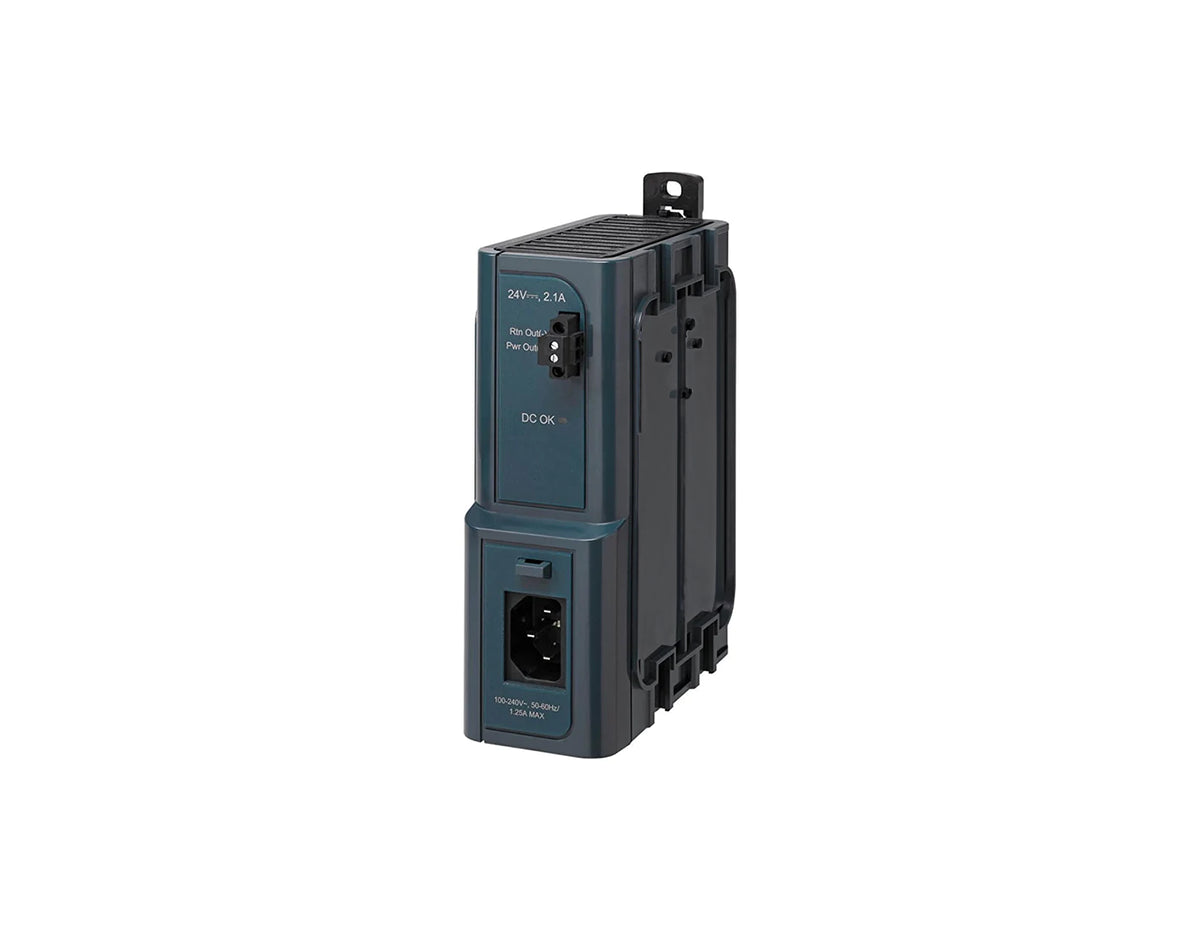

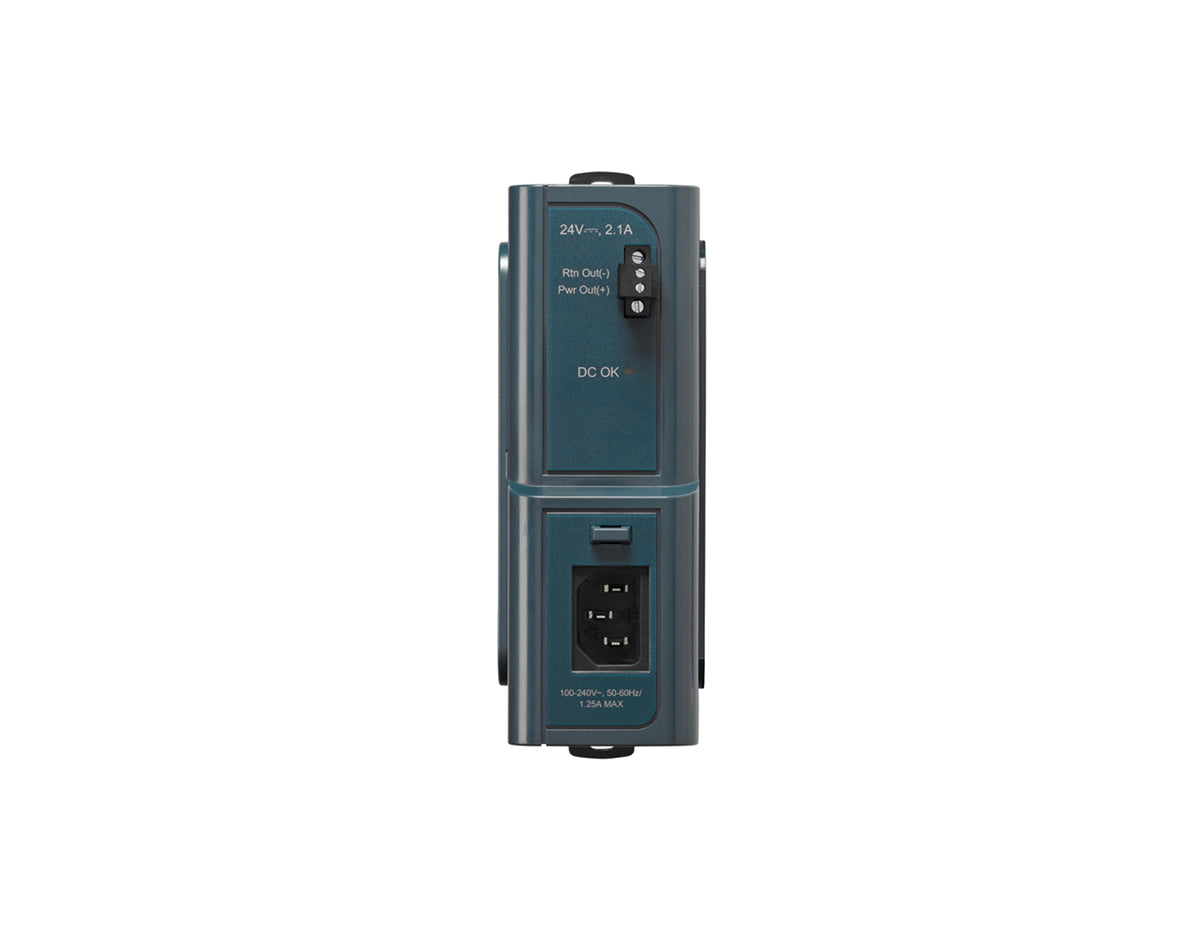

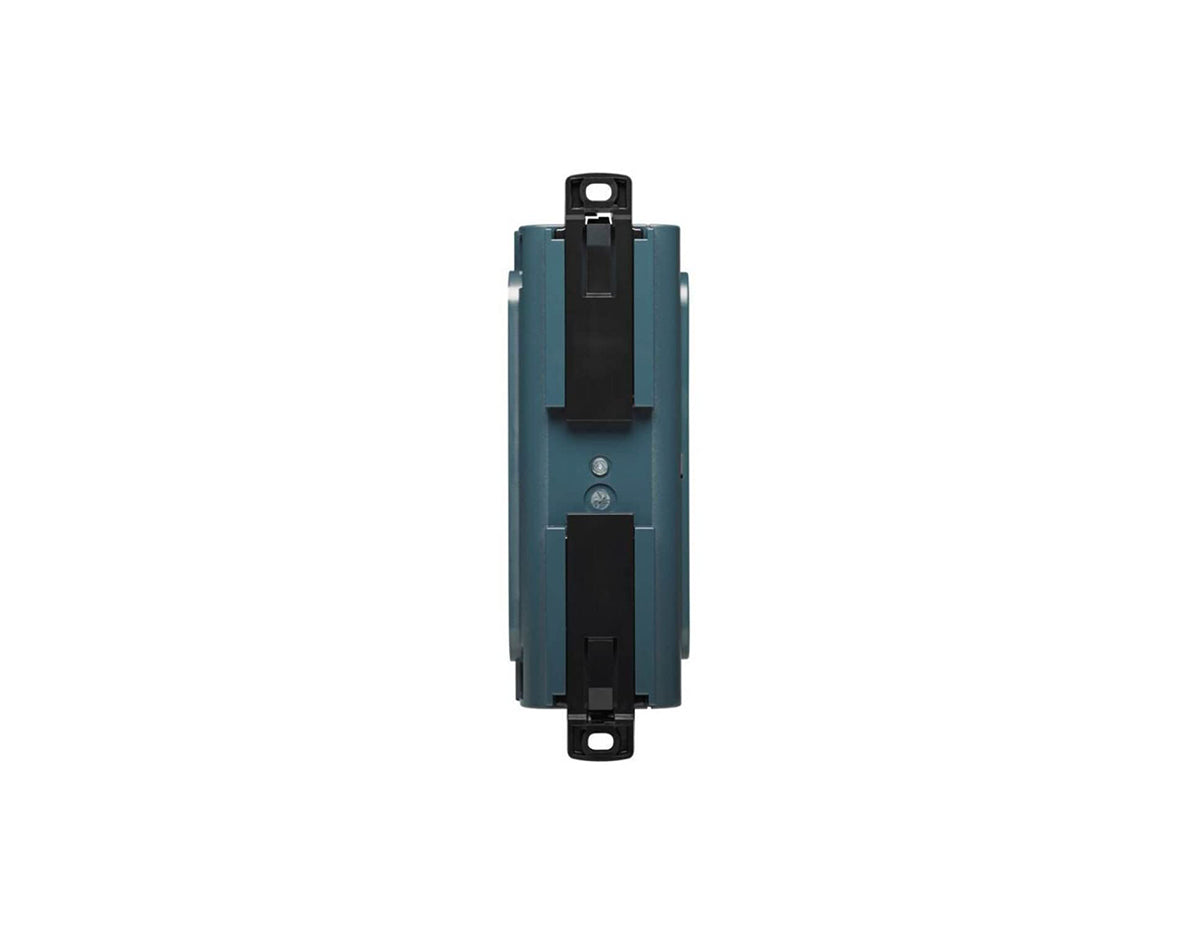

Cisco PWR-IE50W-AC Power Supply

Cisco offers industrial din-rail power supplies for powering networking equipment in AC and DC configurations. These rugged and reliable supplies are compact, support high-capacity PoE, and have conformal coating options. The PWR-IE50W-AC is a 50W AC to DC or High DC to DC power supply, compatible with the Cisco Industrial Ethernet 3000 Series.

Key Features:

  • 50W
  • DIN-rail
  • For Cisco IE3000 series

For detailed specifications, refer to the Cisco PWR-IE50W-AC datasheet in the tabs.





Specifications

Specifications PWR-IE50W-AC
Mean Time Between Failures (MTBF) 1,662,359
Operating Temperature -40C to +75C
-40C to +70C (Vented Enclosure 40 LFM Air Flow)
-40C to +60C (Sealed Enclosure 0 LFM Air Flow)
-24C to +75C (Fan or Blower equipped Enclosure 200 LFM Air Flow)
-40C to +85C (IEC 60068-2-2 Environmental Type Testing 16 hours)
Storage Temperature -40 C to +85 C
Operating Altitude Up to 13,000 ft (3963m)
Storage Altitude Up to 15,000 ft (4573m)
Standard safety certifications UL 60950-1
CSA C22.2 No. 60950-1
TUV/GS to EN 60950-1
CB to IEC 60950-1 with all country deviations
NOM
Electromagnetic emissions FCC Part 15 Class A
EN 55022
CISPR 22
CISPR11
VCCI Class A
AS/NZS 3548 Class A
CNS 13438 Class A
KN 22 Class A
Electromagnetic immunity EN 55024
AS/NZS CISPR 24
KN 24
IEC/EN 61000-4-2 (Electro Static Discharge)
IEC/EN 61000-4-3 (Radiated Immunity)
IEC/EN 61000-4-4 (Fast Transients)
IEC/EN 61000-4-5 (Surge)
IEC/EN 61000-4-6 (Conducted Immunity)
IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity)
IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity)
IEC/EN 61000-4-10 (Oscillatory Magnetic Field Immunity)
IEC/EN 61000-4-11 (AC power Voltage Immunity)
IEC/EN 61000-4-16 (Low Frequency Conducted CM Disturbances)
IEC/EN 61000-4-17 (Ripple on DC Input Power)
IEC/EN 61000-4-18 (Damped Oscillatory Wave)
IEC/EN 61000-4-29 (Voltage Dips Immunity, DC power)
IEEE C37.90 (Surge)
IEEE C37.90.1 (Fast Transients)
IEEE C37.90.2 (Radiated Immunity)
IEEE C37.90.3 (Electro Static Discharge)
Mechanical stability IEC 60628-2-27 Shock 20g (operational), 30g (nonoperational)
Industry specifications EN 61131-2 Programmable Controllers (EMC/EMI, environmental, mechanical)
IEEE 1613 Power Station and Substation Networking Devices
IEC 61850-3 Power Station and Substation Communication Networks and Systems
EN 61326-1 Electrical Equipment for Measurement, Control and Laboratory Use - EMC
EN 61000-6-1 Immunity for Light Industrial Environments
EN 61000-6-2 Immunity for Industrial Environments
EN 61000-6-4 Emissions for Industrial Environments
TS 61000-6-5 EMC Immunity for Power Station and Substation
EN 50155 Railway, Electronic Equipment on Rolling Stock (EMI/EMC, environmental, mechanical)
EN 50121-3-2 Railway, Electromagnetic Compatibility on Rolling Stock
EN 50121-4 Railway, Emission and Immunity of Signaling and Telecommunications Apparatus
EN 60945 Maritime Navigation and Radio-communication Equipment and Systems
IEC 60533 Shipboard Electrical and Electronic Installation EMC
Marine Type Approval (BV, DNV, Korean Register, Lloyd Register)
NEMA TS-2 (EMC, environmental, mechanical)
ABB Industrial IT certification
ODVA Industrial EtherNet/IP support
PROFINETv2 support
Directive 2011/65/EU RoHS
IP20
Hazardous locations UL/CSA 60079-0, -15 (Class 1, Div 2 A-D) (requires cabinet enclosure)
EN 60079-0, -15 ATEX Certification (Class 1, Zone 2 A-D) (requires cabinet enclosure)
IEC 60079-0, -15 (Test report only) (requires cabinet enclosure)
UL 508
CSA C22.2 No. 142
Humidity Relative humidity: 5% to 95% non-condensing

Properties

Properties Cisco PWR-IE50W-AC
Description Expansion power module for IE-3000-4TC and IE-3000-8TC switches
Product Family Industrial Ethernet 3000
Product Type Power Supply
Configurations Expansion Power Module for Cisco IE-3000-4TC, IE-3000-8TC, IE-3000-4TC-E and IE-3000-8TC-E switches, supports input AC 100-240V/1.25A or Input DC 125-250V/1A, Output DC 24V/2.1A, DIN-Rail Mount, compatible with PWR-IE3000-AC
Dimensions (HxWxD) Inches 2.0W x 5.8H x 4.4D (51mm W x 147mm H x 112mm D
Weight 1.4 lb (0.65 kg)
Input voltage and currents supported 100-240VAC/1.25A
