Model: PWR-IE480W-PCAC-L
Detail: AC 100-240 V, 480 Watt
List Price: US$2,951.30
You Save: $1,201.30 (41% OFF)
Condition: Brand New Sealed
Availability: IN STOCK
Shipping: FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods.
Tax: $0.00 Tax Outside New Jersey

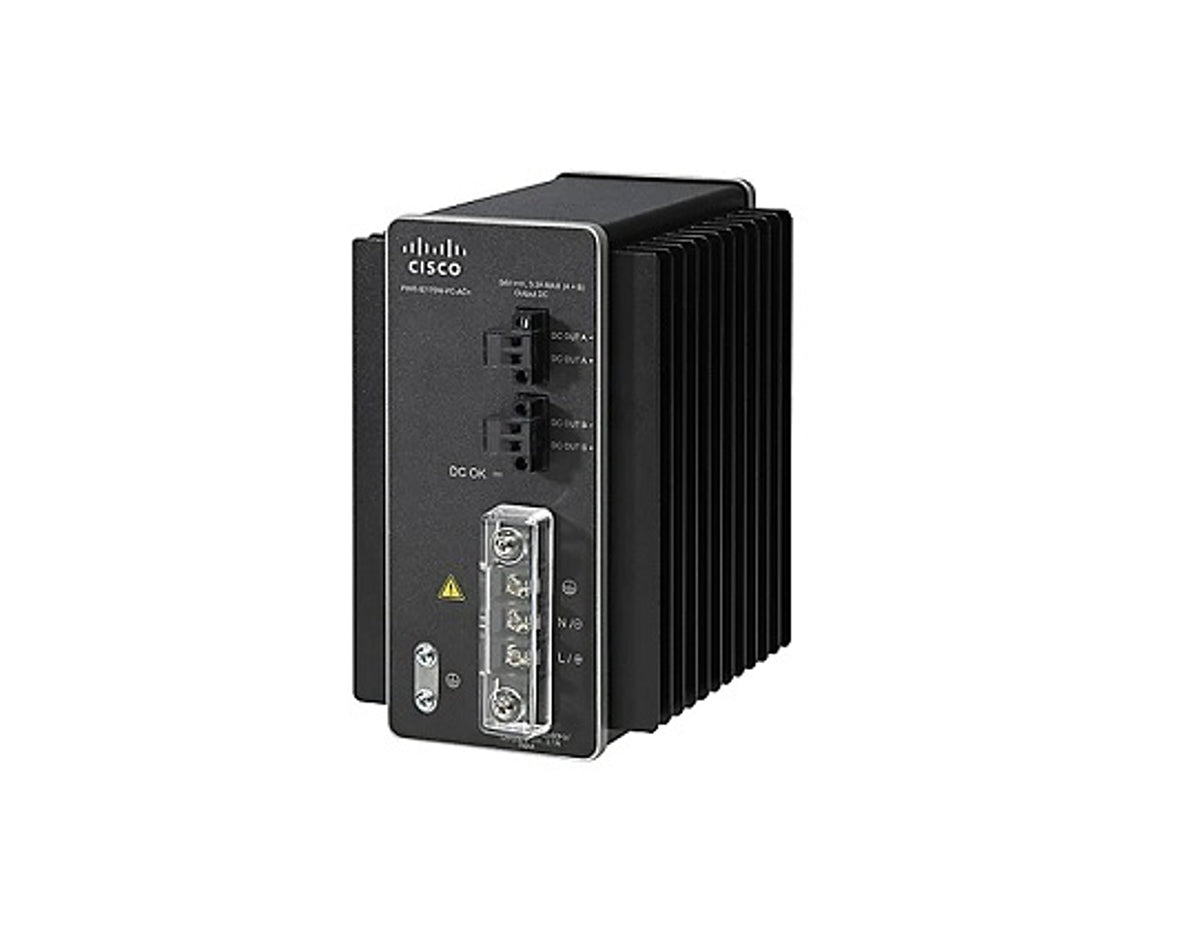

The Cisco Power Module for POE solution is a DIN rail-mountable power supply module. This Cisco power adapter provides a power of 480 watts. The Cisco power module is compatible with the Cisco Industrial Ethernet 4000 Series.


Specifications PWR-IE480W-PCAC-L
Protections Over voltage protection
Over current protection
Over temperature protection
Short circuit protection
IP rating IP20
Operating temperature -40°C to +75°C
Storage temperature -40°C to +85°C
Power de-rating Vertical mounting:
> 50°C de-rate power by 2.5%/°C
> 70°C de-rate power by 5%/°C
Operating humidity 5 to 95% RH (non-condensing)
Electric safety SIQ Bauart to EN 60950-1
UL/cUL recognized to UL 60950-1 and CSA C22.2 No. 60950-1 UL/cUL recognized to UL 62368-1 and CSA C22.2 No. 62368-1 CB scheme to IEC 60950-1
UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)
CSA C22.2 No. 107.1-01 (File No. 181564)
EMC/ Industry standards EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61204-3, EN 55024 (EN 61000-4-2 LEVEL 3, Performance Criteria A and EN 61000-4-3,4,5,6,8,11,12 LEVEL 3, Performance Criteria A)
CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class A


Properties Cisco PWR-IE480W-PCAC-L
Description 480W AC to DC power supply
Product Family Industrial Ethernet 4000
Product Type Power Supply
Rated nominal input operating range AC 100-240V/6A, 50-60Hz
Supported input voltage operating range AC 90-264V
Typical efficiency 92%
Inrush current at 25C ambient < 35A @ 115VAC and 230VAC
Remarks Not approved for hazardous location installations
PoE / PoE+ support Yes
Nominal output voltage / adjustment range 54VDC / 48-56VDC, 8.9A
Max output power 480W
Holdup time at 100% load 20ms
Dimensions (W x H x D) 144 mm x 121 mm x 118.6 mm
5.66 in x 4.76 in x 4.66 in
Weight 3.02 lb (1.37 kg)
MTBF 1,058,750 hours
