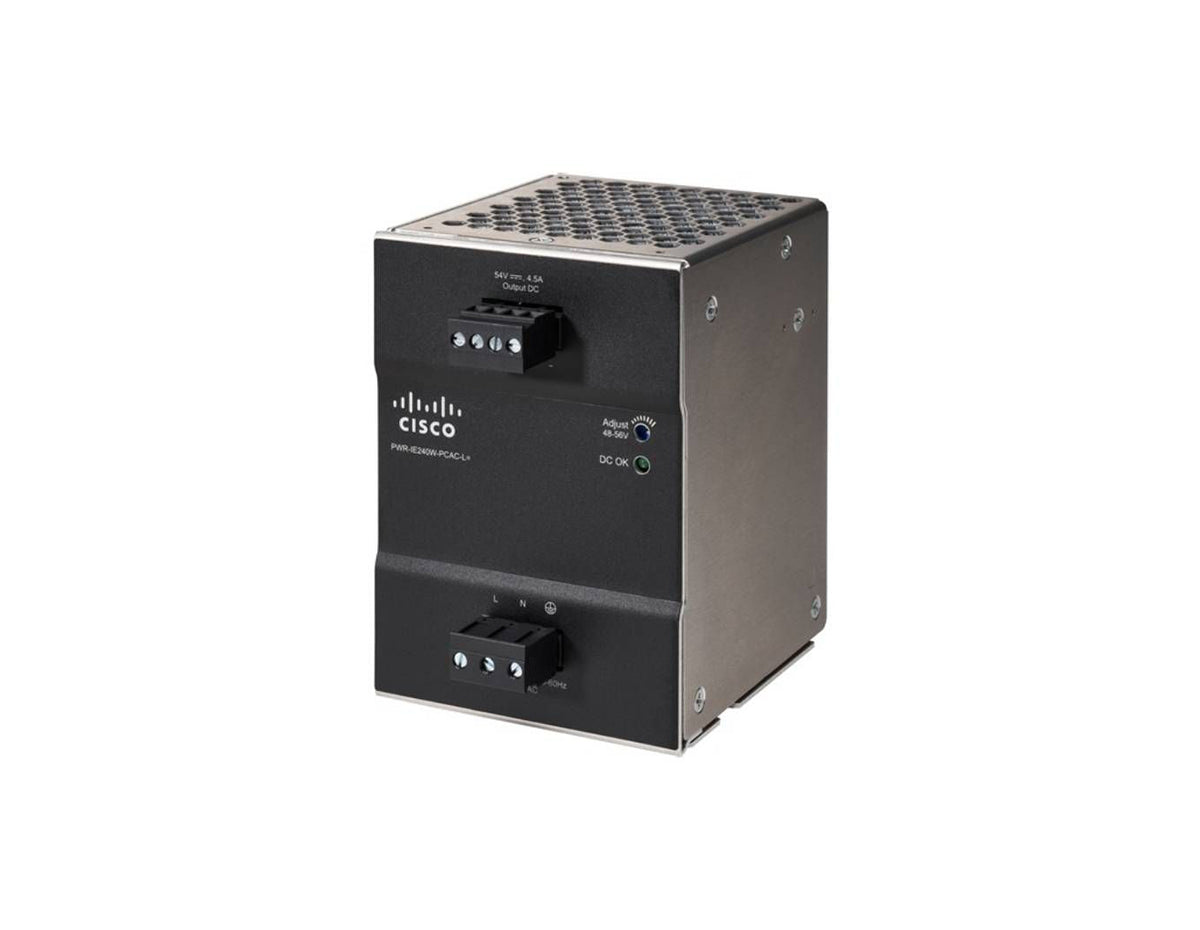

CISCO PWR-IE240W-PCAC-L POWER SUPPLY
| Part No: | PWR-IE240W-PCAC-L |
| Detail: |
|
| List Price: |
|
| Price: |
$1,295.00
|
| You Save: | $656.76 (34% OFF) |
| Condition: | Brand New Sealed |
| Availability: | Ask For ETA |
| Shipping: | FREE SHIPPING for all U.S orders over $100. Please call us at 201-559-1474, fill out the contact form, or chat with a live agent for other shipping methods. |
| Tax: | $0.00 Tax Outside NJ, TX, FL and PA |
| Quantity: |
|
Cisco PWR-IE240W-PCAC-L Power Supply
Cisco's industrial din-rail power supply portfolio provides versatile options for powering industrial networking equipment. The PWR-IE240W-PCAC-L= delivers a power of 240 watts. Key features comprise operating, din-rail mountable designs, support for high-capacity Power over Ethernet (PoE), options for conformal coating,
Key Features:
- 240W
- High-capacity PoE
- Din-rail
For detailed specifications, refer to the Cisco PWR-IE240W-PCAC-L datasheet in the tabs.
Specifications
| Specifications | PWR-IE240W-PCAC-L |
| Protections | Over voltage protection Over current protection Over temperature protection Short circuit protection |
| IP rating | IP20 |
| Operating temperature | -40°C to +80°C |
| Storage temperature | -40°C to +85°C |
| Power de-rating | Vertical mounting: > 50°C de-rate power by 2.5%/°C Horizontal mounting: > 40°C de-rate power by 2.5%/°C |
| Operating humidity | 5 to 95% RH (non-condensing) |
| Electric safety | SIQ Bauart to EN 60950-1 UL/cUL recognized to UL 60950-1 and CSA C22.2 No. 60950-1 UL/cUL recognized to UL 62368-1 and CSA C22.2 No. 62368-1 CB scheme to IEC 60950-1 UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355) CSA C22.2 No. 107.1-01 (File No. 181564) |
| EMC/ Industry standards | EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61204-3, EN 55024 (EN 61000-4-2 LEVEL 3, Performance Criteria A and EN 61000-4-3,4,5,6,8,11,12 LEVEL 3, Performance Criteria A) CISPR 32, EN 55032, CISPR 11, EN 55011, FCC Title 47: Class A |
Properties
| Properties | Cisco PWR-IE240W-PCAC-L |
| Description | 240W AC to DC power supply |
| Product Family | Industrial Ethernet 4000 |
| Product Type | Power Supply |
| Rated nominal input operating range | AC 100-240V/3.5A, 50-60Hz |
| Supported input voltage operating range | AC 90-264V |
| Typical efficiency | 91% |
| Inrush current at 25C ambient | < 35A @ 115VAC and 230VAC |
| Remarks | Not approved for hazardous location installations |
| PoE / PoE+ support | Yes |
| Nominal output voltage / adjustment range | 54VDC / 48-56VDC, 4.5A |
| Max output power | 240W |
| Holdup time at 100% load | 20ms |
| Dimensions (W x H x D) | 85 mm x 121 mm x 124.1 mm 3.34 in x 4.76 in x 4.88 in |
| Weight | 2.11 lb (0.96 kg) |
| MTBF | 1,579,900 hours |
